2013.5 Citroen C4 DAG Owner's Manual

287
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


In changing the setting
of treble and bass the
equalizer setting is
deselected. The selection of an equalizer setting imposes the balance settings.
Modifying one without the other is not possible. Modify the balance or equalizer settings to obtain
the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected. The selection of a distribution setting imposes the balance settings.
Modifying one without the other is not possible. Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing an
distribution setting,
the balance setting is
deselected.
There is a difference in
sound quality between
the different audio
sources (radio, CD…). For optimum sound quality, the audio settings for Volume, Bass, Treble,
Equalizer and Loudness can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD…). Check that the audio settings for (Volume, Bass,
Treble, Equalizer, Loudness) are adapted to
the sources listened to. It is advisable to set the
AUDIO functions (Bass, Treble, Fr-Re balance,
Le-Ri balance) to the middle position, select the
"None", musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.

288
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


With the engine off, the
system switches off after
a few minutes of use. When the engine is switched off, the system's operating time depends on
the battery charge.
The switch-off is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Playback of my USB
memory stick starts only
after a very long wait
(around 2 to 3 minutes). Some fi les supplied with the memory stick may greatly slow down access
to reading the memory stick (multiplication by 10 of the catalogue time). Delete the fi les supplied with the memory stick
and limit the number of sub-folders in the fi le
structure on the memory stick.
When I connect my
iPhone as telephone and
to the USB port at the
same time, I am unable
to play the music fi les. When the iPhone connects automatically as a telephone, it forces the
streaming function. The streaming function takes the place of the USB
function which is then not useable, there is a period without sound of the
track being played with Apple
® players. Disconnect and reconnect to the USB port (the
USB function takes priority over streaming).
When I connect my
Apple
®
player or my
BlackBerry ® to the
USB port, I have alert
messages on the current
consumption by the USB
port. When charging, the current consumption of these smartphones is greater
than the rating of the USB port, which is 500 mA.

289
The system is coded in such a way that it will only
operate in your vehicle.







AUDIO SYSTEM / BLUETOOTH

01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio system may switch
off after a few minutes.



CONTENTS

02 Steering mounted controls

03 Main menu

04 Audio

05 Using the telephone

06 Audio settings

07 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
290
291
292
293
304
312
314
317

01
290
Automatic search up / down for radio
frequencies.
Select previous / next CD, USB,
streaming track.
Navigation in a list.
Display the list of stations
received, CD/MP3 tracks or
folders.
Long press: managing the
classifi cation of MP3/WMA
fi les / update the list of stations
received.

Abandon the current
operation.
Up one level (menu or
folder).


On / Off.
Selection of AM / FM /
DAB * wavebands.
Select preset radio station.
Long press: store a station.
Select screen display
between modes:
Full screen: Audio (or
telephone if call in
progress) /
In a window: Audio
(or telephone if call in
progress) - Time or Trip
computer.
Long press: black screen
(DARK).


Audio settings:
audio ambiences, treble,
bass, loudness, distribution,
left/right balance, front/rear
fader, automatic volume.
Access to main menu.

TA (Traffi c
Announcement)
function On / Off.
Long press:
access to type of
information.
Select source:
Radio, CD, AUX, USB,
Streaming.
Accept an incoming
call.
Confi rmation or display of
contextual menu.
Manual step by step search up / down
for radio frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre /
artist / playlist in the USB device.
Navigation in a list.

Volume adjustment.

FIRST STEPS


* Depending on model.

02
291

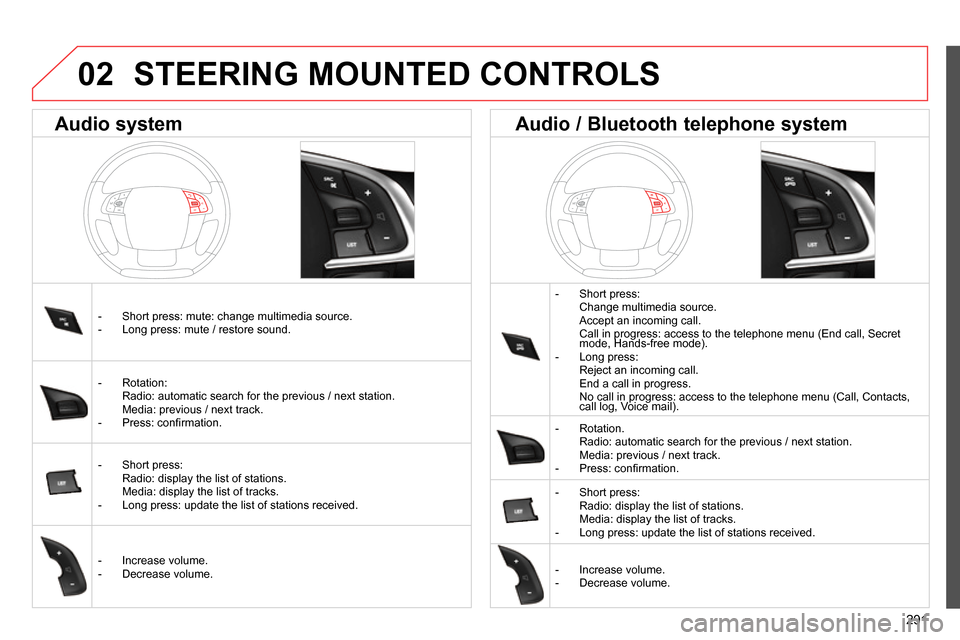

STEERING MOUNTED CONTROLS




- Short press:
Change multimedia source.
Accept an incoming call.
Call in progress: access to the telephone menu (End call, Secret
mode, Hands-free mode).

- Long press:
Reject an incoming call.
End a call in progress.
No call in progress: access to the telephone menu (Call, Contacts,
call log, Voice mail).


- Rotation.
Radio: automatic search for the previous / next station.
Media: previous / next track.

- Press: confi rmation.


- Short press:
Radio: display the list of stations.
Media: display the list of tracks.

- Long press: update the list of stations received.


- Increase volume.

- Decrease volume.




- Short press: mute: change multimedia source.

- Long press: mute / restore sound.


- Rotation:
Radio: automatic search for the previous / next station.
Media: previous / next track.

- Press: confi rmation.


- Short press:
Radio: display the list of stations.
Media: display the list of tracks.

- Long press: update the list of stations received.


- Increase volume.

- Decrease volume.







Audio system
Audio / Bluetooth telephone system

03
292
" Multimedia
": Media parameters,
Radio parameters.
" Trip computer
": Warning log.

For a detailed global view of the
menus available, refer to "Screen
menu map" section.

" Bluetooth connection
":
Connections management,
Search for a device.
" Telephone
": Call, Directory
management, Telephone
management, Hang up.

MAIN MENU


" Personalisation-confi guration
": Defi ne
the vehicle parameters, Choice of language,
Display confi guration, Choice of units, Date
and time adjustment.








Screen C

Screen A

04
293
AUDIO


Press SOURCE
or SRC
several times in
succession and select radio.

Press BAND
to select a waveband.
Press LIST
to display the list of stations
received in alphabetical order.

A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).







Radio


Select the desired radio station and
confi rm by pressing OK
.
Selecting a station

A long press on LIST
builds or updates
the list of stations; audio reception is cut
momentarily.

The exterior environment (hills, buildings, tunnel, car park, below
ground...) may prevent reception, even in RDS station tracking
mode. This phenomenon is normal in the propagation of radio
waves and is in no way indicative of a fault with the audio system.

04
294
RDS, if displayed, enables you to continue listening to the same station
by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout
the country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of the station during a journey.


AUDIO


RDS






Receiving TA messages


The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.

Press TA INFO
to activate or deactivate
the reception of traffi c messages.


When the radio is displayed on the
screen, press OK
to display the
contextual menu.

Select " RDS
" and confi rm to save.
" RDS
" is displayed in the screen.


Make a long press on TA INFO
to
display the list of categories.

Receiving INFO messages

The INFO function gives priority to TA alert messages. To be
active, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB, ...) is interrupted
automatically to receive the INFO message. Normal play resumes
at the end of the message transmission.
Select or deselect categories to activate
or deactivate the reception of the
corresponding messages.
