2013.5 Citroen C4 DAG Owner's Manual

4
ACCESS
79








REMOTE CONTROL KEY

System which permits central unlocking
or locking of the vehicle using the door
lock or from a distance. It is also used
to locate and start the vehicle, as well
as providing protection against theft.



Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using the
remote control



Turn the key towards the front in
the driver's door lock to unlock the
vehicle completely.

Complete unlocking using the
remote control



Press the open padlock
to unlock the vehicle com-
pletely.











Opening the vehicle using the
2-button remote control

Unfolding the key



Press this button to unfold the key.

Unlocking using the key
Programming unlocking
Setting the total or selective un-
locking is done via the vehicle
confi guration menu.
Complete unlocking is activated by de-
fault.



Press the open padlock again to un-
lock the other doors and the boot.


The direction indicators fl ash for
a few seconds.
The spotlamps in the door mir-
rors come on.
Depending on version, the door
mirrors unfold, the welcome
lighting comes on, the alarm is
deactivated.

4
ACCESS
80









Unlocking the vehicle using the
3-button remote control

Unfolding the key



Press this button to unfold the key.




Press the open padlock
to unlock the vehicle com-
pletely.




Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using the
remote control


Maintain the press on the
open padlock until the de-
sired opening is obtained.
The windows stop as soon
as you release the button.

Opening the windows using the
remote control

Unlocking using the key



Turn the key forwards in the driver's
door lock to unlock the vehicle com-
pletely.

Programming unlocking
Selective unlocking of the boot



Press the middle button on
the remote control to un-
lock the boot. The doors
remain locked.
Setting the selective unlocking
of the boot is done via the vehi-
cle confi guration menu.
Selective unlocking of the boot is acti-
vated by default.

Programming the unlocking
Complete unlocking using the
remote control Selective unlocking is confi rmed by
rapid fl ashing of the direction indicators
for approximately two seconds.
If selective unlocking of the boot is de-
activated, pressing this button also un-
locks the doors. The complete or selective door
unlocking parameter is set via
the vehicle confi guration menu.
Remember to lock your boot
again by pressing the closed
padlock.


Press the open padlock again to un-
lock the other doors and the boot.

The direction indicators fl ash for
a few seconds.
The spotlamps in the door mir-
rors come on.
Depending on version, the door
mirrors unfold, the welcome
lighting comes on, the alarm is
deactivated.

4
ACCESS
81


















Locking the vehicle




Press the closed padlock to
lock the vehicle.

Normal locking using the remote
control

Normal locking using the key



Turn the key towards the rear in the
driver's door lock to lock the vehicle.








Locating your vehicle

This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.

Folding the key



First press this button to fold the key.



Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
around ten seconds.
The direction indicators fl ash for a few
seconds.
Depending on version, the door mirrors
fold, the alarm is activated.

If one of the doors or the boot
is still open, the central locking
does not take place.
However, the alarm (if present)
will be completely activated after
about 45 seconds.
If the vehicle is unlocked inad-
vertently and with no action on
the doors or boot, the vehicle will
lock itself again automatically af-
ter about 30 seconds.
If the alarm had previously been
activated, it will not be reactivated
automatically.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.



Closing the windows using the
3-button remote control




Press and hold down the closed
padlock until the level of closing
is achieved. The windows stop
when you release the button.

When closing the windows using
the remote control you must en-
sure that nothing prevents their
correct closing.
If you want to leave the windows
partly open, it is necessary to
deactivate the volumetric alarm
protection.

If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.

4
ACCESS
82












Anti-theft protection


Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.

In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle will not start;
contact a CITROËN dealer as soon as
possible.










Starting the vehicle




Insert the key in the ignition switch.
The system recognises the starting
code.


Turn the key fully towards the dash-
board to position 3 (Starting)
.


When the engine starts, release
the key.



A heavy object (key fob...), attached to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.


Switching the vehicle off




Immobilise the vehicle.


Turn the key fully towards you to
position 1 (Stop)
.


Remove the key from the ignition
switch.










Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompa-
nied by an audible signal, to remind
you that the key is still in the ignition
switch at position 1 (Stop)
.
If the key has been left in the ignition
switch at position 2 (Ignition on)
, the
ignition will be switched off automati-
cally after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition on)
.



Keep safely, away from your
vehicle, the label attached to the
keys given to you on acquisition
of the vehicle.

4
ACCESS
83















Operating fault with the
2-button remote control
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of malfunction
of the remote control, you can no longer
unlock, lock or locate your vehicle.



First of all, use the key in the lock to
unlock or lock your vehicle.


Then, reinitialise the remote control.

Reinitialisation



Switch off the ignition.



Turn the key to position 2 (Ignition on)
.



Press the closed padlock immedi-
ately for a few seconds.


Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Battery ref.: CR1620/3 volts.
Changing the battery

If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the screen.



Unclip the casing using a coin at the
notch.


Slide the fl at battery out of its loca-
tion.


Slide the new battery into its loca-
tion observing the original direction.


Clip the casing.


Reinitialise the remote control.

If the problem persists, contact
a CITROËN dealer as soon as
possible.

4
ACCESS
84

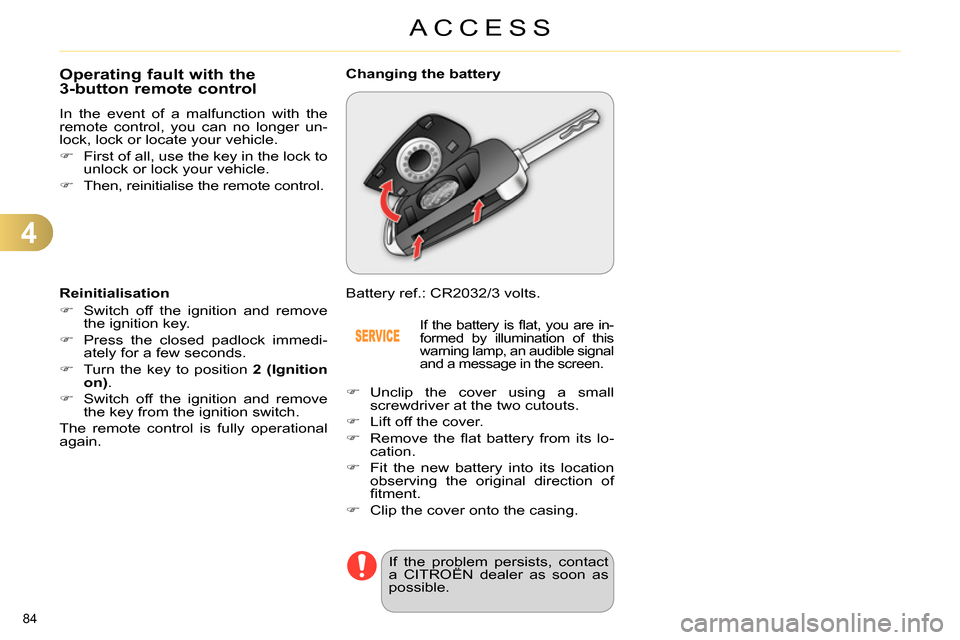

Operating fault with the
3-button remote control
In the event of a malfunction with the
remote control, you can no longer un-
lock, lock or locate your vehicle.



First of all, use the key in the lock to
unlock or lock your vehicle.


Then, reinitialise the remote control.

Reinitialisation



Switch off the ignition and remove
the ignition key.


Press the closed padlock immedi-
ately for a few seconds.


Turn the key to position 2 (Ignition
on)
.


Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Battery ref.: CR2032/3 volts.
Changing the battery

If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the screen.



Unclip the cover using a small
screwdriver at the two cutouts.


Lift off the cover.


Remove the fl at battery from its lo-
cation.


Fit the new battery into its location
observing the original direction of
fi tment.


Clip the cover onto the casing.

If the problem persists, contact
a CITROËN dealer as soon as
possible.

4
ACCESS
85














Lost keys

Go to a CITROËN dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder
code required to order a new key.






Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.

Remote control

The high frequency remote control is a sensitive system; do not operate
it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even
when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for
a very short period.
In all cases, it is essential to remove the key from the ignition switch when
leaving the vehicle.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a
CITROËN dealer, to ensure that only your keys can be used to open and
start the vehicle.

4
ACCESS
86











CENTRAL LOCKING CONTROL


Locking



Press this button to lock the vehicle.
The red indicator lamp in the button
comes on. If the vehicle is locked from the
outside, this button is inactive.



In this case, use the remote
control or the key to unlock
the vehicle or pull an interior
door handle to open a door.


If one of the doors is open, cen-
tral locking from the inside does
not take place.
Unlocking



Press the button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
ANTI-INTRUSION SECURITY


Operation
If one of the doors or the boot is open,
the automatic central locking does not
take place.
This control allows the simultaneous
locking or unlocking of the doors and
boot from inside the vehicle.
This system allows automatic simulta-
neous locking of the doors and boot as
soon as the speed of the vehicle ex-
ceeds 6 mph (10 km/h).

Carrying long and voluminous
objects

If you want to drive with the boot
open, you should press the central
locking button to lock the the doors.
Otherwise, every time the speed
of the vehicle exceeds 6 mph
(10 km/h), the locks will rebound
and the alerts mentioned above will
appear.
Pressing the central locking button un-
locks the vehicle.
Above 6 mph (10 km/h), this locking is
temporary.

This is signalled by the sound of the
locks rebounding, accompanied by il-
lumination of this symbol in the instru-
ment panel, an audible signal and the
display of an alert message.
