2012 VOLVO V60 Owners Manual

05 Infotainment system
Menu navigation, Infotainment
05

* Option/accessory, for more information, see Introduction.263 To navigate in the menus
The infotainment system's functions are con-
trolled via the system's menus. Each source in
the infotainment system (e.g. RADIO, MEDIA)
has its own separate menus. In order to access
the menus and activate a function a source
must first have been selected (e.g.
RADIO/FM1). Then press OK/MENU for access into
the menu for the selected source.
The menu options are selected by means of the
buttons in the centre console or via the steering
wheel keypad*. The functions are described
under their respective sections.
Controls in the centre console
RADIO
MEDIA
TEL
TUNE
OK/MENU
Search pathsThe search paths to the menu functions are
specified in the owner's manual with the form:Audio settings
Equalizer, which requires
that the following is carried out beforehand:
1. Select a source by pressing one of the but-
tons (e.g. RADIO, MEDIA etc.). Continue
to press in order to scroll down among the
options on the TV screen (e.g.
FM1),
release and wait a second and the selec-
tion is accepted automatically. Alterna-
tively, turn TUNE and confirm with OK/
MENU.
2.
Press OK/MENU and turn TUNE, or use
the thumbwheel* on the steering wheel
keypad to reach the desired menu option
e.g.
Audio settings and press OK/
MENU.
3.
Turn TUNE again to reach the desired sub-
menu, e.g.
Equalizer, and press OK/
MENU.
Menus RADIO
Main menu AMAM menu
Show presets1
Scan
1Only applies to High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

05 Infotainment system
Menu navigation, Infotainment
05
264* Option/accessory, for more information, see Introduction.
Audio settings2
Sound stage3
Equalizer4
Volume compensation
Reset all audio settings
Main menu FM1/FM2FM menu
TP
Show radio text
Show presets1
Scan
News settings
Advanced settings
REG
Alternative frequency
EON
Set TP favourite
PTY settingsReset all FM settings
Audio settings5
Main menu DAB1*/DAB2*DAB menu
Ensemble learn
PTY filtering
Turn off PTY filtering
Show radio text
Show presets1
Scan
Advanced settings
DAB linking
DAB band
Sub channels
Show PTY text
Reset all DAB settings
Audio settings5
Menus MEDIA
Main menu CD AudioDisc menu
Random
Scan
Audio settings5
Main menu CD/DVD1 DataDisc menu
Play/Pause
Stop
Random
Repeat folder
Change subtitle
Change audio track
Scan
Audio settings5
2The menu options for audio settings are the same for all audio sources.3Only applies to Premium Sound Multimedia.4Does not apply to Performance.1Only applies to High Performance Multimedia and Premium Sound Multimedia.5For submenus, see "Main menu AM".
ProCarManuals.com

05 Infotainment system
Menu navigation, Infotainment
05

* Option/accessory, for more information, see Introduction.265
Main menu DVD1 VideoDisc menu
DVD disc menu
Play/Pause/Continue
Stop
Subtitles
Audio tracks
Advanced settings
Angle
DivX® VOD code
Audio settings5
Main menu iPod4
iPod menu
Random
Scan
Audio settings5
Main menu USB4
USB menu
Play/Pause
Stop
Random
Repeat folder
Select USB device
Change subtitle
Change audio track
Scan
Audio settings5
Main menu Media Bluetooth4
Bluetooth menu
Random
Change device
Remove Bluetooth device
Scan
Bluetooth software version in car
Audio settings5
Main menu AUXAUX menu
AUX input volume
Audio settings5
Main menu TV*TV menu
Select country
Reorganize presets
Autostore
Scan
Audio settings5
Pop-up menu6 video and TV*
Press OK/MENU when a video file is being
played back or TV* is being shown in order to
access the pop-up menu.
Image settings
1Only applies to High Performance Multimedia and Premium Sound Multimedia.5For submenus, see "Main menu AM".4Does not apply to Performance.6Only applies when playing back videos or displaying TV*.
ProCarManuals.com

05 Infotainment system
Menu navigation, Infotainment
05
266
Source menu7
DVD video menu8
DVD disc TOP menu8
Menus TEL
Main menu BluetoothŸŸ handsfree4
Phone menu
All calls
All calls
Missed calls
Answered calls
Dialled calls
Call duration
Phone book
Search
New contact
Speed dials
Receive vCard
Memory status
Clear phone bookChange phone
Remove Bluetooth device
Phone settings
Discoverable
Sounds and volume
Phonebook download
Bluetooth software version in
car
Call options
Auto answer
Voicemail number
Disconnect phone
7What is shown in the pop-up menu for the source menu depends on what is being played back or displayed, it can be e.g. Disc menu or USB menu.8Only applies to DVD video discs.4Does not apply to Performance.
ProCarManuals.com

05 Infotainment system

05
267ProCarManuals.com

268

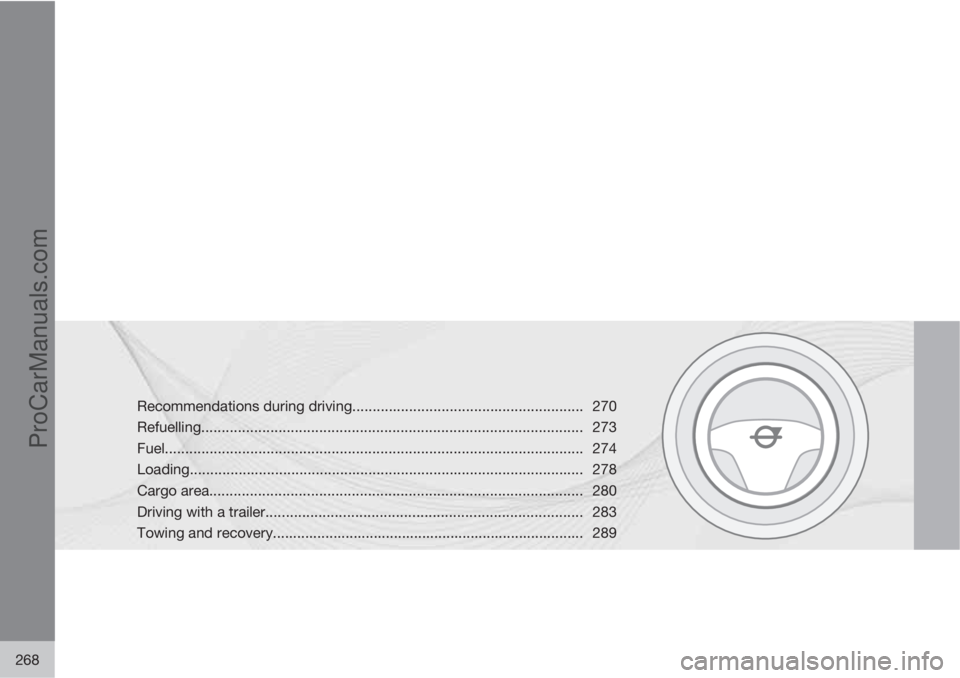

Recommendations during driving......................................................... 270
Refuelling.............................................................................................. 273
Fuel....................................................................................................... 274
Loading................................................................................................. 278
Cargo area............................................................................................ 280
Driving with a trailer.............................................................................. 283
Towing and recovery............................................................................. 289
ProCarManuals.com

DURING YOUR JOURNEY
ProCarManuals.com

06 During your journey
Recommendations during driving
06
270
General
Economical drivingDriving economically means driving smoothly
while thinking ahead and adjusting your driving
style and speed to the prevailing conditions.
•Drive in the highest gear possible, adapted
to the current traffic situation and road -
lower engine speeds result in lower fuel
consumption.
•Avoid driving with open windows.
•Avoid sudden unnecessary acceleration
and heavy braking.
•Remove unnecessary items from the car -
the greater the load the higher the fuel con-
sumption.
•Use engine braking to slow down, when it
can take place without risk to other road
users.
•A roof load and ski box increase air resis-
tance, leading to higher fuel consumption
- remove the load carriers when not in use.
•Do not run the engine to operating tem-
perature at idling speed, but rather drive
with a light load as soon as possible - a
cold engine consumes more fuel than a
warm one.
•Cars with the D5 engine and 6-speed man-
ual transmission or DRIVe engine and 6-
speed manual transmission are started in2nd gear under normal conditions on level
ground.
For more information and further advice, see
the pages 12 and 363.
WARNING
Never switch off the engine while moving,
such as downhill, this deactivates important
systems such as the power steering and
brake servo.
Driving in waterThe car can be driven through water at a maxi-
mum depth of 25 cm at a maximum speed of
10 km/h. Extra caution should be exercised
when passing through flowing water.
During driving in water, maintain a low speed
and do not stop the car. When the water has
been passed, depress the brake pedal lightly
and check that full brake function is achieved.
Water and mud for example can make the
brake linings wet resulting in delayed brake
function.
•Clean the electric contacts of the electric
engine block heater and trailer coupling
after driving in water and mud.
•Do not let the car stand with water over the
sills for any long period of time - this could
cause electrical malfunctions.
IMPORTANT
Engine damage can occur if water enters
the air filter.
In depths greater than 25 cm, water could
enter the transmission. This reduces the
lubricating ability of the oils and shortens
the service life of these systems.
In the event of the engine stalling in water,
do not try restart - tow the car from the water
to a workshop - an authorised Volvo work-
shop is recommended. Risk of engine
breakdown.
Engine, gearbox and cooling systemUnder special conditions, for example hard
driving in hilly terrain and hot climate, there is
a risk that the engine and drive system may
overheat - in particular with a heavy load.
For information about overheating when driv-
ing with a trailer, see page 283.
•Remove any auxiliary lamps from in front
of the grille when driving in hot climates.
•If the temperature in the engine's cooling
system is too high the instrument panel's
warning symbol is illuminated and there is
a text message displayed there
High
engine temp Stop safely - stop the car in
a safe way and allow the engine to run at
idling speed for several minutes to cool
down.
ProCarManuals.com
