2012 VOLVO V60 Owners Manual

04 Comfort and driving pleasure
Comfort inside the passenger compartment
04

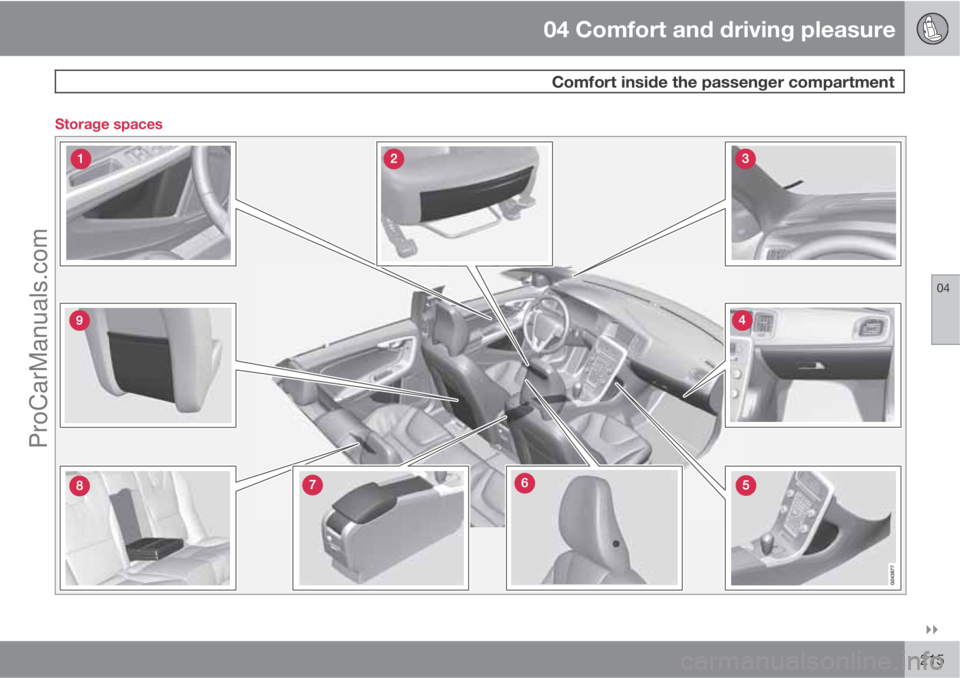

215 Storage spacesProCarManuals.com

04 Comfort and driving pleasure
Comfort inside the passenger compartment
04
216* Option/accessory, for more information, see Introduction.
Storage compartment in door panel
Storage pocket* on front edge of front seat
cushions
Ticket clip
Glovebox
Storage compartment
Jacket holder
Storage compartment, cup holder
Cup holder* in armrest, rear seat
Storage pocket
Jacket holderThe jacket holder is only designed for light
clothing.
WARNING
Keep loose objects such as mobile phones,
cameras, remote controls for accessories,
etc. in the glove compartment or other com-
partments. Otherwise they may injure peo-
ple in the car in the event of sudden braking
or a collision.
Tunnel console
Storage compartment (e.g. for CDs) and
USB*/AUX input under the armrest.
Includes cup holder for driver and passen-
ger. (If ashtray and cigarette lighter are
specified then there is a cigarette lighter in
the 12 V socket for the front seat, see
page 217, and a detachable ashtray in the
cup holder.)
Cigarette lighter and ashtray*The ashtray in the tunnel console is detached
by lifting the tray straight up.
Activate the lighter by pushing in the button.
The button pops out when the lighter is hot. Pull
out the lighter and light a cigarette on the
heated coils.
Glovebox
The owner's manual and maps can be kept
here for example. There are also holders for
pens on the inside of the lid. The glovebox can
be locked with the key blade, see page 50.
Inlay mats*
Volvo supplies specially manufactured inlay
mats.
WARNING
Before setting off check that the inlaid mat
in the driver area is firmly affixed and
secured in the pins in order to avoid getting
caught adjacent to and under the pedals.
ProCarManuals.com

04 Comfort and driving pleasure
Comfort inside the passenger compartment
04
* Option/accessory, for more information, see Introduction.217 Vanity mirror
G021438
Vanity mirror with lighting.
The light illuminates automatically when the
cover is lifted.
12 V socket
12 V socket in tunnel console, front seat.
The electrical socket can be used for various
accessories designed for 12 V, e.g. TV screens,
music players and mobile phones. For the
socket to supply current, the remote control
key must be in at least key position I, see
page 80.
IMPORTANT
Max. socket is 10 A (120 W) if one socket is
used at a time. If both sockets are used
simultaneously, 7.5 A (90 W) per socket is
applicable.
WARNING
Always leave the plug in the socket when
the socket is not in use.
NOTE
Optional equipment and accessories - e.g.
TV screens, music players and mobile
phones - which are connected to one of the
passenger compartment's 12V electrical
sockets, could be activated by the climate
control system, even when the remote con-
trol key has been removed or when the car
is locked, for example, when the parking
heater is activated at a preset time.
For this reason remove the plugs from the
electrical sockets for optional equipment or
accessories when not in use because the
battery could be drained in the event of such
an occurrence!
Electrical socket in cargo area*For more information, see page 279.
ProCarManuals.com

218* Option/accessory, for more information, see Introduction.
General information on infotainment..................................................... 220
Quick start............................................................................................. 222
General infotainment functions............................................................. 226
Radio..................................................................................................... 229
Media player......................................................................................... 236
External audio source via AUX/USB* input........................................... 240
Media Bluetooth
Ÿ* ................................................................................ 243
TV*......................................................................................................... 246
Remote control* ................................................................................... 249
Bluetooth
Ÿ handsfree*.......................................................................... 251
Voice recognition* mobile phone..........................................................259
Menu navigation, Infotainment.............................................................. 263
ProCarManuals.com

INFOTAINMENT SYSTEM
ProCarManuals.com

05 Infotainment system
General information on infotainment
05
220* Option/accessory, for more information, see Introduction.
General
The infotainment system in your car has one of
the following four levels:
Performance
•5" TV screen TFT
•Steering wheel keypad* without thumb-
wheel
•AM/FM radio
•CD
•AUX input
•6 speakers
•4x20W amplifier
High Performance
•5" TV screen TFT
•Steering wheel keypad* with thumbwheel
•AM/FM radio
•CD
•AUX and USB input (for e.g. iPodŸ)
•BluetoothŸ handsfree/streaming audio
•8 speakers
•4x40W amplifier
High Performance Multimedia
•7" TV screen TFT
•Steering wheel keypad* with thumbwheel
•AM/FM radio
•CD/DVD
•AUX and USB input (for e.g. iPodŸ)
•BluetoothŸ handsfree/streaming audio
•8 speakers
•4x40W amplifier
Premium Sound Multimedia
•7" TV screen TFT
•Steering wheel keypad* with thumbwheel
•AM/FM radio
•CD/DVD
•AUX and USB input (for e.g. iPodŸ)
•BluetoothŸ handsfree/streaming audio
•12 speakers
•5x130W amplifier
Dolby, Pro Logic
Made under license from Dolby Laboratories.
Dolby, Pro Logic and the double-D symbol are
trademarks of Dolby Laboratories.
Audyssey MultEQ1
The Audyssey MultEQ system has been used
in the development and tuning of the sound to
ensure a world-class sound experience.
Other
If the Infotainment System is active when the
engine is switched off then it is automatically
activated the next time the key is inserted into
position I or higher, and it continues with the
same source (e.g. radio) as before the engine
was switched off (the driver's door must be
closed on cars with Keyless systems*).
The infotainment system can be used for 15
minutes at a time without the remote control
1Only applies to Premium Sound Multimedia.
ProCarManuals.com

05 Infotainment system
General information on infotainment
05
221
key being in the ignition switch by pressing the
On/Off button.
While the engine is being started the infotain-
ment system is switched off temporarily and
continues once the engine has started.
NOTE
Avoid using the Infotainment system when
the engine is switched off as this loads the
battery.
ProCarManuals.com

05 Infotainment system
Quick start
05
222* Option/accessory, for more information, see Introduction.
Overview, Infotainment
AUX and USB1 inputs for external audio
sources (e.g. iPodŸ)
Steering wheel keypad*
TV screen. The TV screen is available in
two sizes, 5" (applies to Performance and
High Performance) and 7" (applies to High
Performance Multimedia and Premium
Sound Multimedia). The manual shows the
7" TV screen.
Centre console control panel
Operating the system
Short press starts the system and long
press switches off. Briefly press to mute
the sound (MUTE) or restore the sound if it
had been switched off.
Select a source by pressing one of the but-
tons (e.g. RADIO, MEDIA etc.). Press
repeatedly in order to scroll down among
the options on the TV screen (e.g. FM1),
release and wait a second and the selec-
tion is accepted automatically. Alterna-
tively, it is possible to turn TUNE and con-
firm with OK/MENU.
TUNE - turn to fast-scroll among disc
tracks/folders, radio and TV* stations,
phone contacts* or navigate through
options on the TV screen (e.g. FM1, Disc).
Source buttons
Control panel with buttons for source selection.
RADIO - Select, for example, AM, FM1,
FM2, DAB1*, DAB2*
MEDIA - Select, for example, Disc, USB*,
iPod, AUX, Bluetooth*, TV*.
TEL - BluetoothŸ handsfree*
MY CAR - See page 144.
1USB only applies to High Performance, High Performance Multimedia and Premium Sound Multimedia.
