2012 VOLVO V60 Owners Manual

08 Maintenance and service
Fuses
08

* Option/accessory, for more information, see Introduction.335
General fuses, engine compartmentOn the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.
Positions (see preceding illustration)Engine compartment, upper
Engine compartment, front
Engine compartment, lower
These fuses are all located in the engine com-
partment box. The fuses in (C) are located
under (A).
On the inside of the cover is a label that shows
the location of the fuses.
•Fuses 1-7 and 42-44 are of the "Midi Fuse"
type and must only be replaced by a work-
shop
1.
•Fuses 8-15 and 34 are of the "JCASE" type
and should be replaced by a workshop1.
•Fuses 16-33 and 35-41 are of the "Mini
Fuse" type.
FunctionA
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox
A
50
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox50
Primary fuse for central electri-
cal unit in cargo areaA60
Primary fuse for central electri-
cal unit in passenger compart-
ment with fuse box A under the
glovebox
A
60
Primary fuse for central electri-
cal unit in passenger compart-
ment with fuse box A under the
glovebox
A
60
--
PTC element, air preheater*A100
Headlamp washers*20
Windscreen wipers30
FunctionA
Parking heater*25
Ventilation fanA40
--
ABS pump40
ABS valves20
--
Headlamp levelling*, Active
Xenon headlamps - ABL*10
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox20
ABS5
Speed related power steering*5
Engine control module, Trans-
mission control module, Air-
bags10
Heated washer nozzles*10
1An authorised Volvo workshop is recommended.
ProCarManuals.com

08 Maintenance and service
Fuses
08
336* Option/accessory, for more information, see Introduction.
FunctionA
Relay coil, relay, vacuum pump
(5-cyl. petrol)5
Headlamp control5
--
--
--
Internal relay coils5
Auxiliary lamps*20
Horn15
Relay coil, main relay, engine
management system, Engine
control module (5, 6-cyl. petrol)10
Transmission control module15
Compressor A/C (not 5-cyl. die-
sel), Coolant pump (5-cyl. diesel
Start/Stop)15
FunctionA
Relay coil, relay, compressor A/
C (not 5-cyl. diesel), Relay coil,
relay, coolant pump (5-cyl. die-
sel Start/Stop)
Relay coils in central electrical
unit in engine compartment cold
zone Start/Stop5
Actuator solenoid, starter
motorA30
Ignition coils (4-cyl. petrol),
Glow control module (5-cyl. die-
sel)10
Ignition coils (5, 6-cyl. petrol),
Capacitor (6-cyl.)20
Engine control module (petrol)10
Engine control module (diesel)15
FunctionA
Valves (1.6 l petrol), Mass air
flow sensor (1.6 l petrol)
Mass air flow sensor (D4162T),
Control valve, fuel flow
(D4162T)10
Mass air flow sensor (5, 6-cyl.),
Control valves (5-cyl. diesel),
Injectors (5, 6-cyl. petrol),
Engine control module (6-cyl.)15
Compressor A/C (5, 6-cyl.),
Engine valves, Engine control
module (6-cyl.) Solenoids (6-cyl.
without turbo), Actuator motors,
intake manifold (6-cyl. without
turbo), Mass air flow sensor (4-
cyl. 2.0 l petrol), Oil level sensor
(5-cyl. diesel)
Coolant pump (D4162T)10
Lambda-sonds (4-cyl. petrol),
Lambda-sond (diesel), Control
module, radiator roller cover
(manual 5-cyl. 2.0 l diesel)10
EVAP valve (5, 6-cyl. petrol),
Lambda-sonds (5, 6-cyl. petrol)15
ProCarManuals.com

08 Maintenance and service
Fuses
08

337
FunctionA
Coolant pump (1.6 l petrol Start/
Stop)10
Vacuum pump (5-cyl. petrol),
Crankcase ventilation heater (5-
cyl. petrol), Diesel filter heater20
Crankcase ventilation heater (5-
cyl. diesel)10
Glow plugs (diesel)70
Cooling fan (4-cyl., 5-cyl. petrol)60
Cooling fan (6-cyl. petrol, 5-cyl.
diesel)80
Electro-hydraulic power steer-
ing100
AFor cars with the Start/Stop function this fuse location is
empty - see instead page 342.
ProCarManuals.com

08 Maintenance and service
Fuses
08
338* Option/accessory, for more information, see Introduction.
Under the glovebox
PositionsOn the inside of the cover is a label that shows
the location of the fuses in fuse box A.
Box AFunctionA
Primary fuse for audio con-
trol module*, Primary fuse
for fuses 16-2040
--
--
Box AFunctionA
--
--
Door handle (Keyless*)5
--
Control panel, driver's door20
Control panel, front passen-
ger door20
Box AFunctionA
Control panel, rear passen-
ger door, right20
Control panel, rear passen-
ger door, left20
Keyless*7.5
Power seat driver's side*20
Power seat passenger side*20
ProCarManuals.com

08 Maintenance and service
Fuses
08

* Option/accessory, for more information, see Introduction.339
Box AFunctionA
Folding head restraint*15
Infotainment control module5
Audio control module*
Digital radio*, TV*10
Audio15
Telematics*, Bluetooth*5
--
Sun roof*, Interior lighting
roof, Climate sensor5
12 V socket, tunnel console15
Seat heating, rear right*15
Seat heating, rear left*15
--
Seat heating (passenger
side)15
Seat heating (driver's side)15
Box AFunctionA
Parking assistance*, Park-
ing camera*, Towbar control
module *
BLIS*5
AWD control module*10
Active chassis Four-C*10
Box BFunctionA
Rear window wiper15
--
Interior lighting, Driver's
door control panel, power
windows, Power seats,
front*, Remote controlled
garage door opener*7.5
Information display (DIM)5
Adaptive cruise control,
ACC*, collision warning sys-
tem*10
Interior lighting, Rain sensor7.5
Steering wheel module7.5
Box BFunctionA
Central locking system, fuel
filler flap10
Rear window washer15
Windscreen washers15
Unlocking, tailgate10
--
Fuel pump20
Climate panel5
Steering lock15
Siren alarm*, Data link con-
nector OBDII5
--
Airbags10
Collision warning system5
Accelerator pedal, PTC ele-
ment air preheater*, Dim-
ming, interior rearview mir-
ror*, Seat heating, rear*7.5
ProCarManuals.com

08 Maintenance and service
Fuses
08
340* Option/accessory, for more information, see Introduction.
Box BFunctionA
--
Brake light5
Sunroof*20
Immobiliser5
ProCarManuals.com

08 Maintenance and service
Fuses
08

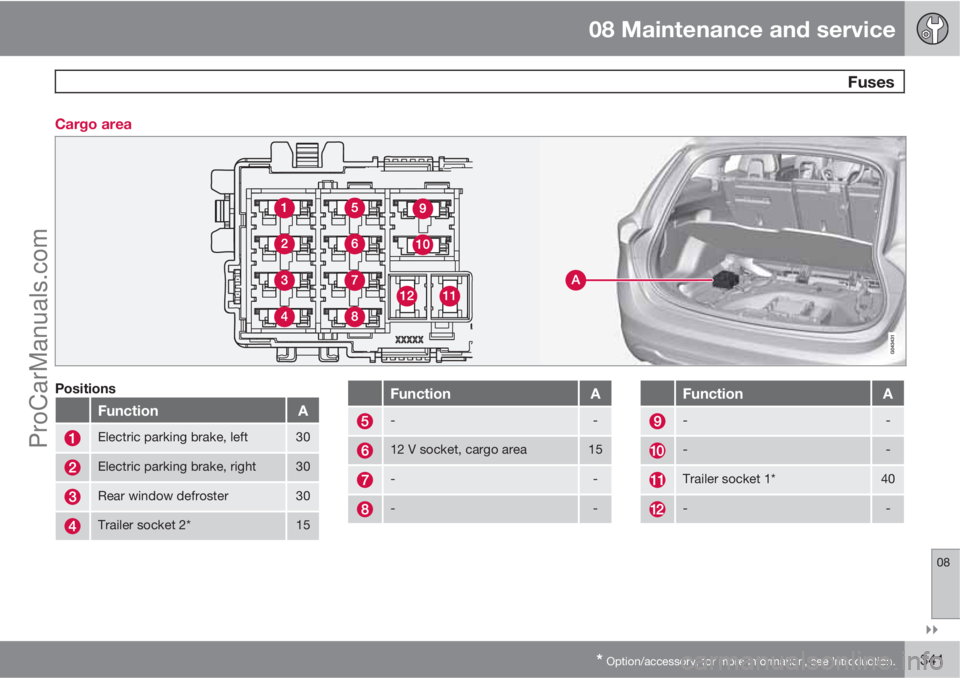

* Option/accessory, for more information, see Introduction.341 Cargo area
Positions
FunctionA
Electric parking brake, left30
Electric parking brake, right30
Rear window defroster30
Trailer socket 2*15
FunctionA
--
12 V socket, cargo area15
--
--
FunctionA
--
--
Trailer socket 1*40
--
ProCarManuals.com

08 Maintenance and service
Fuses
08
342* Option/accessory, for more information, see Introduction.
Engine compartment, cold zone - Start/Stop*
Location of fuses for the Start/Stop function.
•Fuses A1 and A2 are of the "MEGA Fuse"
type and must only be replaced by a work-
shop
2.
•Fuses 1-11 are of the "Midi Fuse" type and
must only be replaced by a workshop2.
•Fuse 12 is of the "Mini Fuse" type.
For more information on Start/Stop - see
page 123.
Positions
FunctionA
Main fuse for central electrical
unit in the engine compartment175
FunctionA
Main fuse for central electronic
module (CEM) with fuse box B
under the glovebox, central
electrical unit in passenger
compartment with fuse box A
under the glovebox, central
electrical unit in cargo area175
PTC element, air preheater*100
2An authorised Volvo workshop is recommended.
