2012 VOLVO V60 Owners Manual

04 Comfort and driving pleasure
City Safety™
04
191
WARNING
Never look into the laser sensor (which
emits spreading invisible laser radiation) at
a distance of 100 mm or closer with magni-
fying optics such as a magnifying glass,
microscope, lens or similar optical instru-
ments - this would involve a risk of eye injury
(the illustration on page 188 shows sensor
location).
For more information on the laser sensor, see
page 9.
Symbols and messages in the display
In conjunction with automatic braking by the
City Safety™ system, one or more symbols
may illuminate on the instrument panel and a
message may appear on its display.A text message can be acknowledged by
briefly pressing the READ button on the direc-
tion indicator stalk.
SymbolMessageMeaning/Action
Auto braking by City SafetyCity Safety™ is braking or has automatically braked.
Windscreen Sensors
blockedThe laser sensor is temporarily non-operational because something is blocking it.
•Remove the object blocking the sensor and/or clean the windscreen in front of the sensor.
Read about the limitations of the laser sensor, see page 189.
City Safety Service
requiredCity Safety™ is not operational.
•Visit a workshop if the message remains - an authorised Volvo workshop is recommended.
ProCarManuals.com

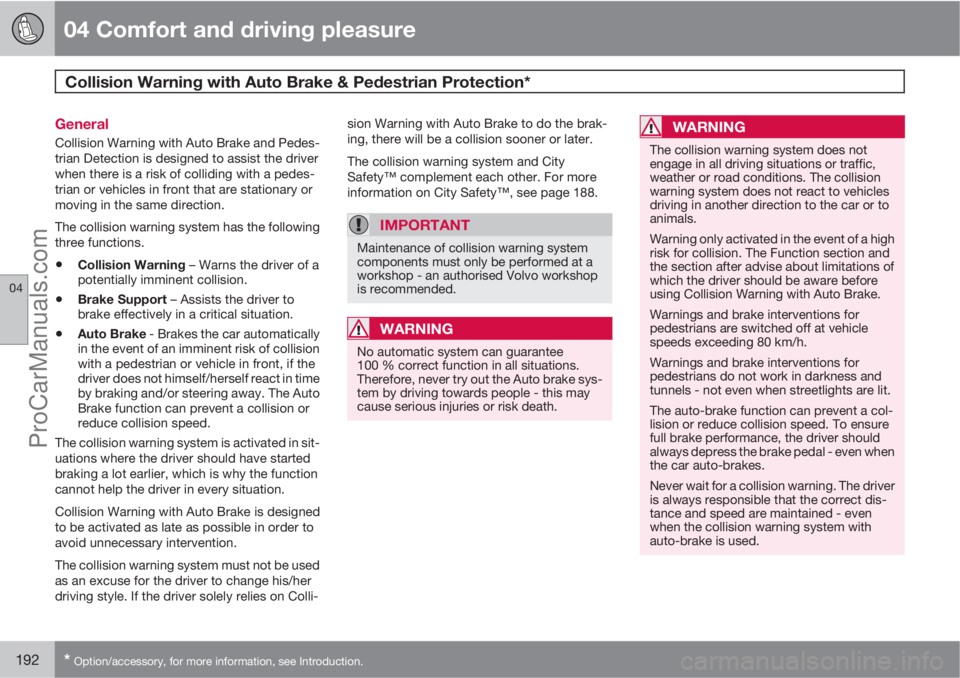

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04
192* Option/accessory, for more information, see Introduction.
General
Collision Warning with Auto Brake and Pedes-
trian Detection is designed to assist the driver
when there is a risk of colliding with a pedes-
trian or vehicles in front that are stationary or
moving in the same direction.
The collision warning system has the following
three functions.
•Collision Warning – Warns the driver of a
potentially imminent collision.
•Brake Support – Assists the driver to
brake effectively in a critical situation.
•Auto Brake - Brakes the car automatically
in the event of an imminent risk of collision
with a pedestrian or vehicle in front, if the
driver does not himself/herself react in time
by braking and/or steering away. The Auto
Brake function can prevent a collision or
reduce collision speed.
The collision warning system is activated in sit-
uations where the driver should have started
braking a lot earlier, which is why the function
cannot help the driver in every situation.
Collision Warning with Auto Brake is designed
to be activated as late as possible in order to
avoid unnecessary intervention.
The collision warning system must not be used
as an excuse for the driver to change his/her
driving style. If the driver solely relies on Colli-sion Warning with Auto Brake to do the brak-
ing, there will be a collision sooner or later.
The collision warning system and City
Safety™ complement each other. For more
information on City Safety™, see page 188.
IMPORTANT
Maintenance of collision warning system
components must only be performed at a
workshop - an authorised Volvo workshop
is recommended.
WARNING
No automatic system can guarantee
100 % correct function in all situations.
Therefore, never try out the Auto brake sys-
tem by driving towards people - this may
cause serious injuries or risk death.
WARNING
The collision warning system does not
engage in all driving situations or traffic,
weather or road conditions. The collision
warning system does not react to vehicles
driving in another direction to the car or to
animals.
Warning only activated in the event of a high
risk for collision. The Function section and
the section after advise about limitations of
which the driver should be aware before
using Collision Warning with Auto Brake.
Warnings and brake interventions for
pedestrians are switched off at vehicle
speeds exceeding 80 km/h.
Warnings and brake interventions for
pedestrians do not work in darkness and
tunnels - not even when streetlights are lit.
The auto-brake function can prevent a col-
lision or reduce collision speed. To ensure
full brake performance, the driver should
always depress the brake pedal - even when
the car auto-brakes.
Never wait for a collision warning. The driver
is always responsible that the correct dis-
tance and speed are maintained - even
when the collision warning system with
auto-brake is used.
ProCarManuals.com

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04
* Option/accessory, for more information, see Introduction.193 Function
Function overview1.
Audio-visual warning signal in the event of
a collision risk.
Radar sensor
Camera sensor
Collision warningTogether with a camera sensor, the radar sen-
sor detects pedestrians, stationary vehicles as
well as vehicles driving in the same direction in
front of the car.
In the event of there being a risk of collision with
a pedestrian or such a vehicle your attention is
drawn with a red flashing warning signal and a
warning sound.
Brake supportIf the risk of collision still increases after the
collision warning then the brake support is acti-
vated. The brake support prepares the brake
system for rapid braking and the brakes are
applied gently, which may be noticed as a
slight jerk.
If the brake pedal is depressed sufficiently
quickly then full brake function is implemented.
Brake support also reinforces the driver's brak-
ing if the system considers that the braking is
not sufficient to avoid a collision.
Auto BrakeIf in this situation the driver has not yet started
to take evasive action and the risk of collision
is imminent then the automatic braking func-
tion is deployed, irrespective of whether or not
the driver brakes. Braking then takes place with
full brake force in order to reduce collision
speed, or with limited brake force if it is suffi-
cient to avoid collision.
Operation
Settings are made from MY CAR via the centre
console display screen and menu system. For
information on how the menu system is used,
see page 144.
NOTE
The Brake Support and Auto Brake func-
tions are always enabled - they cannot be
deactivated.
On and OffTo select whether the collision warning system
should be switched on or off: Search with the
menu system MY CAR via the centre console
display screen and locate Settings
Car
settings
Driving support systems
Collision Warning. For information on the
menu system, see page 144.
An activated function is tested at each engine
start by briefly illuminating the warning lamp's
separate points of light.
When starting the engine, the setting that was
selected when the engine was switched off is
obtained automatically.
1NOTE: The illustration is schematic - details may vary depending on car model.
ProCarManuals.com

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04
194* Option/accessory, for more information, see Introduction.
Activating/deactivating warning signalsThe warning lamp is activated automatically
when the engine is started if the system is
switched on.
The warning sound can be activated/deacti-
vated separately using the options for
On orOff in the menu system MY CAR under
Settings
Car settingsDriving support
systems
Warning sound if risk of
collision.
Set warning distanceThe warning distance regulates the distance at
which the visual and acoustic warnings are
deployed. Select one of the options from
Long, Normal or Short in the menu system
MY CAR under Settings
Car settings
Driving support systemsCollision
Warning
Warning distance.
The warning distance determines the system's
sensitivity. Warning distance
Long provides an
earlier warning. First test with Long and if this
setting produces too many warnings, which
could be perceived as irritating in certain sit-
uations, then change to warning distance
Normal.
Only use warning distance
Short in excep-
tional cases, e.g. for dynamic driving.
NOTE
When the adaptive cruise control is in use
the warning lamp and warning sound will be
used by the cruise control even if the colli-
sion warning system is switched off.
The collision warning system warns the
driver in the event of a risk of a collision, but
the function cannot shorten driver reaction
time.
In order for the collision warning system to
be effective, always drive with the Distance
Alert set at time interval 4 – 5. see
page 185.
NOTE
Even if the warning distance has been set toLong warnings could be perceived as being
late in certain situations, e.g. when there are
large differences in speed or if vehicles in
front brake heavily.
Checking settingsThe settings required can be controlled on the
centre console display screen. Search with the
menu system MY CAR under Settings
Car
settings
Driving support systems
Collision Warning, see page 144.
Limitations
The collision warning system is active from and
including approx. 4 km/h.
The visual warning signal may be difficult to
notice in the event of strong sunlight, reflec-
tions, when sunglasses are being worn or if the
driver is not looking straight ahead. The warn-
ing sound should therefore always be acti-
vated.
On slippery road surfaces the braking distance
is extended, which may reduce the capacity to
avoid a collision. In such situations the ABS
and DSTC systems will provide best possible
braking force with maintained stability.
NOTE
The visual warning signal can be temporarily
disengaged in the event of high passenger
compartment temperature caused by
strong sunlight for example. If this occurs
then the warning sound is activated even if
it is deactivated in the menu system.
•Warnings may not appear if the dis-
tance to the vehicle in front is small or if
steering wheel and pedal movements
are large, e.g. a very active driving style.
ProCarManuals.com

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04
* Option/accessory, for more information, see Introduction.195
WARNING
Warnings and brake interventions could be
implemented late or not at all if the traffic
situation or external influences mean that
the radar or camera sensor cannot detect a
pedestrian or a vehicle in front correctly.
The sensor system has a limited range for
pedestrians and the system therefore pro-
vides effective warnings and brake inter-
ventions at vehicle speeds up to 50 km/h.
For stationary or slow-moving vehicles,
warnings and brake interventions are effec-
tive at vehicle speeds up to 70 km/h.
Warnings for stationary or slow-moving
vehicles could be disengaged due to dark-
ness or poor visibility.
The collision warning system uses the same
radar sensors as adaptive cruise control. For
more information on the radar sensor and its
limitations, see page 181.
If warnings are perceived as being too frequent
or disturbing then the warning distance can be
reduced. This would lead to the system warn-
ing at a later stage, which reduces the total
number of warnings.
When the car is reversing Collision Warning
with Auto Brake cannot be activated.
Collision Warning with Auto Brake is not acti-
vated at low speeds - under 4 km/h, which iswhy the system does not intervene in situations
where the car is approaching a vehicle in front
very slowly, e.g. when parking.
Driver commands are always prioritised, which
is why Collision Warning with Auto Brake does
not intervene in situations where the driver is
steering, braking or accelerating in a clear
manner, even if a collision is unavoidable.
When Auto Brake has prevented a collision
with a stationary object the car remains sta-
tionary for a maximum of 1.5 seconds. If the car
is braked for a vehicle in front that is moving,
then speed is reduced to the same speed as
that maintained by the vehicle in front.
On a car with manual gearbox the engine stops
when Auto Brake has stopped the car, unless
the driver manages to depress the clutch pedal
beforehand.
Camera sensor limitationsThe car's camera sensor is used by the three
functions - Collision Warning with Auto Brake,
Driver Alert Control, see page 199 and Lane
Departure Warning, see page 202.
NOTE
Keep the windscreen surface in front of the
camera sensor clean from ice, snow, mist
and dirt.
Do not attach or fit anything to the wind-
screen in front of the camera sensor, as this
could reduce or prevent the function of one
or more camera-dependent systems.
The camera sensors have limitations similar to
the human eye, i.e. they "see" worse in dark-
ness, heavy snowfall or rain and in thick fog for
example. Under such conditions the functions
of camera-dependent systems could be sig-
nificantly reduced or temporarily disengaged.
Strong oncoming light, reflections in the car-
riageway, snow or ice on the road surface, dirty
road surfaces or unclear lane markings could
also significantly reduce camera sensor func-
tion when it is used to scan the carriageway
and detect pedestrians and other vehicles.
During very high temperatures the camera is
temporarily switched off for about 15 minutes
after the engine is started in order to protect
camera functionality.
ProCarManuals.com

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04
196* Option/accessory, for more information, see Introduction.
Detection of pedestrians
Optimal examples of what the system regards as
pedestrians with clear body contours.
Optimal performance of the system requires
that the system function that detects pedes-
trians receives as unambiguous information as
possible about the contours of the body - this
implies the opportunity to identify the head,
arms, shoulders, legs, upper and lower body
combined with a normal human pattern of
movement.
If large parts of the body are not visible to the
camera then the system cannot detect a
pedestrian.
•In order for a pedestrian to be detected he/
she must appear full-length and have a
height of at least 80 cm.
•The system cannot detect a pedestrian
carrying larger items.
•The camera sensor's ability to see pedes-
trians at dusk and dawn is limited - just like
the human eye.
•The camera sensor's capacity to detect
pedestrians is deactivated when driving in
darkness and tunnels - even when street-
lights are lit.
WARNING
Collision Warning with Auto Brake & Pedes-
trian Detection is a means of assistance.
It cannot detect all pedestrians in all situa-
tions and it cannot see e.g. partially
obscured pedestrians, people in clothing
that hides the contours of the body or
pedestrians shorter than 80 cm.
•The driver is always responsible that the
vehicle is driven properly and with a
safety distance adapted to the speed.
Fault tracing and action
If the display shows the message Windscreen
Sensors blocked then this means that the
camera sensor is blocked and cannot detect
pedestrians, vehicles or road markings in front
of the car.In turn this means that the Collision Warning
with Auto Brake, Lane Departure Warning and
Driver Alert Control functions are not operating
with full functionality.
The following table presents possible causes
for a message being shown along with the
appropriate action.
CauseAction
The windscreen sur-
face in front of the
camera is dirty or
covered with ice or
snow.Clean the wind-
screen surface in
front of the camera
from dirt, ice and
snow.
Thick fog, heavy rain
or snow means that
the camera does not
work sufficiently
well.No action. At times
the camera does not
work during heavy
rain or snowfall.
ProCarManuals.com

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04

* Option/accessory, for more information, see Introduction.197
CauseAction
The windscreen sur-
face in front of the
camera has beenWait. It may take
several minutes for
CauseAction
cleaned but the
message remains.the camera to meas-
ure the visibility.
CauseAction
Dirt has appeared
between the inside
of the windscreen
and the camera.Visit a workshop to
have the windscreen
inside the camera
cover cleaned - an
authorised Volvo
workshop is recom-
mended.
Symbols and messages in the display
SymbolMessageSpecification
Collis'n
warning
OFFCollision warning system switched off.
Shown when the engine is started.
The message clears after about 5 seconds or after one press of the READ button.
Collision
warn.
Unavaila-
bleThe collision warning system cannot be activated.
Shown when the driver attempts to activate the function.
The message clears after about 5 seconds or after one press of the READ button.
Auto brak-
ing was
activatedAuto Brake has been active.
The message clears after one press of the READ button.
ProCarManuals.com

04 Comfort and driving pleasure
Collision Warning with Auto Brake & Pedestrian Protection*
04
198* Option/accessory, for more information, see Introduction.
SymbolMessageSpecification
Wind-
screen
Sensors
blockedThe camera sensor is temporarily disengaged.
Shown in the event of snow, ice or dirt on the windscreen for example.
•Clean the windscreen surface in front of the camera sensor.
Read about the limitations of the camera sensor, see page 195.
Radar
blocked
See man-
ualCollision Warning with Auto Brake is temporarily disengaged.
The radar sensor is blocked and cannot detect other vehicles. For example, in the event of heavy rain or if slush has
collected in front of the radar sensor.
Read about the limitations of the radar sensor, see page 181.
Collision
warn.
Service
requiredCollision Warning with Auto Brake is fully or partially disengaged.
•Visit a workshop if the message remains - an authorised Volvo workshop is recommended.
ProCarManuals.com
