2012 VOLVO V60 Owners Manual

03 Your driving environment
Parking brake
03

135
Replacing the brake liningsThe rear brake linings must be replaced at a
workshop due to the design of the electricparking brake - an authorised Volvo workshop
is recommended.
Symbols and messages in the display
SymbolMessageMeaning/Action
"Message"Read the message on the information display.
A flashing symbol indicates that the parking brake is applied.
If the symbol flashes in any other situation then this means that a fault has arisen. Read the message
on the information display.
Park brake not fully
releasedA fault is preventing the parking brake from being released - Try to apply and release the brake.
If the fault persists after a few attempts: Visit a workshop - an authorised Volvo workshop is recom-
mended.
Note: A warning signal sounds if the journey is continued with this error message.
ProCarManuals.com

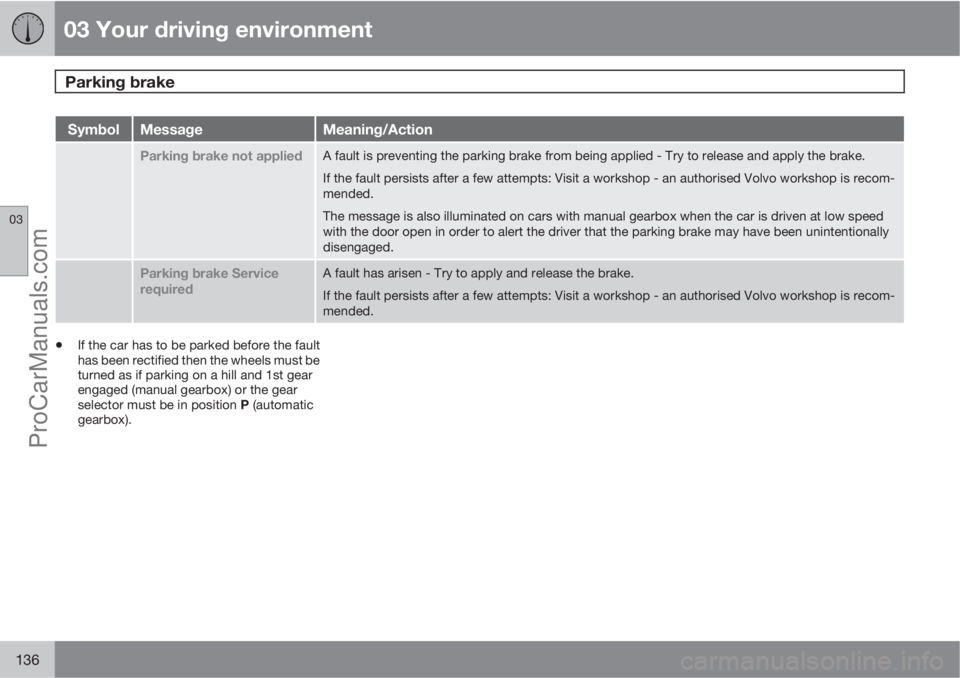

03 Your driving environment
Parking brake
03
136
SymbolMessageMeaning/Action
Parking brake not appliedA fault is preventing the parking brake from being applied - Try to release and apply the brake.
If the fault persists after a few attempts: Visit a workshop - an authorised Volvo workshop is recom-
mended.
The message is also illuminated on cars with manual gearbox when the car is driven at low speed
with the door open in order to alert the driver that the parking brake may have been unintentionally
disengaged.
Parking brake Service
requiredA fault has arisen - Try to apply and release the brake.
If the fault persists after a few attempts: Visit a workshop - an authorised Volvo workshop is recom-
mended.
•If the car has to be parked before the fault
has been rectified then the wheels must be
turned as if parking on a hill and 1st gear
engaged (manual gearbox) or the gear
selector must be in position P (automatic
gearbox).
ProCarManuals.com

03 Your driving environment
HomeLinkŸŸ *
03
* Option/accessory, for more information, see Introduction.137 General
HomeLinkŸ is a programmable remote control
which can control up to three different devices
(e.g. garage door, alarm system, outdoor light-
ing and indoor lighting etc.) and in doing so
replace their remote controls. HomeLink
Ÿ is
supplied built into the left-hand sun visor.
The HomeLink
Ÿ panel consists of three pro-
grammable buttons and one indicator lamp.
NOTE
HomeLinkŸ is designed not to work if the car
is locked from the outside.
Save the original remote controls for future
programming (e.g. when switching to
another car).
Delete the button programming when the
car is to be sold.
Metallic sun visors should not be used in
cars fitted with HomeLink
Ÿ. This may have
an adverse effect on its function.
Operation
When HomeLinkŸ is fully programmed it can be
used in place of the separate original remote
controls.
Depress the programmed button to activate
the garage door, alarm system etc. The indi-
cator lamp illuminates for the time that the but-
ton is kept depressed.
NOTE
If the ignition is not activated, HomeLinkŸ
will work for 30 minutes after the driver's
door has been opened.
The original remote controls can of course be
used in parallel with HomeLinkŸ.
WARNING
If HomeLinkŸ is used to operate a garage
door or gate, ensure that nobody is in the
vicinity of the door or gate while it is in
motion.
Do not use the HomeLink
Ÿ remote control
for any garage door that does not have
safety stop and safety reverse. The garage
door must react immediately when it
detects that something is preventing its
movement, and stop directly and reverse. A
garage door without these characteristics
could cause personal injury. For further
information - contact the supplier via the
Internet: www.homelink.com.
Programming for the first timeThe first step erases the memory in
HomeLinkŸ and must not be carried out when
only one individual button is being reprogram-
med.
1. Depress the two outer buttons and do not
release until the indicator lamp starts to
flash after approx. 20 seconds. The flash-
ing indicates that HomeLink
Ÿ is set in
"learn mode" and is ready to be pro-
grammed.
2. Position the original remote control
5-30 cm from HomeLink
Ÿ. Monitor the indi-
cator lamp.
ProCarManuals.com

03 Your driving environment
HomeLinkŸŸ *
03
138* Option/accessory, for more information, see Introduction.
The particular distance that is required
between the original remote control and
HomeLink
Ÿ depends on the programming
of the device in question. Perhaps several
attempts will be required at different dis-
tances. Maintain each position for approx.
15 seconds before trying a new one.
3. Depress the button for the original remote
control and the button to be programmed
on HomeLink
Ÿ simultaneously. Do not
release the buttons until the indicator lamp
has changed over from slow to rapid flash-
ing. The rapid flashing indicates successful
programming.
4. Test the programming by depressing the
programmed button on HomeLink
Ÿ and
watching the indicator lamp:
•Constant glow: The indicator lamp illu-
minates with a constant glow when the
button is kept depressed, this indicates
that the programming is complete. The
garage door, gate or similar should now
be activated when the programmed
HomeLink
Ÿ button is depressed.
•Glow not constant: The indicator lamp
flashes quickly for approx. 2 seconds
and then changes over to a constant
glow for approx. 3 seconds. This proc-ess is repeated for approx. 20 seconds
and indicates that the device has a "roll-
ing code". The garage door, gate or sim-
ilar is not activated when the pro-
grammed HomeLink
Ÿ button is
depressed. Continue the programming
in accordance with the following.
5.
Locate the "programming button
1" on the
receiver for the garage door for example,
normally located close to the antenna's
bracket on the receiver. If you have diffi-
culty in finding the button - consult the
supplier's manual, or contact the supplier
via the Internet: www.homelink.com.
6. Depress and release the "programming
button". The button flashes for
approx. 30 seconds and the next step must
be carried out within this period.
7. Depress the programmed button on
HomeLink
Ÿ, while the "programming but-
ton" is still flashing, keep it depressed for
approx. 3 seconds and then release.
Repeat the press/hold/release sequence
up to 3 times to conclude the program-
ming.
Programming individual buttonsTo reprogram an individual button, proceed in
accordance with the following:
1. Depress the required button on
HomeLink
Ÿ and do not release until step 3
has been completed.
2.
When the indicator lamp on HomeLink
Ÿ
starts to flash, after approx. 20 seconds,
position the original remote control
5-30 cm from HomeLink
Ÿ. Monitor the indi-
cator lamp.
The particular distance that is required
between the original remote control and
HomeLink depends on the programming of
the device in question. Perhaps several
attempts will be required at different dis-
tances. Maintain each position for approx.
15 seconds before trying a new one.
3. Depress the button on the original remote
control. The indicator lamp will start to
flash. When the flashing has changed over
from a slow to a rapid flashing - release
both buttons. The rapid flashing indicates
successful programming.
4. Test the programming by depressing the
programmed button on HomeLink and
watching the indicator lamp:
1Button designation and colour vary depending on manufacturer.
ProCarManuals.com

03 Your driving environment
HomeLinkŸŸ *
03
* Option/accessory, for more information, see Introduction.139
•Constant glow: The indicator lamp illu-
minates with a constant glow when the
button is kept depressed, this indicates
that the programming is complete. The
garage door, gate or similar should now
be activated when the programmed
HomeLink
Ÿ button is depressed.
•Glow not constant: The indicator lamp
flashes quickly for approx. 2 seconds
and then changes over to a constant
glow for approx. 3 seconds. This proc-
ess is repeated for approx. 20 seconds
and indicates that the device has a "roll-
ing code". The garage door, gate or sim-
ilar is not activated when the pro-
grammed HomeLink
Ÿ button is
depressed. Continue the programming
in accordance with the following.
5.
Locate the "programming button
2" on the
receiver for the garage door for example,
normally located close to the antenna's
bracket on the receiver. If you have diffi-
culty in finding the button - consult the
supplier's manual, or contact the supplier
via the Internet: www.homelink.com.
6. Depress and release the "programming
button". The button flashes for approx. 30
seconds and the next step must be carried
out within this period.7. Depress the programmed button on
HomeLink
Ÿ, while the "programming but-
ton" is still flashing, keep it depressed for
approx. 3 seconds and then release.
Repeat the press/hold/release sequence
up to 3 times to conclude the program-
ming.
Erasing programmingIt is only possible to erase the programming for
all the buttons on HomeLinkŸ, not for individual
buttons.
–Depress the two outer buttons and do not
release until the indicator lamp starts to
flash after approx. 20 seconds.
>
HomeLink
Ÿ is now set in so-called
"learn mode" and is ready to be pro-
grammed once more, see page 137.
2Button designation and colour vary depending on manufacturer.
ProCarManuals.com

140* Option/accessory, for more information, see Introduction.
Menus and messages........................................................................... 142
Menu source MY CAR.......................................................................... 144
Climate control...................................................................................... 152
Fuel-driven engine block heater
and passenger compartment heater*................................................... 162
Additional heater*.................................................................................. 165
Trip computer........................................................................................ 166
DSTC – Stability and traction control system....................................... 168
Adapting driving characteristics........................................................... 170
Cruise control*...................................................................................... 171
Speed limiter*........................................................................................ 173
Adaptive cruise control*........................................................................ 175
Distance Warning*................................................................................. 185
City Safety™......................................................................................... 188
Collision Warning with Auto Brake & Pedestrian Protection*............... 192
Driver Alert System – DAC*................................................................... 199
Driver Alert System - LDW*................................................................... 202
Park assist syst*.................................................................................... 205
Park assist camera*.............................................................................. 208
BLIS* – Blind Spot Information System................................................ 211
Comfort inside the passenger compartment........................................ 215
ProCarManuals.com

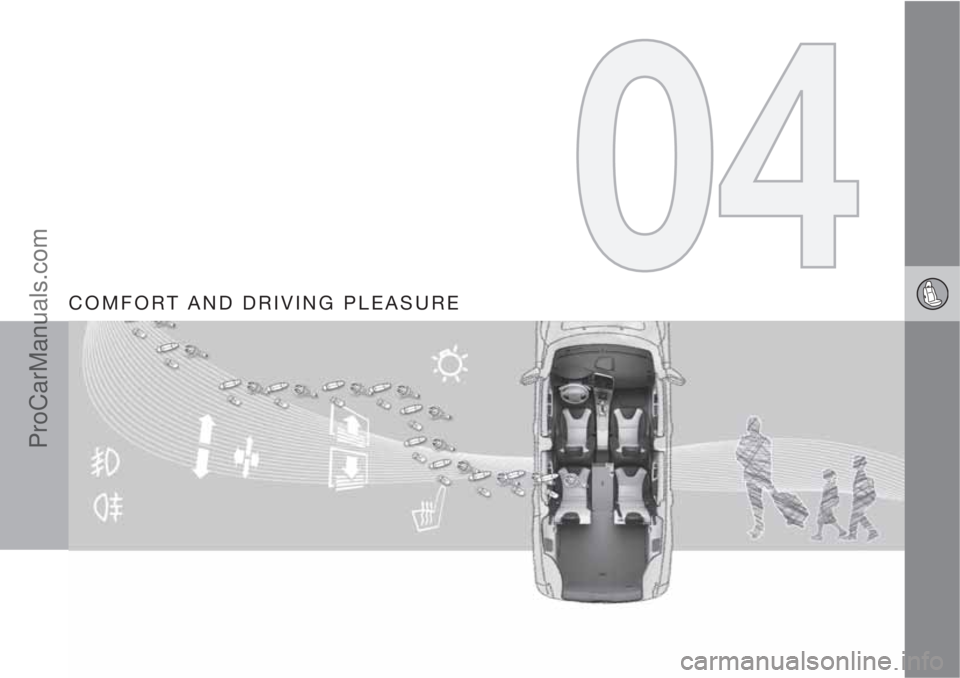

COMFORT AND DRIVING PLEASURE
ProCarManuals.com

04 Comfort and driving pleasure
Menus and messages
04
142* Option/accessory, for more information, see Introduction.
Combined instrument panel
Information display and controls for menus.
READ – access to message list and mes-
sage confirmation.
Thumbwheel – browse between menu
options.
RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.
The menus shown on the information displays
in the combined instrument panel are con-
trolled with the left-hand stalk switch. The
menus shown depend on key position, see
page 80. If a message appears then this mustbe acknowledged with READ for the menus to
be shown.
Menu overviewSome of the following menu options require the
function and hardware to be installed in the car.
---- km to empty tank
--.- l/100km average
--.- l/100km instantaneous
--- km/h average speed
--- km/h current speed
1
Engine oil level Wait...*
Tyre pressure Calibration*
Park heat timer --:-- ---*2
Direct start Park heat ON*3
Additional heat auto ON*
Lane Depart Warn *
Driver Alert *
Message
Text message in the information display.
When a warning, information or indicator sym-
bol illuminates, a corresponding message
appears on the information display. An error
message is stored in a memory list until the
fault has been rectified.
Press READ to acknowledge and browse
between the messages.
1Only certain markets.2Programming is only possible when the engine is switched off.3Cannot be selected when the additional heater is operating.
ProCarManuals.com
