2012 TOYOTA SIENNA Owners Manual

257
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)
■
Selecting the language
Select “Language” on the “Display Settings” screen, and
press the “SELECT RESET” button.
Select the language you want to
read by pressing the “INFO” or
“SETUP” button.
Press the “SELECT RESET” but-
ton to set the language.
The current setting is indicated by
yellow text.
To shortcut directly to the “Lan-
guage” screen from the initial
“Custom Settings” screen, press
and hold the “SETUP” button for
5 seconds.
■Setting up the information display
Select “Screen Settings” on the “Display Settings” screen, and
press the “SELECT RESET” button.
For vehicles without a navigation
system, select “Climate / Info” by
pressing the “INFO” or “SETUP”
button.
Press the “SELECT RESET” but-
ton to enter the adjustment mode.
STEP1
STEP2
STEP1
STEP2

258 2-2. Instrument cluster and information display
SIENNA_U (OM45477U)●
Setting the brightness
Select “Brightness” on the
“Screen Settings” screen, and
press the “SELECT RESET” but-
ton.
Press the “INFO” or “SETUP”
button to adjust the brightness.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to exit the screen.
STEP1
STEP2

259
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)
●
Setting the contrast
Select “Contrast” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the contrast.
+: Strengthen
-: Weaken
Press the “SELECT RESET” but-
ton to exit the screen.
■ Setting up the rear view monitor display (if equipped with the
rear view monitor system)
Select “Screen Settings” on the “Display Settings” screen, and
press the “SELECT RESET” button.
Select “Back Monitor” by press-
ing the “INFO” or “SETUP” but-
ton.
Press the “SELECT RESET” but-
ton to enter the adjustment mode.
STEP1
STEP2
STEP1
STEP2

260 2-2. Instrument cluster and information display
SIENNA_U (OM45477U)●

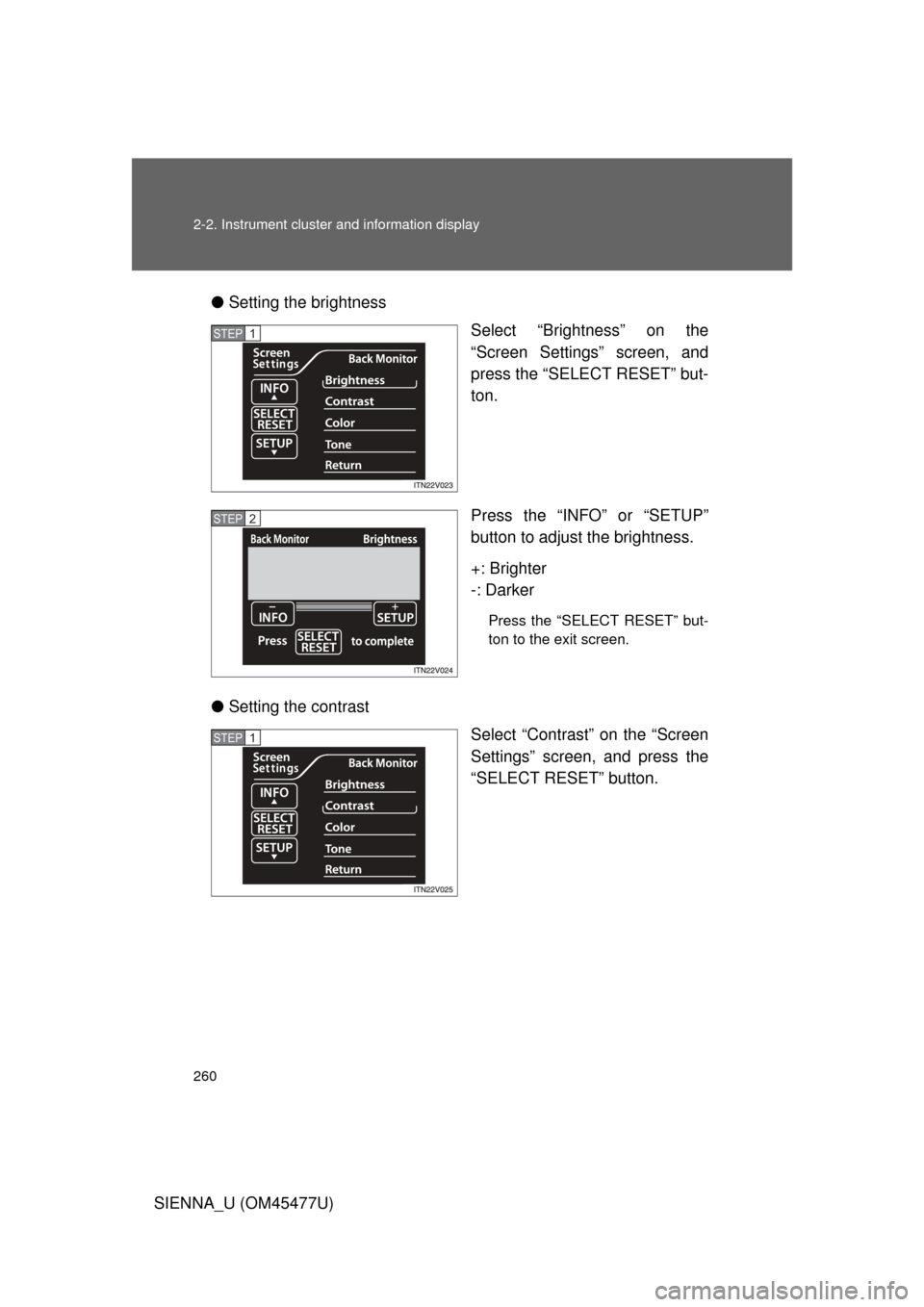

Setting the brightness
Select “Brightness” on the
“Screen Settings” screen, and
press the “SELECT RESET” but-
ton.
Press the “INFO” or “SETUP”
button to adjust the brightness.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to the exit screen.
● Setting the contrast
Select “Contrast” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
STEP1
STEP2
STEP1

261
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)

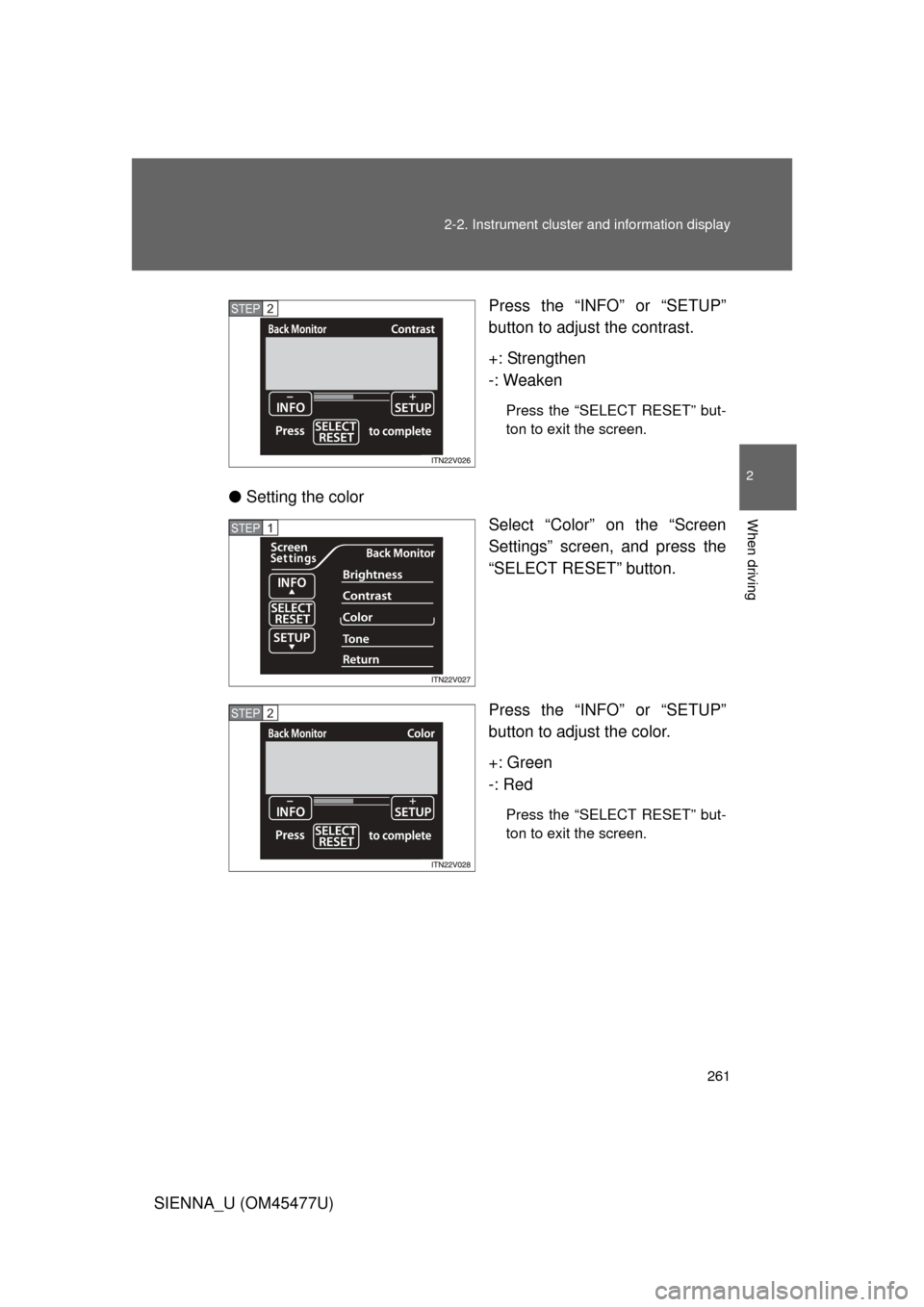

Press the “INFO”
or “SETUP”
button to adjust the contrast.
+: Strengthen
-: Weaken
Press the “SELECT RESET” but-
ton to exit the screen.
● Setting the color
Select “Color” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the color.
+: Green
-: Red
Press the “SELECT RESET” but-
ton to exit the screen.
STEP2
STEP1
STEP2

262 2-2. Instrument cluster and information display
SIENNA_U (OM45477U)●

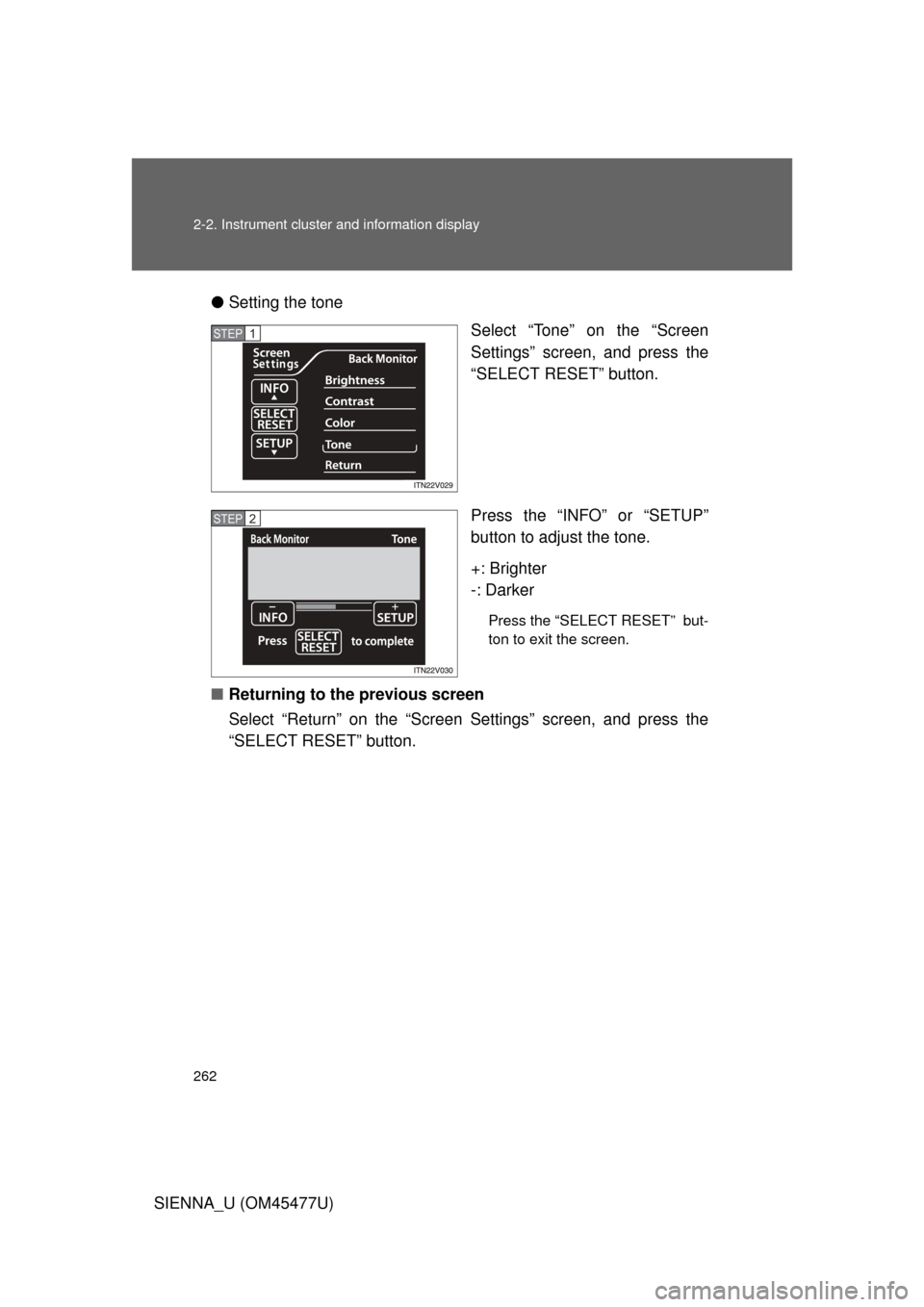

Setting the tone
Select “Tone” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the tone.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to exit the screen.
■ Returning to the previous screen
Select “Return” on the “Screen Settings” screen, and press the
“SELECT RESET” button.
STEP1
STEP2

263
2-2. Instrument cluster and information display
2
When driving
SIENNA_U (OM45477U)
■
If the vehicle is moved while setti ngs are being changed on the multi-
information display
If the vehicle speed exceeds approxi-
mately 3 mph (5 km/h) while the settings
are being changed, “Please Stop Vehicle
to Change Settings” will be displayed on
the multi-information display, and setting
mode will exit after several seconds. If the
“SETUP” button is pressed at a speed in
excess of 3 mph (5 km/h), only some of
the settings can be changed. To change
the other settings, press the “SETUP”
button after bringing the vehicle to a com-
plete stop.

264 2-2. Instrument cluster and information display
SIENNA_U (OM45477U)
■Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on.
Eco Driving Indicator Zone Display
*
Suggests Zone of Eco driving with cur-
rent Eco driving ratio based on accel-
eration.
*: The display varies depending on its
specification.
Zone of Eco driving
Eco driving ratio based on acceleration
If the vehicle exceeds Zone of Eco
driving, the right side of Eco Driving
Indicator Zone Display will blink and
Eco Driving Indicator Light will turn off.
Eco Driving Indicator will operate in the
following conditions:
● The shift lever is in D.
● Vehicle speed is below approximately
80mph (130 km/h).
