2012 TOYOTA SIENNA Owners Manual

5
When trouble arises
777
5-2. Steps to take in an emergency
SIENNA_U (OM45477U)
CAUTION
■
To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● Keep hands and clothing away from the fans and drive belt while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

778
5-2. Steps to take in an emergency
SIENNA_U (OM45477U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parki ng brake and shift the shift
lever to P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the engine.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC and Enhanced VSC if these functions are hamper-
ing your attempts to free the vehicle. ( P. 329)
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
779
5-2. Steps to take in an emergency
SIENNA_U (OM45477U)
NOTICE
■
To avoid damaging the tran saxle and other components
● Avoid spinning the wheels and pressing the accelerator pedal more than
necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

780
5-2. Steps to take in an emergency
SIENNA_U (OM45477U)

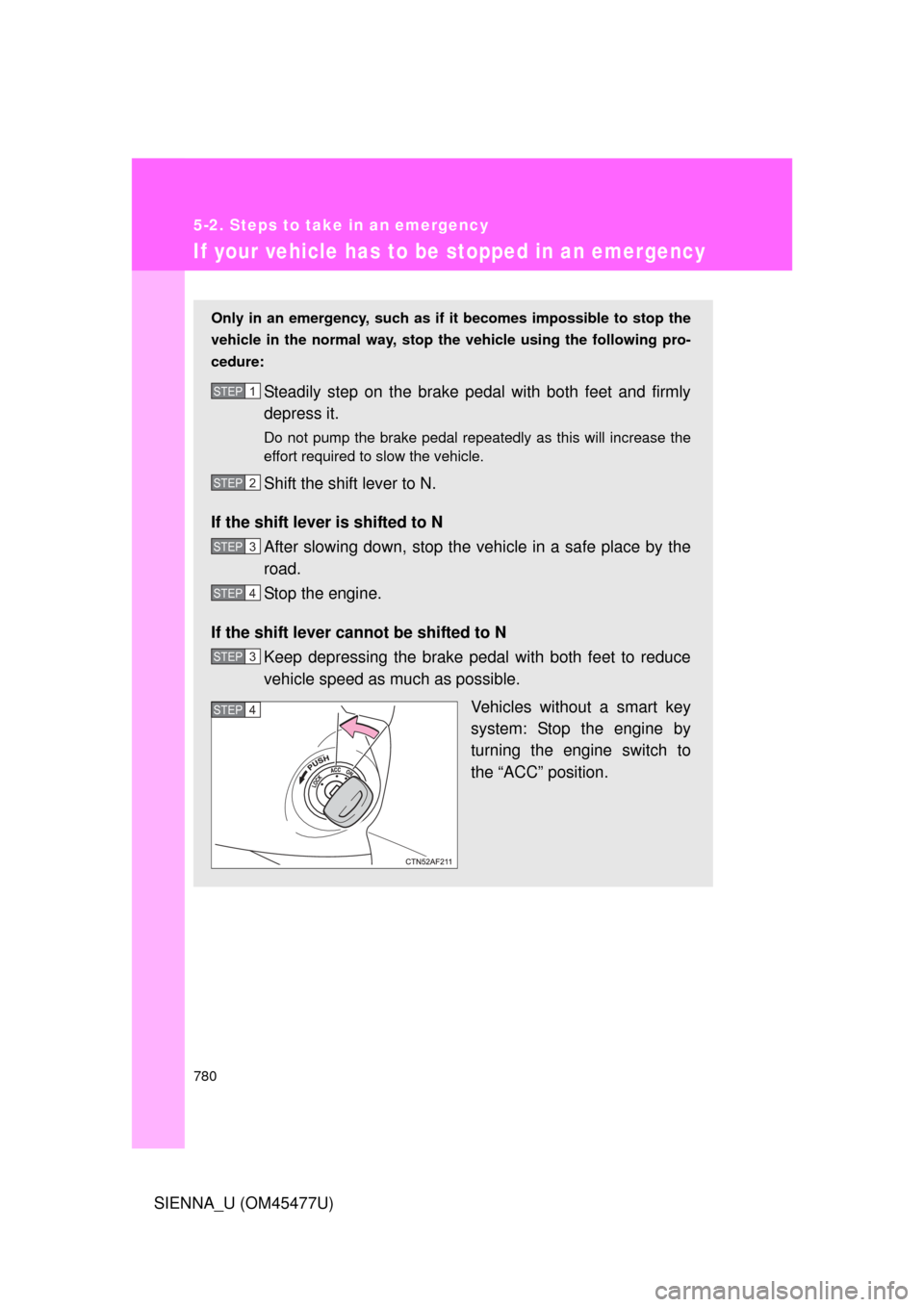

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4

5
When trouble arises
781
5-2. Steps to take in an emergency
SIENNA_U (OM45477U)
CAUTION
■
If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: Stop the engine by press-
ing and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more
STEP4
STEP5

782 5-2. Steps to take in an emergency
SIENNA_U (OM45477U)

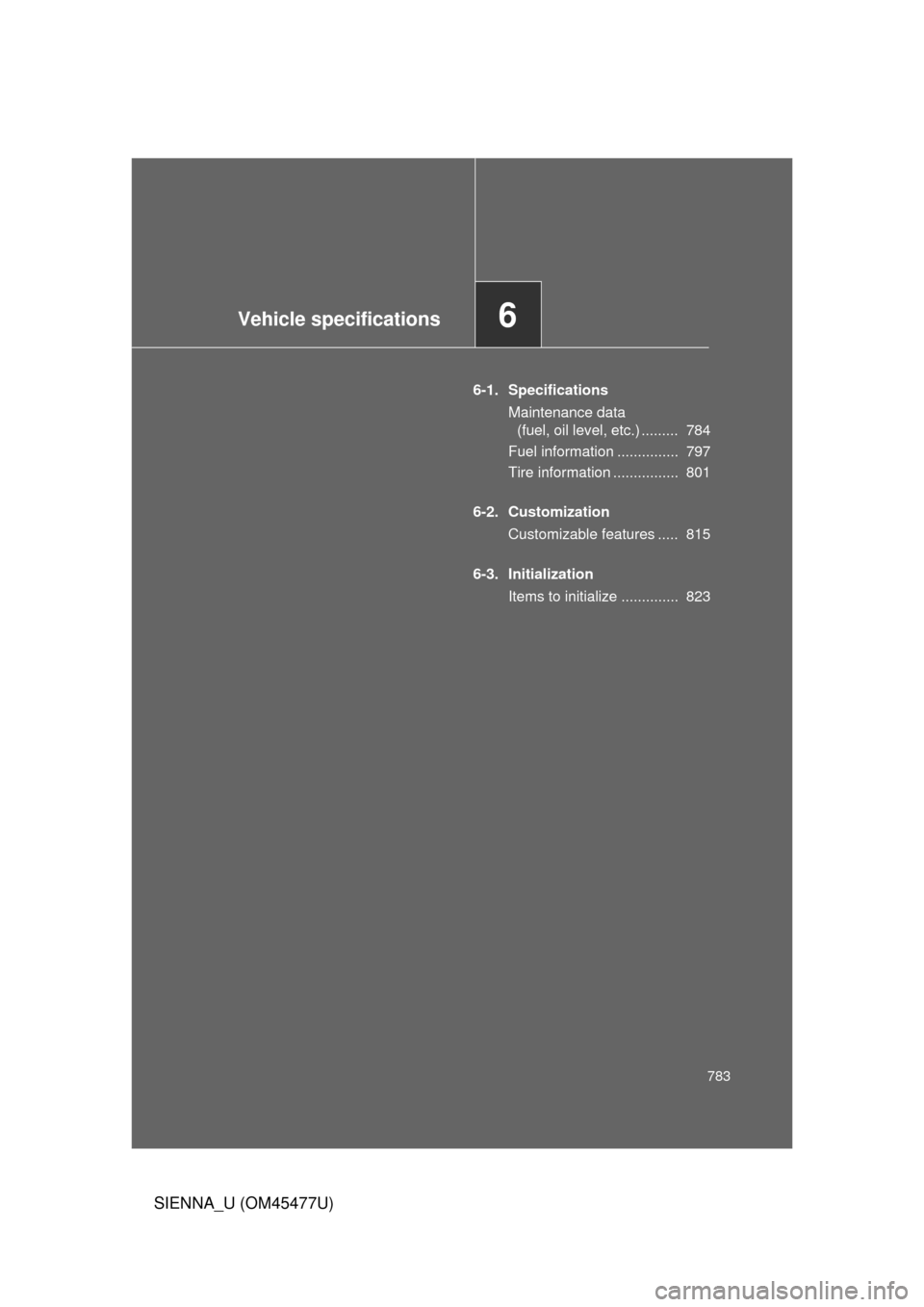

Vehicle specifications6
783
SIENNA_U (OM45477U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 784
Fuel information ............... 797
Tire information ................ 801
6-2. Customization Customizable features ..... 815
6-3. Initialization Items to initialize .............. 823

784
SIENNA_U (OM45477U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length200.2 in. (5085 mm)
Overall width78.1 in. (1985 mm)
Overall
height
*1
2WD
models
ASL30L-PFTEKA,
ASL30L-PRTEKA*269.5 in. (1765 mm)
GSL30L-PRTSKA*268.7 in. (1745 mm)
Others68.9 in. (1750 mm)
AWD models 69.5 in. (1765 mm)
Wheelbase 119.3 in. (3030 mm)
TreadFront67.7 in. (1720 mm)
Rear67.7 in. (1720 mm)
Vehicle capacity weight
(Occupants + luggage)
ASL30L-PFTEKA*21255 lb. (570 kg)
ASL30L-PRTEKA*21345 lb. (610 kg)
GSL30L-PFTDKA*21380 lb. (625 kg)
GSL30L-PFTEKA*21235 lb. (560 kg)
GSL30L-PFTQKA*21145 lb. (520 kg)
GSL30L-PRTEKA*21355 lb. (615 kg)
GSL30L-PRTSKA*21280 lb. (580 kg)
GSL30L-PRTQKA*21245 lb. (565 kg)
GSL35L-PFTDKA*21270 lb. (575 kg)
GSL35L-PFTEKA*21215 lb. (550 kg)
GSL35L-PFTQKA*21115 lb. (505 kg)
