2012 TOYOTA SIENNA Owners Manual

425
3-2. Using the audio system
3
Interior features
SIENNA_U (OM45477U)
Selecting a track
Turn or or press “ ” or “ ” on to select the
desired track.
Fast forwarding and rewinding tracks
Ty p e A
Press or .
Type B and C
Press and hold “ ” or “ ” on .
Scanning tracks
Press .
The first 10 seconds of each track will be played.
To cancel, press again.
Press again when the desired track is reached.
STEP1
STEP2

426 3-2. Using the audio system
SIENNA_U (OM45477U)
Selecting a CD (type C only)■ Selecting a CD to play
Press that corresponds to “DISC ” or “ DISC”.
■ Scanning loaded CDs
Press and hold until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
To cancel, press again.
Press again when the desired CD is reached.
Playing and pausing tracks (type B and C)Press .
Random playback■ Current CD
Press or that corresponds to “RDM”.
Songs are played in random order.
To cancel, press the button again.
■All CDs (type C only)
Press that corresponds to “RDM” twice.
Tracks on all loaded CDs are played in random order.
To cancel, press the button again.
STEP1
STEP2

427
3-2. Using the audio system
3
Interior features
SIENNA_U (OM45477U)
Repeat play
■ Repeating a track
Press or that corresponds to “RPT”.
To cancel, press the button again.
■Repeating all of the tracks on a CD (type C only)
Press that corresponds to “RPT” twice.
To cancel, press the button again.
Switching the display
Press .
Each time is pressed, the display changes in the following order:
Ty p e A
Track no./Elapsed time  CD title  Track name.
Ty p e B a n d C
Track title  Track name/Artist name  Track name/Elapsed time.
■Display (type A only)
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for 6
seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.

428 3-2. Using the audio system
SIENNA_U (OM45477U)
■Error messages
“CD CHECK”: This indicates a problem either with the CD or inside the
player. The CD may be dirty, damaged or inserted up-side
down.
“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high temper- ature inside the player. Wait for a while and
then press or . Contact
your Toyota dealer if the CD still cannot be
played back.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

429
3-2. Using the audio system
3
Interior features
SIENNA_U (OM45477U)
NOTICE
■
CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual
Disc.
Doing so may damage the player and/or the CD insert/eject function.
●CDs that have a diameter that is not
4.7 in. (12 cm).
● Low-quality and deformed CDs.
● CDs with a transparent or translucent
recording area.
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
the label peeled off.

430 3-2. Using the audio system
SIENNA_U (OM45477U)
NOTICE
■Player precautions
Failure to follow the precautions below may result in damage to the CDs or
the player itself.
● Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the CD player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the player.
●Do not insert more than one CD at a
time.

431
3-2. Using the audio system
3
Interior features
SIENNA_U (OM45477U)

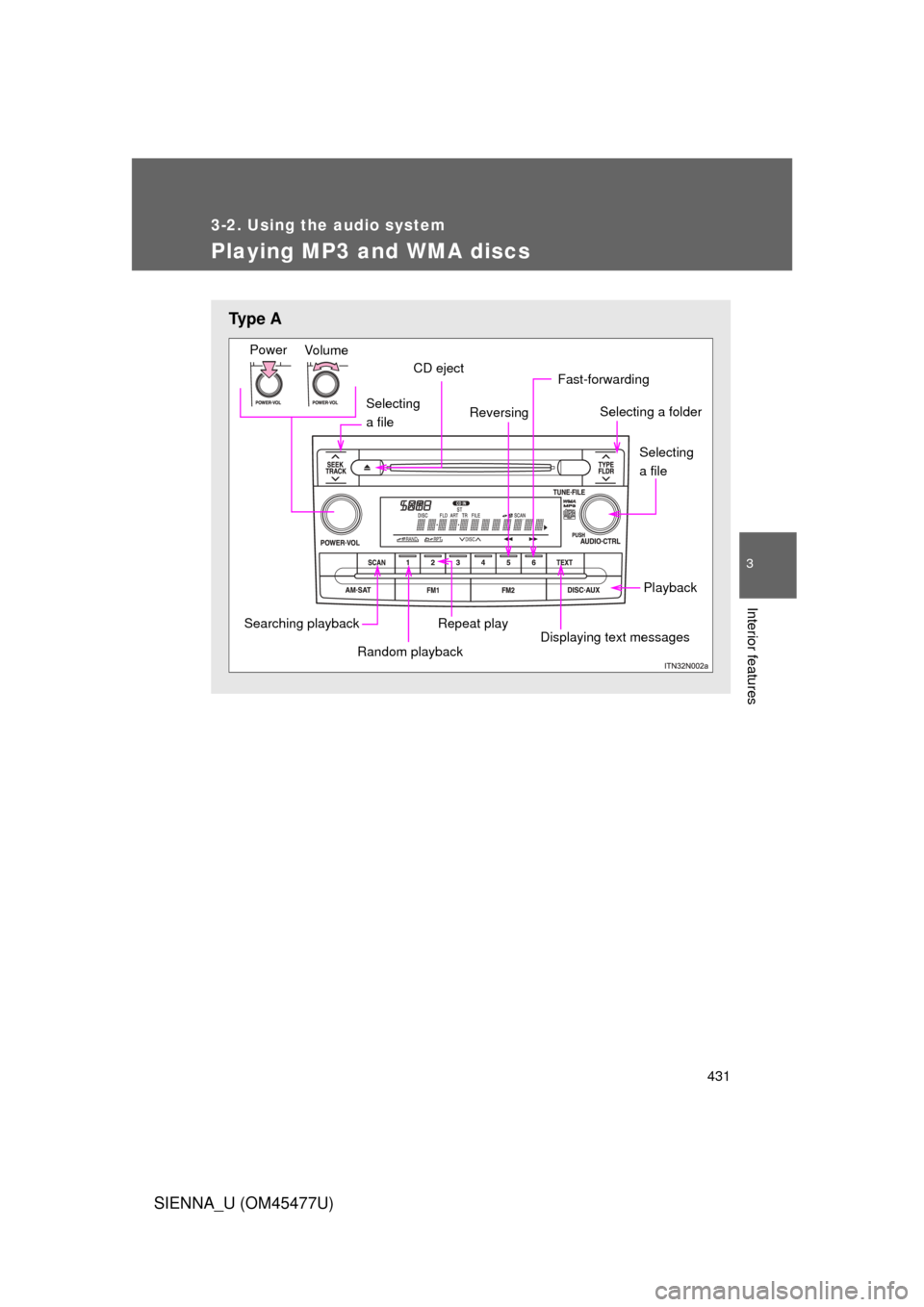

Playing MP3 and WMA discs
Ty p e A
Selecting
a file
Vo lu m e
Power
CD eject
Selecting a folder
Playback
Displaying text messages
Repeat play
Fast-forwarding
Reversing
Searching playback
Random playback
Selecting
a file

432 3-2. Using the audio system
SIENNA_U (OM45477U)
Loading and ejecting MP3 and WMA discs P. 4 2 2
Selecting MP3 and WMA discs (type C only)
 P. 4 2 2

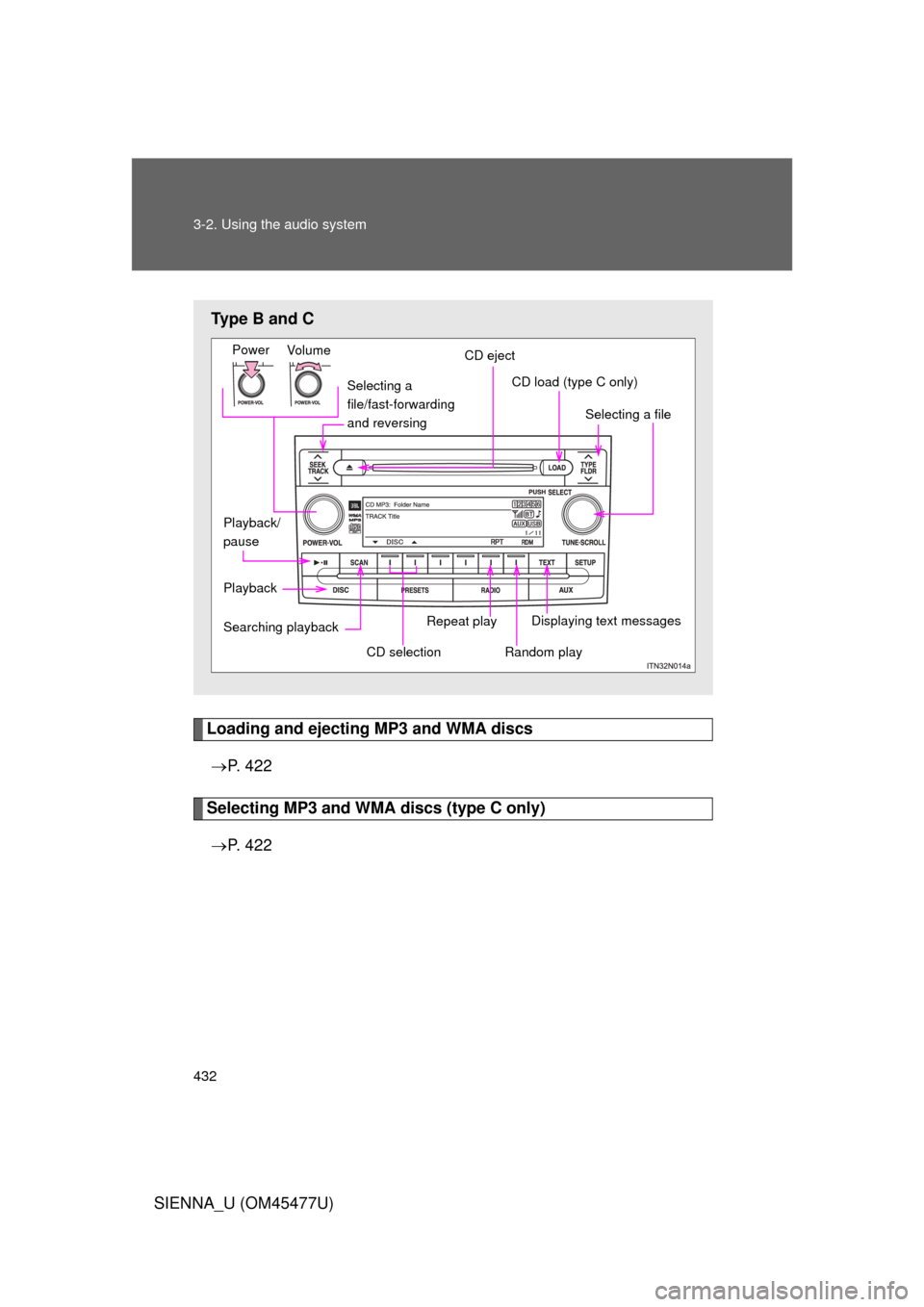

Type B and C
Selecting a
file/fast-forwarding
and reversing
Vo lu m e
Power
CD eject
Selecting a file
CD load (type C only)
Playback Displaying text messages
Searching playback
Random play
CD selection
Repeat play
Playback/
pause
