2012 TOYOTA SIENNA Owners Manual

57
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
■
Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Power sliding door operation (vehicles with power sliding door)
Even if the door is locked, pressing and holding the sliding door buttons will
unlock all doors and start open operation.
■ Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
(P. 162)
■ Reversing the operation of the po wer sliding door and power back
door (if equipped)
Pressing the wireless remote control switch again while the door is operating
will cause the operation to reverse. However, the reverse operation cannot
be performed for the first second after automatic operation starts, even if the
wireless remote control switch is pressed again.

58 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
■Conditions affecting operation
Vehicles without a smart key system
The wireless remote control function may not operate normally in the follow-
ing situations:
● Near a TV tower, radio station, electr ic power plant, airport or other facil-
ity that generates strong radio waves
● When carrying a portable radio, cell ular phone or other wireless commu-
nication devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by, a metallic
object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as
a personal computer
● If window tint with a metallic content or metallic objects is attached to the
rear window
● Vehicles with AUTO ACCESS SEAT: If the wireless remote control of the
AUTO ACCESS SEAT is operated simultaneously, the AUTO ACCESS
SEAT may not operate properly.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
Vehicles with a smart key system
 P. 4 6
■ If the wireless remote control does not operate properly (vehicles with
a smart key system)
Locking and unlocking the doors: Use the mechanical key. ( P. 767)
■ Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( P. 693)
Vehicles with a smart key system
 P. 5 0

59
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
■
When the electronic key battery is fully depleted
 P. 693
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. operation signal) can be changed.
(Customizable features P. 815)
■ Certification for wireless remote co ntrol (vehicles without a smart key
system)
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
■ Certification for wireless remote control (vehicles with a smart key sys-
tem)
U.S.A.
FCC ID: HYQ14ADR FCC ID: HYQ14AEH
FCC ID: HYQ13CZM FCC ID: HYQ13CZN
FCC ID: NI4TMLF8-20
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

60
1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
Front doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
■Entry function (if equipped)
P. 3 7
■ Wireless remote control
P. 5 3
■ Key
Turning the key operates the doors as follows:
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Turning the key unlocks the
driver’s side doors. Turning the
key again within 3 seconds
unlocks the other doors.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. ( P. 767)

61
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
■

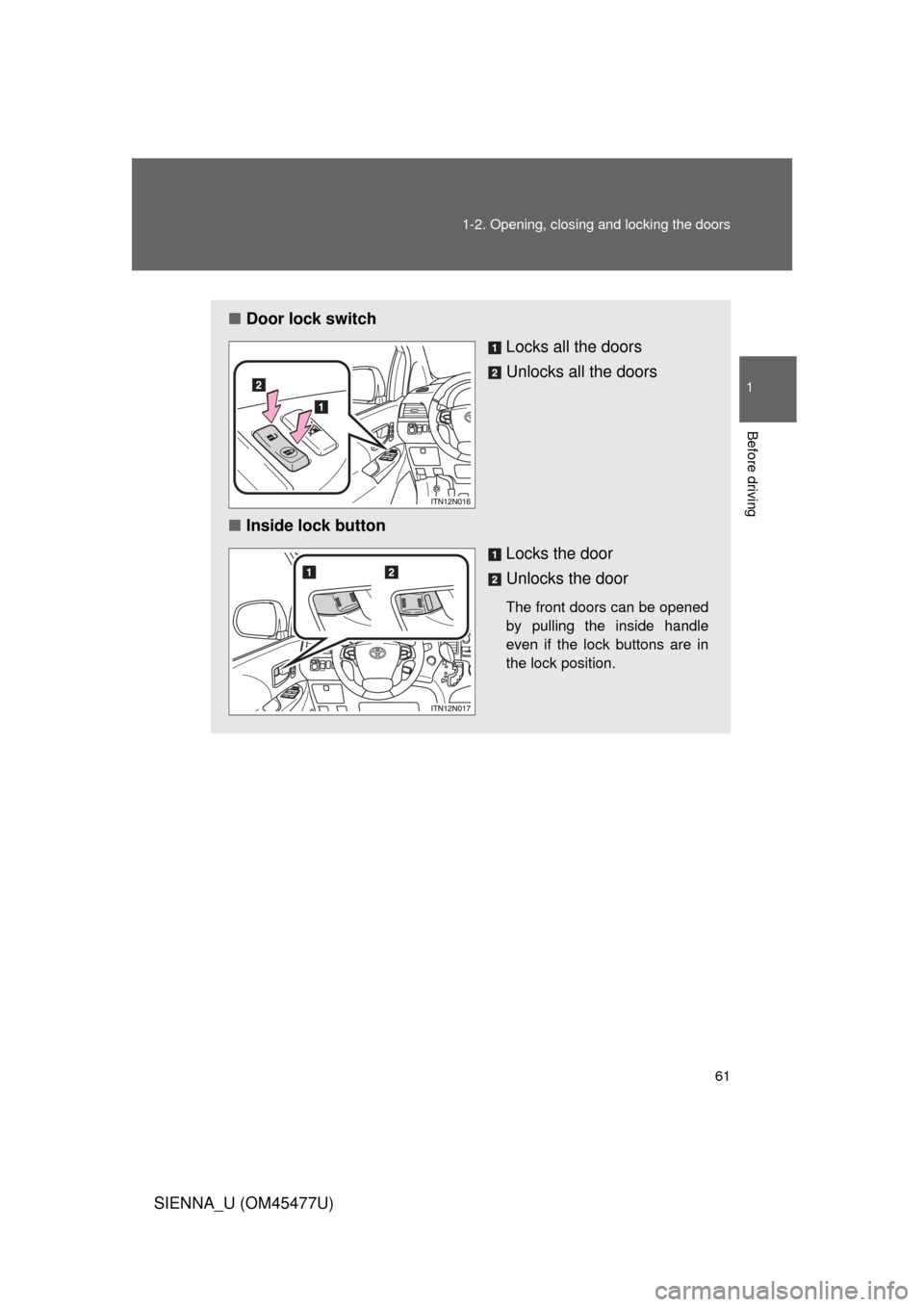

Door lock switch
Locks all the doors
Unlocks all the doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.

62 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
Locking the front doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The doors cannot be locked if either of the front doors is open and the
key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
STEP1
STEP2

63
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
Automatic door locking and unlocking systems
The following functions can be set or cancelled:
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of P locks all the
doors.
Shift position linked
door unlocking function Shifting the shift lever to P unlocks all the
doors.
Speed linked door lock-
ing function All the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked
door unlocking function
(vehicles without a
smart key system) All the doors are unlocked when the driver’s
door is opened within 10 seconds after turn-
ing the engine switch to “ACC” or “LOCK”.
Driver’s door linked
door unlocking function
(vehicles with a smart
key system) All the doors are unlocked when the driver’s
door is opened within 10 seconds after turn-
ing the “ENGINE START STOP” switch off.

64 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)■
Setting and canceling the functions
To switch between set and canceled, follow the procedure below:
Vehicles without a smart key system
Close all the doors and turn the engine switch to the “ON”
position. (Perform step 2 within 10 seconds.)
Vehicles with a smart key system
Close all the doors and turn the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform step 2 within 10 sec-
onds.)
STEP1
