2012 TOYOTA SIENNA Owners Manual

281
2-3. Operating the lights and wipers
2
When driving
SIENNA_U (OM45477U)
■
Fog lights can be used when
The headlights are on in low beam.
Ty p e B
Turns the front fog
lights off
Turns the front fog
lights on

282
2-3. Operating the lights and wipers
SIENNA_U (OM45477U)

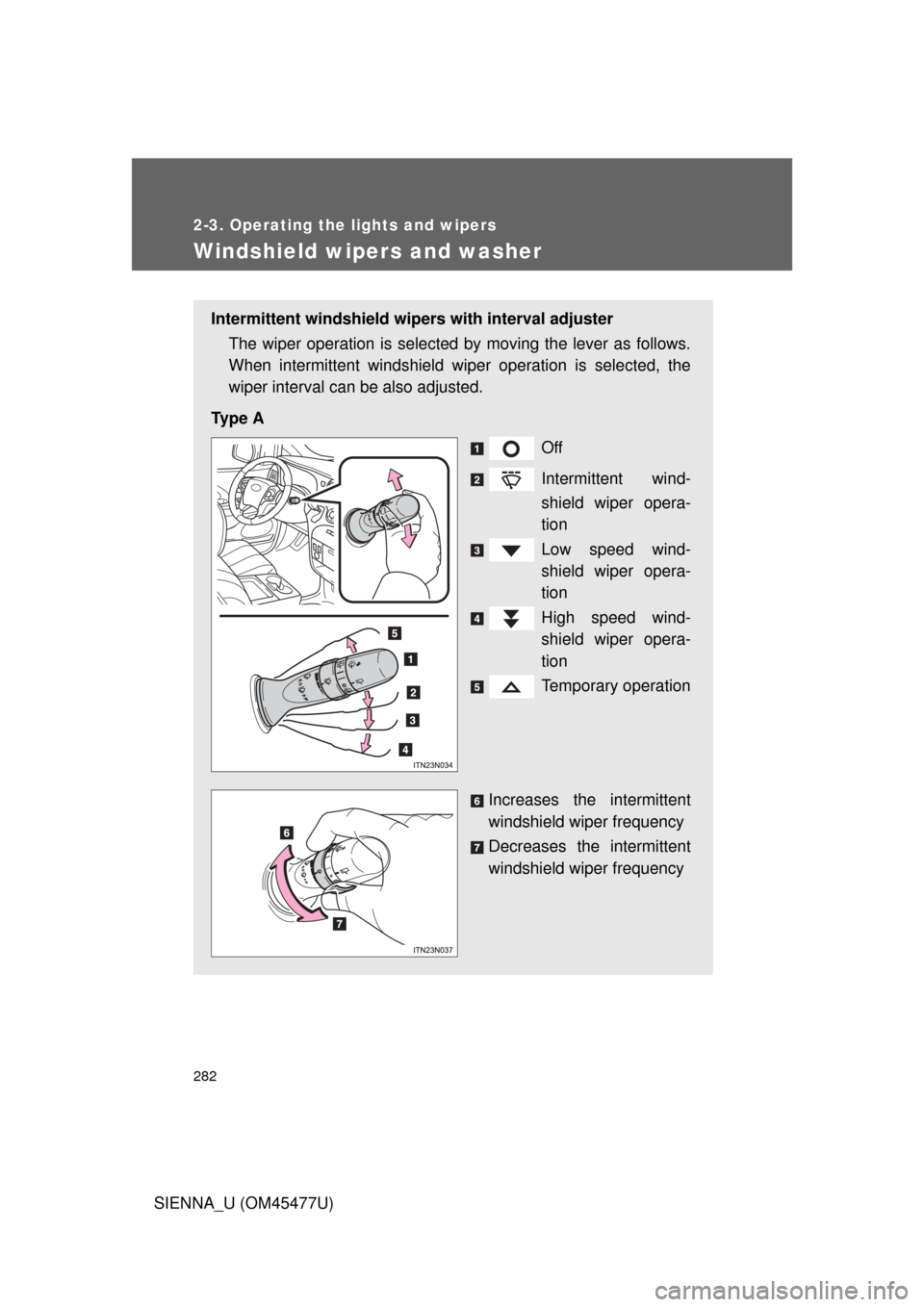

Windshield wipers and washer
Intermittent windshield wipers with interval adjusterThe wiper operation is selected by moving the lever as follows.
When intermittent windshield wiper operation is selected, the
wiper interval can be also adjusted.
Ty p e A Off
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

283
2-3. Operating the lights and wipers
2
When driving
SIENNA_U (OM45477U)

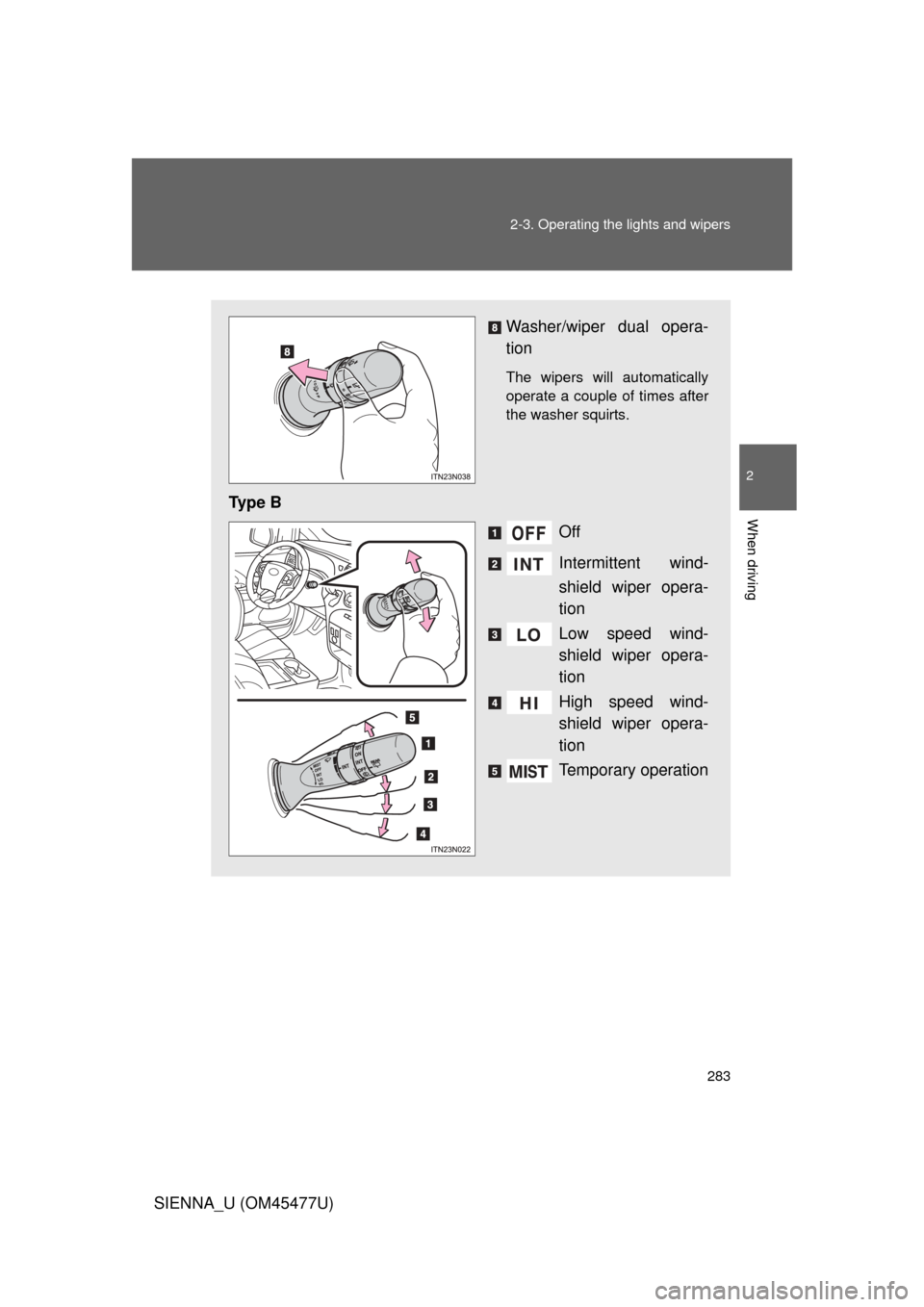

Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
Ty p e B
Off
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation

284 2-3. Operating the lights and wipers
SIENNA_U (OM45477U)

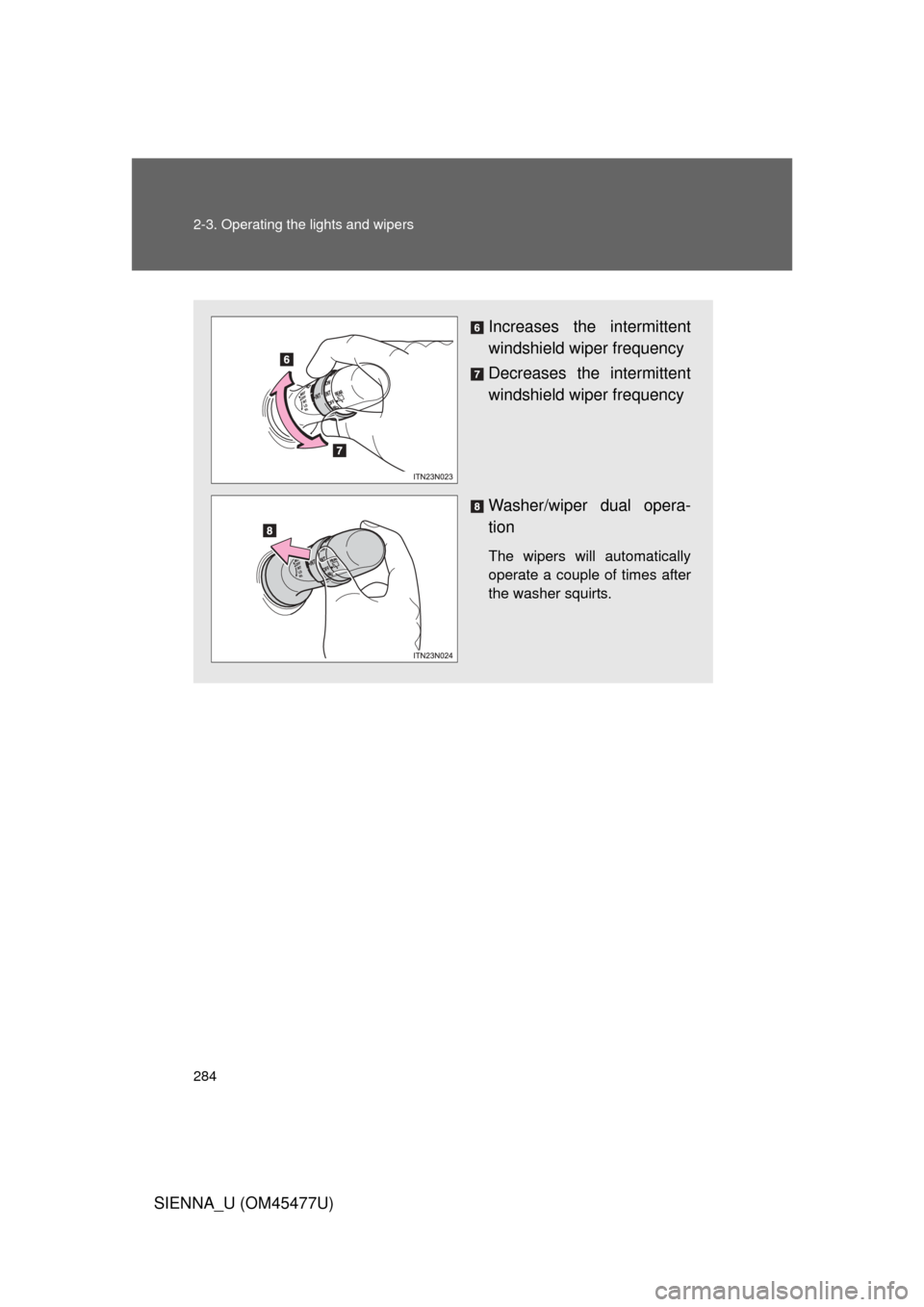

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

285
2-3. Operating the lights and wipers
2
When driving
SIENNA_U (OM45477U)
Rain-sensing windshiel
d wipers (if equipped)
When “AUTO” is selected, the wi pers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume.
When “AUTO” is selected, the sensor sensitivity can be adjusted
as follows by turning the switch ring:
Ty p e A Off
Rain-sensing wiper
operation (“AUTO”)
Low speed wiper
operation
High speed wiper
operation
Temporary operation

286 2-3. Operating the lights and wipers
SIENNA_U (OM45477U)

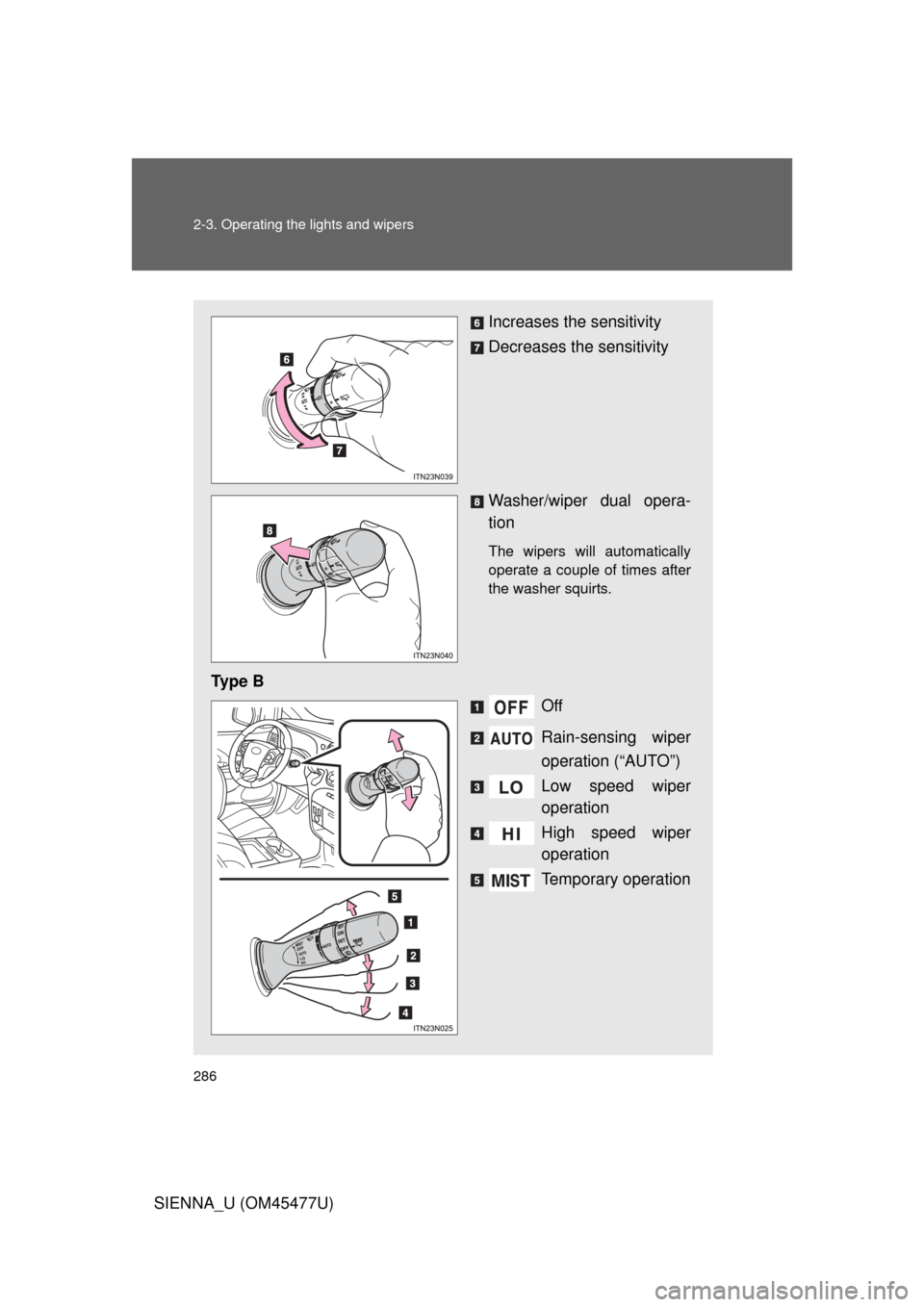

Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
Ty p e BOff
Rain-sensing wiper
operation (“AUTO”)
Low speed wiper
operation
High speed wiper
operation
Temporary operation

287
2-3. Operating the lights and wipers
2
When driving
SIENNA_U (OM45477U)

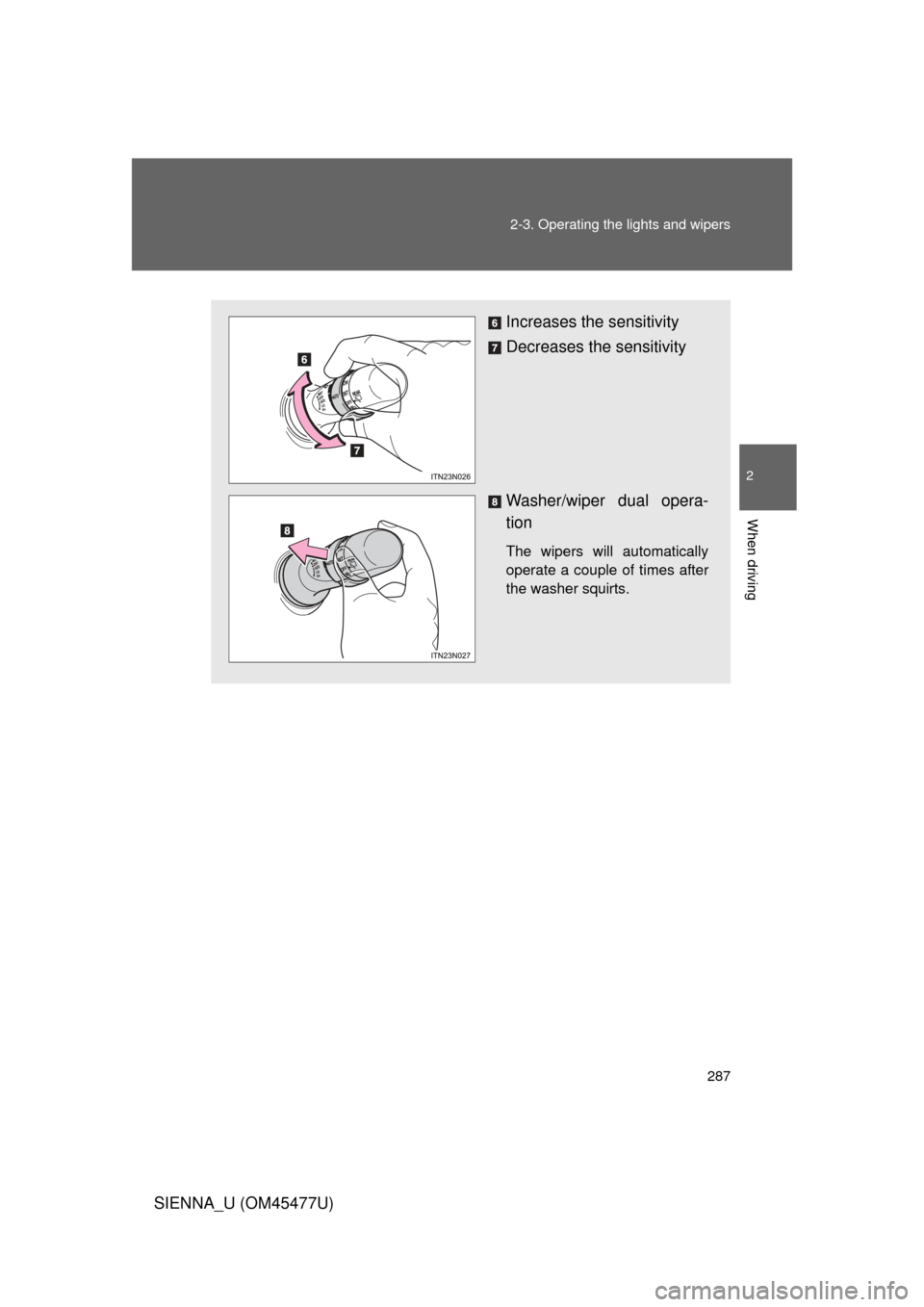

Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

288 2-3. Operating the lights and wipers
SIENNA_U (OM45477U)
■The windshield wipers and washer can be operated when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
● If the wiper switch is turned to “AUTO” position while the “ENGINE
START STOP” switch is in IGNITIO N ON mode, the wiper will operate
once to show that “AUTO” mode is activated.
● If the temperature of the raindrop sensor is 185°F (85°C) or higher, or
14°F (-10°C) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
● The raindrop sensor judges the amount
of raindrops.
