2012 Seat Ibiza 5D Owner's manual

231
If and when
Single headlight bulb change
Single headlight bulb
Fig. 143 Single head-
light
Side lights - Dipped beam/main beam.
Turn signal. 
A
B
Turn signal bulb
Fig. 144 Single turn sig-
nal lamp
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 144 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

232If and when
Dipped/main beam headlights
Fig. 145 Dipped beam/
main beam, single head-
light
Fig. 146 Dipped beam/
main beam, single head-
light
– Raise the bonnet.
– Move the loop ⇒ Fig. 145 1
in the direction of the arrow and
remove the cover. –
Remove connector ⇒ Fig. 146 2
from the bulb.
– Unclip the retainer spring ⇒ Fig. 146 3
pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
– Fit the connector.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Side light
Fig. 147 Side lights
– Raise the bonnet. 

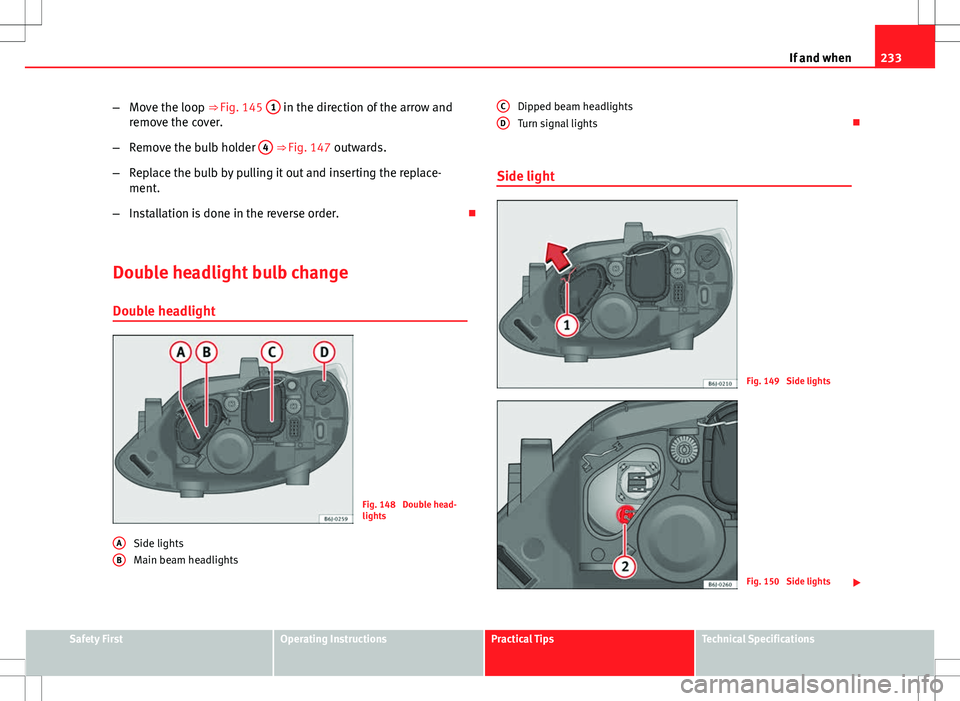

233
If and when
– Move the loop ⇒ Fig. 145 1
in the direction of the arrow and
remove the cover.
– Remove the bulb holder 4
⇒ Fig. 147 outwards.
– Replace the bulb by pulling it out and inserting the replace-
ment.
– Installation is done in the reverse order. 
Double headlight bulb change Double headlight
Fig. 148 Double head-
lights
Side lights
Main beam headlights
A
B
Dipped beam headlights
Turn signal lights

Side light
Fig. 149 Side lights
Fig. 150 Side lights 
C
D
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

234If and when
–Raise the bonnet.
– Move the loop 1
in the direction of the arrow and remove the
cover ⇒ Fig. 149.
– Remove connector ⇒ Fig. 150 2
by pulling outward.
– Remove the bulb by pulling it out and fitting the new one.
– Installation involves the above steps in reverse sequence.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Main beam headlights
Fig. 151 Main beam
headlights
Fig. 152 Main beam
headlights
– Raise the bonnet.
– Move the loop 1
in the direction of the arrow and remove the
cover ⇒ Fig. 151.
– Remove connector ⇒ Fig. 152 2
by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly
into the cut-out on the reflector.
– Installation involves the above steps in reverse sequence.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 

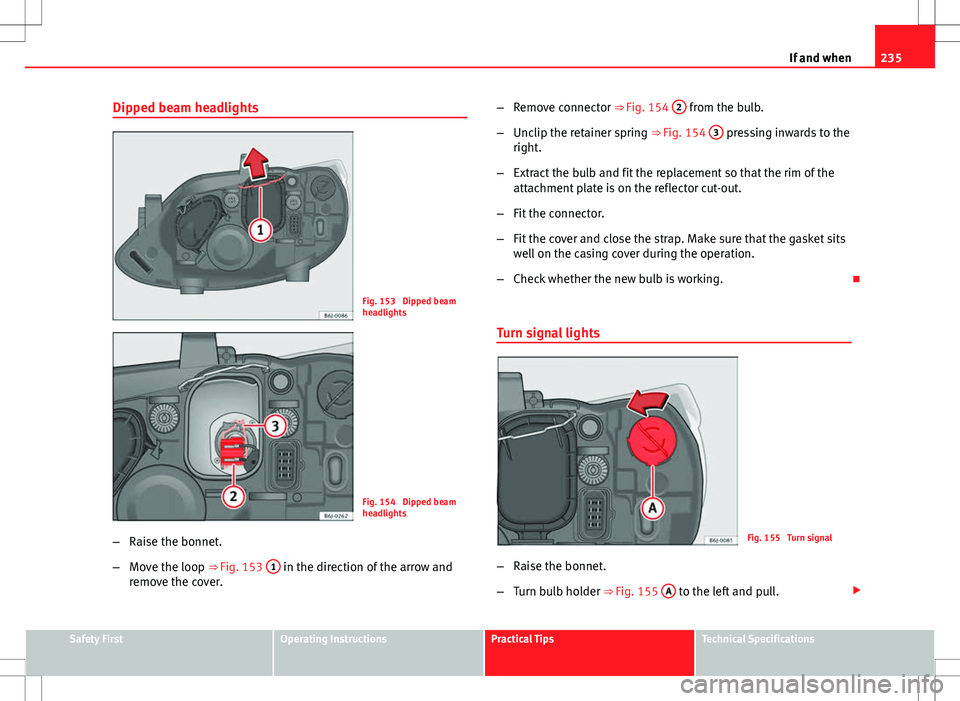

235
If and when
Dipped beam headlights
Fig. 153 Dipped beam
headlights
Fig. 154 Dipped beam
headlights
– Raise the bonnet.
– Move the loop ⇒ Fig. 153 1
in the direction of the arrow and
remove the cover. –
Remove connector ⇒ Fig. 154 2
from the bulb.
– Unclip the retainer spring ⇒ Fig. 154 3
pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
– Fit the connector.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Turn signal lights
Fig. 155 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 155 A
to the left and pull. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

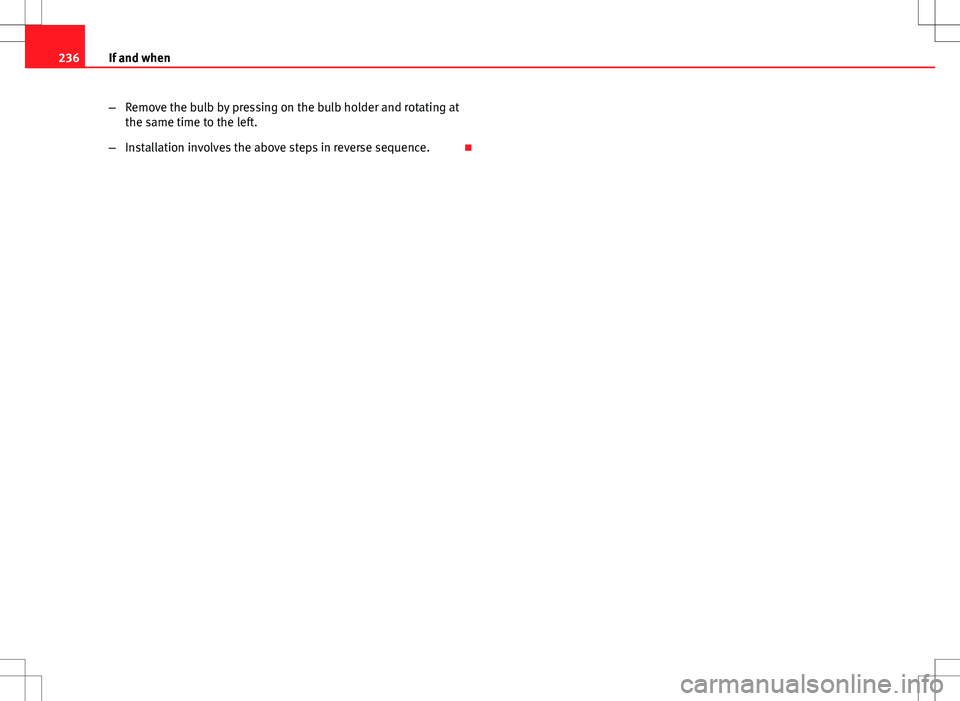

236If and when
–Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 

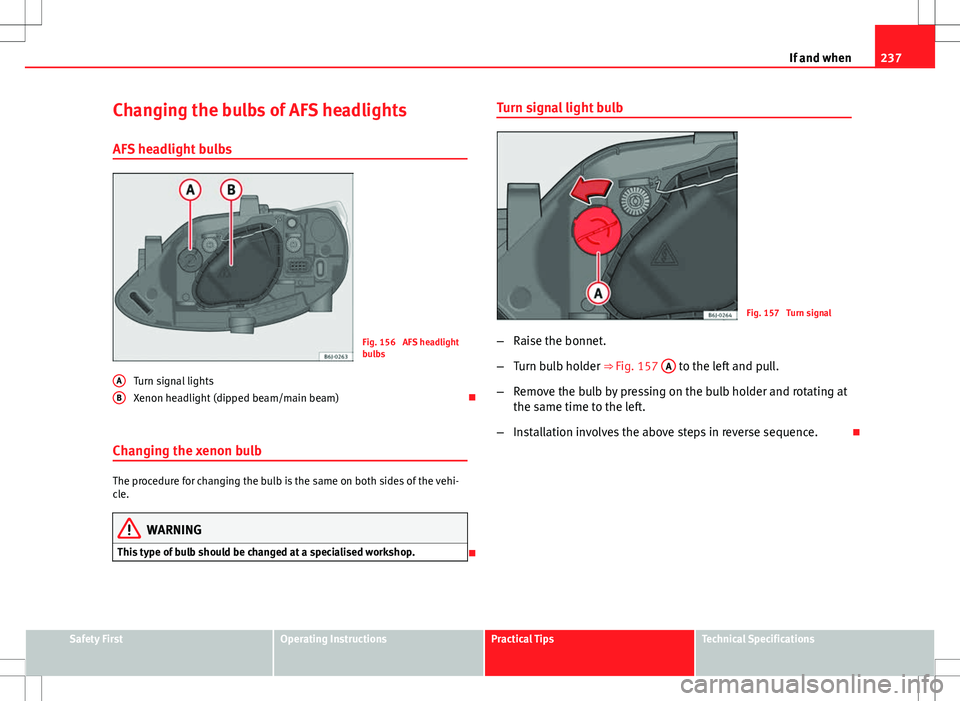

237
If and when
Changing the bulbs of AFS headlights
AFS headlight bulbs
Fig. 156 AFS headlight
bulbs
Turn signal lights
Xenon headlight (dipped beam/main beam) 
Changing the xenon bulb
The procedure for changing the bulb is the same on both sides of the vehi-
cle.
WARNING
This type of bulb should be changed at a specialised workshop.

A
B
Turn signal light bulb
Fig. 157 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 157 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

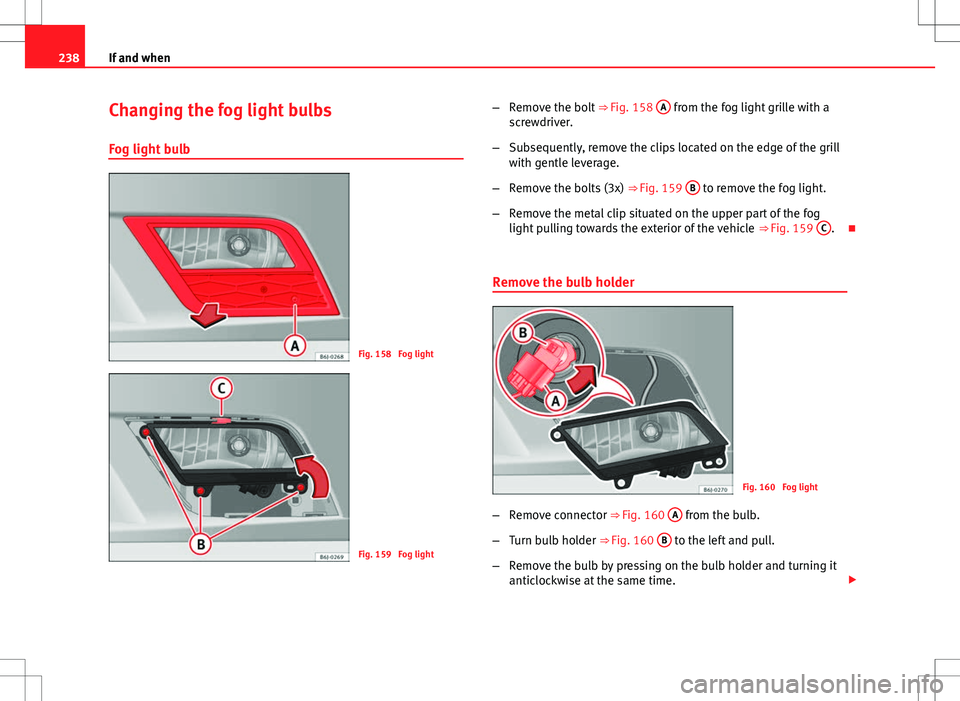

238If and when
Changing the fog light bulbs
Fog light bulb
Fig. 158 Fog light
Fig. 159 Fog light –
Remove the bolt ⇒ Fig. 158 A
from the fog light grille with a
screwdriver.
– Subsequently, remove the clips located on the edge of the grill
with gentle leverage.
– Remove the bolts (3x) ⇒ Fig. 159 B
to remove the fog light.
– Remove the metal clip situated on the upper part of the fog
light pulling towards the exterior of the vehicle ⇒ Fig. 159 C
.
Remove the bulb holder
Fig. 160 Fog light
– Remove connector ⇒ Fig. 160 A
from the bulb.
– Turn bulb holder ⇒ Fig. 160 B
to the left and pull.
– Remove the bulb by pressing on the bulb holder and turning it
anticlockwise at the same time. 
