Technical specifications
Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF Start-Stop Ecomotive
Engine specifications Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 173
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,2
Acceleration from 0-100 km/h (0-60 mph) in sec. 13,9
Weights
Gross vehicle weight in kg 1610
Weight in running order (with driver) in kg 1150
Gross front axle weight in kg 900
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

264Technical specifications

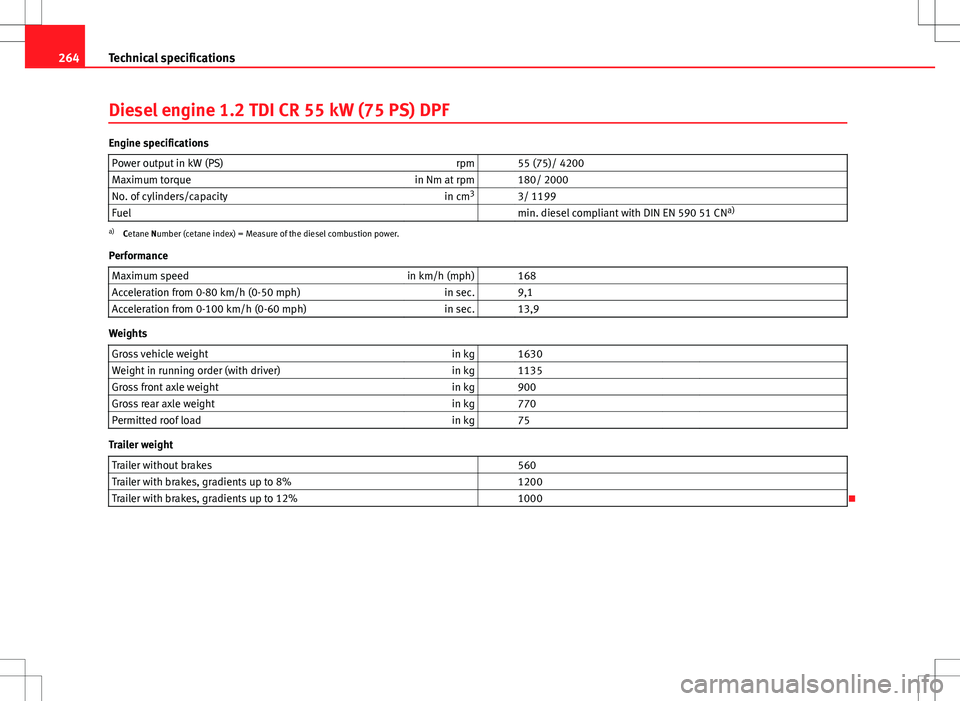

Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF
Engine specifications
Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 168
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,1
Acceleration from 0-100 km/h (0-60 mph) in sec. 13,9
Weights
Gross vehicle weight in kg 1630
Weight in running order (with driver) in kg 1135
Gross front axle weight in kg 900
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 560
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000


265
Technical specifications
Diesel engine 1.6 TDI CR 66 kW (90 PS) DPF
Engine specifications Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 178
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,8
Acceleration from 0-100 km/h (0-60 mph) in sec. 11,8
Weights
Gross vehicle weight in kg 1670
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

266Technical specifications

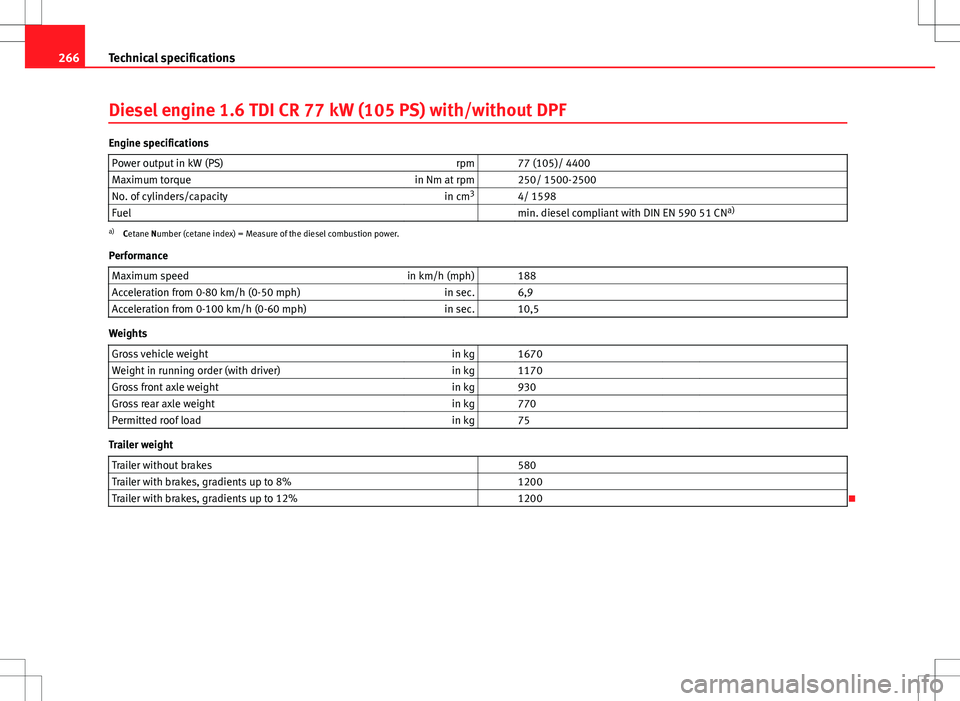

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 188
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,9
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,5
Weights
Gross vehicle weight in kg 1670
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200


267
Technical specifications

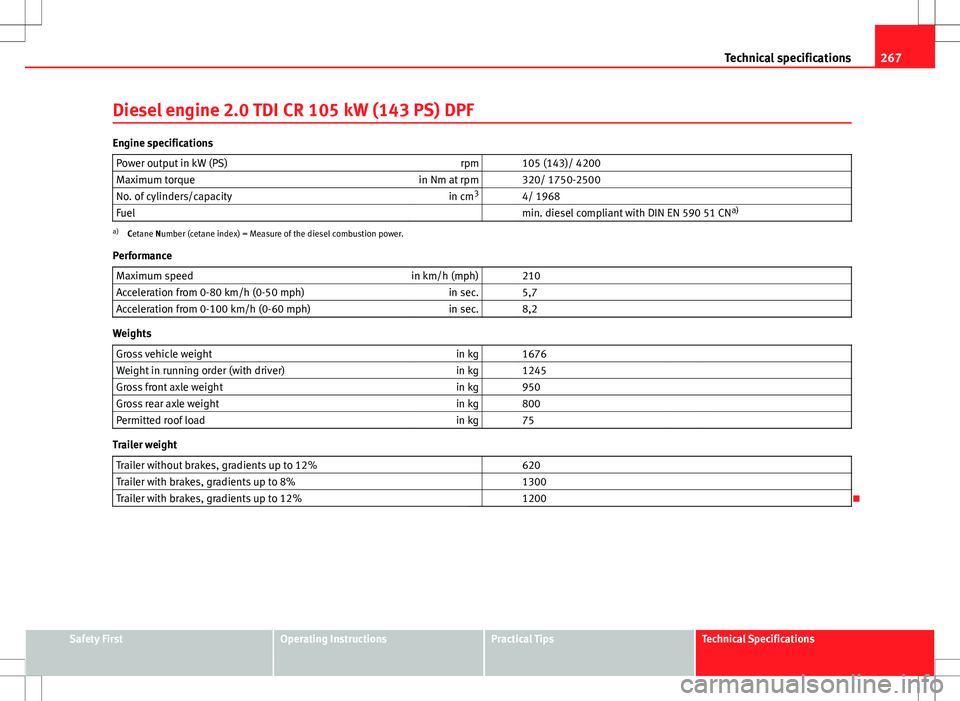

Diesel engine 2.0 TDI CR 105 kW (143 PS) DPF
Engine specifications Power output in kW (PS) rpm 105 (143)/ 4200
Maximum torque in Nm at rpm 320/ 1750-2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 210
Acceleration from 0-80 km/h (0-50 mph) in sec. 5,7
Acceleration from 0-100 km/h (0-60 mph) in sec. 8,2
Weights
Gross vehicle weight in kg 1676
Weight in running order (with driver) in kg 1245
Gross front axle weight in kg 950
Gross rear axle weight in kg 800
Permitted roof load in kg 75
Trailer weight
Trailer without brakes, gradients up to 12% 620
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

268Technical specifications

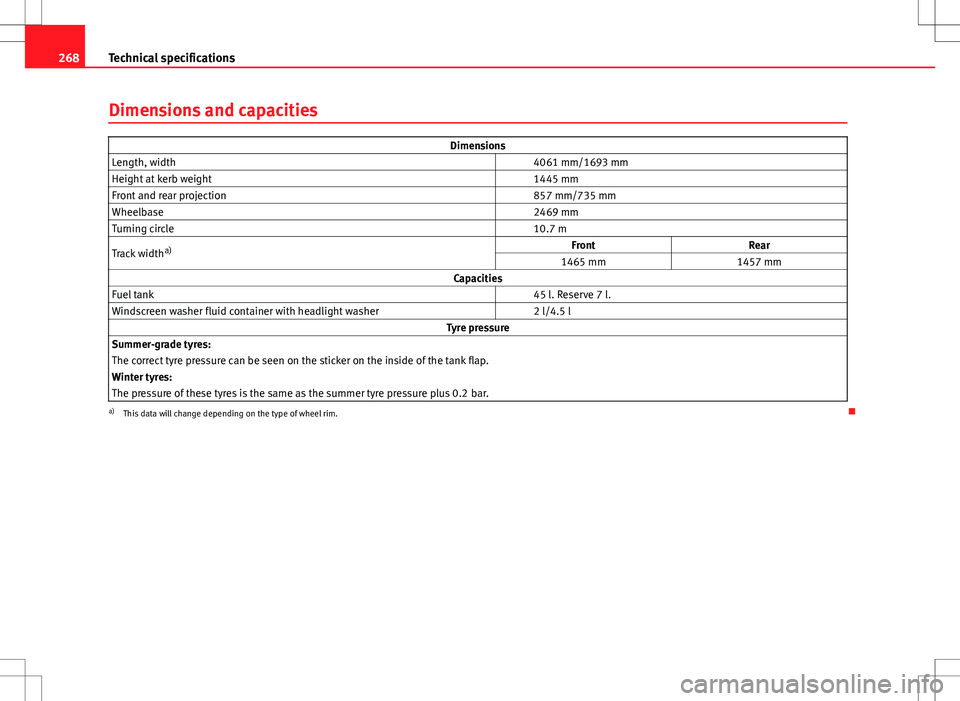

Dimensions and capacities
Dimensions
Length, width 4061 mm/1693 mm
Height at kerb weight 1445 mm
Front and rear projection 857 mm/735 mm
Wheelbase 2469 mm
Turning circle 10.7 m
Track width a) Front
Rear
1465 mm 1457 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) This data will change depending on the type of wheel rim. 

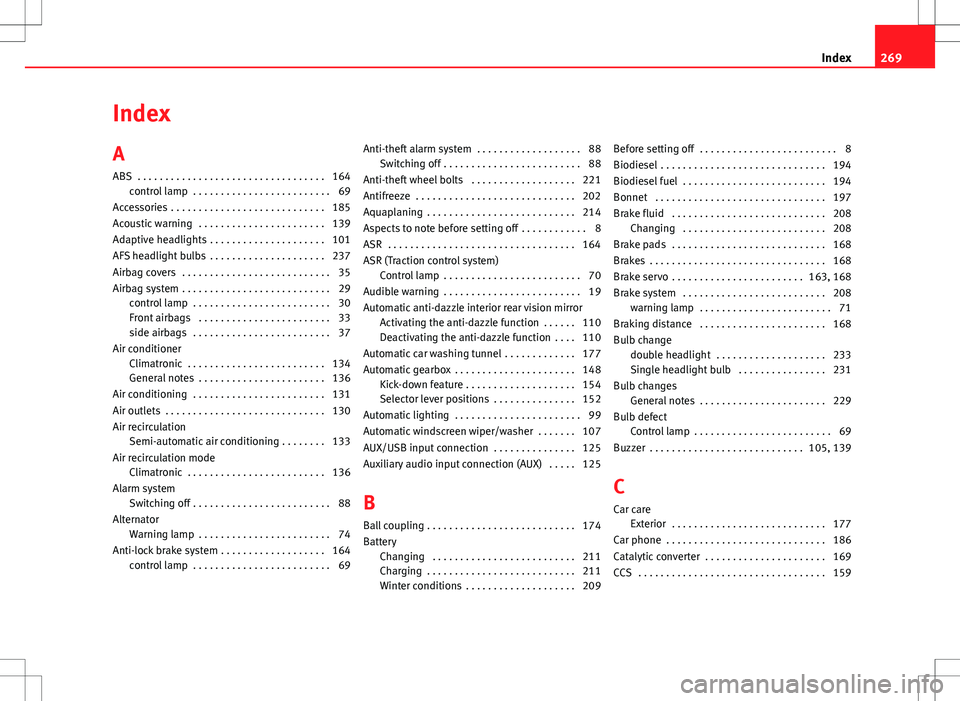

Index
