2012 Seat Ibiza 5D Owner's manual

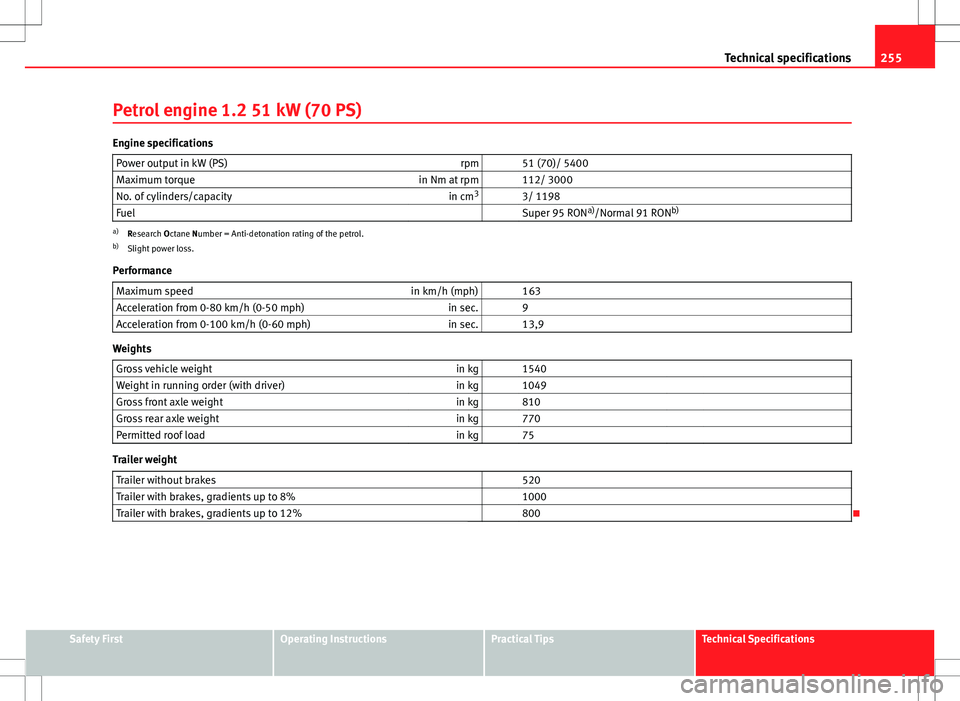

255
Technical specifications
Petrol engine 1.2 51 kW (70 PS)
Engine specifications Power output in kW (PS) rpm 51 (70)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders/capacity in cm3
3/ 1198
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 163
Acceleration from 0-80 km/h (0-50 mph) in sec. 9
Acceleration from 0-100 km/h (0-60 mph) in sec. 13,9
Weights
Gross vehicle weight in kg 1540
Weight in running order (with driver) in kg 1049
Gross front axle weight in kg 810
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 520
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

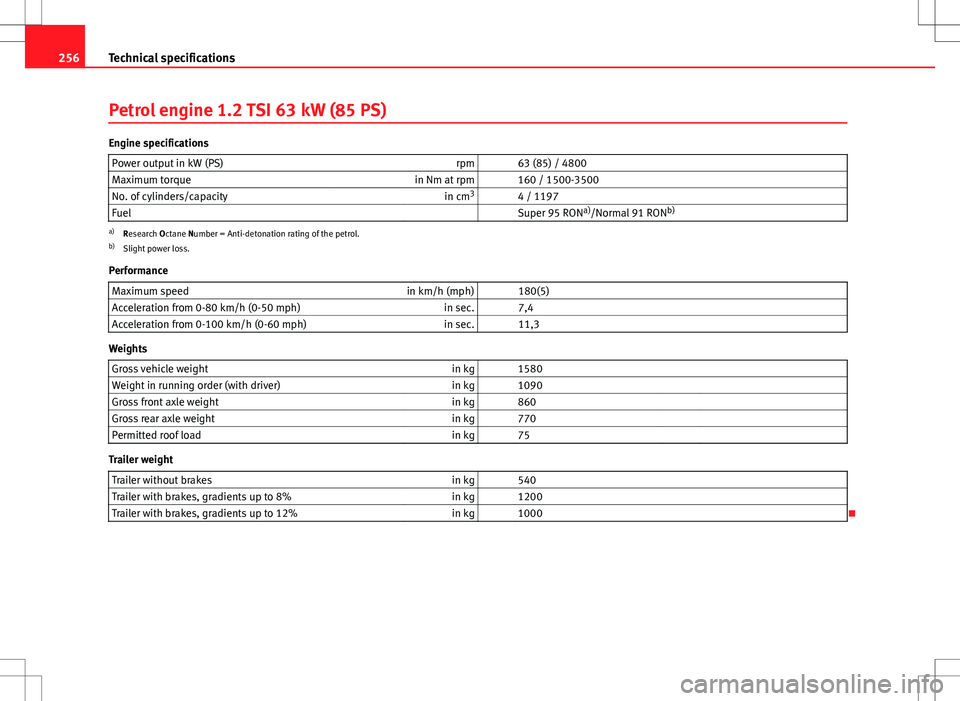

256Technical specifications
Petrol engine 1.2 TSI 63 kW (85 PS)
Engine specifications
Power output in kW (PS) rpm 63 (85) / 4800
Maximum torque in Nm at rpm 160 / 1500-3500
No. of cylinders/capacity in cm3
4 / 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 180(5)
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,4
Acceleration from 0-100 km/h (0-60 mph) in sec. 11,3
Weights
Gross vehicle weight in kg 1580
Weight in running order (with driver) in kg 1090
Gross front axle weight in kg 860
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 540
Trailer with brakes, gradients up to 8% in kg 1200
Trailer with brakes, gradients up to 12% in kg 1000


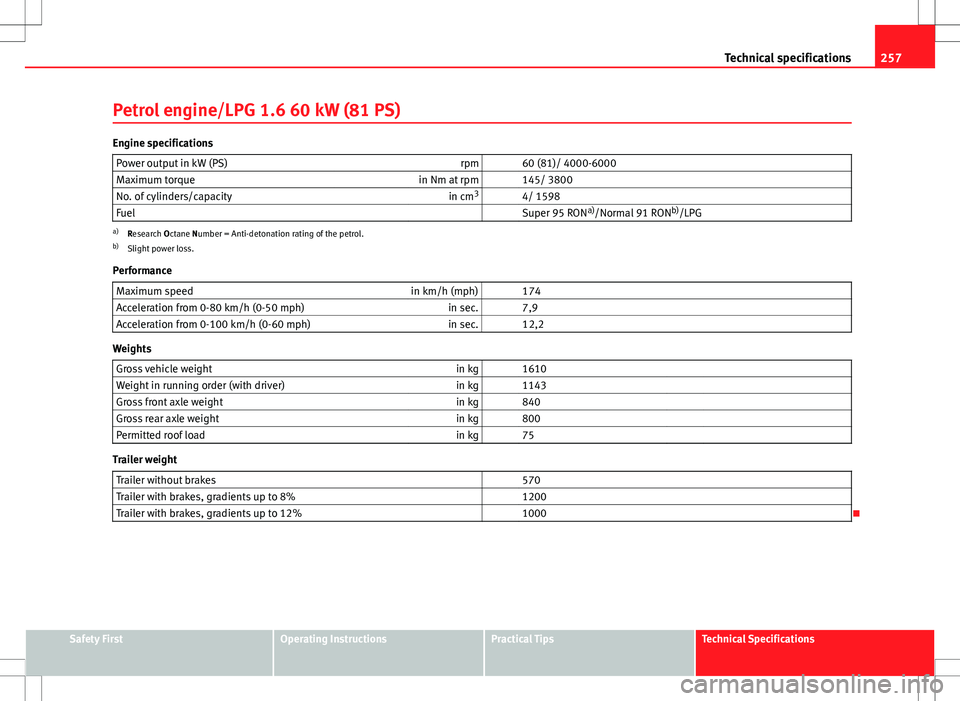

257
Technical specifications
Petrol engine/LPG 1.6 60 kW (81 PS)
Engine specifications Power output in kW (PS) rpm 60 (81)/ 4000-6000
Maximum torque in Nm at rpm 145/ 3800
No. of cylinders/capacity in cm3
4/ 1598
Fuel Super 95 RON a)
/Normal 91 RON b)
/LPG
a) Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 174
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,9
Acceleration from 0-100 km/h (0-60 mph) in sec. 12,2
Weights
Gross vehicle weight in kg 1610
Weight in running order (with driver) in kg 1143
Gross front axle weight in kg 840
Gross rear axle weight in kg 800
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

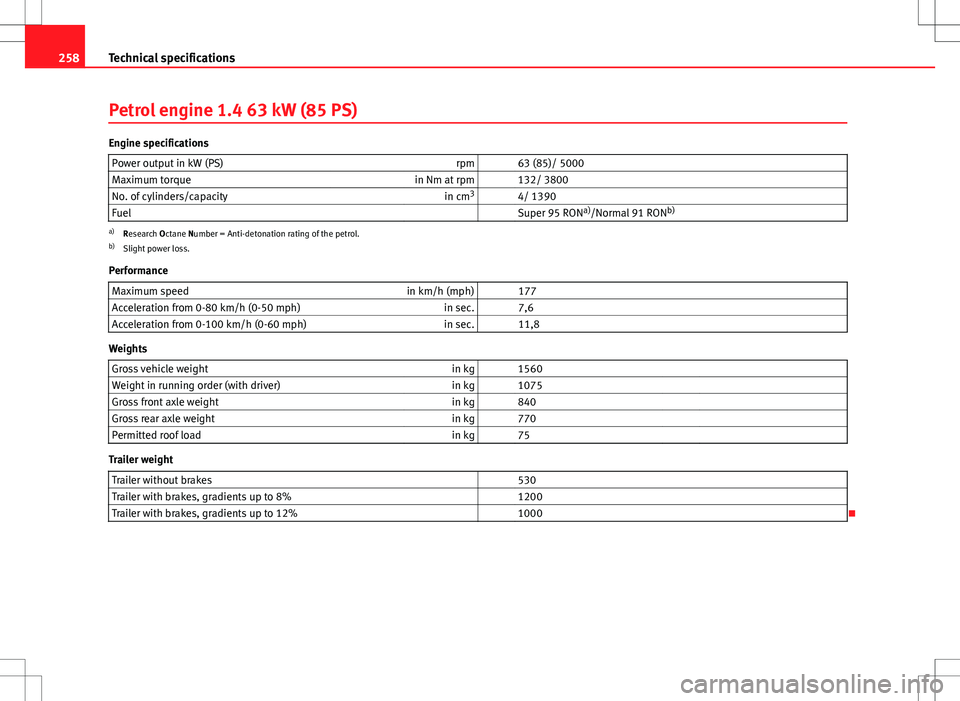

258Technical specifications
Petrol engine 1.4 63 kW (85 PS)
Engine specifications
Power output in kW (PS) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 177
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,6
Acceleration from 0-100 km/h (0-60 mph) in sec. 11,8
Weights
Gross vehicle weight in kg 1560
Weight in running order (with driver) in kg 1075
Gross front axle weight in kg 840
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 530
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000


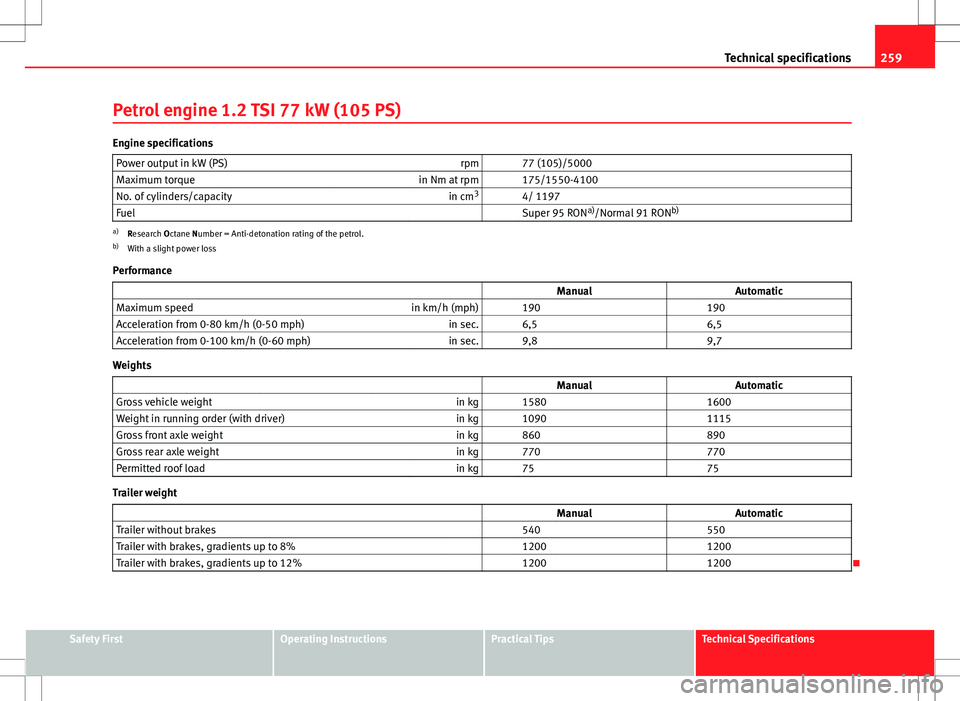

259
Technical specifications
Petrol engine 1.2 TSI 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance ManualAutomatic
Maximum speed in km/h (mph) 190 190
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,5 6,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 9,8 9,7
Weights
Manual Automatic
Gross vehicle weight in kg 1580 1600
Weight in running order (with driver) in kg 1090 1115
Gross front axle weight in kg 860 890
Gross rear axle weight in kg 770 770
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes 540 550
Trailer with brakes, gradients up to 8% 1200 1200
Trailer with brakes, gradients up to 12% 1200 1200

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

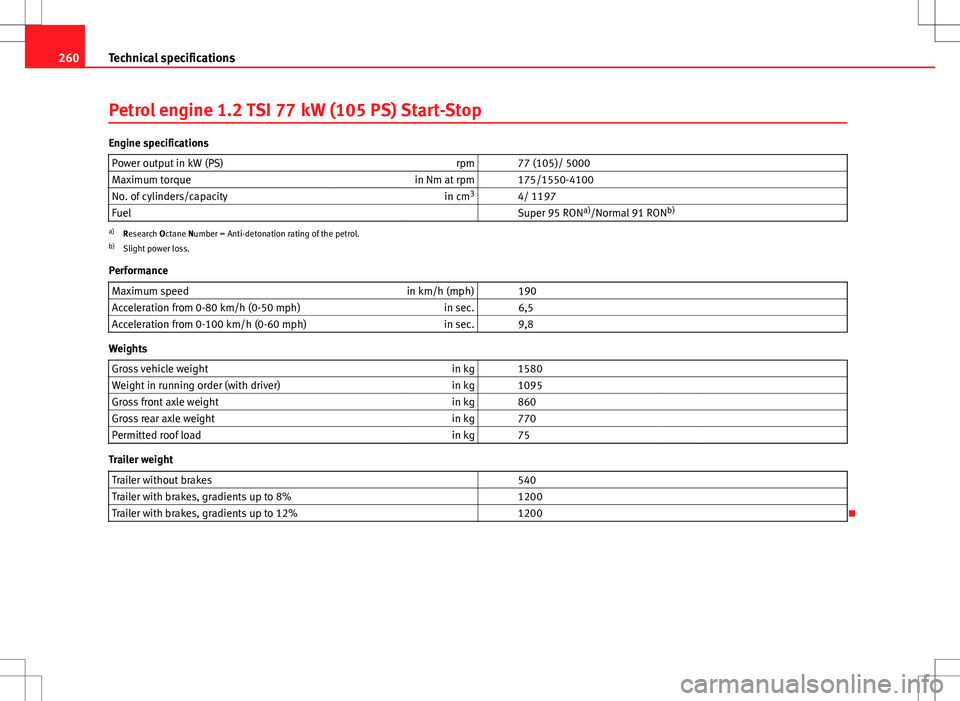

260Technical specifications
Petrol engine 1.2 TSI 77 kW (105 PS) Start-Stop
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 190
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 9,8
Weights
Gross vehicle weight in kg 1580
Weight in running order (with driver) in kg 1095
Gross front axle weight in kg 860
Gross rear axle weight in kg 770
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 540
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200


261
Technical specifications
Petrol engine 1.6 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/5600
Maximum torque in Nm at rpm 153/ 3800
No. of cylinders/capacity in cm3
4/ 1598
Fuel Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Performance ManualAutomatic
Maximum speed in km/h (mph) 189 188
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,8 6,9
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,4 10,1
Weights
Manual Automatic
Gross vehicle weight in kg 1570 1600
Weight in running order (with driver) in kg 1090 1120
Gross front axle weight in kg 860 890
Gross rear axle weight in kg 780 780
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes 540 560
Trailer with brakes, gradients up to 8% 1200 1200
Trailer with brakes, gradients up to 12% 1000 1000

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

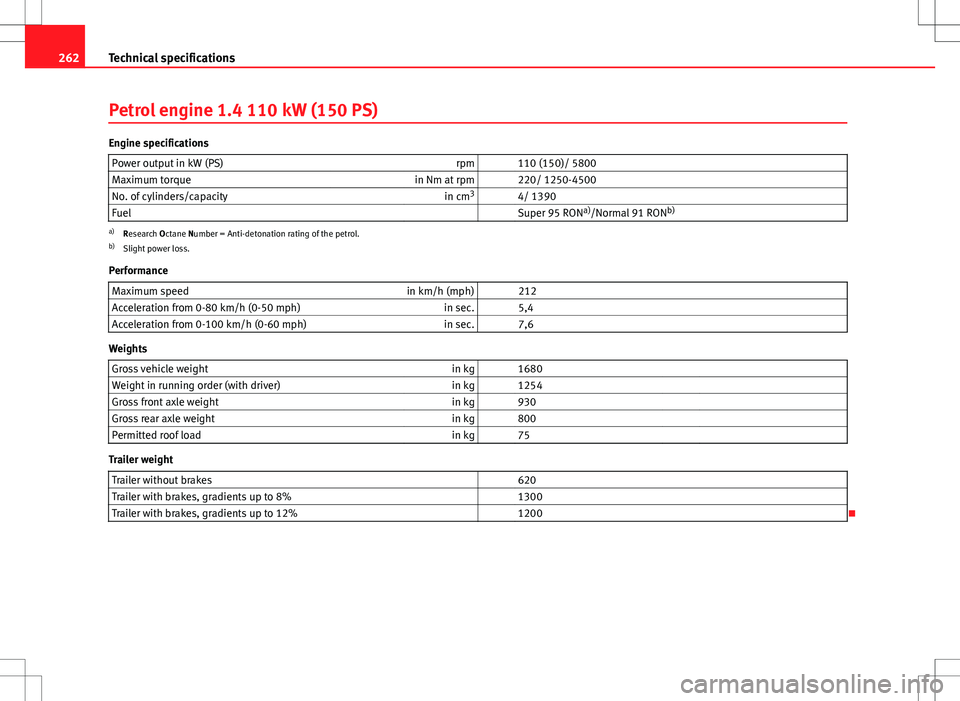

262Technical specifications
Petrol engine 1.4 110 kW (150 PS)
Engine specifications
Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 220/ 1250-4500
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 212
Acceleration from 0-80 km/h (0-50 mph) in sec. 5,4
Acceleration from 0-100 km/h (0-60 mph) in sec. 7,6
Weights
Gross vehicle weight in kg 1680
Weight in running order (with driver) in kg 1254
Gross front axle weight in kg 930
Gross rear axle weight in kg 800
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 620
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200

