2012 RENAULT MEGANE RS Owners Manual

JauneNoirNoir texte
5.5
ENG_UD18914_3
Kit de gonflage (X61 - X95 - B95 - D95 - L38 - X38 - X32 - B32 - Renaul\
t)
ENG_NU_837-6_BDK95_Renault_5
tyre Pressure KIt (3/3)
– affix driving recommendation label 9
to the dashboard where it can easily
be seen by the driver;
– store the kit;
– start the engine straight away and,
after driving a maximum of approx -
imately 2 miles (3 kilometres) or
10 minutes , stop and check the
pressure using the inflation kit. If it is
above 1.3 bar, adjust it to the rec -
ommended pressure (refer to the
label affixed to the edge of the driv-
er’s door), otherwise contact an ap-
proved dealer: repair is not possible.
n ote: after using the inflation kit, you
should visit an approved Dealer to re -
place the inflation hose and the bottle
of repair product.Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi -
tion, reduce your speed and
under no circumstances exceed 48
mph (80 km/h). The sticker, which
you must affix in a prominent posi -
tion on the dashboard, reminds you
of this.
Depending on the country or local
legislation, a tyre repaired with the
tyre pressure kit will need to be re-
placed.
Nothing should be placed
around the driver ’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
9
8
Once the tyre is inflated correctly:
– stop using the kit;
– close the integrated cap on the bottle
again;
– disconnect adapter 8;
Please be aware that a poorly tightened or missing valve cap can make
the tyres less airtight and lead to pressure loss.
Always use valve caps identical to those fitted originally and tighten them
fully.

tool kit ................................................... (up to the end of the DU)
hubcap tool ........................................... (up to the end of the DU)
jack ....................................................... (up to the end of the DU)
puncture ................................................ (up to the end of the DU)
wheelbrace ........................................... (up to the end of the DU)
trims ...................................................... (up to the end of the DU)
emergency spare wheel ....................... (up to the end of the DU)
wheelbrace ............................................................ (current page)
5.6
ENG_UD18915_3
Bloc-outils (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5

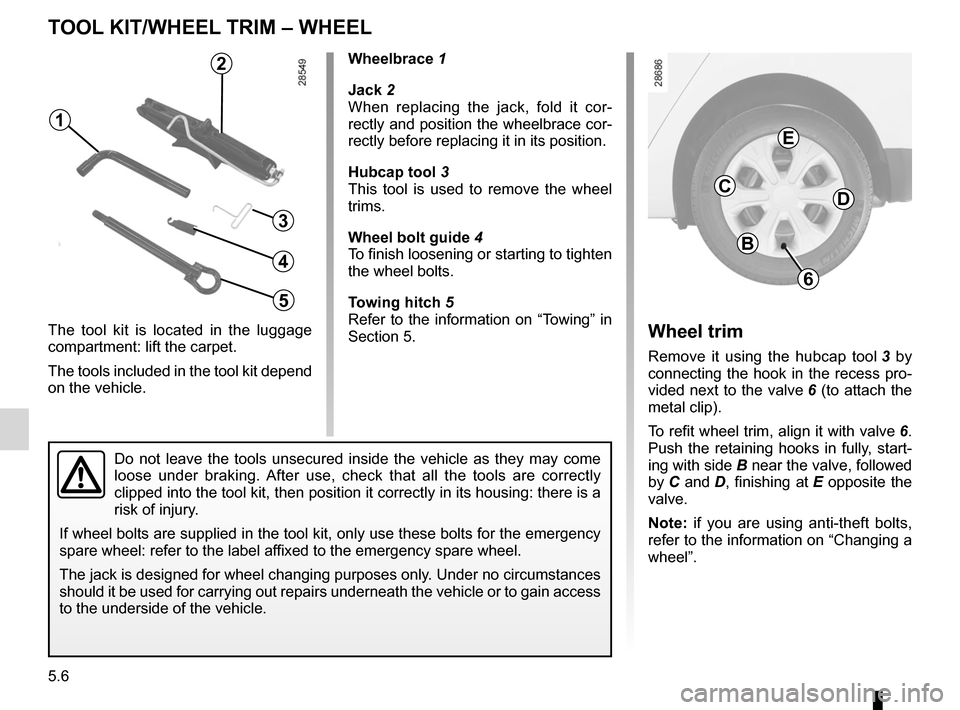

Tool kit (jack, wheelbrace, etc.)
Hubcap
t OOl KIt/wheel trIm – wheel
The tool kit is located in the luggage
compartment: lift the carpet.
The tools included in the tool kit depend
on the vehicle.
wheelbrace 1
Jack 2
When replacing the jack, fold it cor -
rectly and position the wheelbrace cor-
rectly before replacing it in its position.
hubcap tool 3
This tool is used to remove the wheel
trims.
wheel bolt guide 4
To finish loosening or starting to tighten
the wheel bolts.
t owing hitch 5
Refer to the information on “Towing” in
Section 5.
Do not leave the tools unsecured inside the vehicle as they may come
loose under braking. After use, check that all the tools are correctly
clipped into the tool kit, then position it correctly in its housing: there is a
risk of injury.
If wheel bolts are supplied in the tool kit, only use these bolts for the emergency
spare wheel: refer to the label affixed to the emergency spare wheel.
The jack is designed for wheel changing purposes only. Under no circumstances
should it be used for carrying out repairs underneath the vehicle or to gain access
to the underside of the vehicle.
2
1
3
5
wheel trim
Remove it using the hubcap tool 3 by
connecting the hook in the recess pro-
vided next to the valve 6 (to attach the
metal clip).
To refit wheel trim, align it with valve 6.
Push the retaining hooks in fully, start-
ing with side B near the valve, followed
by C and D, finishing at E opposite the
valve.
n ote: if you are using anti-theft bolts,
refer to the information on “Changing a
wheel”.
6
B
cD
e
4

changing a wheel.................................. (up to the end of the DU)
puncture ................................................ (up to the end of the DU)
lifting the vehicle changing a wheel ............................ (up to the end of the DU)
5.7
ENG_UD18916_4
Changement de roue (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Offer up the jack 4 horizontally; the jack
head must be lined up with jacking
point 1 located on the underside of the
sill, closest to the wheel concerned, as
shown by arrow 2.
Start cranking the jack up by hand to
align the base plate (which should be
pushed slightly under the vehicle).
Turn the wheelbrace until the wheel lifts
off the ground.
Changing a wheel
Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level sur -
face where it will not slip (if neces -
sary, place a solid support under the
jack base).
Apply the parking brake and engage
a gear (first or reverse, or P for auto-
matic transmissions).
Ask all the passengers to leave the
vehicle and keep them away from
traffic.
3
1
2
4
changIng a wheel (1/2)
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
Vehicles equipped with a jack
and wheelbrace
If necessary, remove the wheel trim.
Use the wheelbrace 3 to slacken off the
wheel bolts. Position it so as to be able
to push from above.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.

5.8
ENG_UD18916_4
Changement de roue (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Undo the bolts and take off the wheel.
Fit the emergency spare wheel onto
the hub and rotate it until the mounting
holes in the wheel coincide with those
of the hub.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel. Tighten
the bolts, checking that the wheel is
correctly positioned on its hub and
lower the jack.
With the wheel on the ground, tighten
the bolts fully and have the tightness
of the bolts checked (tightening torque:
110 N.m) and the emergency spare
wheel pressure checked as soon as
possible.
changIng a wheel (2/2)
anti-theft bolt
If you use anti-theft bolts, fit these
nearest the valve (wheel trim may
not be able to fit).
If you have a puncture, re -
place the wheel as soon as
possible.
A tyre which has been punc-
tured should always be inspected
(and repaired, where possible) by a
specialist.

tyres ...................................................... (up to the end of the DU)
wheels (safety) ..................................... (up to the end of the DU)
5.9
ENG_UD10474_2
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5

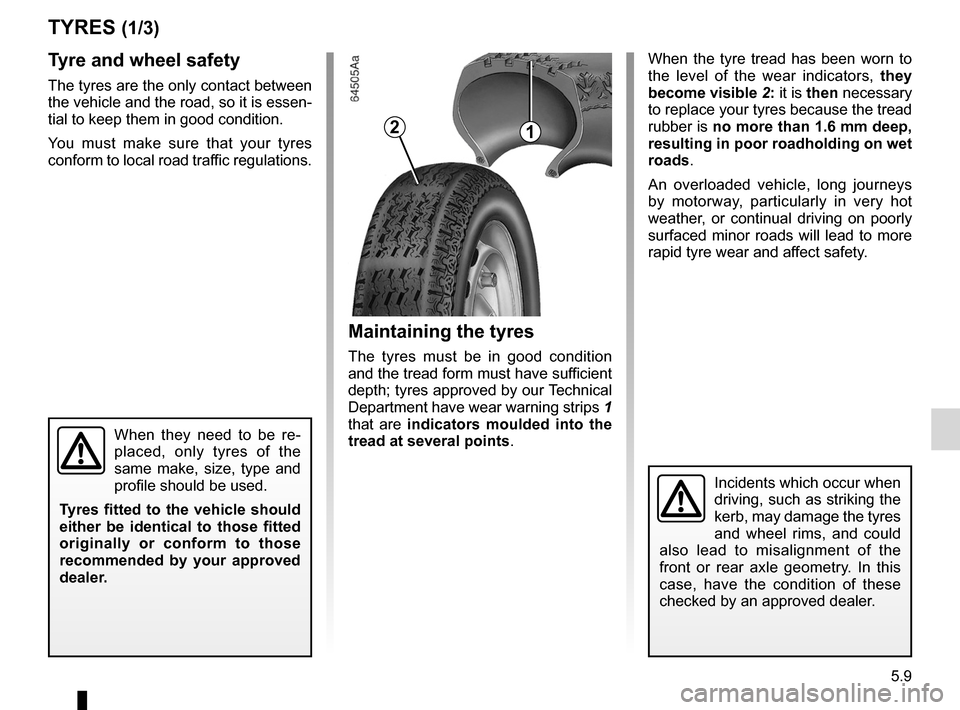

Tyres (tyre and wheel safety, use in winter)
tyres (1/3)
maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
that are indicators moulded into the
tread at several points.
t yre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations. When the tyre tread has been worn to
the level of the wear indicators,
they
become visible 2: it is then necessary
to replace your tyres because the tread
rubber is no more than 1.6 mm deep,
resulting in poor roadholding on wet
roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
When they need to be re -
placed, only tyres of the
same make, size, type and
profile should be used.
t yres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
dealer.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
12

tyre pressure.......................................................... (current page)
5.10
ENG_UD10474_2
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
tyre pressuresAdhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af -
fixed to the edge of the driver’s door). Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are
cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PsI).
never deflate a hot tyre.
special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.Fitting new tyres
emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in -
structions on “Changing a wheel” in
Section 5.
tyres (2/3)
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi -
tions of use (refer to the label affixed
to the edge of the driver’s door).
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– It may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– It may affect the use of snow
chains.

JauneNoirNoir texte
5.11
ENG_UD10474_2
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5

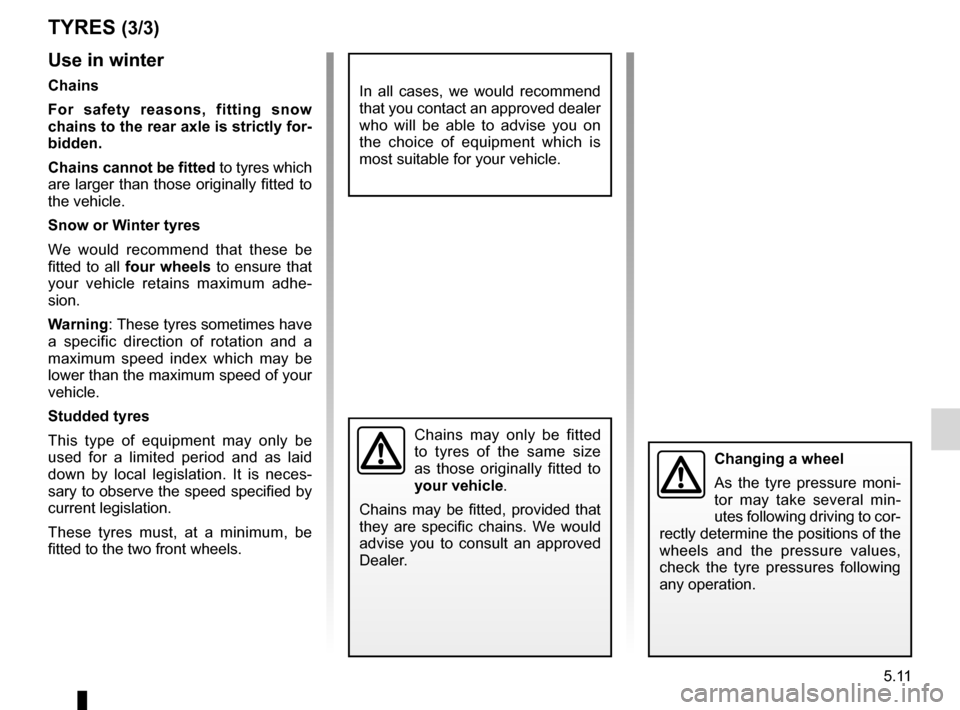

use in winter
chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
snow or w inter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe -
sion.
w arning: These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces -
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
tyres (3/3)
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Chains may be fitted, provided that
they are specific chains. We would
advise you to consult an approved
Dealer.
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
changing a wheel
As the tyre pressure moni -
tor may take several min -
utes following driving to cor-
rectly determine the positions of the
wheels and the pressure values,
check the tyre pressures following
any operation.

lightsfront ................................................. (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.12
ENG_UD10900_2
Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
Headlights (changing bulbs)

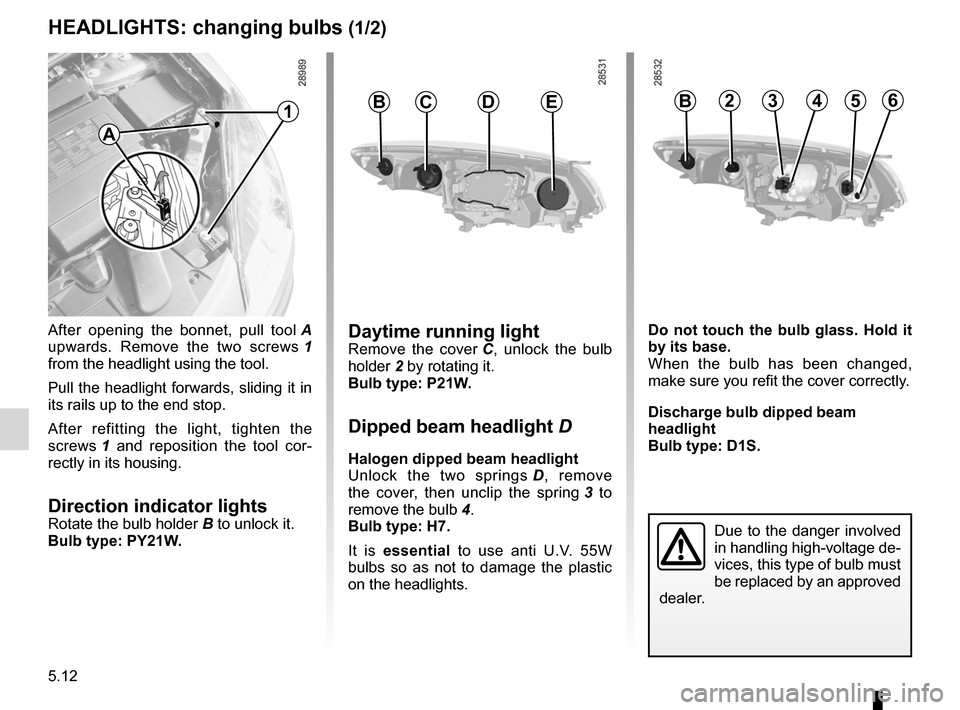

heaDlIghts: changing bulbs (1/2)
After opening the bonnet, pull tool A
upwards. Remove the two screws 1
from the headlight using the tool.
Pull the headlight forwards, sliding it in
its rails up to the end stop.
After refitting the light, tighten the
screws 1 and reposition the tool cor -
rectly in its housing.
Direction indicator lightsRotate the bulb holder B to unlock it.
Bulb type: Py21w .
Daytime running lightRemove the cover C , unlock the bulb
holder 2 by rotating it.
Bulb type: P21w .
Dipped beam headlight D
halogen dipped beam headlight
Unlock the two springs D , remove
the cover, then unclip the spring 3 to
remove the bulb 4.
Bulb type: h7.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
1BcDe3245B6
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
Do not touch the bulb glass. hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Discharge bulb dipped beam
headlight
Bulb type: D1s.
a
