2012 RENAULT MEGANE RS Owners Manual

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.15
ENG_UD18902_3
Eclairage intérieur (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Manual window winders
Interior lighting

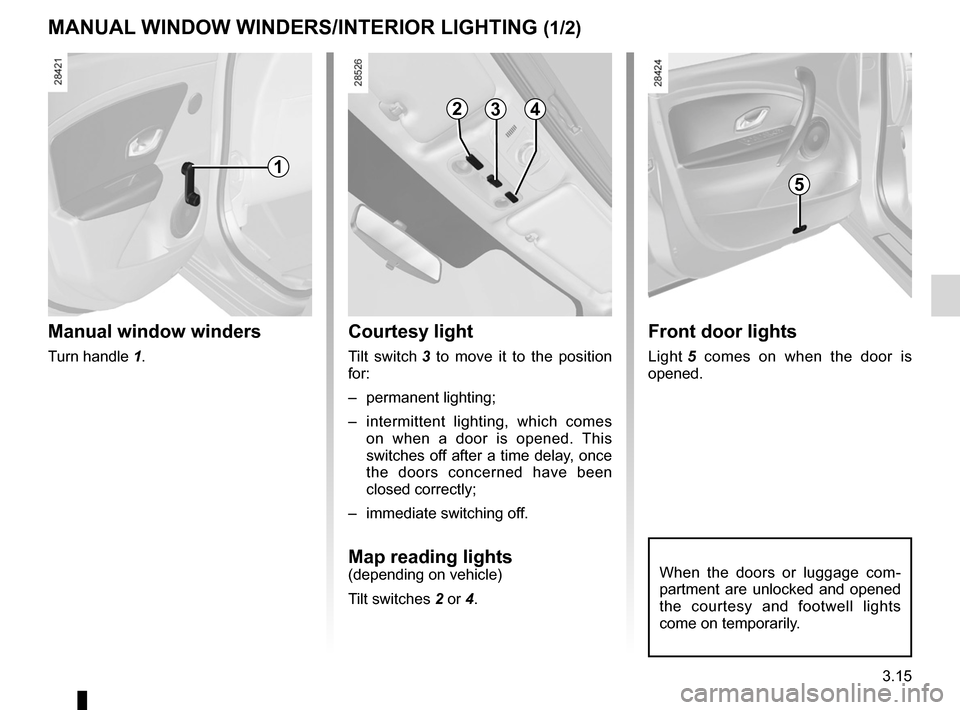

MANuAl wINDow wINDERS/INTERIoR lIghTINg (1/2)
When the doors or luggage com -
partment are unlocked and opened
the courtesy and footwell lights
come on temporarily.
234
courtesy light
Tilt switch 3 to move it to the position
for:
– permanent lighting;
– intermittent lighting, which comes
on when a door is opened. This
switches off after a time delay, once
the doors concerned have been
closed correctly;
– immediate switching off.
Map reading lights(depending on vehicle)
Tilt switches 2 or 4.
Front door lights
Light 5 comes on when the door is
opened.
5
Manual window winders
Turn handle 1.
1

sun visor ................................................................ (current page)
courtesy mirrors ..................................................... (current page)
3.16
ENG_UD18902_3
Eclairage intérieur (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
luggage compartment light 9
Depending on the vehicle, light 9 ,
comes on when the luggage compart -
ment is opened.
Sun visor
INTERIoR lIghTINg (2/2)/SuN VISoR
9
Sun visor
Lower the sun visor 7 over the wind -
screen or unclip it and turn it over the
side window.
courtesy mirrors
Slide cover 8 , depending on the vehi -
cle, and the mirror is lit.
78
glove box light 6
Light 6 comes on when the cover is
opened.
6

storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
fittings ................................................... (up to the end of the DU)
3.17
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Passenger compartment storage space and fittings
Door pockets 1

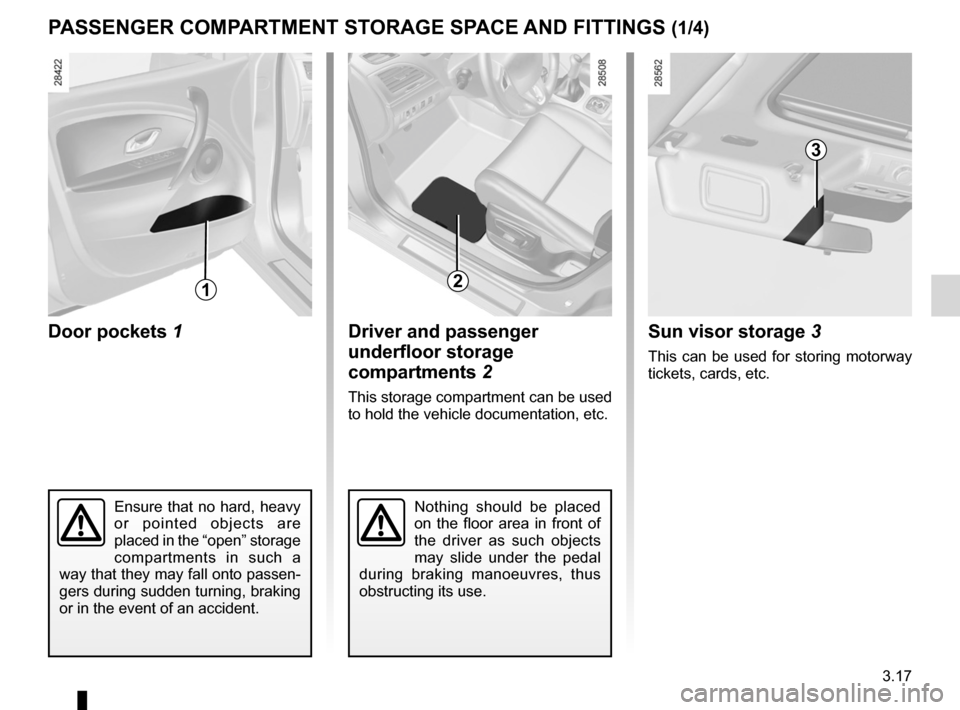

P ASSENgER coMPARTMENT ST oRAgE SPAcE AND FITTINgS (1/4)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Driver and passenger
underfloor storage
compartments 2
This storage compartment can be used
to hold the vehicle documentation, etc.
2
Sun visor storage 3
This can be used for storing motorway
tickets, cards, etc.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen -
gers during sudden turning, braking
or in the event of an accident.

armrest:front .................................................................. (current page)
3.18
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Jaune NoirNoir texte
centre console storage
compartments 6Front centre armrest storage
compartment A
Press button 4 and lift the cover 5.
PASSENgER coMPARTMENT ST oRAgE SPAcE AND FITTINgS (2/4)
Passenger storage
compartment
Pull handle 7 to open it.
The glove box can hold A4-size docu -
ments, a large bottle of water, etc.
The storage compartment is ventilated
and refrigerated.
7
45
A
6
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen -
gers during sudden turning, braking
or in the event of an accident.

glove box ............................................................... (current page)
JauneNoirNoir texte
3.19
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Door pockets 8 Storage compartment 9
PASSENgER coMPARTMENT ST oRAgE SPAcE AND FITTINgS (3/4)
11
12
Rear armrest storage
Lower armrest 12 and, depending on
the vehicle, lift cover 11 using unlock -
ing handle 10.
8
10
9

3.20
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3

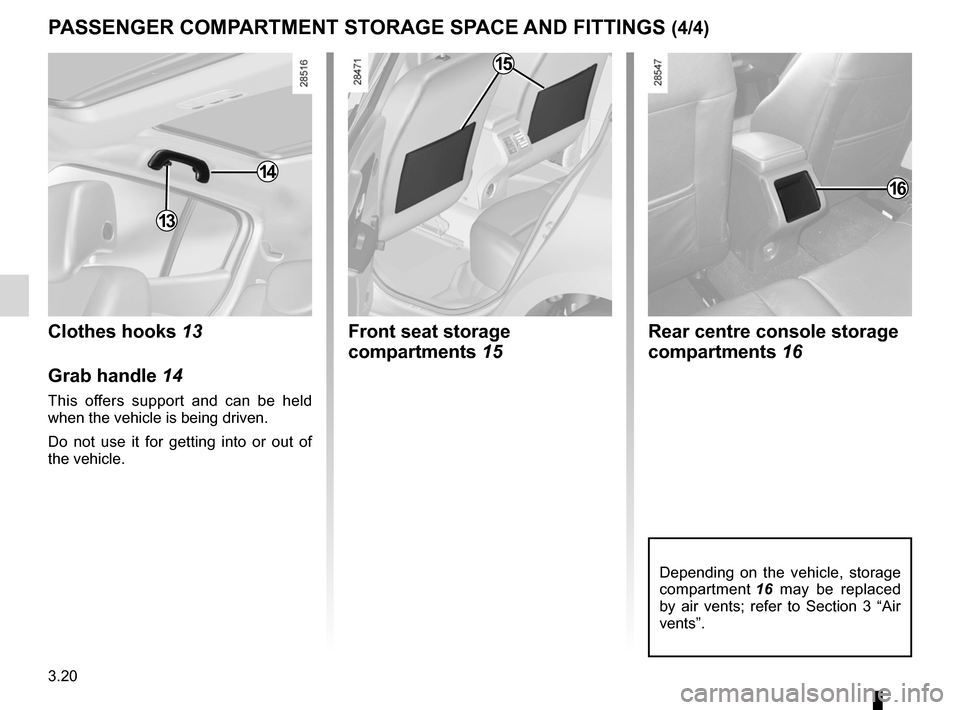

P ASSENgER coMPARTMENT ST oRAgE SPAcE AND FITTINgS (4/4)
Rear centre console storage
compartments 16
16
Depending on the vehicle, storage
compartment 16 may be replaced
by air vents; refer to Section 3 “Air
vents”.
15
Front seat storage
compartments 15
13
14
clothes hooks 13
grab handle 14
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.

ashtray .................................................. (up to the end of the DU)
cigar lighter ........................................... (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.21
ENG_UD11881_2
Cendriers-Allume cigares (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Accessories socket
Ashtray/cigar lighter
cigar lighter 1
With the ignition on, push in cigar
lighter 1, it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.

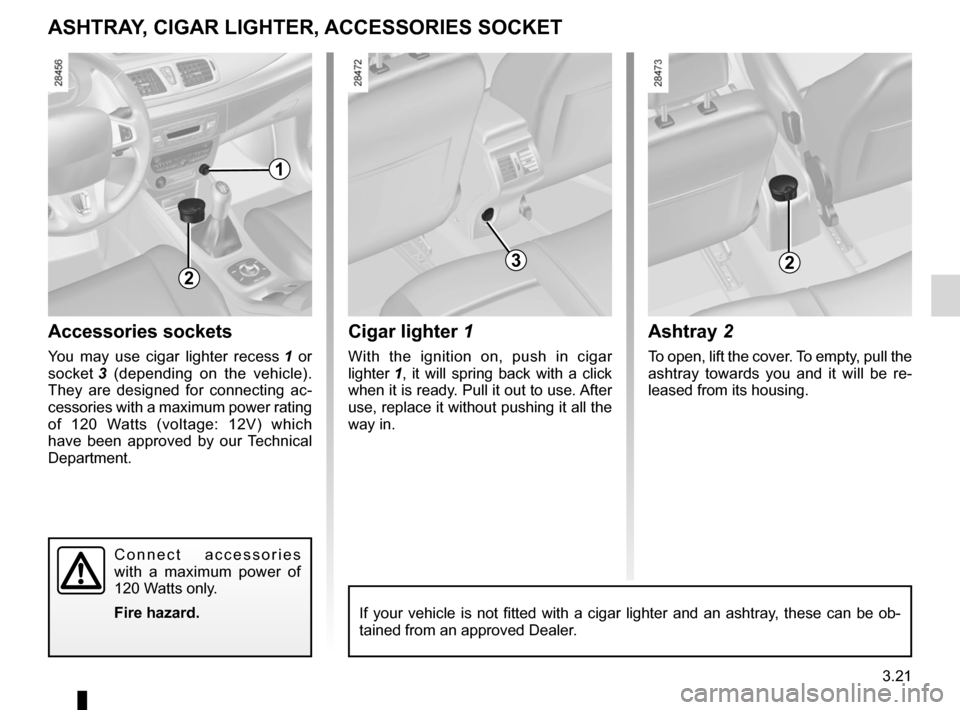

AShTRAY, cIgAR lIghTER, AccESSoRIES SockET
Accessories sockets
You may use cigar lighter recess 1 or
socket 3 (depending on the vehicle).
They are designed for connecting ac -
cessories with a maximum power rating
of 120 Watts (voltage: 12V) which
have been approved by our Technical
Department.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-
tained from an approved Dealer.
1
223
Ashtray 2
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re -
leased from its housing.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.

rear bench seat..................................... (up to the end of the DU)
rear seats functions ......................................... (up to the end of the DU)
3.22
ENG_UD17358_5
Banquette arrière (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Jaune NoirNoir texte
P r e s s b u t t o n 1 a n d l o w e r t h e
seatback(s) A.
Rear bench seat
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the rear headrests (refer to the
information on the “Rear headrests” in
Section 1).
Place the seat belts 2 in their guides 3.Sport tourer versions
Depending on the vehicle, seatback A
can be folded down on its own to allow
long or bulky objects to be transported.
REAR BENch SEAT (1/3)
1A23
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Before moving the seat -
back, put seat belt 2 in belt
guide 3 to avoid damaging
it.
