Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-6_BDK95_Renault_5
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an approved
dealer containing a set of spare
bulbs and fuses.
heaDlIghts: changing bulbs (2/2)
main beam headlight
Remove the cover E , press the bulb
holder 5 downwards to unlock it.
Bulb type: h7.
BcDe3245B6
Front side light
Remove the cover E and pull the bulb
holder 6.
Bulb type: w5w .
Page 186 of 239

bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.14
ENG_UD11884_2
Projecteurs avant Feux de brouillard avant additionnels (X95 - B95 - D9\
5 - Renault)
ENG_NU_837-6_BDK95_Renault_5
heaDlIghts: additional/front fog lights
additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved Dealer.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
Front fog lights 1However, because the front bumper
needs to be removed, you are advised
to have your bulbs replaced by an
approved dealer.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
Page 187 of 239

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
lights: reversing lights ................................................. (current page)
lights: fog lights .......................................................... (current page)
indicators: direction indicators ........................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.15
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Rear lights (changing bulbs)
rear lIghts anD InDIcatOr lIghts: changing bulbs (1/6)
5
– loosen nut 1 , press down on it to
release the front of the light (move -
ment A) then remove the nut;
– from the outside, pull the light to -
wards you (movement B);
– remove the bulb holder 3 by releas-
ing the clips 4. Direction indicator lights
5
Bulb type: Py21w .
side light and brake light 6
Bulb type: P21/5w .
refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.Five-door versions
Direction indicator lights/brake and
side lights
– Unclip the cover to access nuts 1
and 2;
– unscrew nut 2 without removing it
completely;
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
4
6
a
B
1
2
3
Page 188 of 239
5.16
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
rear lIghts anD InDIcatOr lIghts: changing bulbs (2/6)
Five-door versions
(continued)
Fog lights/side lights and reversing
lights
– From the luggage compartment,
unclip flap 7 , then remove the
bolts 8.
– Lower the tailgate, then pull light 9
towards the rear to release it.
– Unscrew the bulb holder for the bulb
concerned.
7
9
10
8
11
reversing light 10
Bulb type: w16w .
Fog light/side light 11
Bulb type: P21/4w .
Page 189 of 239
JauneNoirNoir texte
5.17
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
three-door versions
– Unclip the access flap;
– unscrew nuts 12 and 13;
– from the outside, remove bolt 14 ,
then pull on the light;
– remove the bulb holder by releasing
the clips 15; 16
side light/stop light
Bulb type: P21/5w .
17 Direction indicator light
Bulb type: Py21w .
18 reversing light
Bulb type: P21w .
rear fog light
Undo bulb holder 19, turning it towards
the centre of the vehicle by accessing it
from underneath.
Bulb type: P21w .
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
rear lIghts anD InDIcatOr lIghts: changing bulbs (3/6)
18
16
1712
1314
15
19
Page 190 of 239
5.18
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
rear lIghts anD InDIcatOr lIghts: changing bulbs (4/6)
sport tourer Versions
side lights/reversing lights and fog
lights
– From the luggage compartment,
unclip flap 20 (movement C ), then
remove the bolts .
– Lower the tailgate, then pull light 21
towards the rear to release it.
– Turn the bulb holder of the bulb con-
cerned a quarter of a turn.
20
side light 22
Bulb type: w5w .
reversing light 23
Bulb type: P21w .
Fog light 24
Bulb type: h21w .
refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
c
21
23
24
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
22
Page 191 of 239
JauneNoirNoir texte
5.19
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)

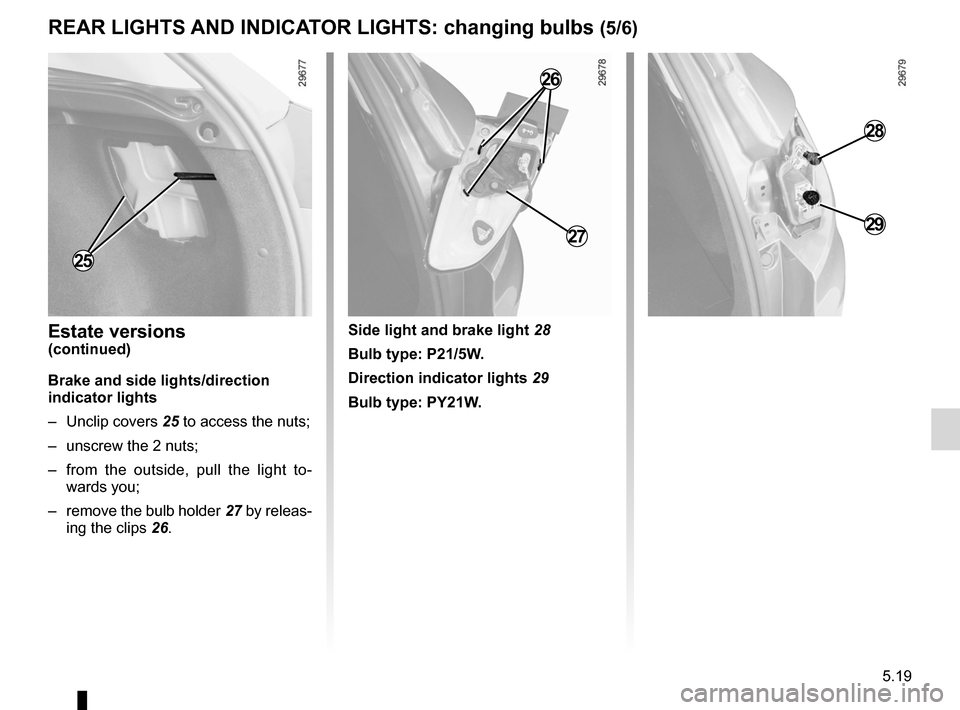

ENG_NU_837-6_BDK95_Renault_5
rear lIghts anD InDIcatOr lIghts: changing bulbs (5/6)
28
29
side light and brake light 28
Bulb type: P21/5w .
Direction indicator lights 29
Bulb type: Py21w .estate versions(continued)
Brake and side lights/direction
indicator lights
– Unclip covers 25 to access the nuts;
– unscrew the 2 nuts;
– from the outside, pull the light to -
wards you;
– remove the bulb holder 27 by releas-
ing the clips 26.
25
27
26
