Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5

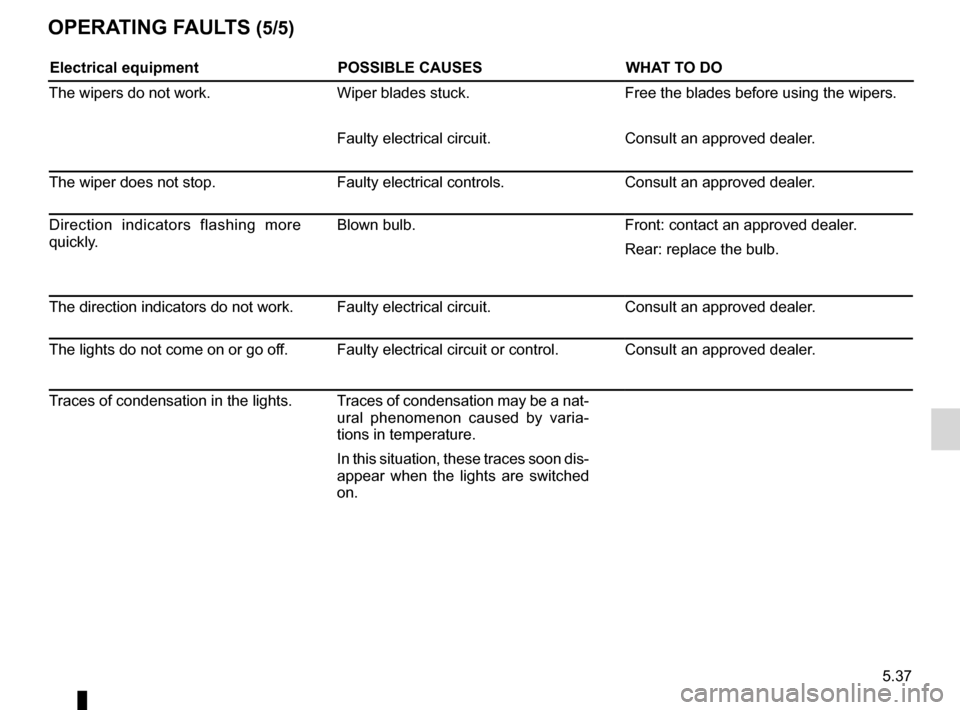

OPeratIng F aults (5/5)
electrical equipment POssIBle causeswhat tO DO
The wipers do not work. Wiper blades stuck.Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls.Consult an approved dealer.
Direction indicators flashing more
quickly. Blown bulb.
Front: contact an approved dealer.
Rear: replace the bulb.
The direction indicators do not work. Faulty electrical circuit.Consult an approved dealer.
The lights do not come on or go off. Faulty electrical circuit or control.Consult an approved dealer.
Traces of condensation in the lights. Traces of condensation may be a nat-
ural phenomenon caused by varia-
tions in temperature.
In this situation, these traces soon dis-
appear when the lights are switched
on.
