Changing a wheel
QUICK HEL
P
7


- Lower the vehicle completely by folding
the jack, then remove the jack.

- Tighten the bolts again using the
wheelbrace, tighten them fully without
forcing them.

- Place the wheel to be repaired in the
carrier.
- Secure the carrier on the hook then
raise the carrier using the bolt and the
wheel brace. Check that the wheel and
the carrier are flush against the floor of
the vehicle.

- Remember to close the flap, located on
the sill.

- Store the trim in the vehicle.
Never go underneath the vehicle when
it is supported only by the jack.

Never use a screwdriver in place of the
wheelbrace.

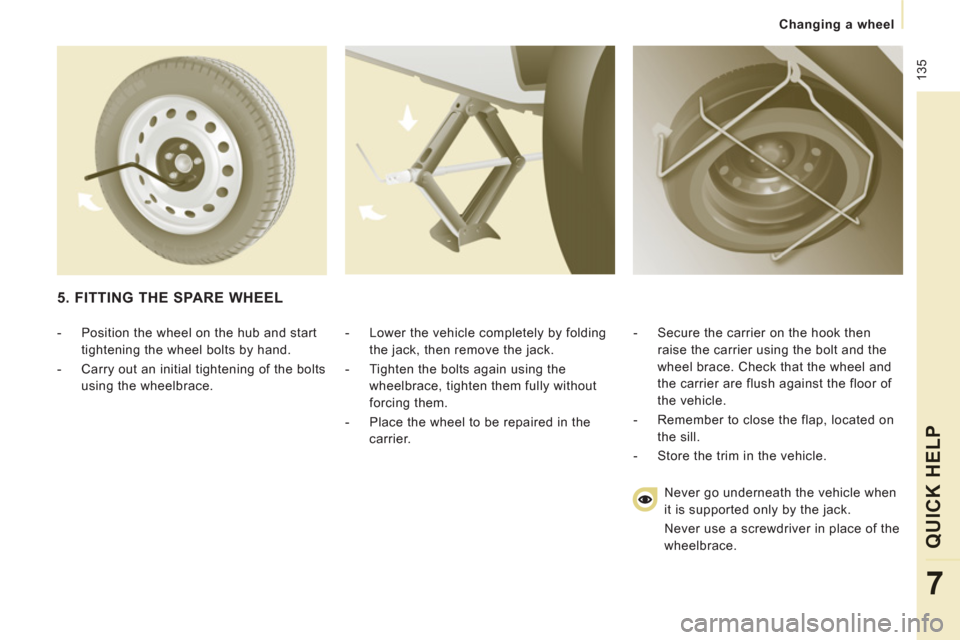

5. FITTING THE SPARE WHEEL



- Position the wheel on the hub and start
tightening the wheel bolts by hand.

- Carry out an initial tightening of the bolts
using the wheelbrace.

136

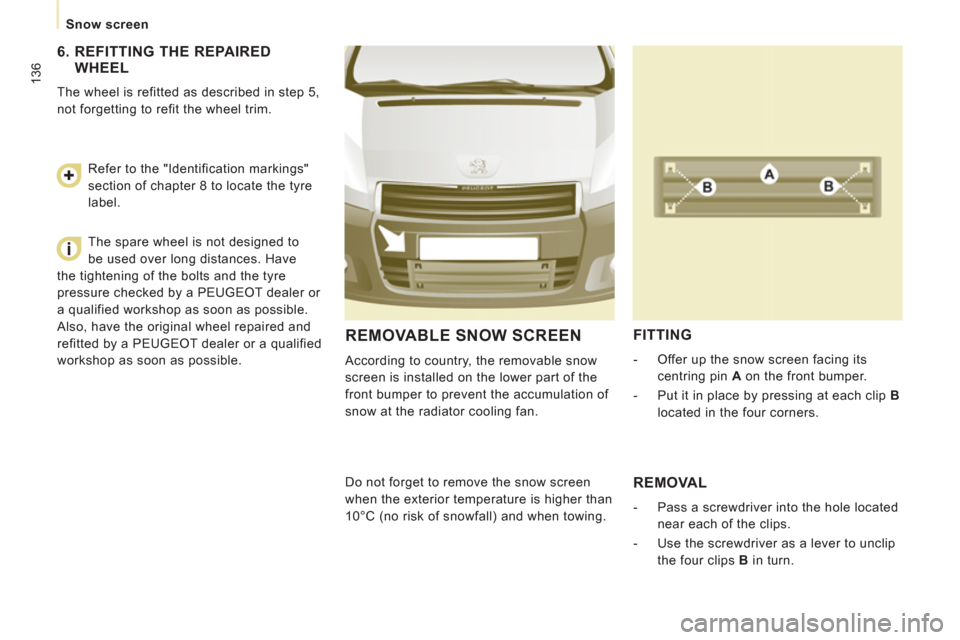

Snow screen

REMOVABLE SNOW SCREEN

According to country, the removable snow
screen is installed on the lower part of the
front bumper to prevent the accumulation of
snow at the radiator cooling fan.

FITTING



- Offer up the snow screen facing its
centring pin A
on the front bumper.

- Put it in place by pressing at each clip B

located in the four corners.

Do not forget to remove the snow screen
when the exterior temperature is higher than
10°C (no risk of snowfall) and when towing.

REMOVAL



- Pass a screwdriver into the hole located
near each of the clips.

- Use the screwdriver as a lever to unclip
the four clips B
in turn.



6. REFITTING THE REPAIREDWHEEL

The wheel is refitted as described in step 5,
not forgetting to refit the wheel trim.
Refer to the "Identification markings"
section of chapter 8 to locate the tyre
label.
The spare wheel is not designed to
be used over long distances. Have
the tightening of the bolts and the tyre
pressure checked by a PEUGEOT dealer or
a qualified workshop as soon as possible.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer or a qualified
workshop as soon as possible.

137
Changing a bulb
QUICK HEL
P
7
CHANGING A BULB


Ty p e C
Halogen bulb: release the
retaining spring from its
housing.
Ty p e A
All glass bulb: pull gently
as it is fitted by pressure.

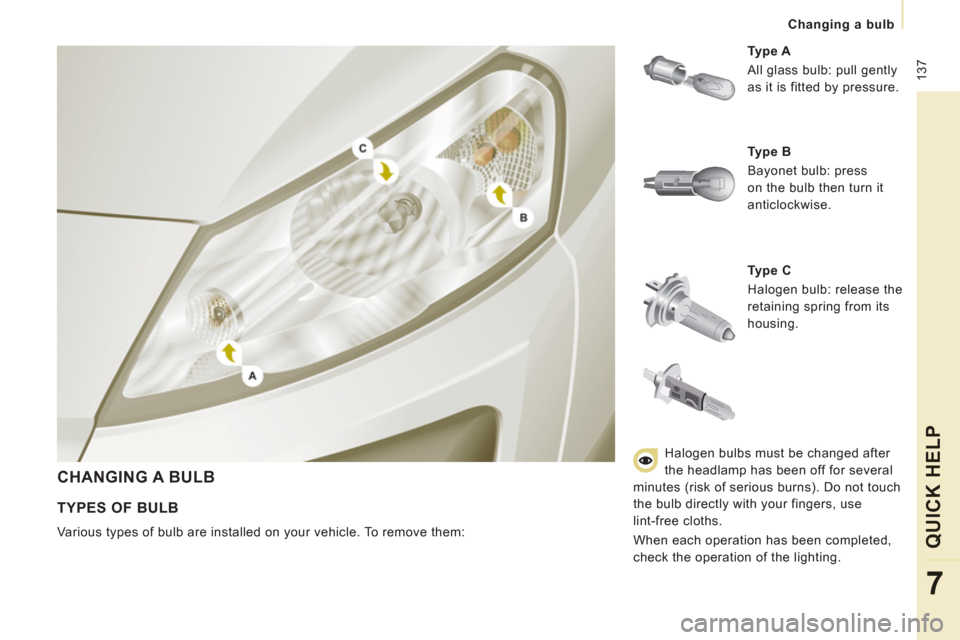

TYPES OF BULB

Various types of bulb are installed on your vehicle. To remove them:
Ty p e B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use
lint-free cloths.
When each operation has been completed,
check the operation of the lighting.

138


Changing a bulb

3.
Direction indicators
Type B
, PY21W - 21W (amber)


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.

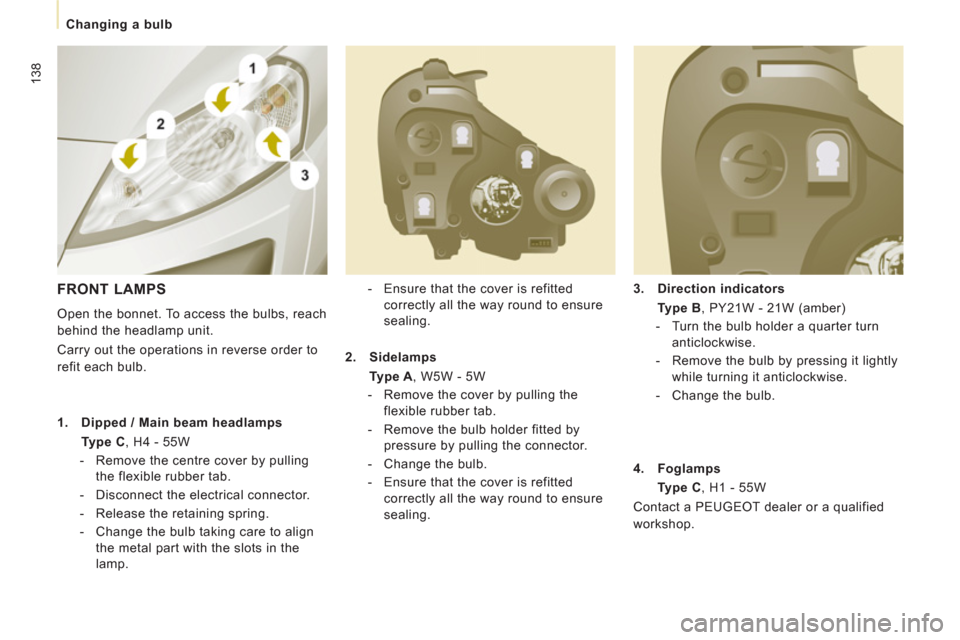

FRONT LAMPS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.


1.
Dipped / Main beam headlamps
Type C
, H4 - 55W


- Remove the centre cover by pulling
the flexible rubber tab.

- Disconnect the electrical connector.

- Release the retaining spring.

- Change the bulb taking care to align
the metal part with the slots in the
lamp.
2.
Sidelamps
Type A
, W5W - 5W


- Remove the cover by pulling the
flexible rubber tab.

- Remove the bulb holder fitted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.
4.
Foglamps
Type C
, H1 - 55W
Contact a PEUGEOT dealer or a qualified
workshop.

139
Changing a bulb
QUICK HEL
P
7

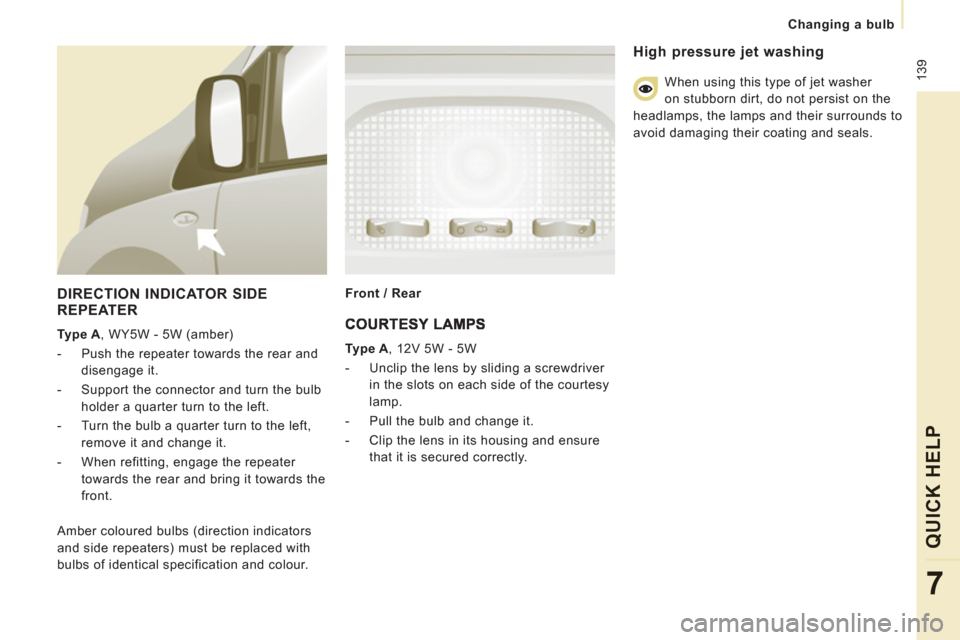

DIRECTION INDICATOR SIDEREPEATER


Type A
, WY5W - 5W (amber)


- Push the repeater towards the rear and
disengage it.

- Support the connector and turn the bulb
holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,
remove it and change it.

- When refitting, engage the repeater
towards the rear and bring it towards the
front.
Front / Rear

Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Type A
, 12V 5W - 5W


- Unclip the lens by sliding a screwdriver
in the slots on each side of the courtesy
lamp.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure
that it is secured correctly.


High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds to
avoid damaging their coating and seals.

140


Changing a bulb

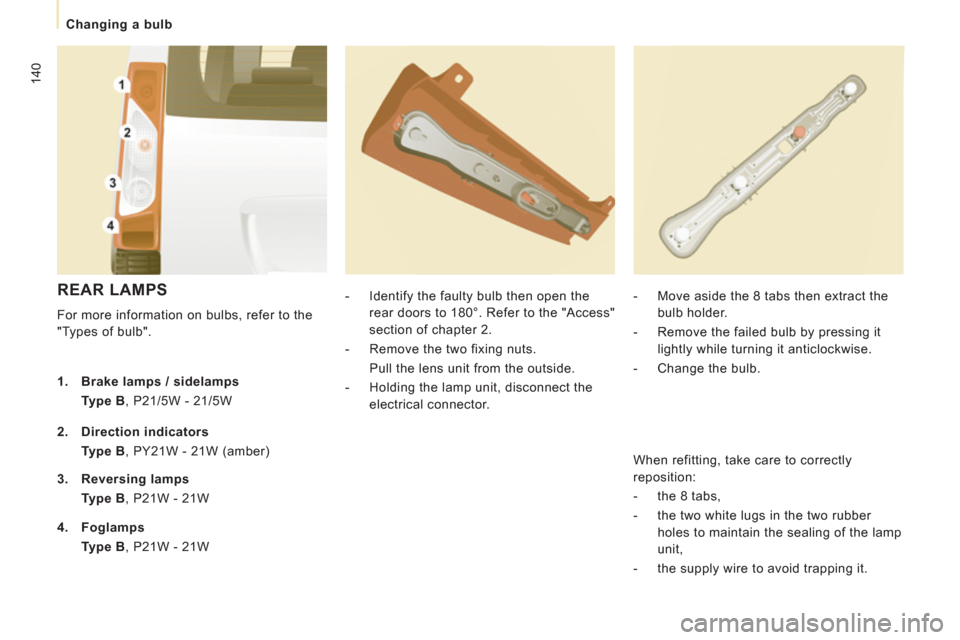

REAR LAMPS

For more information on bulbs, refer to the
"Types of bulb".

- Identify the faulty bulb then open the
rear doors to 180°. Refer to the "Access"
section of chapter 2.

- Remove the two fixing nuts.
Pull the lens unit from the outside.

- Holding the lamp unit, disconnect the
electrical connector.
- Move aside the 8 tabs then extract the
bulb holder.

- Remove the failed bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.


1.
Brake
lamps
/
sidelamps
Type B
, P21/5W - 21/5W

2.
Direction indicators

Type B
, PY21W - 21W (amber)

3.
Reversing
lamps
Type B
, P21W - 21W

4.
Foglamps
Type B
, P21W - 21W When refitting, take care to correctly
reposition:


- the 8 tabs,

- the two white lugs in the two rubber
holes to maintain the sealing of the lamp
unit,

- the supply wire to avoid trapping it.

Changing a bulb
QUICK HEL
P
7
THIRD BRAKE LAMP

Type A
, W5W - 5W
Type B
, P21W - 21W

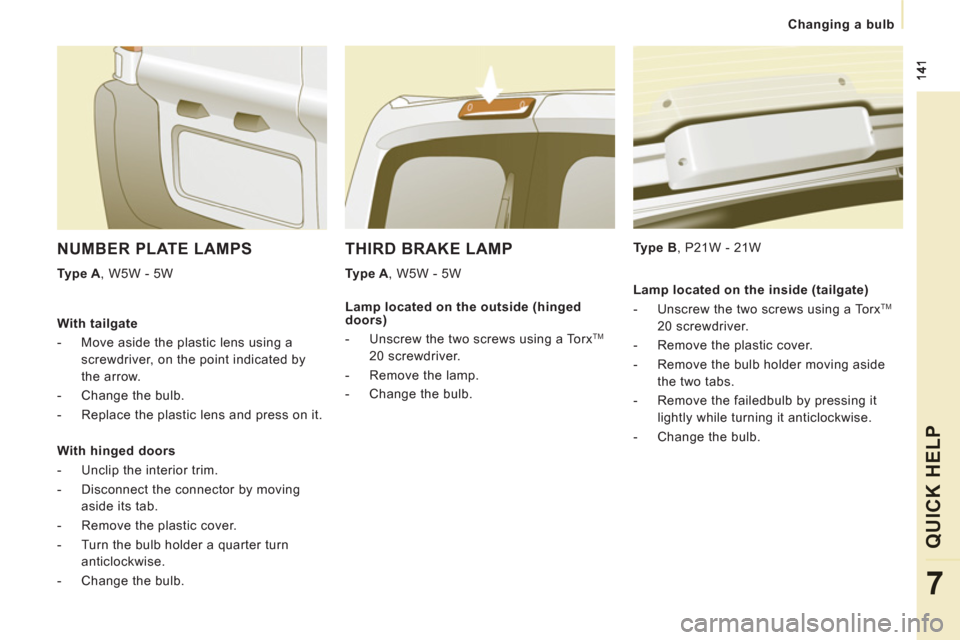

NUMBER PLATE LAMPS


Type A
, W5W - 5W

With tailgate


- Move aside the plastic lens using a
screwdriver, on the point indicated by
the arrow.

- Change the bulb.

- Replace the plastic lens and press on it.


With hinged doors


- Unclip the interior trim.

- Disconnect the connector by moving
aside its tab.

- Remove the plastic cover.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.


Lamp located on the outside (hinged
doors)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the lamp.

- Change the bulb.
Lamp located on the inside (tailgate)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the plastic cover.

- Remove the bulb holder moving aside
the two tabs.

- Remove the failedbulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

142


Changing a fuse

CHANGING A FUSE

The three fuseboxes are placed:


-
in the dashboard on the right-hand side
(behind the storage compartment, retractable),

- in the passenger compartment (battery compartment),


- under the bonnet.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.

Always replace a
failed
fuse with a fuse
of the same rating. PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting from
the installation of auxiliary accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade technicians: for
complete fuse and relay information,
refer to the "Procedures" wiring diagrams via
the dealer network.
