2012 Peugeot Expert Tepee Owner's Manual

39


Instruments and controls

READY TO SET OFF
2

After this operation, if you wish to
disconnect the battery, lock the vehicle
and wait for at least five minutes, otherwise
the zero re-set will not be registered.


Zero re-set

Your PEUGEOT dealer or a qualified
workshop carries out this operation after
each service.
However, if you carry out the service
yourself, the re-set procedure is as follows:


- switch off the ignition,

- press and hold the trip recorder reset
button,

- switch on the ignition.
The display begins a countdown.
When the display shows "=0"
, release the
button; the spanner disappears.

Engine oil level indicator

When the ignition is switched on, the engine
oil level is indicated for a few seconds, after
the service information.

Oil level correct

Low oil level
Flashing of "OIL"
, linked
with the service warning
lamp, accompanied by
an audible signal and a message in the
screen, indicates a low oil level which could
damage the engine.
If the low oil level is confirmed by a check
using the dipstick, it is essential that the
level is topped up.

Oil level gauge fault
Flashing of "OIL--"
indicates a malfunction
of the engine oil level
indicator. Contact a PEUGEOT dealer or a
qualified workshop.
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
Dipstick

A
= maximum, never exceed
this level as a surplus of oil may
damage the engine.
Contact a PEUGEOT dealer or a
qualified workshop without delay.

B
= minimum, top up the level via
the oil filler cap, using the grade
of oil suited to your engine.



Trip recorder zero reset
button
With the ignition on, press the
button until the zeros appear.


Lighting dimmer

With the lighting on, press the
button to vary the brightness
of the instruments and
controls. When the lighting
reaches the minimum (or maximum) setting,
release the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
Service overdue
With the engine running the spanner
remains on until the service has been
carried out.
First of the two terms reached: the spanner
also comes on if the two-year interval has
elapsed.
Each time the ignition is switched
on and for a few seconds, the
spanner fl ashes and the excess
distance is displayed.

40


Gearboxes and steering wheel

To change gear easily, always depress the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.
When driving, avoid leaving your hand on
the gear knob as the force exerted, even if
slight, may wear the internal components of
the gearbox over time.


GEARBOXES AND STEERING WHEEL


5-speed gearbox
6-speed gearbox


Changing into 5 th
or 6 th
gear

Move the gear lever fully to the right to
engage 5 th or 6 th
gear.
GEAR SHIFT INDICATOR


In order to drive as fuel efficiently
as possible with a manual
gearbox, this indicator lamp
indicates to the driver when to
change up.
The driver remains responsible for deciding
whether or not to follow this indication, since
the indicator lamp comes on without taking
into account the configuration of the road,
the amount of traffic and safety factors.
The system cannot be deactivated.

When reverse gear is engaged
and when changing down whilst
decelerating, the function is not active.



Engaging reverse gear

In the 6-speed configuration, raise the collar
under the gear knob to engage reverse gear.
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.

41


Gearboxes and steering wheel

READY TO SET OFF
2

AUTOMATIC GEARBOX


Selecting positions



- Move the lever select a position.
Once the position is selected, the
corresponding indicator lamp appears in
the instrument panel screen.
Park: position of the lever for
parking.
To immobilise the vehicle or start
the engine. Reverse: position of the lever for
reverse gear.
To reverse the vehicle.
Neutral: position of the lever for
neutral.
To park the vehicle (parking brake
on) and start the engine. Drive: position of the lever for
driving.
To move the vehicle forwards in
automatic mode.
Manual: selection of the gears by
pushing or pulling the gear lever
(+ or -).
To move the vehicle forwards in
manual mode.

42


Gearboxes and steering wheel



Moving off

With the engine running, to move off from
position P
.
For immediate maximum acceleration
without touching the gear lever,
depress the accelerator pedal to the
extent of its travel, passing the point of
resistance (kickdown). The gearbox will
automatically change down or maintain the
gear selected until maximum engine speed
is reached.
On a descent, the gearbox will automatically
change down in order to provide efficient
engine braking and good pickup.
If you take your foot off the accelerator
suddenly, the gearbox will not change to a
higher gear for reasons of safety.
When stationary with the gear lever in
position D
(drive), a vibration limiting device
is activated by pressing the brake pedal.
- gradually release the
pressure on the brake pedal;
the vehicle then moves off.


- Press the brake pedal to
come out of position P
,

- select position R
or D
,

- gradually release the
pressure on the brake pedal;
the vehicle then moves off.
You can also move off from position N
.


- With your foot on
the brake, release
the parking brake,

- select position R
, D
or M
,



- Select position D
. The gearbox always selects the most
suitable gear taking account of the following:


- the style of driving,

- the road profile,

- the vehicle load.
The gearbox is then operating in auto-
adaptive mode, without any action on
your part.

Reverse gear



- Select position R
, with the
vehicle stationary and the
engine at idle.



Stopping the vehicle, starting the
engine


- Select position P
to
immobilise the vehicle
or
to start the engine
, with the
parking brake on or off.
If the battery is flat and the gear lever
is in position P
, it will be impossible to
change to another position.


- You can also select position N

to park
or to start the
engine
, with the parking
brake on.
If position N
is engaged inadvertently
while driving, allow the engine to return
to idle before engaging position D
to restore
drive.

43


Gearboxes and steering wheel

READY TO SET OFF
2


Manual mode

Manual sequential gear changing.


- Select gear lever position M
,

- push the gear lever towards the + sign
to change up, from 1 through to 6,

- conversely, push the gear lever towards
the - sign to change down.
You can change from position D
(automatic mode) to position M
(manual mode) at any time.
In manual mode, it is only possible to
change from one gear to another if the
vehicle speed and engine speed permit.
If they do not, the vehicle will operate
temporarily in automatic mode.
When the vehicle is stationary or moving
very slowly, the gearbox automatically
selects first gear.


Good practice

Never select position N
when the vehicle is
moving.
Never select positions P
or R
unless the
vehicle is stationary.
Never change between positions to optimise
braking on a slippery surface.
There is a risk of damage to the gearbox:


- if you press the accelerator and brake
pedals at the same time,

- if you force the gear lever from position P

to another position in the event of a battery
failure.
When the engine is at idle, brakes not
applied, if position R
, D
or M
is selected the
vehicle moves even without the accelerator
being pressed.
For this reason, do not leave children
unsupervised inside the vehicle, with the
engine running
.


Operating fault

Any operating fault is indicated by an
audible signal, accompanied by the
message "Automatic gear fault"
in the
screen.
In this situation the gearbox operates in
downgrade mode (locked in 3rd gear). You
may feel a substantial knock when changing
from P
to R
and from N
to R
(this will not
cause any damage to the gearbox).
Do not exceed 60 mph (100 km/h), keeping
within the limit of local speed restrictions.
Contact a PEUGEOT dealer or a qualified
workshop as soon as possible.

44


Gearboxes and steering wheel

STARTING AND STOPPING


Key

Take care to prevent the key from coming
into contact with grease, dust, rain or a
damp environment.
A heavy object attached to the key (key
ring, ...) weighing the key down in the
ignition switch may cause a malfunction.
Starting position.
The starter is operated, the engine turns
over, release the key.

STOP position:
steering lock.
The ignition is off. Turn the steering wheel
until the steering locks. Remove the key.

Good practice when starting

If this comes on, a door or the
bonnet is not closed correctly,
check!

Diesel pre-heating warning lamp
If the temperature is high enough,
the warning lamp comes on for
less than one second, you can
start without waiting.
In cold weather, wait for this warning lamp
to go off then operate the starter (Starting
position) until the engine starts.



Good practice when stopping


Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger (Diesel engine) to return to idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.

Running and accessories position.
To unlock the steering, turn the steering
wheel gently while turning the key, without
forcing. In this position, certain accessories
can be used.
Door or bonnet open warning lamp

STEERING WHEEL HEIGHT AND
REACH ADJUSTMENT
When the vehicle is stationary, release the
steering wheel adjustment mechanism by
lowering the lever.
Adjust the steering wheel for height and
reach, then lock the adjustment mechanism
by pushing the lever fully upwards.

Starting and stopping

45
Steering mounted controls

EASE OF USE and COMFOR
T
3


Dipped beam/main beam change
Pull the stalk fully towards you. Automatic illumination of headlamps
if your vehicle is fitted with a
sunshine sensor. Lighting off
Dipped beam (green)
Main beam (blue) LIGHTING CONTROL
STEERING MOUNTED CONTROLS

Sidelamps

Lighting-on audible warning
When the ignition is switched off, when
the driver's door is opened, there is an
audible warning if you have left the
vehicle's lighting on.



DIRECTION INDICATORS (flashing indicators)


Left
: downwards passing
the point of resistance.

Right
: upwards passing
the point of resistance.
Front and rear lamps

Selection is by turning ring A
.
Checking by means of the indicator
lamps in the instrument panel is
described in the "Instruments and
controls" section of chapter 2.

46

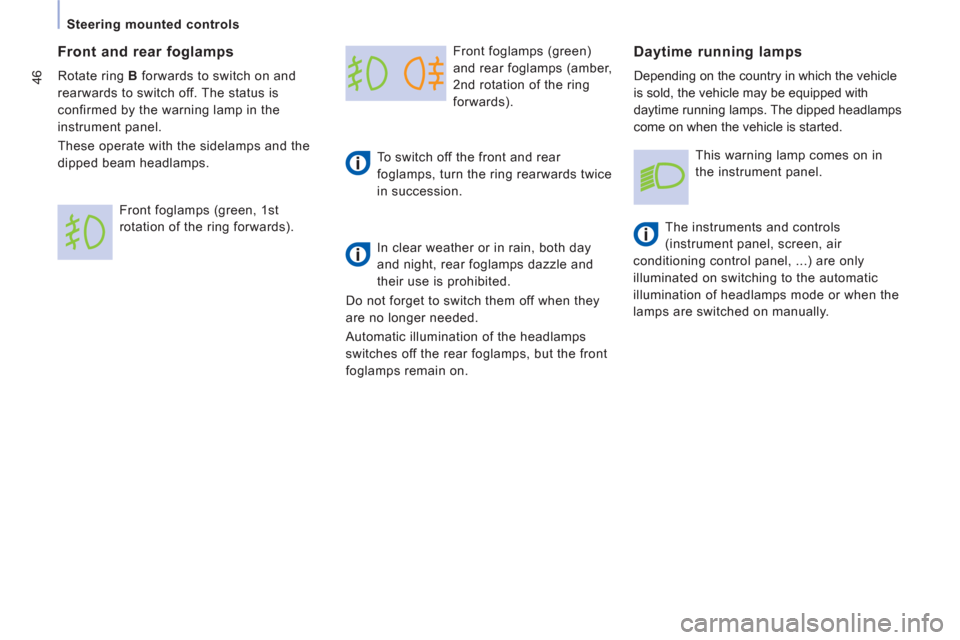

Steering mounted controls

Front foglamps (green)
and rear foglamps (amber,
2nd rotation of the ring
forwards).

To switch off the front and rear
foglamps, turn the ring rearwards twice
in succession.

In clear weather or in rain, both day
and night, rear foglamps dazzle and
their use is prohibited.
Do not forget to switch them off when they
are no longer needed.
Automatic illumination of the headlamps
switches off the rear foglamps, but the front
foglamps remain on.
Daytime running lamps

Depending on the country in which the vehicle
is sold, the vehicle may be equipped with
daytime running lamps. The dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, screen, air
conditioning control panel, ...) are only
illuminated on switching to the automatic
illumination of headlamps mode or when the
lamps are switched on manually.


Front and rear foglamps

Rotate ring B
forwards to switch on and
rearwards to switch off. The status is
confirmed by the warning lamp in the
instrument panel.
These operate with the sidelamps and the
dipped beam headlamps.
Front foglamps (green, 1st
rotation of the ring forwards). This warning lamp comes on in
the instrument panel.
