2012 Peugeot Expert Tepee Owner's Manual

79


Seats

EASE OF USE and COMFOR
T
3

SEAT AND BENCH
CONFIGURATIONS

Examples of various layoutscombining comfort and practicality

The various operations must be carried
out while stationary.

7 seats
8 seats
9 seats

5 seats
6 seats
Do not fit seats in the 3rd row without
first fitting the corresponding seatbelts.

80


Practical information

CAB FITTINGS

Depending on the vehicle's equipment, the
various fittings below enhance your cab.
Glove box
This is fitted with a lock, you can lock it
using the key.
It contains three sockets for the connection
of portable electronic equipment (video
equipment, ...) if the vehicle is fitted with
a colour screen.
It also contains cup holders and
compartments for storing maps, a packet
of cigarettes, an A4 format document,
a pen, etc.


Storage compartment
PRACTICAL INFORMATION


Sun visor

To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun visor
for storing toll cards, tickets, ...

Practical information

EASE OF USE and COMFOR
T
3
Ashtray
Storage tray and bottle holder (1.5 L)
Any liquid carried in an open receptacle
(cup or other) may be spilt, with the risk
of damage to switches and controls at the
driving position and centre console.
"Take care".

Ticket storage

According to the configuration of the vehicle.

12 volt socket

The maximum power of the socket, which is
of the cigarette lighter type, is 120 W.

82


Practical information


Overhead storage unit

This is located above the sun visors and
has two compartments, with or without
a cover, for storing a jumper, a file, ...
Be aware that storing a hard object
in direct contact with the compartment
may result in noise.

83


Practical information

EASE OF USE and COMFOR
T
3

Permanently on, ignition on. Front: comes on when one of the
front or rear doors is opened.
Row 2 and row 3: comes on when
one of the rear doors or the boot
is opened, if fitted on your vehicle.
Permanently off.
Individual reading lamp

Rear courtesy lamp
If fitted on the vehicle, these are
switched on and off by means of a
manual switch, with the ignition on.


SEATING AREA COURTESY LAMPS


Automatic switching on/off
The front courtesy lamp comes on when the
key is removed from the ignition.
All of the courtesy lamps come on when
the vehicle is unlocked, when one of the
corresponding doors is opened and for
location of the vehicle using the remote
control.
They switch off gradually after the ignition
is switched on and when the vehicle
is locked.
Front courtesy lamp

84


Practical information


Mat fitting/removal

When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly
on the pins and clip the fixings. Check that
the mat is secured correctly.

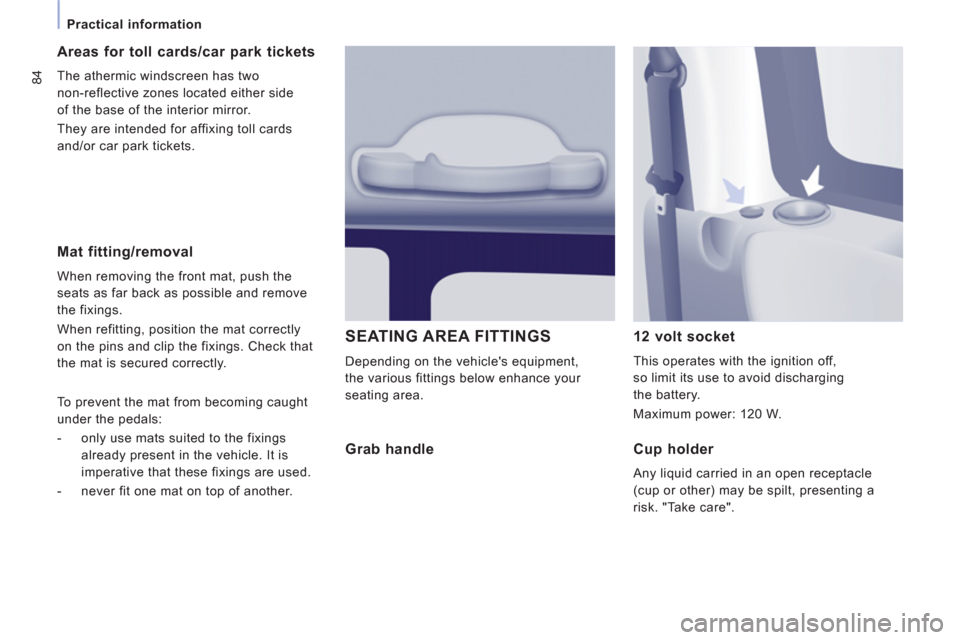

Areas for toll cards/car park tickets

The athermic windscreen has two
non-reflective zones located either side
of the base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
SEATING AREA FITTINGS

Depending on the vehicle's equipment,
the various fittings below enhance your
seating area.

12 volt socket

This operates with the ignition off,
so limit its use to avoid discharging
the battery.
Maximum power: 120 W. To prevent the mat from becoming caught
under the pedals:


- only use mats suited to the fixings
already present in the vehicle. It is
imperative that these fixings are used.

- never fit one mat on top of another.

Grab handle
Cup holder

Any liquid carried in an open receptacle
(cup or other) may be spilt, presenting a
risk. "Take care".

Practical information

EASE OF USE and COMFOR
T
3
Nets on the back of the outer seats Fittings/storage compartments
Load retaining net fixing

Raise the flap to gain access to the load
retaining net fixings. Storage tray and bottle holder (0.5 L)

Coat hooks

Practical information
Load space cover

To install:


- position one end of the load space
cover roller in its notch,

- compress the opposite end of the roller
and put it in place,

- release it so that it engages,

- unroll the load space cover to the pillars,

- fix the two hooks on the pillars.


Stowing rings

Use the stowing rings on the rear floor
to fix the net, your loads or luggage.
For safety reasons, on sharp braking,
it is recommended that heavy objects are
placed as far forward as possible. To remove:


- pull the load space cover towards
you to disengage it from its fixings,

- reinsert the load space cover in its roller,

- compress it and remove it from its
support.


You are advised to immobilise the load
by securing it firmly using the stowing
rings on the floor.
