Changing a fuse
QUICK HEL
P
7
RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Digital air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

144


Changing a fuse

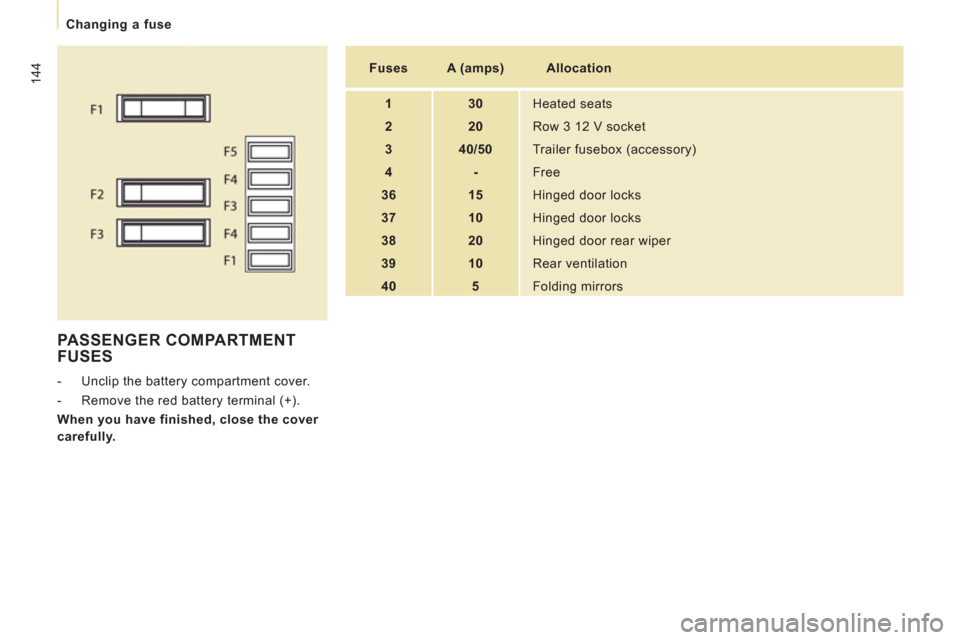

PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12 V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors

145
Changing a fuse
QUICK HEL
P
7
FUSES UNDER THE BONNET



- After opening the bonnet, slide aside the
screenwash reservoir support to make
access easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems

11


40
Front ventilation


12


30
Windscreen wipers


13


40
Built-in systems interface


14


30
Free

146


Changing a wiper blade



Placing the wiper blades in the
special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper blades
along the windscreen pillars (special
position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the blade
and remove it.

- Fit the new blade and push back the
wiper arm.

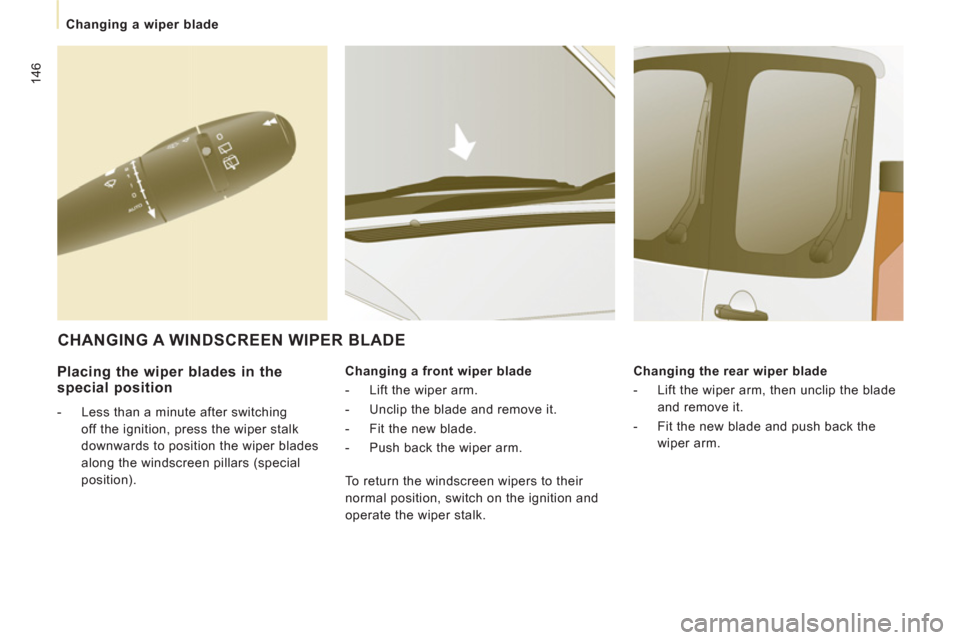

CHANGING A WINDSCREEN WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wiper stalk.

147


Having your vehicle towed
QUICK HEL
P
7


Without lifting (4 wheels on the ground)

You should always use a towing bar.


From the front



- Unclip the cover by pressing at the
bottom,

- Fully screw in the removable towing eye.

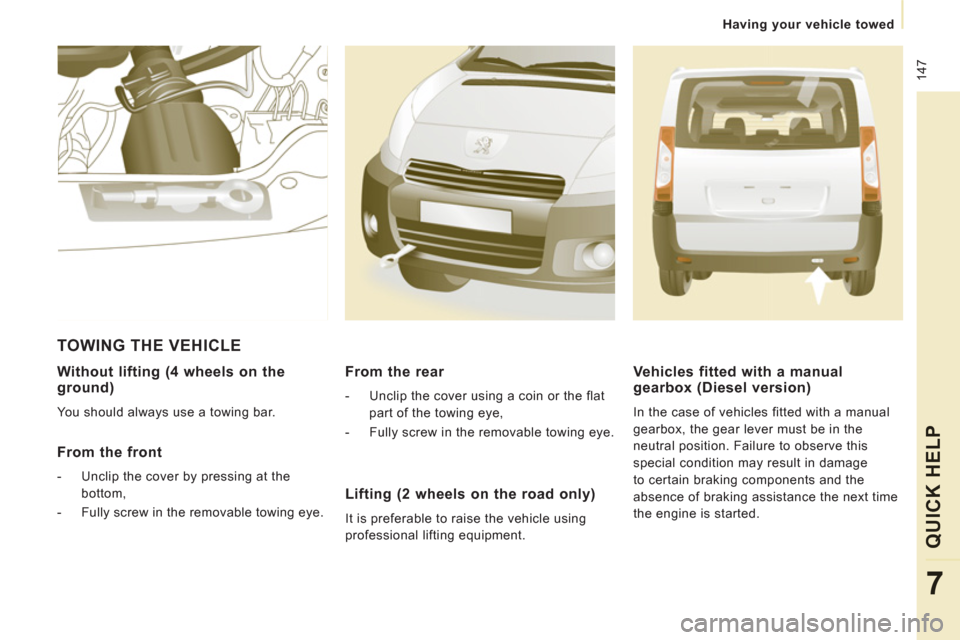

TOWING THE VEHICLE
Lifting (2 wheels on the road only)

It is preferable to raise the vehicle using
professional lifting equipment.
From the rear



- Unclip the cover using a coin or the flat
part of the towing eye,

- Fully screw in the removable towing eye.


Vehicles fitted with a manual gearbox (Diesel version)

In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

148


Having your vehicle towed

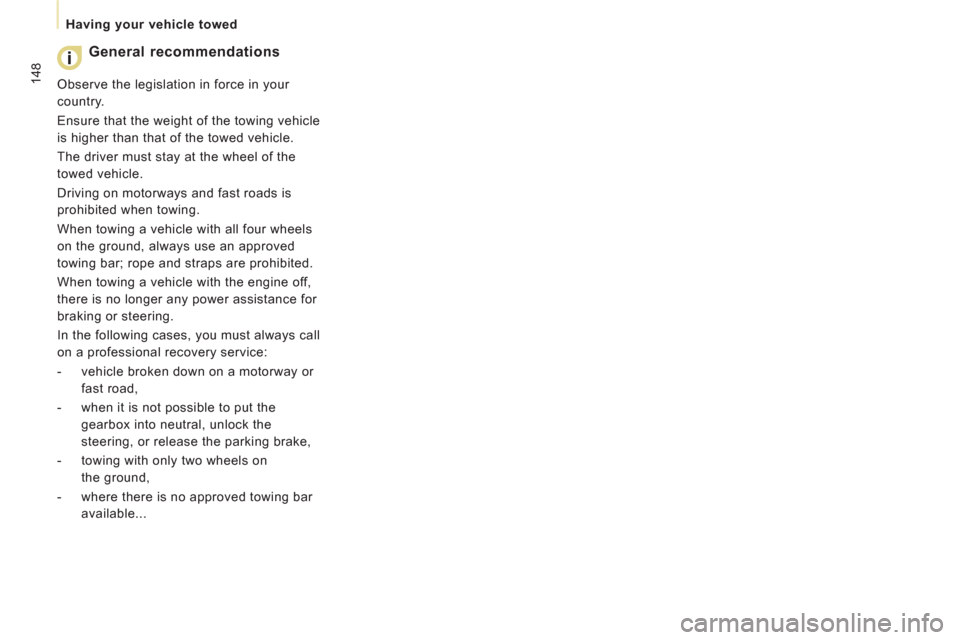

General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on
the ground,

- where there is no approved towing bar
available...

149



Environment
QUICK HEL
P
7

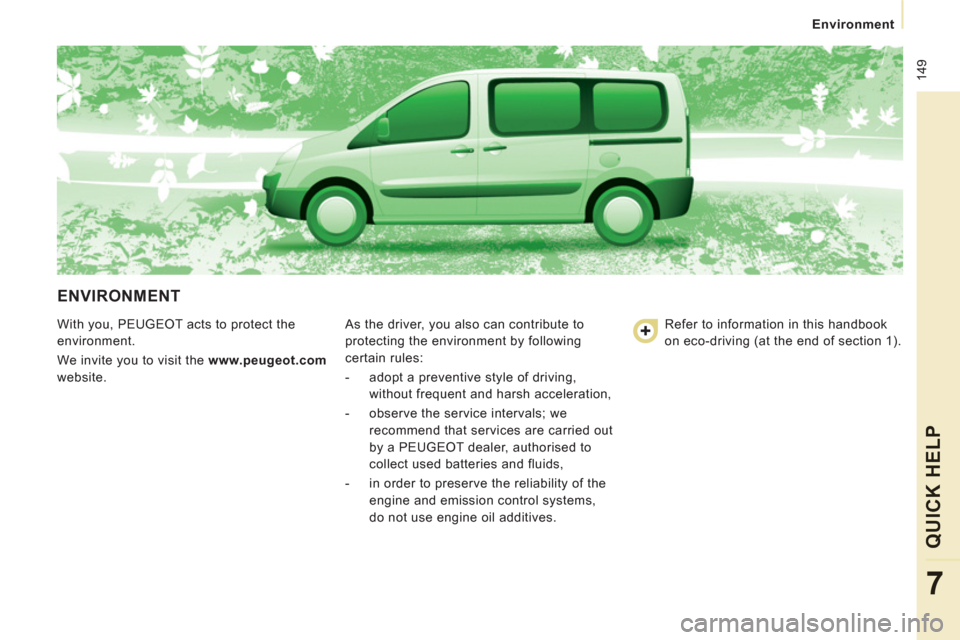

ENVIRONMENT

With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com

website. As the driver, you also can contribute to
protecting the environment by following
certain rules:


- adopt a preventive style of driving,
without frequent and harsh acceleration,

- observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,

- in order to preserve the reliability of the
engine and emission control systems,
do not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).

150

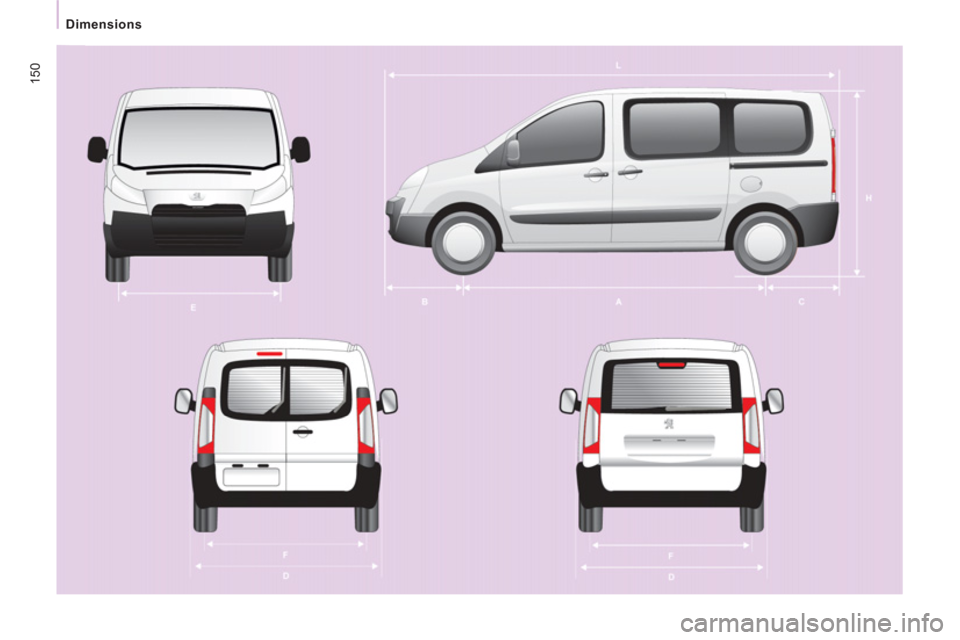

Dimensions
