2012 Peugeot Expert Tepee Owner's Manual

23


Access

READY TO SET OFF
2
ALARM

If fitted on your vehicle, this provides two
types of protection:


- exterior protection: it sounds if a front/
rear door or the bonnet is opened.

- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).


Disarming



- Unlock the vehicle with the remote
control or switch on the ignition, the red
LED goes off.



Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
When leaving the vehicle,
check that the lamps are
off and nothing of value is
visible.
As a safety precaution (with
children on board), remove
the key from the ignition
when leaving the vehicle,
even for a short time.


Locking the vehicle with complete
alarm

Setting the alarm



- Switch off the ignition and get out of the
vehicle.

- Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control.
The red LED, located on the centre
console, flashes once per second.



Locking the vehicle with exterior
protection only
If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.


- Switch off the ignition.

- Get out of the vehicle.

- Within the next five minutes, set the
alarm by locking or deadlocking using
the remote control (the red LED flashes
once a second).

When purchasing a second-hand vehicle:



- have the keys memorised by a
PEUGEOT dealer to ensure that the
keys in your possession are the only
ones which can start the vehicle.
- In the next ten seconds, press
this button, located on the
centre console, until the red
LED is on continuously.

24


Access



Triggering

The siren sounds, the direction indicators
flash for approximately 30 seconds and the
red LED flashes rapidly.


- To switch it off, insert the key and switch
on the ignition.
When the alarm has been triggered ten
times in succession (when triggered for the
eleventh time) it is deactivated. Repeat the
procedure for setting the alarm.


Malfunction

When the ignition is switched on, if the
red LED remains on for ten seconds, this
indicates a fault with the siren connection.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.


From the inside
Locking the vehicle without alarm



- Insert the key in the lock on the driver's
door and lock it.
Do not set the alarm when washing your
vehicle.


Failure of the remote control

When the alarm is set but the remote control
does not operate:


- Unlock the doors with the key and open
the door. The alarm is triggered.

- Switch on the ignition in the next ten
seconds. The alarm is disarmed.



Automatic setting of the alarm

Depending on the country in which the
vehicle is sold, the alarm is set automatically
approximately 2 minutes after the last door
is closed.
To prevent triggering of the alarm when a
door is opened, it is imperative to press the
remote control unlocking button again.
Do not make any modifications to
the alarm system as this could cause
faults.


From the outside

Use the remote control to lock/unlock the
vehicle.
Insert the metal part of the key in the lock on
the driver's side if the remote control does
not work.
The first press permits central
locking of the vehicle.
A second press permits central
unlocking of the vehicle.
The control does not work if the vehicle has
been locked using the remote control or the
key, from the outside.

25


Access

READY TO SET OFF
2

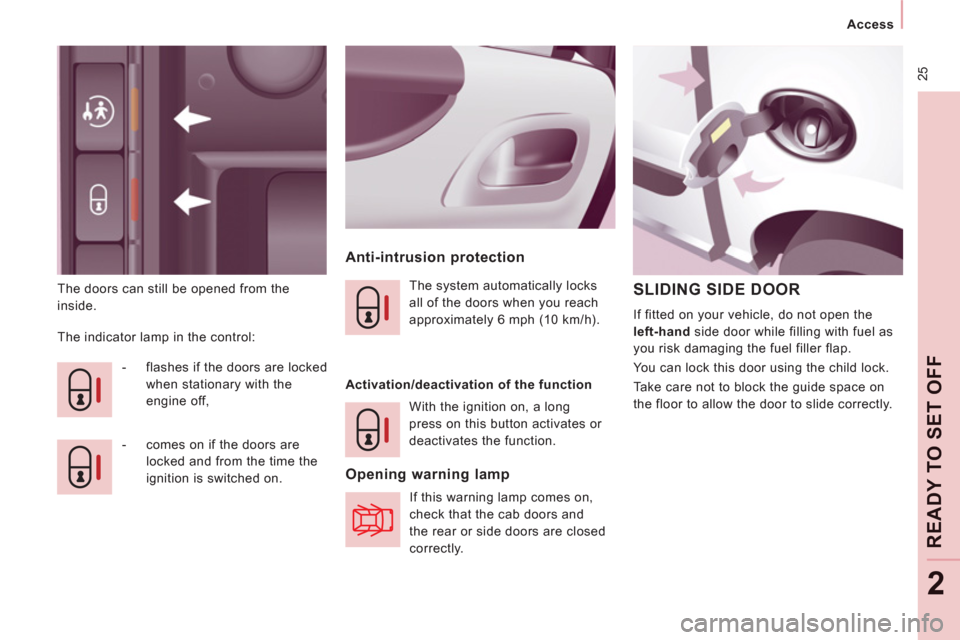

The doors can still be opened from the
inside.

Anti-intrusion protection

The indicator lamp in the control:


- flashes if the doors are locked
when stationary with the
engine off,

- comes on if the doors are
locked and from the time the
ignition is switched on.
The system automatically locks
all of the doors when you reach
approximately 6 mph (10 km/h).


Activation/deactivation of the function
With the ignition on, a long
press on this button activates or
deactivates the function.



Opening warning lamp

If this warning lamp comes on,
check that the cab doors and
the rear or side doors are closed
correctly.

SLIDING SIDE DOOR

If fitted on your vehicle, do not open the
left-hand
side door while filling with fuel as
you risk damaging the fuel filler flap.
You can lock this door using the child lock.
Take care not to block the guide space on
the floor to allow the door to slide correctly.

26


Access



From the outside

Pull the handle towards you then towards
the rear. With the ignition on, press
this button, the LED is on
accompanied by a message in the
screen.
This system is independent of the central
locking control.


From the inside

To unlock and open, push the handle towards
the rear. Ensure that the door opens fully to
lock the device at the base of the door.


Locking/electric child lock

This prevents opening of the side doors from
the inside.

Good practice

Do not drive with the sliding side door open.
Always remove the key from the ignition when
leaving the vehicle, even for a short time.
Each time you switch on the ignition, check
whether the child lock is active (LED on).
In the event of a serious impact, the electric
child lock is deactivated automatically.







Operation in the event of a battery
failure

Front and side passenger doors
In the event of a battery or of the central
locking fault, use the lock to lock the doors
mechanically.


- To open the door and get out of the
vehicle, pull the interior control.

- To lock the door, insert the key in the
lock, located on the edge of the door,
then turn it one eighth of a turn
.


Driver's door


- Insert the key in the lock, then turn it to
the right to lock or to the left to unlock.

27


Access

READY TO SET OFF
2

HINGED REAR DOORS

When parked with the rear
doors open to 90°, the doors
mask the rear lamps.

To signal your position to
road users travelling in the
same direction who may
not have noticed that you
have stopped, use a warning
triangle or any other device
stipulated by the legislation
and regulations of your
country.

TAILGATE


From the outside

The two hinged doors open to 90°.
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door.


Opening to 180°

A retractable check strap system permits
extension of the opening from 90° to 180°.
Disengage the check strap towards you
when the door is partially open.
The check strap will re-attach automatically
on closing.

From the outside

If fitted on your vehicle, locking/unlocking is
via the remote control.
To open, press the control then raise the
tailgate.
A strap is provided to secure the tailgate in
the upper position.


From inside


Emergency control
In the event of a central unlocking operating
fault, this permits unlocking of the tailgate
from the inside.
Fold the rear seats to gain access to the lock.
Insert a small screwdriver in this opening to
unlock the tailgate.

28


Instruments and controls


INSTRUMENT PANEL



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Fuel level, coolant temperature.

4.
Rev counter.

5.
Instrument panel lighting dimmer.

6.
Trip distance recorder/service indicator
zero reset.


Instrument panel screen



- Speed limiter/cruise control.

- Miles/kilometres travelled.

- Service indicator, engine oil level
indicator, total miles/kilometres.

- Presence of water in the Diesel filter.

- Diesel pre-heating.

- Gear shift indicator.



Warning lamp and controls in the
overhead storage unit


- Passenger airbag deactivated warning
lamp.

- Driver/passenger heated seat controls
(version with 2 front seats).

- Rear ventilation activation/deactivation
control.


INSTRUMENTS AND CONTROLS

29


Instruments and controls

READY TO SET OFF
2

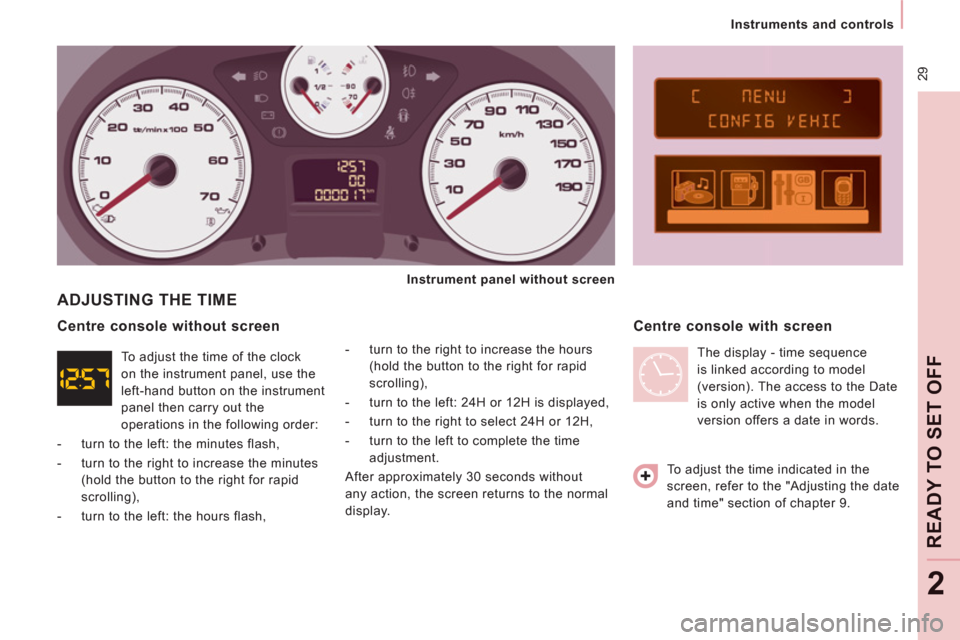

ADJUSTING THE TIME


- turn to the right to increase the hours
(hold the button to the right for rapid
scrolling),

- turn to the left: 24H or 12H is displayed,

- turn to the right to select 24H or 12H,

- turn to the left to complete the time
adjustment.
After approximately 30 seconds without
any action, the screen returns to the normal
display.


Centre console with screen

Centre console without screen

To adjust the time indicated in the
screen, refer to the "Adjusting the date
and time" section of chapter 9.
Instrument panel without
screen


To adjust the time of the clock
on the instrument panel, use the
left-hand button on the instrument
panel then carry out the
operations in the following order:


- turn to the left: the minutes flash,

- turn to the right to increase the minutes
(hold the button to the right for rapid
scrolling),

- turn to the left: the hours flash, The display - time sequence
is linked according to model
(version). The access to the Date
is only active when the model
version offers a date in words.

Instruments and controls


WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a check auto-test. They go off again almost immediately.
When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen.
Do not ignore these warnings

Warning lamp
is
indicates
Solution - action



STOP on, associated
with another
warning
lamp and
accompanied by
a message in the
screen. major faults linked with the
"Brake fluid level", "Engine oil
pressure and temperature",
"Coolant temperature",
"Electronic brake force
distribution", "Power steering"
and "Under-inflation detection"
warning lamps.
You must stop as soon as it is safe to do so, park,
switch off the ignition and call a PEUGEOT dealer or
a qualified workshop.




Parking brake /
Brake fl uid level /
EBFD on. parking brake applied or not
released correctly. Releasing the parking brake switches off the warning lamp.
on. low brake fluid level. Top up using a fluid recommended by PEUGEOT.
remains on, even
though the level
is correct and
associated with the
ABS warning lamp. failure of the electronic brake
force distribution.
You must stop as soon as it is safe to do so, park,
switch off the ignition and call a PEUGEOT dealer or
a qualified workshop.




Engine oil
pressure and
temperature on while driving. insufficient pressure or
temperature too high. Park, switch off the ignition and allow to cool. Visually
check the level. Chapter 6, "Levels" section.
remains on, even
though the level
is correct. major fault. Call a PEUGEOT dealer or a qualified workshop.
