151
Dimensions

TECHNICAL DAT
A
8


H1

L Overall length
4 805
5 135

H Overall height pneumatic / metal suspension
1 895/1 942

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830
1 038
Overall width:
on panel

1 870

D with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded

2 194

E Width of front tracks

1 574

F Width of rear tracks

1 574
Turning circle between kerbs (m)
12.18
12.59
Maximum loads (kg)
Payload

1 000
On roof

170

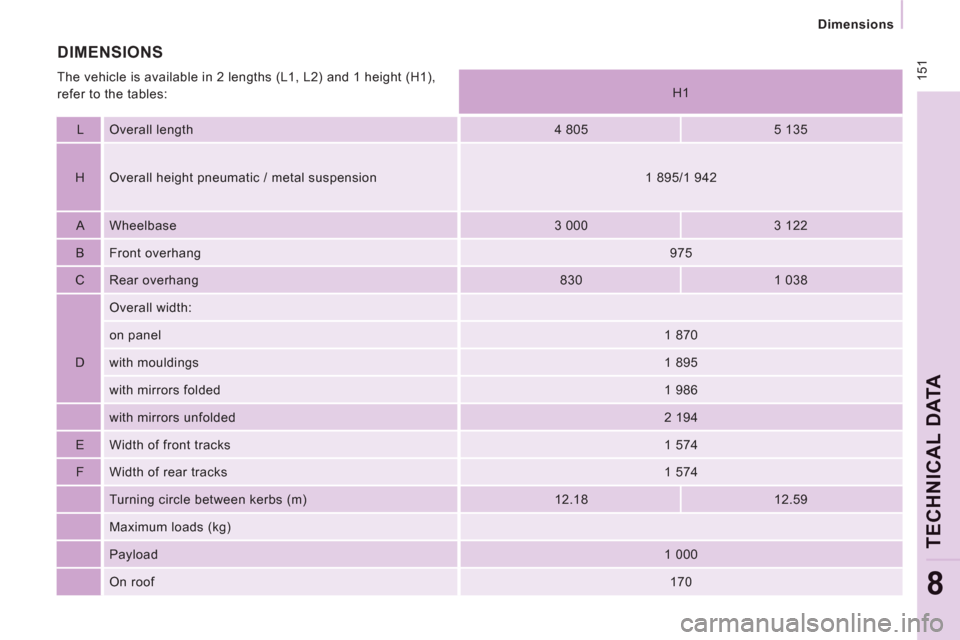

DIMENSIONS

The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

152


Dimensions

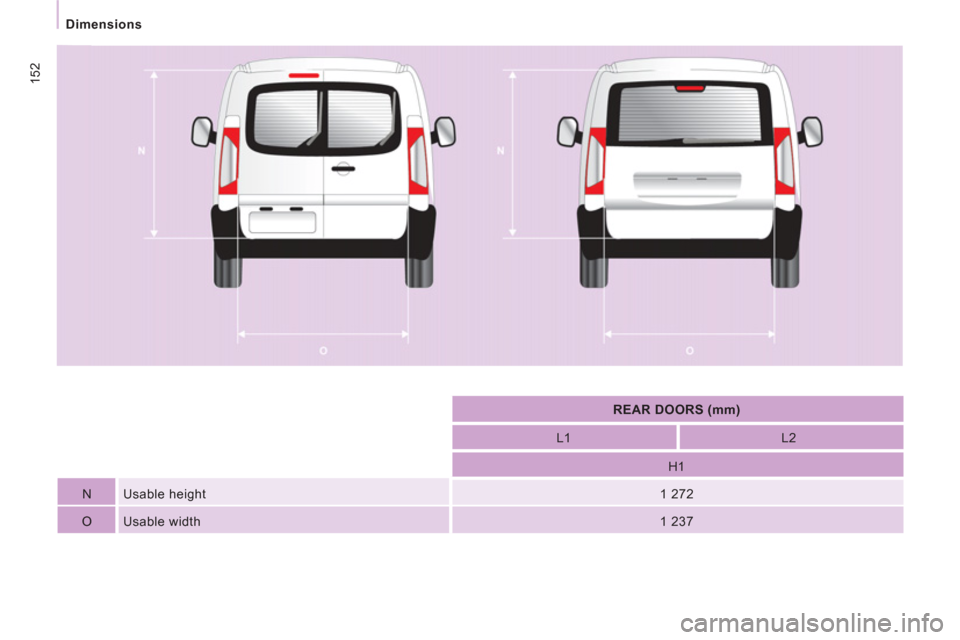

REAR DOORS (mm)


L1
L2

H1

N Usable height

1 272

O Usable width

1 237

153
Dimensions

TECHNICAL DAT
A
8

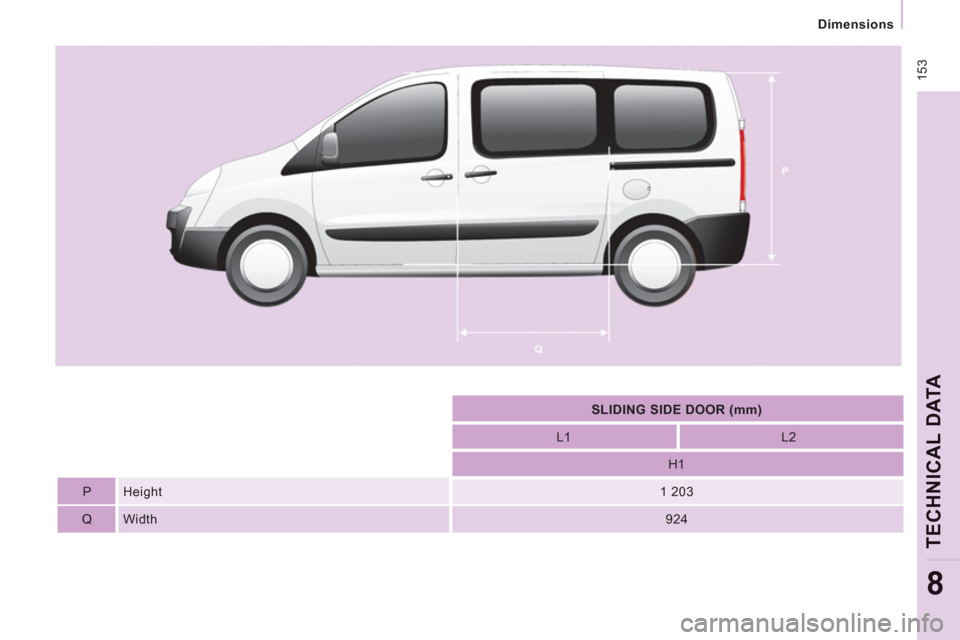

SLIDING SIDE DOOR (mm)


L1
L2

H1

P Height

1 203

Q Width

924

154

Weights

WEIGHTS AND TOWED LOADS (KG)

For more information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle's towing
capabilities and its gross train weight, contact a PEUGEOT dealer.

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Observe the towing capacities of your vehicle.

The weight of a braked trailer with load transfer can be increased on condition that the equivalent weight is removed from the vehicle and
the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine. If the ambient temperature is
above 37 °C, limit the towed load to 700 kg, without any transfer of load.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

Diesel - Petrol engines
TECHNICAL DAT
A
8


For further information, consult the internet site at the address: http://public.servicebox.peugeot.com

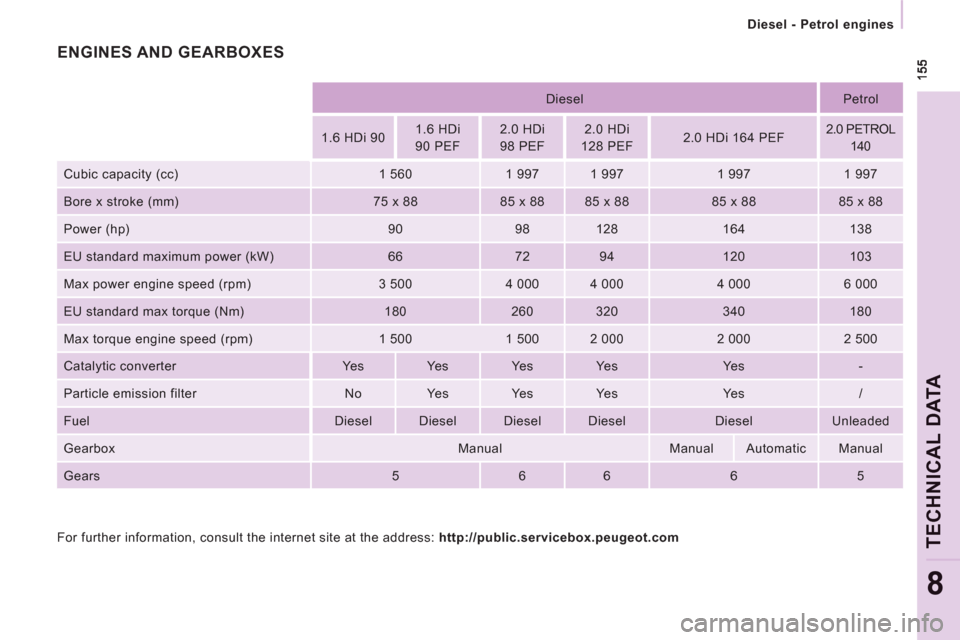

ENGINES AND GEARBOXES



Diesel
Petrol

1.6 HDi 90
1.6 HDi
90 PEF
2.0 HDi
98 PEF
2.0 HDi
128 PEF
2.0 HDi 164 PEF
2.0 PETROL
140
Cubic capacity (cc)
1 560
1 997
1 997
1 997
1 997
Bore x stroke (mm)
75 x 88
85 x 88
85 x 88
85 x 88
85 x 88
Power (hp)
90
98
128
164
138
EU standard maximum power (kW)
66
72
94
120
103
Max power engine speed (rpm)
3 500
4 000
4 000
4 000
6 000
EU standard max torque (Nm)
180
260
320
340
180
Max torque engine speed (rpm)
1 500
1 500
2 000
2 000
2 500
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
-
Particle emission filter
No
Ye s
Ye s
Ye s
Ye s
/
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Unleaded
Gearbox
Manual
Manual
Automatic
Manual
Gears
5
6
6
6
5

156


Identification markings

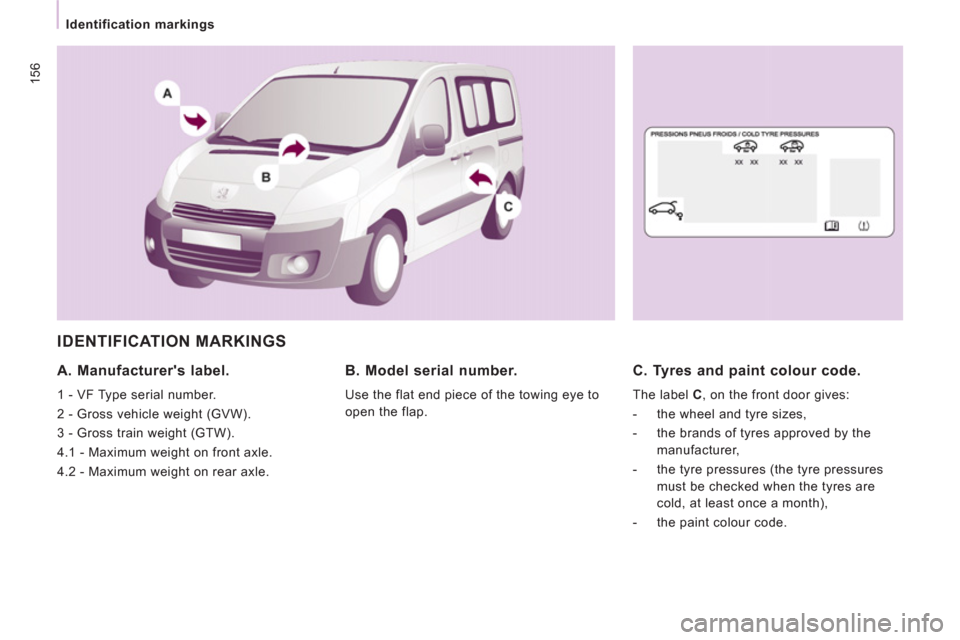

IDENTIFICATION MARKINGS


A. Manufacturer's label.

1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Model serial number.

Use the flat end piece of the towing eye to
open the flap.
C. Tyres and paint colour code.

The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre pressures
must be checked when the tyres are
cold, at least once a month),

- the paint colour code.

9.1
EMERGENCY OR ASSISTANCE CALL

9.2
If an impact is detected by the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made automatically.
The messa
ge "Deteriorated emergency call" associated with fl ashing
of the orange indicator lamp indicates a malfunction. Contact a
PEUGEOT dealer.
In an emer
gency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not o
perational, or
when the locating service has been expressly declined,
the call is sent to the emergency services (11 2).
Warning - the emergency call and the services are only active
if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call
Select "Customer call" to request
any information about the PEUGEOT marque.

Select "PEUGEOT Assistance"
to make a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.


EMERGENCY OR ASSISTANCE CALL USING PEUGEOT CONNECT MEDIA NAVIGATION
