2012 PEUGEOT 308 Owners Manual

47
MULTIFUNCTION SCREENS

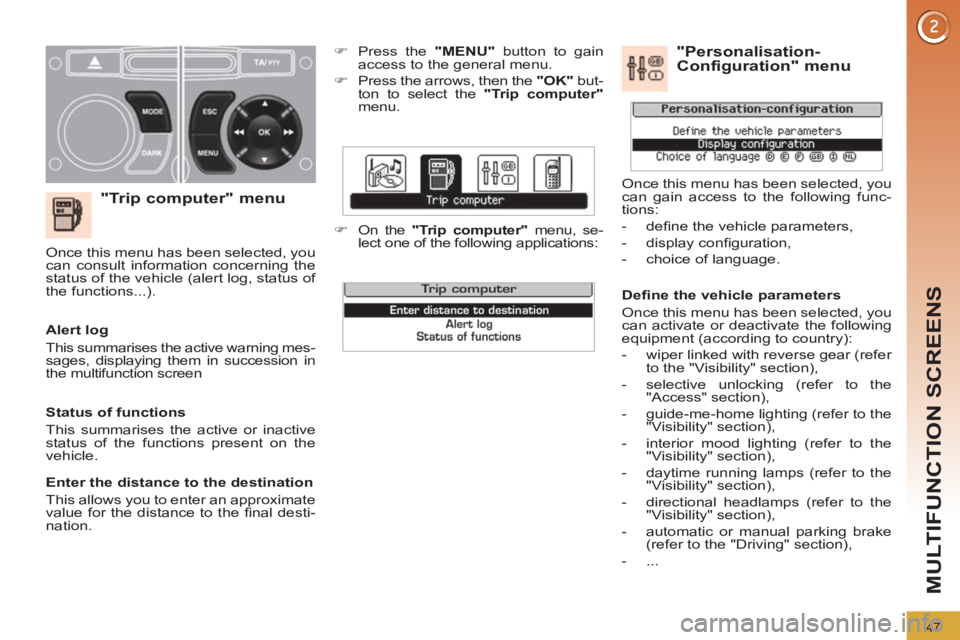

"Trip computer" menu



)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"

menu.

)
On the "Trip computer"
menu, se-
lect one of the following applications:


Alert log
This summarises the active warning mes-
sages, displaying them in succession in
the multifunction screen Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home lighting (refer to the
"Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...

"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.


Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.

48
MULTIFUNCTION SCREENS

Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.


Choice of language
Once this menu has been selected, you
can change the screen display language
(Deutsch, English, Espanol, Français,
Italiano, Nederlands, Portugues, Portugues-

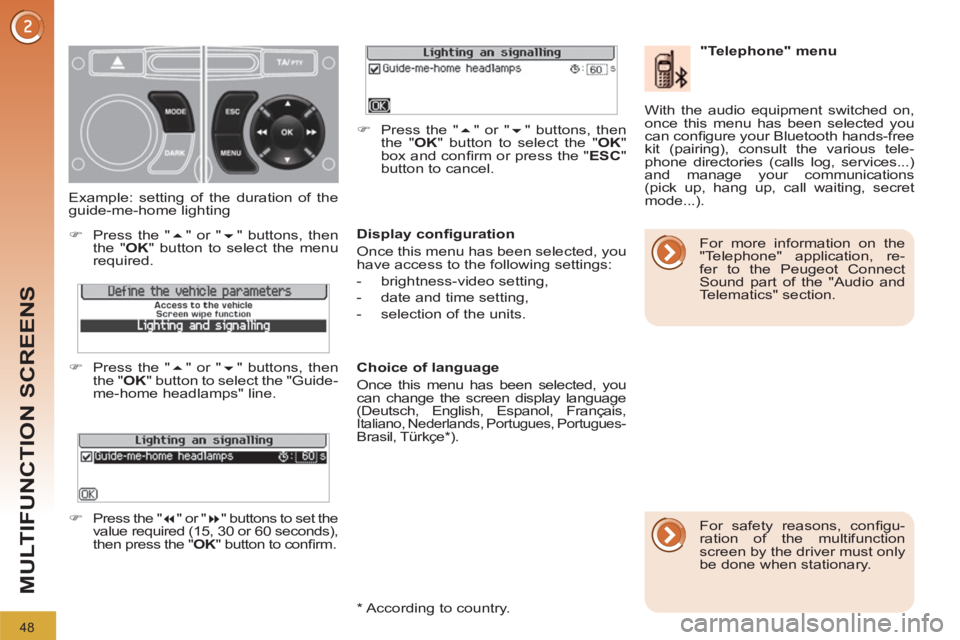

Brasil, Türkçe * ). Example: setting of the duration of the
guide-me-home lighting



)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.

)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.

)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the " OK
" button to confi rm.
)
Press the "
" or "
" buttons, then
the " OK
" button to select the " OK
"
box and confi rm or press the " ESC
"
button to cancel.



"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-free
kit (pairing), consult the various tele-
phone directories (calls log, services...)
and manage your communications
(pick up, hang up, call waiting, secret
mode...).

* According to country. For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary. For more information on the
"Telephone" application, re-
fer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.

49
MULTIFUNCTION SCREENS

Displays in the screen

When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- doors check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information.

-
satellite navigation system information.

From the Peugeot Connect Navigation
(RNEG) control panel, to select one of
the applications:


)

press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "SETUP"
or "PHONE"

button for access to the corresponding
menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display.














16/9 RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT NAVIGATION (RNEG))
Controls
For operation of the retract-
able screen (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable screen".
For more information on these
applications, refer to the "Au-
dio and Telematics" section.

Depending on the equipment fi tted to
your vehicle, the trip computer informa-
tion appears in either the multifunction
screen or the instrument panel screen.

50
MULTIFUNCTION SCREENS

"SETUP" menu




)
Press the "SETUP"
button for ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:


- "Languages",

- "Date and time",

- "Display",

- "Vehicle parameters",

- "Units",

- "System".



Languages
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specifi c
user guide given to you with the other
owner's documents).

*
According to country.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg). For safety reasons, con
fi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

51
MULTIFUNCTION SCREENS













16/9 HIGH DEFINITION
RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT MEDIA)

Displays on the screen

When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- audio functions,

- telephone and address book infor-
mation,

-
satellite navigation system information.



Controls

From the Peugeot Connect Media control
panel, to select one of the applications:


)

press the dedicated "RADIO"
, "MEDIA"
,
"NAV"
, "TRAFFIC"
, "ADDR BOOK"
or
"SETUP"
button for access to the cor-
responding menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For more information on these
applications, refer to the "Au-
dio and Telematics" section or
to the specifi c user guide given to you
with the other owner's documents.
For operation of the retract-
able screen (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable screen".

52
MULTIFUNCTION SCREENS

*
According to country.

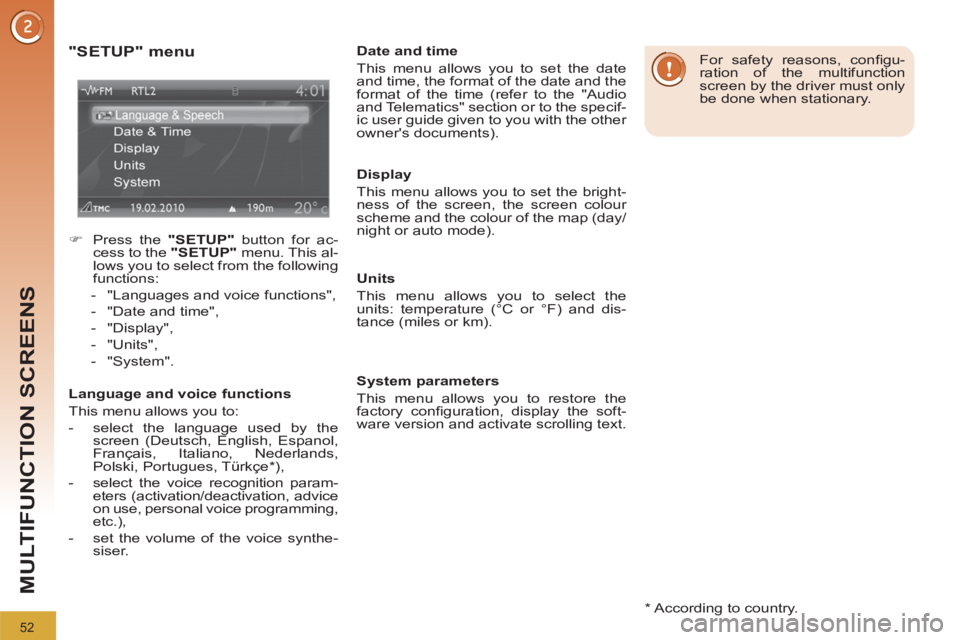

"SETUP" menu



)
Press the "SETUP"
button for ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:


- "Languages and voice functions",

- "Date and time",

- "Display",

- "Units",

- "System".


Language and voice functions
This menu allows you to:


- select the language used by the
screen (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),

- select the voice recognition param-
eters (activation/deactivation, advice
on use, personal voice programming,
etc.),

- set the volume of the voice synthe-
siser.

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents).

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).

System parameters
This menu allows you to restore the
factory confi guration, display the soft-
ware version and activate scrolling text.

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

53
MULTIFUNCTION SCREENS

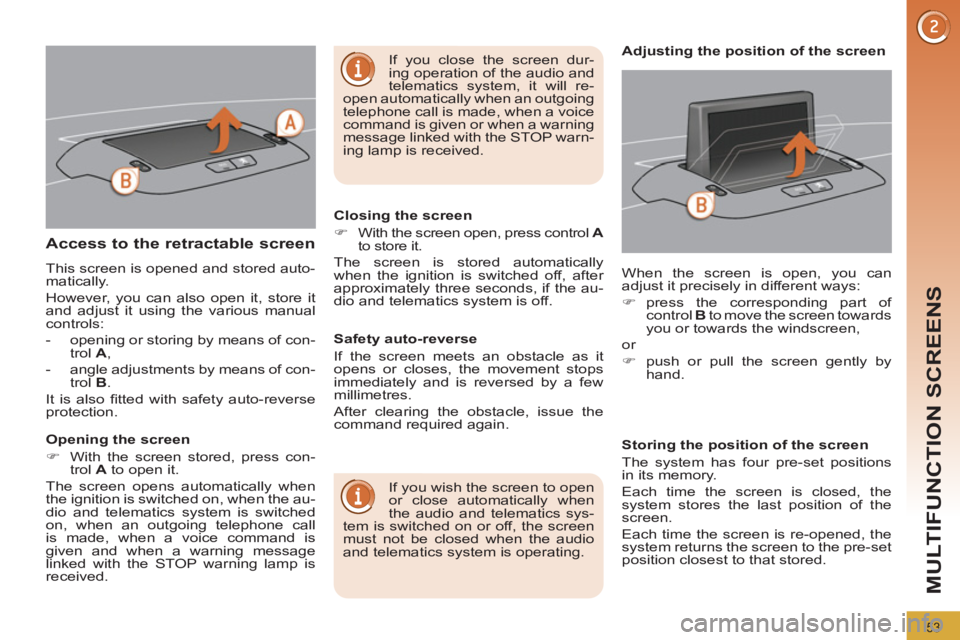

Access to the retractable screen

This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:


- opening or storing by means of con-
trol A
,

- angle adjustments by means of con-
trol B
.
It is also fi tted with safety auto-reverse
protection.

Opening the screen


)
With the screen stored, press con-
trol A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen


)
With the screen open, press control A

to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can
adjust it precisely in different ways:


)
press the corresponding part of
control B
to move the screen towards
you or towards the windscreen,
or


)
push or pull the screen gently by
hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.

Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen dur-
ing operation of the audio and
telematics system, it will re-
open automatically when an outgoing
telephone call is made, when a voice
command is given or when a warning
message linked with the STOP warn-
ing lamp is received.

54

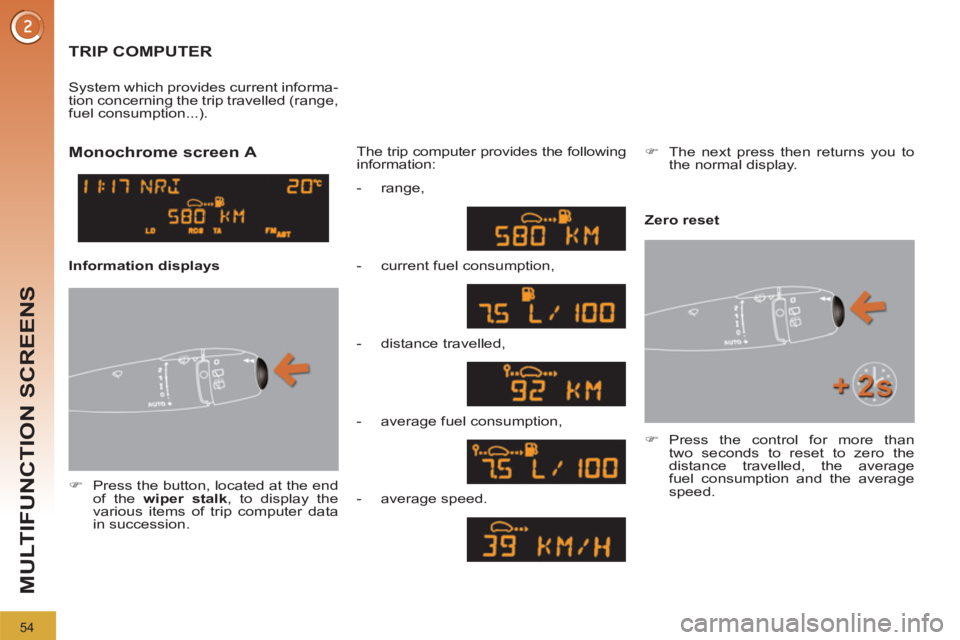

MULTIFUNCTION SCREENS





TRIP COMPUTER



)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the following
information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).


)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.




Monochrome screen A


Zero reset

Information displays

- range,

- current fuel consumption,

- distance travelled,

- average fuel consumption,

- average speed.
)
The next press then returns you to
the normal display.
