2012 PEUGEOT 308 Owners Manual

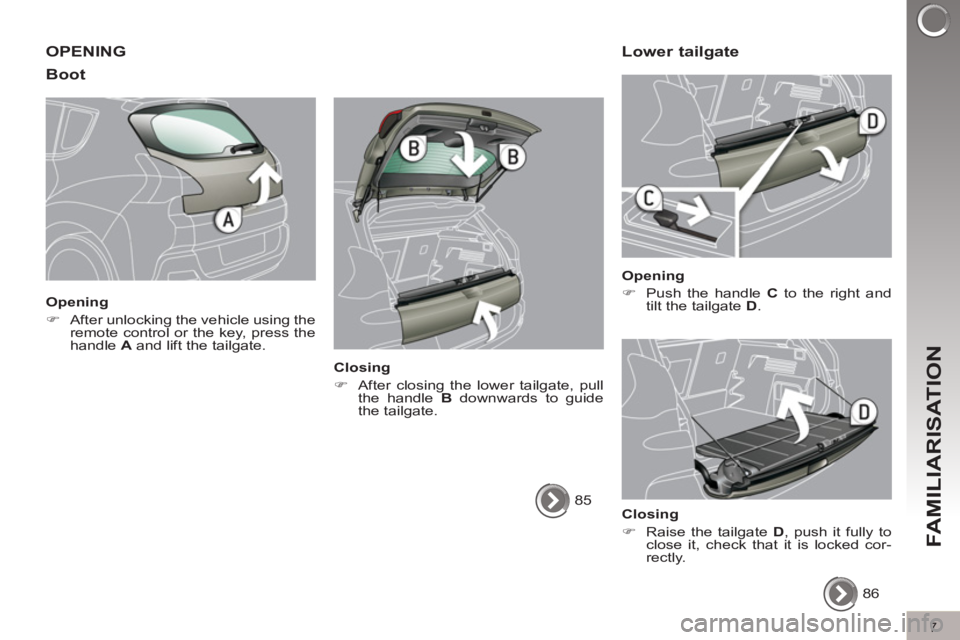

7
FAMILIARISATION
OPENING

Boot


Opening


)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.


Closing


)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.



Lower tailgate

85
Opening


)
Push the handle C
to the right and
tilt the tailgate D
.


Closing


)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.

86

8
FAMILIARISATION
INTERIOR


Electric parking brake
This combines the functions of automatic
application
on switching off the engine
and automatic release
on acceleration.
Manual application/release is possible.
137

Audio and communication systems
These systems benefi t from the latest
technology: MP3 compatible Peugeot
Connect Sound (RD5), Peugeot Connect
USB, Bluetooth, Peugeot Connect Navi-
gation (RNEG) or Peugeot Connect Media
Navigation (NG4 3D) with 16/9 retractable
colour screen, JBL audio system, auxiliary
sockets.
217
Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
145

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
62

Peugeot Connect
Navigation (RNEG) 261
293
Peugeot Connect
Sound (RD5)

Peugeot Connect Media
Navigation (NG4 3D) Peugeot Connect
USB 240,
300
Bluetooth 245,
281,
303
213

PEUGEOT
Assistance

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB and/or auxiliary socket.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
Alarm button.
Parking sensors button.
Dynamic stability control button
(ESP/ASR).
Stop & Start deactivation button.

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation
(NG4 3D).

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

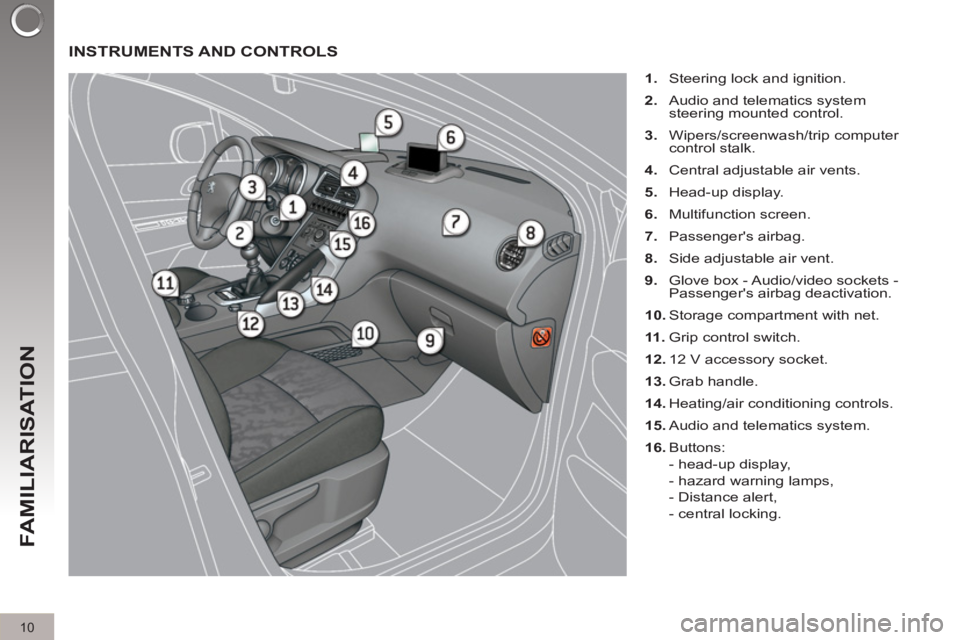

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10.
Storage compartment with net.

11 .
Grip control switch.

12.
12 V accessory socket.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

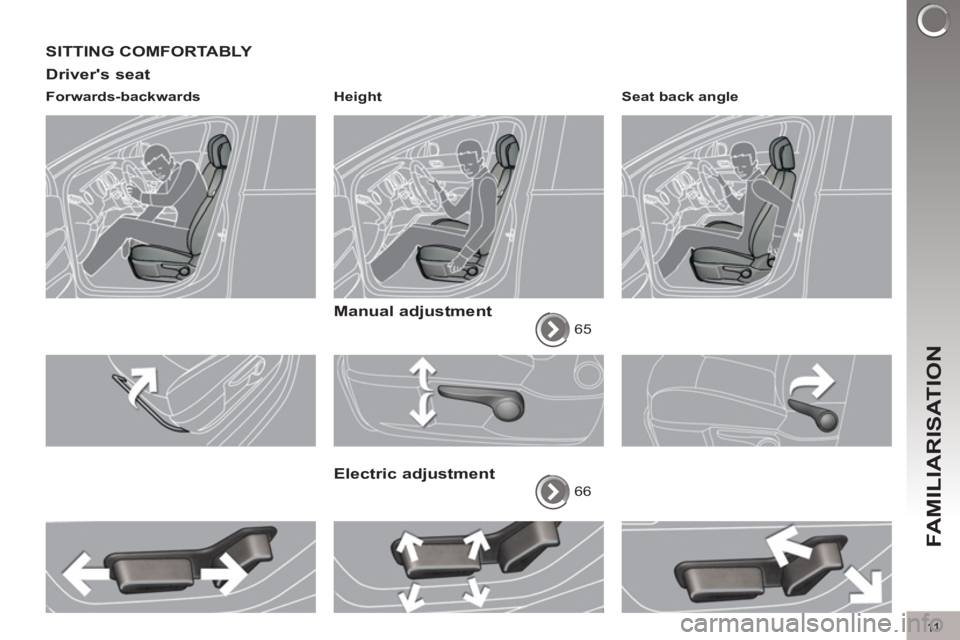

11
FAMILIARISATION
SITTING COMFORTABLY

Driver's seat


Forwards-backwards
Height



Manual adjustment

65


Electric adjustment

66
Seat back angle

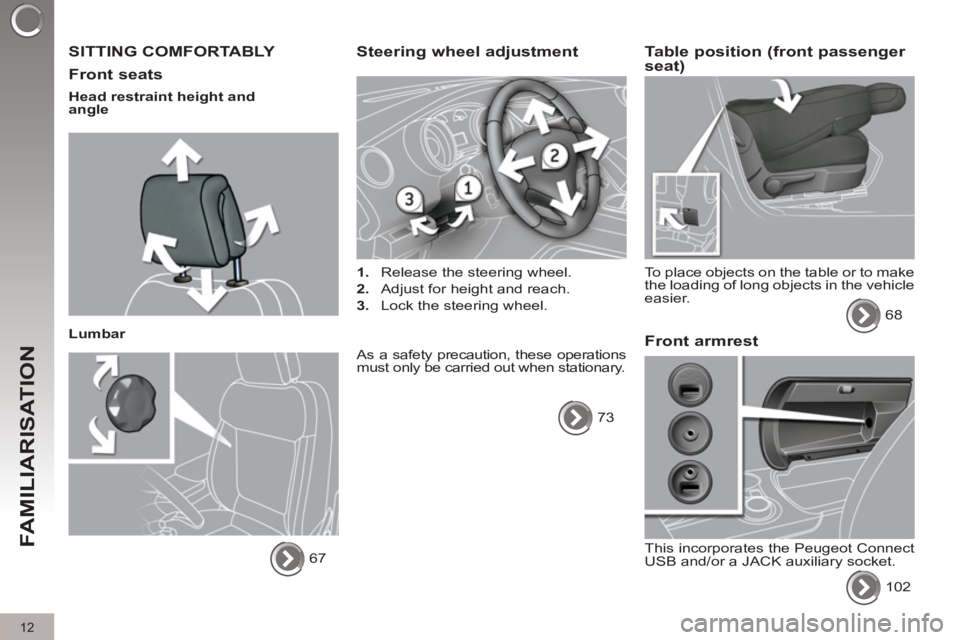

12
FAMILIARISATION
SITTING COMFORTABLY

Front seats


Head restraint height and
angle

Lumbar
67



Steering wheel adjustment



1.
Release the steering wheel.

2.
Adjust for height and reach.

3.
Lock the steering wheel.
As a safety precaution, these operations
must only be carried out when stationary.
73


Table position (front passenger
seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
68


Front armrest

This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.
102

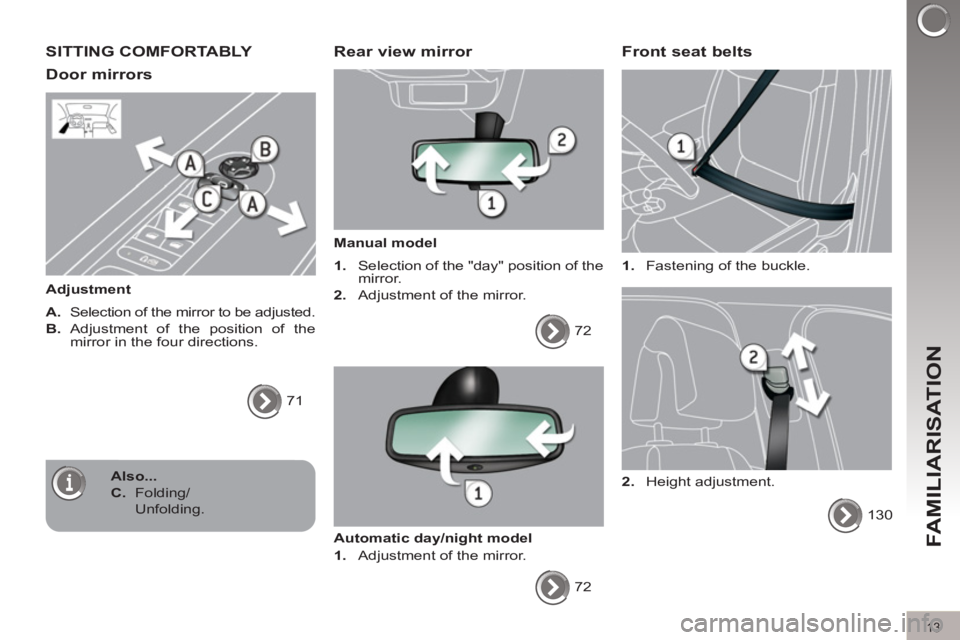

13
FAMILIARISATION
SITTING COMFORTABLY

Door mirrors


Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
71



Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
72

Automatic day/night model


1.
Adjustment of the mirror.
72



Front seat belts



1.
Fastening of the buckle.
130
2.
Height adjustment.
Also...


C.
Folding/
Unfolding.

14
FAMILIARISATION
SEEING CLEARLY

Lighting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of head-
lamps.
89



Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
124



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
94

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
95
