135
SAFETY

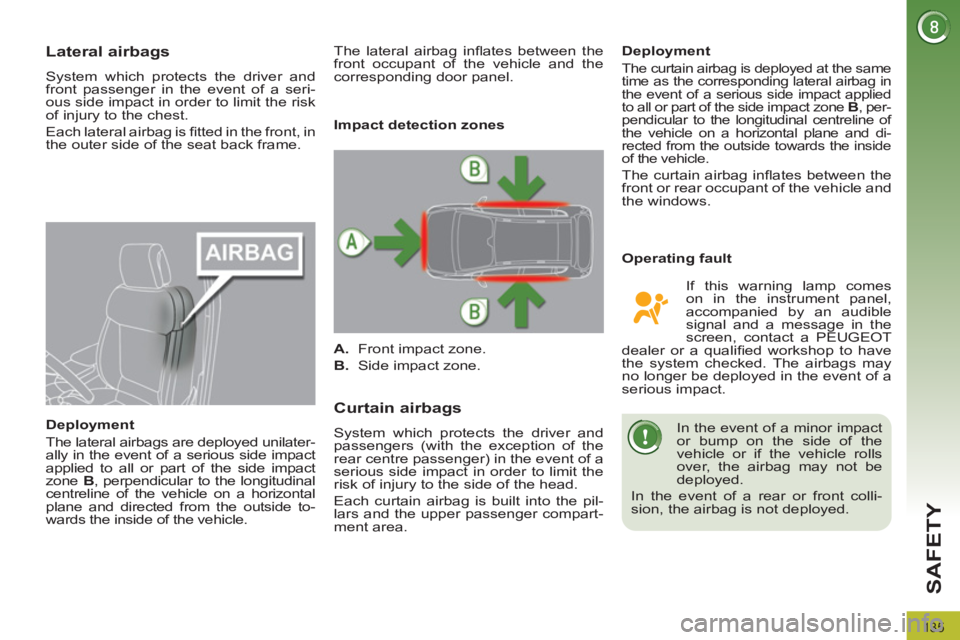

Lateral airbags

System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest.
Each lateral airbag is fi tted in the front, in
the outer side of the seat back frame.

Deployment
The lateral airbags are deployed unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.






Curtain airbags

System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pil-
lars and the upper passenger compart-
ment area.
Operating fault
Deployment

The curtain airbag is deployed at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone B
, per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the
vehicle or if the vehicle rolls
over, the airbag may not be
deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.

Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message in the
screen, contact a PEUGEOT
dealer or a qualifi ed workshop to have
the system checked. The airbags may
no longer be deployed in the event of a
serious impact. The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door panel.

136
SAFETY

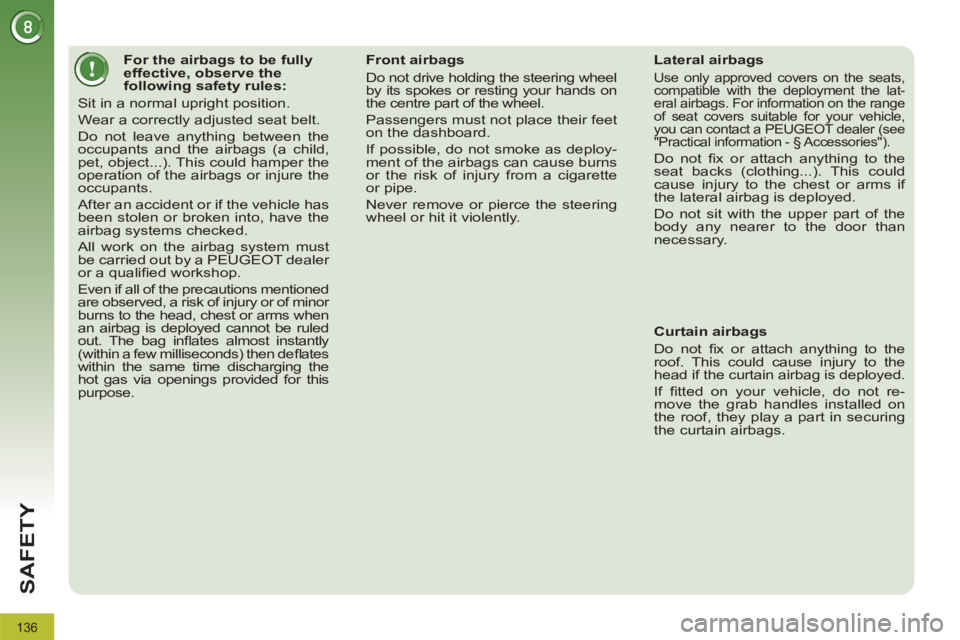

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system must
be carried out by a PEUGEOT dealer
or a qualifi ed workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when
an airbag is deployed cannot be ruled
out. The bag infl ates almost instantly
(within a few milliseconds) then defl ates
within the same time discharging the
hot gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.


Lateral airbags

Use only approved covers on the seats,
compatible with the deployment the lat-
eral airbags. For information on the range
of seat covers suitable for your vehicle,
you can contact a PEUGEOT dealer (see
"Practical information - § Accessories").
Do not fi x or attach anything to the
seat backs (clothing...). This could
cause injury to the chest or arms if
the lateral airbag is deployed.
Do not sit with the upper part of the
body any nearer to the door than
necessary.

Curtain airbags
Do not fi x or attach anything to the
roof. This could cause injury to the
head if the curtain airbag is deployed.
If fi tted on your vehicle, do not re-
move the grab handles installed on
the roof, they play a part in securing
the curtain airbags.

137
DRIVING

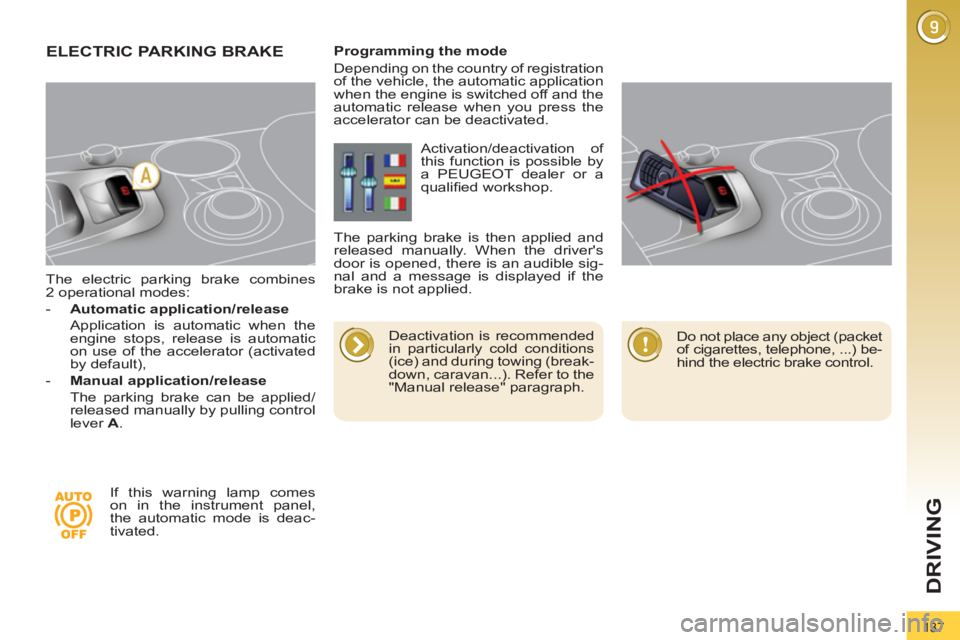

The electric parking brake combines
2 operational modes:


- Automatic application/release

Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),

- Manual application/release

The parking brake can be applied/
released manually by pulling control
lever A
.






ELECTRIC PARKING BRAKE



Deactivation is recommended
in particularly cold conditions
(ice) and during towing (break-
down, caravan...). Refer to the
"Manual release" paragraph.

Programming the mode
Depending on the country of registration
of the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.
If this warning lamp comes
on in the instrument panel,
the automatic mode is deac-
tivated. Activation/deactivation of
this function is possible by
a PEUGEOT dealer or a
qualifi ed workshop.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible sig-
nal and a message is displayed if the
brake is not applied.

Do not place any object (packet
of cigarettes, telephone, ...) be-
hind the electric brake control.

138
DRIVING

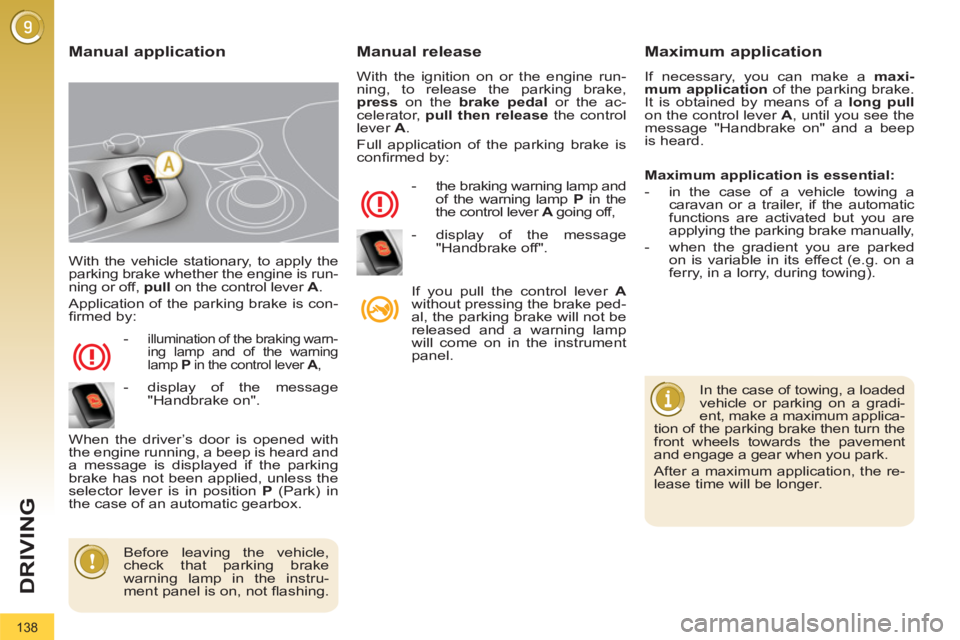

With the vehicle stationary, to apply the
parking brake whether the engine is run-
ning or off, pull
on the control lever A
.
Application of the parking brake is con-
fi rmed by:


-
illumination of the braking warn-
ing lamp and of the warning
lamp P
in the control lever A
,

When the driver’s door is opened with
the engine running, a beep is heard and
a message is displayed if the parking
brake has not been applied, unless the
selector lever is in position P
(Park) in
the case of an automatic gearbox.

Manual release

With the ignition on or the engine run-
ning, to release the parking brake,
press
on the brake
pedal
or the ac-
celerator, pull then release
the control
lever A
.
Full application of the parking brake is
confi rmed by:


- the braking warning lamp and
of the warning lamp P
in the
the control lever A
going off,
If you pull the control lever A

without pressing the brake ped-
al, the parking brake will not be
released and a warning lamp
will come on in the instrument
panel.


Manual application
Maximum application

If necessary, you can make a maxi-
mum application
of the parking brake.
It is obtained by means of a long pull

on the control lever A
, until you see the
message "Handbrake on" and a beep
is heard.

In the case of towing, a loaded
vehicle or parking on a gradi-
ent, make a maximum applica-
tion of the parking brake then turn the
front wheels towards the pavement
and engage a gear when you park.
After a maximum application, the re-
lease time will be longer.


Before leaving the vehicle,
check that parking brake
warning lamp in the instru-
ment panel is on, not fl ashing.

Maximum application is essential:



- in the case of a vehicle towing a
caravan or a trailer, if the automatic
functions are activated but you are
applying the parking brake manually,

- when the gradient you are parked
on is variable in its effect (e.g. on a
ferry, in a lorry, during towing).

- display of the message
"Handbrake on".
- display of the message
"Handbrake off".

139
DRIVING

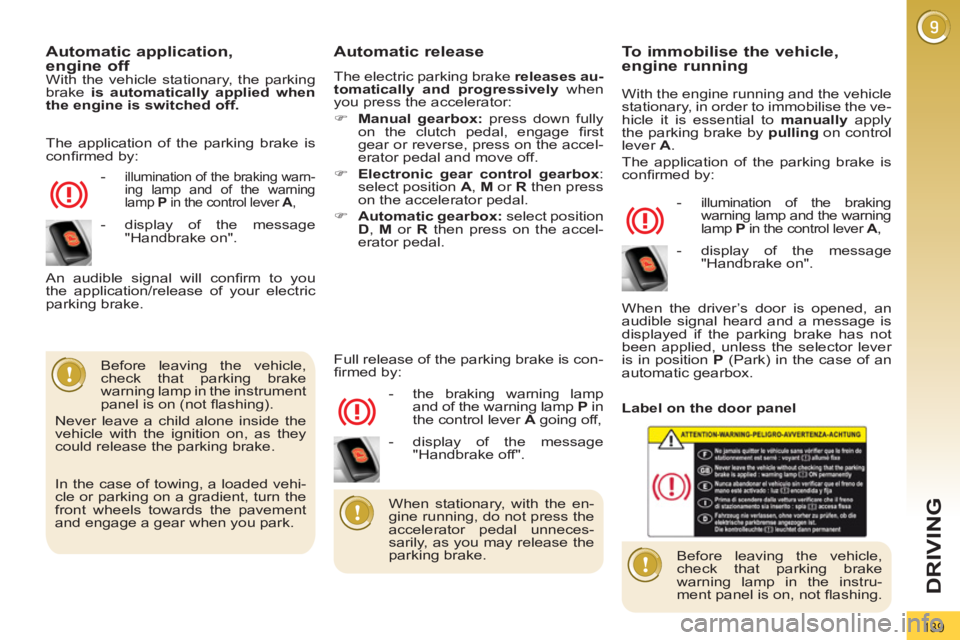

Automatic application,
engine off
With the vehicle stationary, the parking
brake is automatically applied when
the engine is switched off.



-
illumination of the braking warn-
ing lamp and of the warning
lamp P
in the control lever A
,


Automatic release

The electric parking brake releases au-
tomatically and progressively
when
you press the accelerator:


)
Manual gearbox:
press down fully
on the clutch pedal, engage fi rst
gear or reverse, press on the accel-
erator pedal and move off.

)
Electronic gear control gearbox
:
select position A
, M
or R
then press
on the accelerator pedal.

)
Automatic gearbox:
select position
D
, M
or R
then press on the accel-
erator pedal.

Before leaving the vehicle,
check that parking brake
warning lamp in the instrument
panel is on (not fl ashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.

- the braking warning lamp
and of the warning lamp P
in
the control lever A
going off, An audible signal will confi rm to you
the application/release of your electric
parking brake.
Full release of the parking brake is con-
fi rmed by:


To immobilise the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the ve-
hicle it is essential to manually
apply
the parking brake by pulling
on control
lever A
.
The application of the parking brake is
confi rmed by:


-
illumination of the braking
warning lamp and the warning
lamp P
in the control lever A
,

When the driver’s door is opened, an
audible signal heard and a message is
displayed if the parking brake has not
been applied, unless the selector lever
is in position P
(Park) in the case of an
automatic gearbox.
Before leaving the vehicle,
check that parking brake
warning lamp in the instru-
ment panel is on, not fl ashing.


When stationary, with the en-
gine running, do not press the
accelerator pedal unneces-
sarily, as you may release the
parking brake.
The application of the parking brake is
confi rmed by:

- display of the message
"Handbrake on".

In the case of towing, a loaded vehi-
cle or parking on a gradient, turn the
front wheels towards the pavement
and engage a gear when you park.

- display of the message
"Handbrake off".
- display of the message
"Handbrake on".

Label on the door panel

140
DRIVING

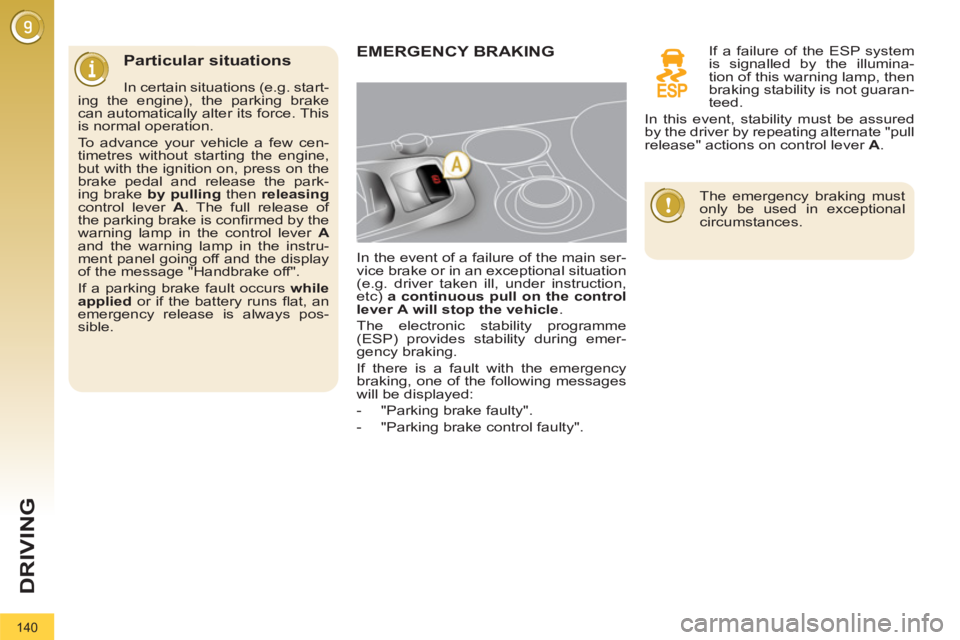

Particular situations


In certain situations (e.g. start-
ing the engine), the parking brake
can automatically alter its force. This
is normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the park-
ing brake by pulling
then releasing

control lever A
. The full release of
the parking brake is confi rmed by the
warning lamp in the control lever A

and the warning lamp in the instru-
ment panel going off and the display
of the message "Handbrake off".
If a parking brake fault occurs while
applied
or if the battery runs fl at, an
emergency release is always pos-
sible.










EMERGENCY BRAKING


In the event of a failure of the main ser-
vice brake or in an exceptional situation
(e.g. driver taken ill, under instruction,
etc) a continuous pull
on the control
lever
A
will stop the vehicle
.
The electronic stability programme
(ESP) provides stability during emer-
gency braking.
If there is a fault with the emergency
braking, one of the following messages
will be displayed:


- "Parking brake faulty".

- "Parking brake control faulty".
If a failure of the ESP system
is signalled by the illumina-
tion of this warning lamp, then
braking stability is not guaran-
teed.
In this event, stability must be assured
by the driver by repeating alternate "pull
release" actions on control lever A
.



The emergency braking must
only be used in exceptional
circumstances.

141
DRIVING

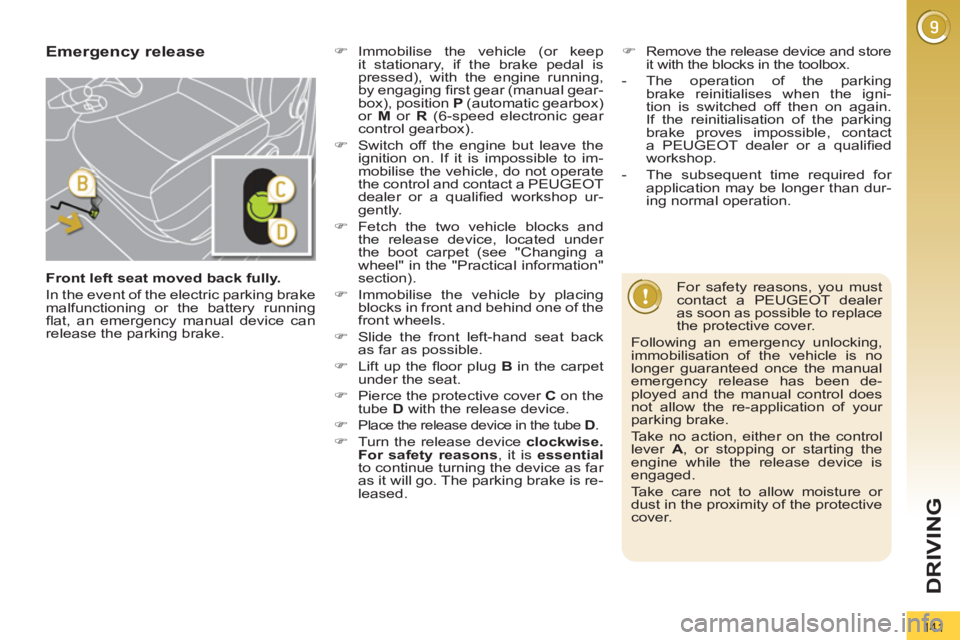

Front left seat moved back fully.

In the event of the electric parking brake
malfunctioning or the battery running
fl at, an emergency manual device can
release the parking brake.

Emergency release


)
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
by engaging fi rst gear (manual gear-
box), position P
(automatic gearbox)
or M
or R
(6-speed electronic gear
control gearbox).

)
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer or a qualifi ed workshop ur-
gently.

)
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).

)
Immobilise the vehicle by placing
blocks in front and behind one of the
front wheels.

)
Slide the front left-hand seat back
as far as possible.

)
Lift up the fl oor plug B
in the carpet
under the seat.

)
Pierce the protective cover C
on the
tube D
with the release device.

)

Place the release device in the tube D
.


)
Turn the release device clockwise.

For safety reasons
, it is essential

to continue turning the device as far
as it will go. The parking brake is re-
leased.
)
Remove the release device and store
it with the blocks in the toolbox.


- The operation of the parking
brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact
a PEUGEOT dealer or a qualifi ed
workshop.

- The subsequent time required for
application may be longer than dur-
ing normal operation.


For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on the control
lever A
, or stopping or starting the
engine while the release device is
engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.

142
DRIVING

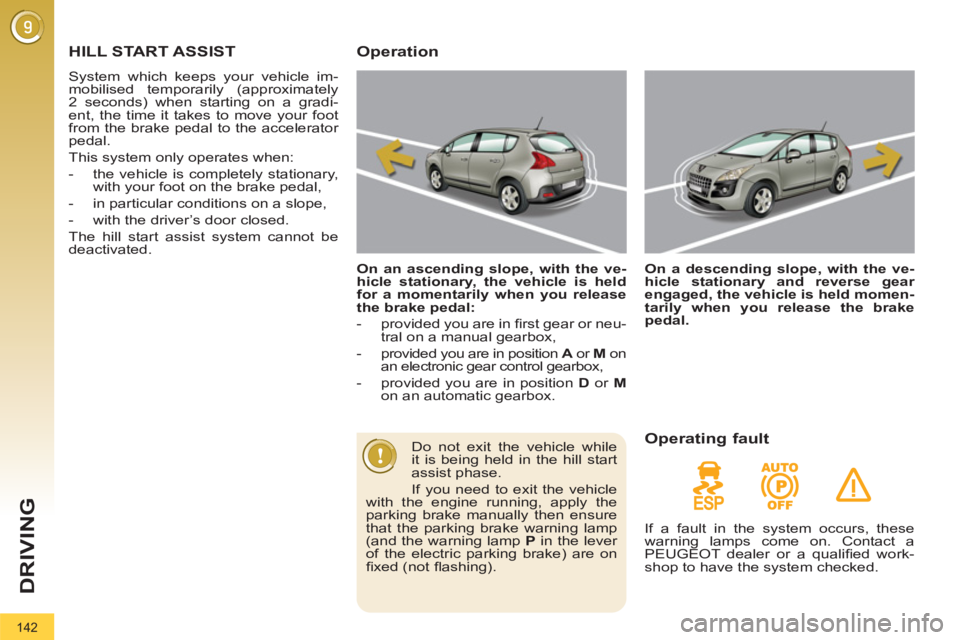

HILL START ASSIST

System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This system only operates when:


- the vehicle is completely stationary,
with your foot on the brake pedal,

- in particular conditions on a slope,

- with the driver’s door closed.
The hill start assist system cannot be
deactivated.

Operation


On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a momentarily when you release
the brake pedal:



- provided you are in fi rst gear or neu-
tral on a manual gearbox,

- provided you are in position A
or M
on
an electronic gear control gearbox,

- provided you are in position D
or M

on an automatic gearbox.
On a descending slope, with the ve-
hicle stationary and reverse gear
engaged, the vehicle is held momen-
tarily when you release the brake
pedal.




Do not exit the vehicle while
it is being held in the hill start
assist phase.
If you need to exit the vehicle
with the engine running, apply the
parking brake manually then ensure
that the parking brake warning lamp
(and the warning lamp P
in the lever
of the electric parking brake) are on
fi xed (not fl ashing).



Operating fault

If a fault in the system occurs, these
warning lamps come on. Contact a
PEUGEOT dealer or a qualifi ed work-
shop to have the system checked.
