2012 PEUGEOT 308 Owners Manual

263

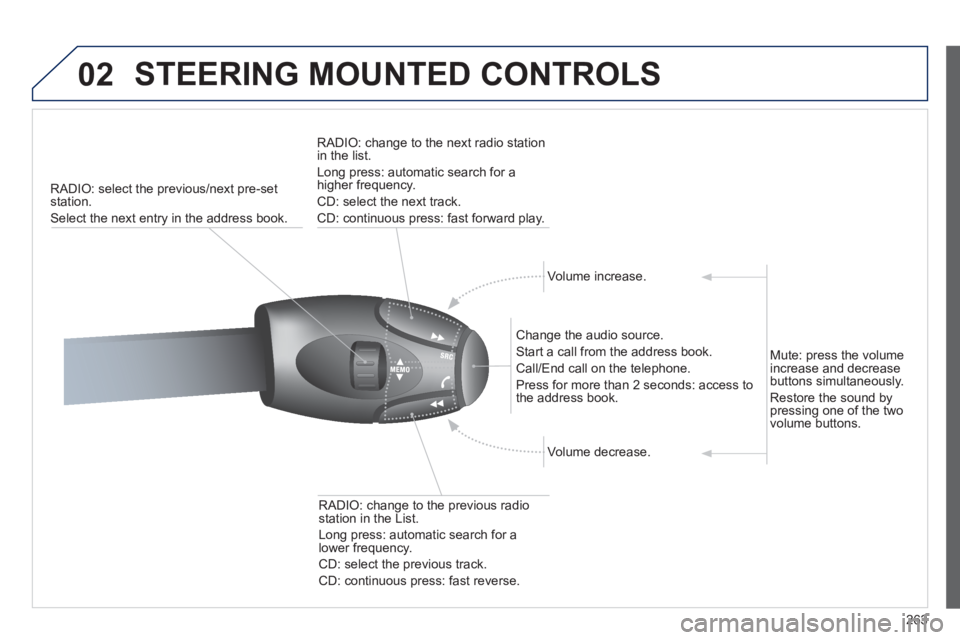

02 STEERING MOUNTED CONTROLS



RADIO: select the previous/next pre-set
station.
Select the next entry in the address book.
RADIO: change to the next radio station
in the list.
Long press: automatic search for a
higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.

Volume increase.

Change the audio source.
Start a call from the address book.
Call/End call on the telephone.
Press for more than 2 seconds: access to
the address book.

Volume decrease.

RADIO: change to the previous radio
station in the List.
Long press: automatic search for a
lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.

264

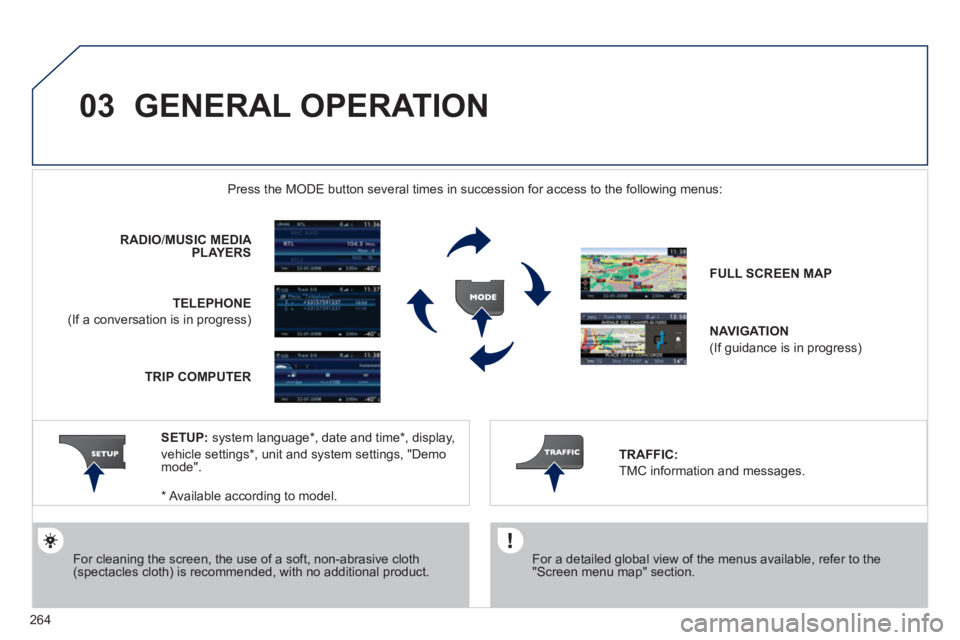

03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the
"Screen menu map" section.










Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.

RADIO
/ MUSIC MEDIA
PLAYERS




TELEPHONE



(If a conversation is in progress)

FULL SCREEN MAP




NAVIGATION

(If guidance is in progress)


SETUP:

system language * , date and time * , display,
vehicle settings * , unit and system settings, "Demo
mode".

TRAFFIC:

TMC information and messages.

*
Available according to model.

TRIP COMPUTER

265

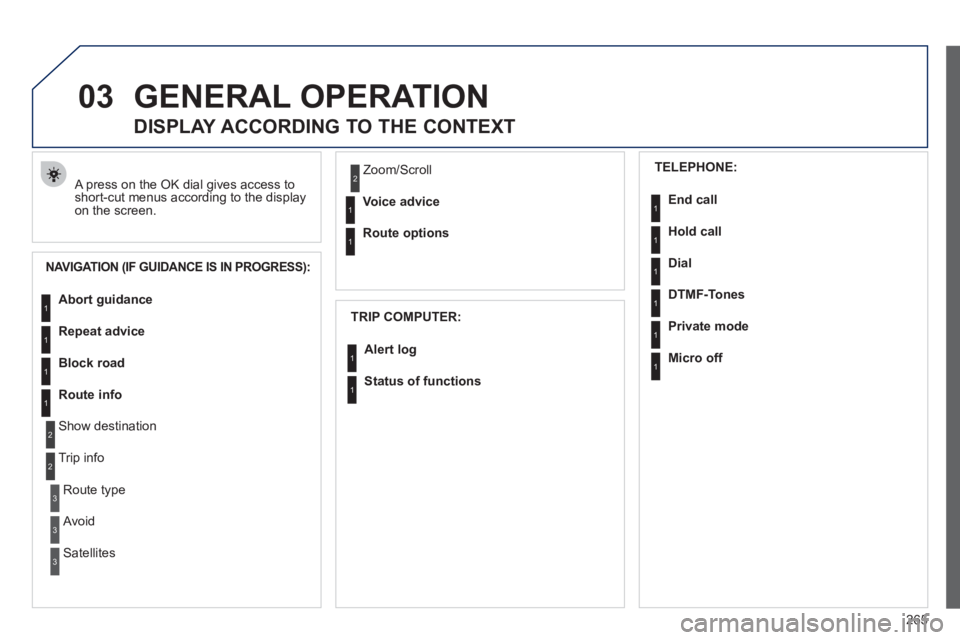

03 GENERAL OPERATION

A press on the OK dial gives access to
short-cut menus according to the display
on the screen.






DISPLAY ACCORDING TO THE CONTEXT


NAVIGATION (IF GUIDANCE IS IN PROGRESS):


TRIP COMPUTER:
Abort guidance


Repeat advice


Block road


Route info

Show destination
Trip info
Route type
Avoid
Satellites Zoom/Scroll

Voice advice


Route options



Alert log



Status of functions


1
2
3
3
2
1
1
1
3
1
1
1
1
2

TELEPHONE:

End call


Hold call


Dial


DTMF-Tones


Private mode



Micro off


1
1
1
1
1
1

266
03 GENERAL OPERATION

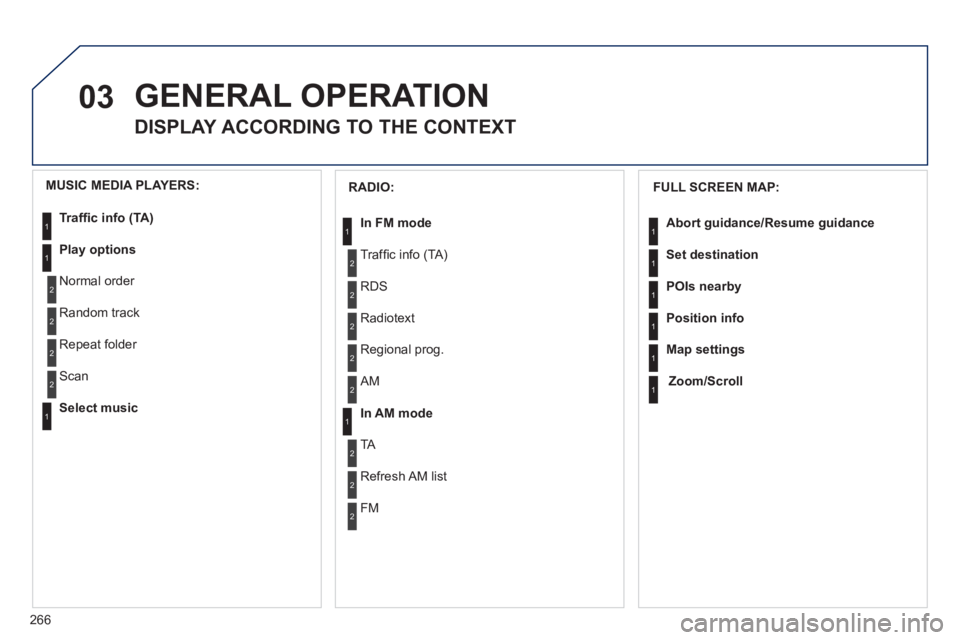

DISPLAY ACCORDING TO THE CONTEXT


FULL SCREEN MAP:

Abort guidance

/Resume guidance


Set destination


POIs nearby


Position info


Map settings



Zoom/Scroll



1
1
1
1
1
1


RADIO:

In FM mode

Traffi c info (TA)
RDS
Radiotext
Regional prog.

In AM mode
AM
TA
Refresh AM list

FM
1
2
1
2
2
2
2
2
2
2


MUSIC MEDIA PLAYERS:

Traffi c info (TA)


Play options

Normal order
Random track
Repeat folder

Select music



Scan
1
1
2
2
2
2
1

267
04
1
2
3
5
6
4

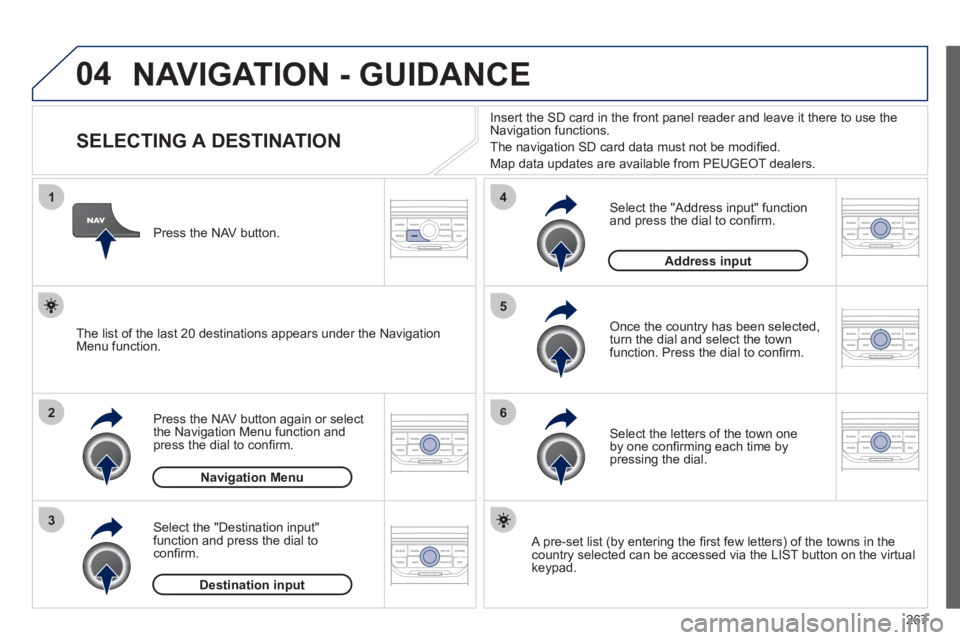

NAVIGATION - GUIDANCE
















SELECTING A DESTINATION


Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Destination input"
function and press the dial to
confi rm.
Press the NAV button.

Select the letters of the town one
by one confi rming each time by
pressing the dial.
Once the country has been selected,
turn the dial and select the town
function. Press the dial to confi rm.
Insert the SD card in the front panel reader and leave it there to use the
Navigation functions.
The navigation SD card data must not be modifi ed.
Map data updates are available from PEUGEOT dealers.

A pre-set list (by entering the fi rst few letters) of the towns in the
country selected can be accessed via the LIST button on the virtual
keypad.
Select the "Address input" function
and press the dial to confi rm.


The list of the last 20 destinations appears under the Navigation
Menu function.

Navigation Menu



Destination input


Address input

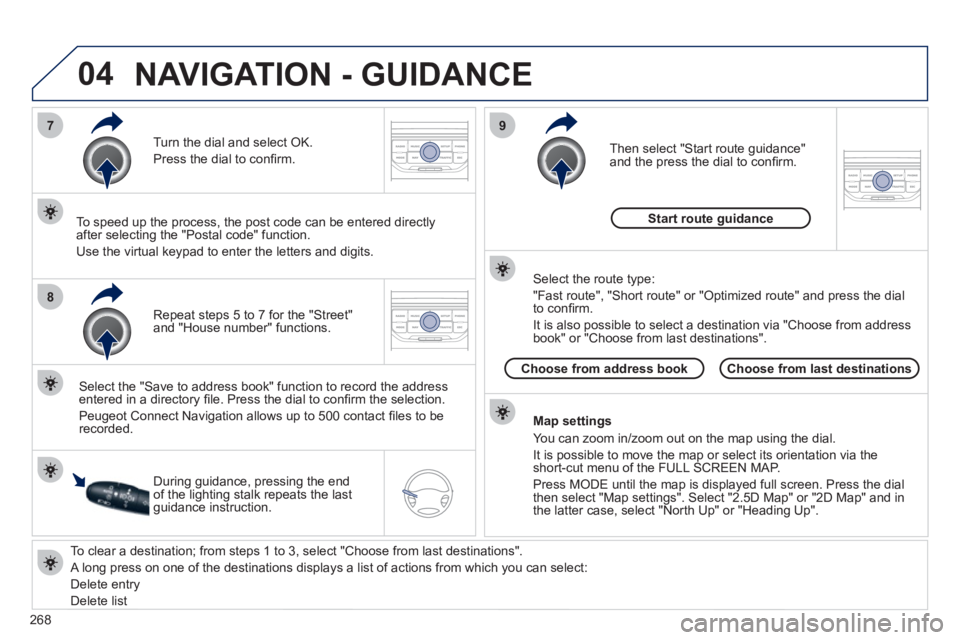

268
04
7
8
9

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:
Delete entry
Delete list

Repeat steps 5 to 7 for the "Street"
and "House number" functions.
Turn the dial and select OK.
Press the dial to confi rm.

Select the "Save to address book" function to record the address
entered in a directory fi le. Press the dial to confi rm the selection.
Peugeot Connect Navigation allows up to 500 contact fi les to be
recorded.
To speed up the process, the post code can be entered directly
after selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.
Then select "Start route guidance"
and the press the dial to confi rm.

During guidance, pressing the end
of the lighting stalk repeats the last
guidance instruction.
Map settings
You can zoom in/zoom out on the map using the dial.
It is possible to move the map or select its orientation via the
short-cut menu of the FULL SCREEN MAP.
Press MODE until the map is displayed full screen. Press the dial
then select "Map settings". Select "2.5D Map" or "2D Map" and in
the latter case, select "North Up" or "Heading Up".
Select the route type:
"Fast route", "Short route" or "Optimized route" and press the dial
to confi rm.
It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations".

Choose from last destinations



Choose from address book

Start route guidance



NAVIGATION - GUIDANCE

269
04
1
2
3
5
4

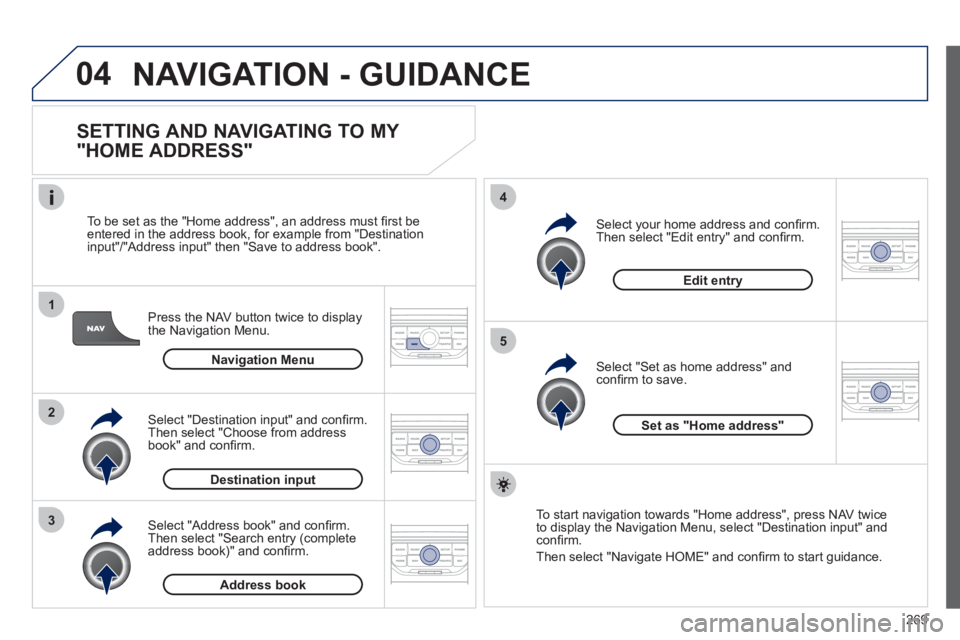

NAVIGATION - GUIDANCE


SETTING AND NAVIGATING TO MY
"HOME ADDRESS"

Press the NAV button twice to display
the Navigation Menu.
To be set as the "Home address", an address must fi rst be
entered in the address book, for example from "Destination
input"/"Address input" then "Save to address book".

Select "Address book" and confi rm.
Then select "Search entry (complete
address book)" and confi rm.
Select "Destination input" and confi rm.
Then select "Choose from address
book" and confi rm.
Select "Set as home address" and
confi rm to save.
Select your home address and confi rm.
Then select "Edit entry" and confi rm.


To start navigation towards "Home address", press NAV twice
to display the Navigation Menu, select "Destination input" and
confi rm.
Then select "Navigate HOME" and confi rm to start guidance.



Navigation Menu




Destination input




Address book




Edit entry



Set as "Home address"

270
04
4
3
2
1
7
6
5

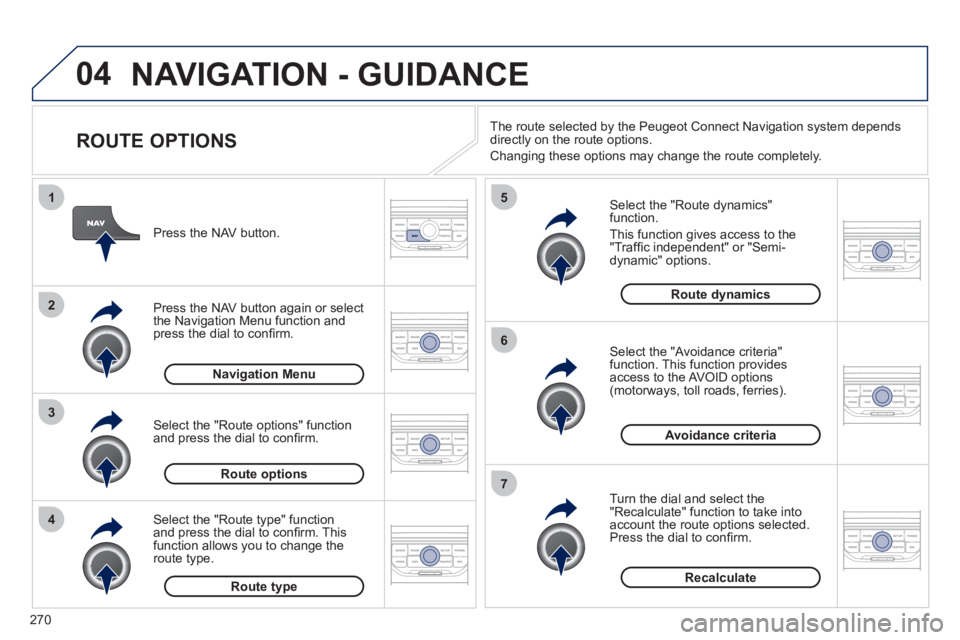

NAVIGATION - GUIDANCE


ROUTE OPTIONS


Select the "Route dynamics"
function.
This function gives access to the
"Traffi c independent" or "Semi-
dynamic" options.

Select the "Avoidance criteria"
function. This function provides
access to the AVOID options
(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.
Press the dial to confi rm.
Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Route type" function
and press the dial to confi rm. This
function allows you to change the
route type.
Select the "Route options" function
and press the dial to confi rm.

Recalculate



Avoidance criteria


Route dynamics



Route type


Route options


Navigation Menu

The route selected by the Peugeot Connect Navigation system depends
directly on the route options.
Changing these options may change the route completely.
