2012 PEUGEOT 308 Owners Manual

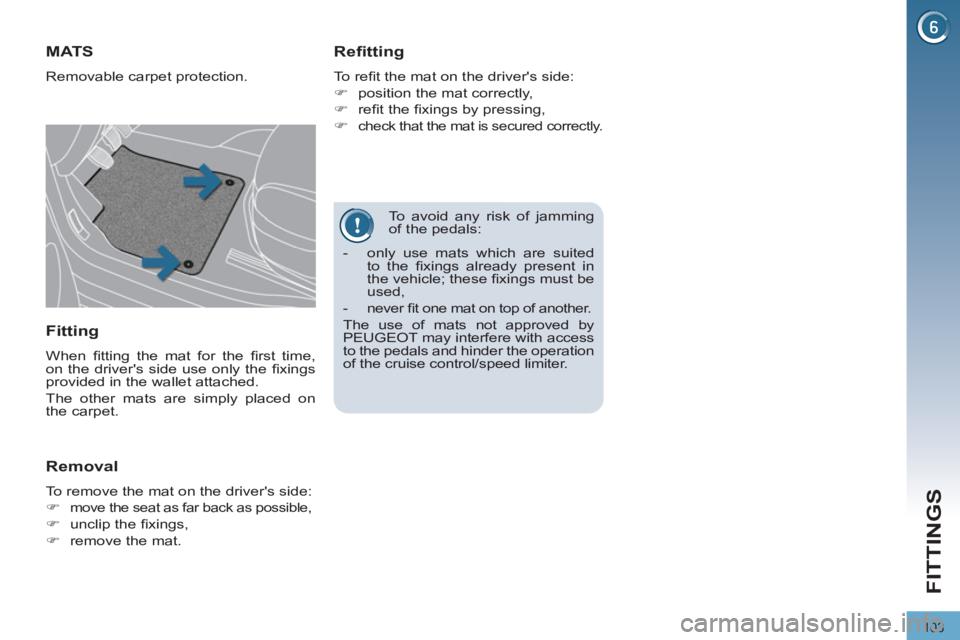

103
FITTINGS

To avoid any risk of jamming
of the pedals:








MATS

Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)

check that the mat is secured correctly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)

move the seat as far back as possible,


)
unclip the fi xings,

)
remove the mat.


- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,

- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.

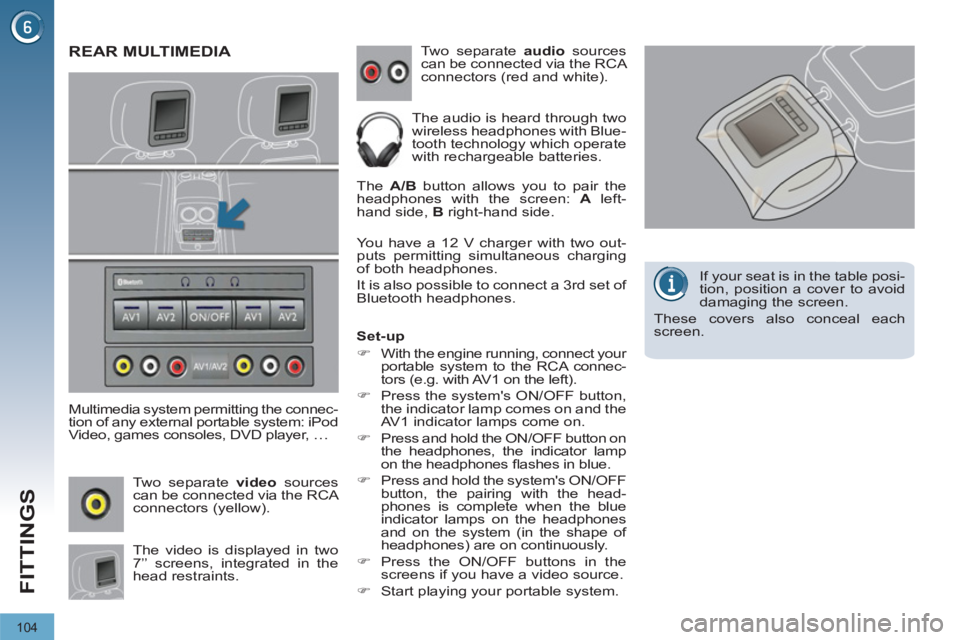

104
FITTINGS





REAR MULTIMEDIA


Multimedia system permitting the connec-
tion of any external portable system: iPod
Video, games consoles, DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7’’ screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through two
wireless headphones with Blue-
tooth technology which operate
with rechargeable batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.

You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.

Set-up


)
With the engine running, connect your
portable system to the RCA connec-
tors (e.g. with AV1 on the left).

)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.

)
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue
indicator lamps on the headphones
and on the system (in the shape of
headphones) are on continuously.

)
Press the ON/OFF buttons in the
screens if you have a video source.

)
Start playing your portable system.

If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.

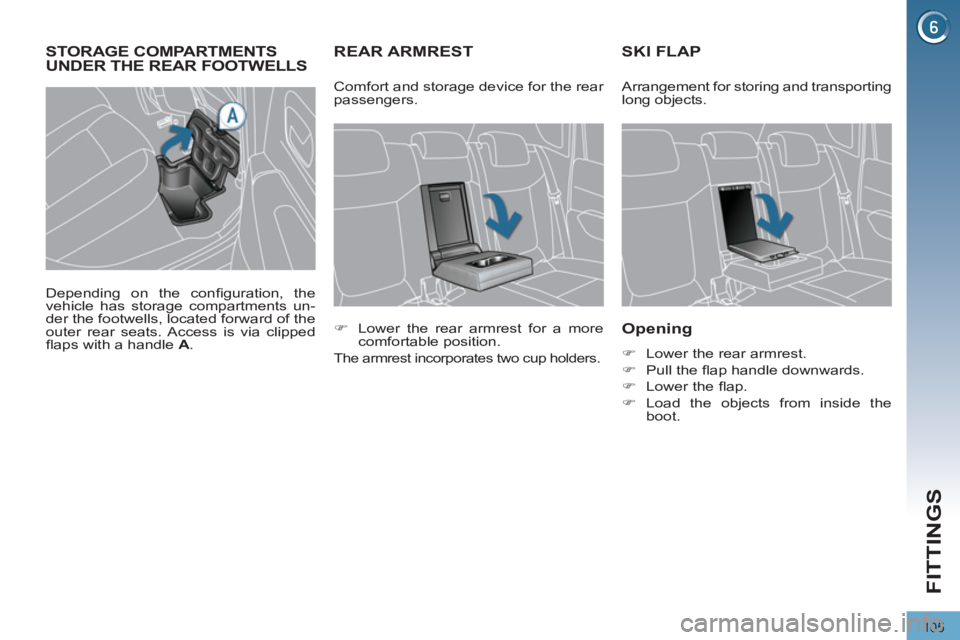

105
FITTINGS








REAR ARMREST







SKI FLAP


Opening



)
Lower the rear armrest.

)
Pull the fl ap handle downwards.

)
Lower the fl ap.

)
Load the objects from inside the
boot.


)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.

Comfort and storage device for the rear
passengers. Arrangement for storing and transporting
long objects.




STORAGE COMPARTMENTS
UNDER THE REAR FOOTWELLS

Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.

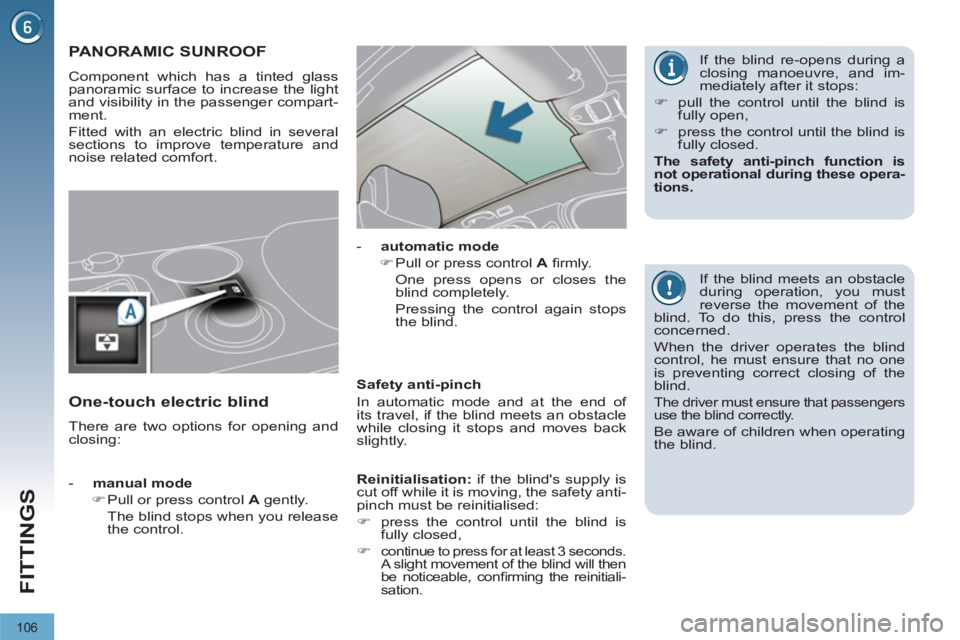

106
FITTINGS

















PANORAMIC SUNROOF

Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passengers
use the blind correctly.
Be aware of children when operating
the blind.



- manual mode



)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode



)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.


Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.

One-touch electric blind

There are two options for opening and
closing:
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops:


)
pull the control until the blind is
fully open,

)
press the control until the blind is
fully closed.

The safety anti-pinch function is
not operational during these opera-
tions.

Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised:


)
press the control until the blind is
fully closed,

)

continue to press for at least 3 seconds.
A slight movement of the blind will then
be noticeable, confi rming the reinitiali-
sation.

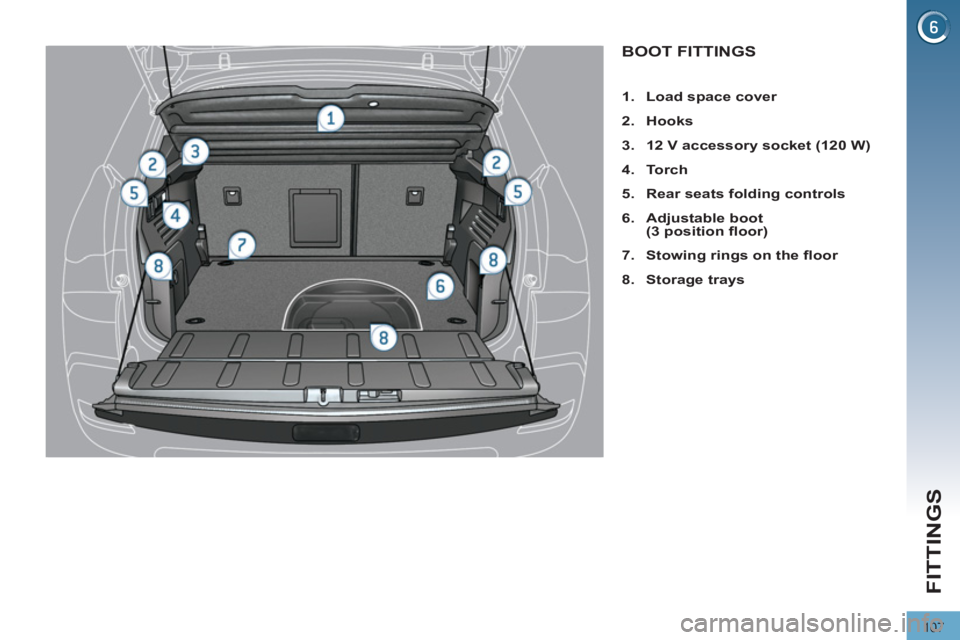

107
FITTINGS

















BOOT FITTINGS




1.
Load space cover


2.
Hooks


3.
12 V accessory socket (120 W)


4.
To r c h


5.
Rear seats folding controls


6.
Adjustable boot
(3 position fl oor )

7.
Stowing rings on the fl oor


8.
Storage trays

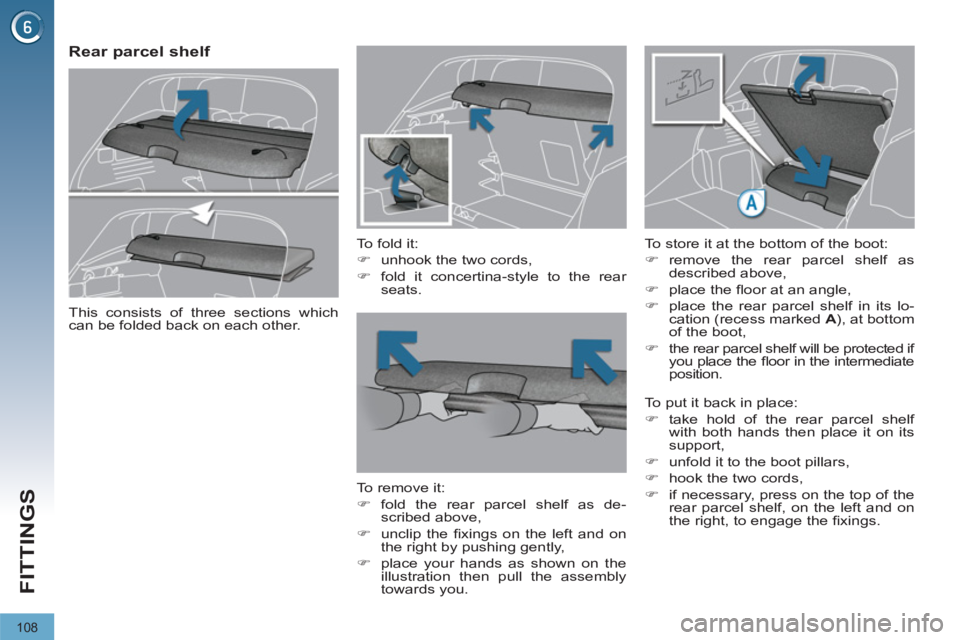

108
FITTINGS






Rear parcel shelf


To fold it:


)
unhook the two cords,

)
fold it concertina-style to the rear
seats.


To remove it:


)
fold the rear parcel shelf as de-
scribed above,

)
unclip the fi xings on the left and on
the right by pushing gently,

)
place your hands as shown on the
illustration then pull the assembly
towards you.

To store it at the bottom of the boot:


)
remove the rear parcel shelf as
described above,

)
place the fl oor at an angle,

)
place the rear parcel shelf in its lo-
cation (recess marked A
), at bottom
of the boot,

)
the rear parcel shelf will be protected if
you place the fl oor in the intermediate
position.
This consists of three sections which
can be folded back on each other.

To put it back in place:


)
take hold of the rear parcel shelf
with both hands then place it on its
support,

)
unfold it to the boot pillars,

)
hook the two cords,

)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.

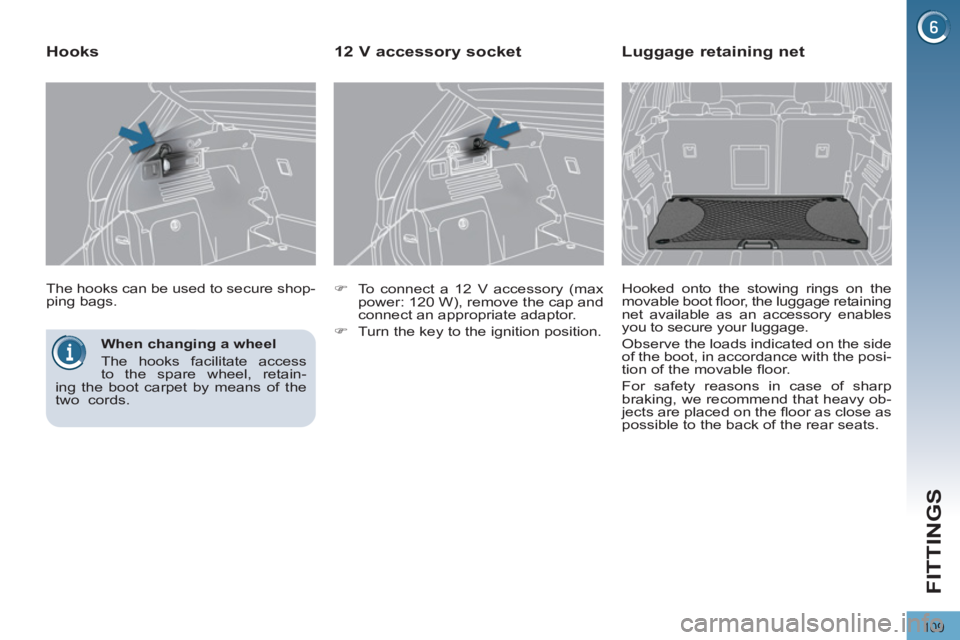

109
FITTINGS

When changing a wheel
The hooks facilitate access
to the spare wheel, retain-
ing the boot carpet by means of the
two cords.
The hooks can be used to secure shop-
ping bags.






Hooks



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)
Turn the key to the ignition position.








12 V accessory socket





Luggage retaining net

Hooked onto the stowing rings on the
movable boot fl oor, the luggage retaining
net available as an accessory enables
you to secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
tion of the movable fl oor.
For safety reasons in case of sharp
braking, we recommend that heavy ob-
jects are placed on the fl oor as close as
possible to the back of the rear seats.

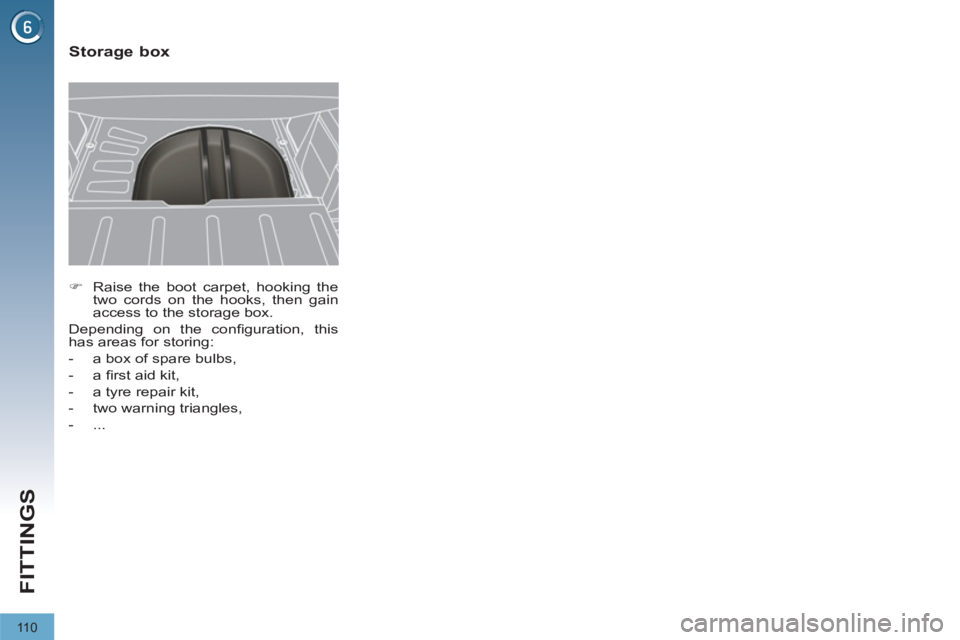

11 0
FITTINGS


)
Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:


- a box of spare bulbs,

- a fi rst aid kit,

- a tyre repair kit,

- two warning triangles,

- ...








Storage box
