2012 PEUGEOT 308 Owners Manual

207
TECHNICAL DATA

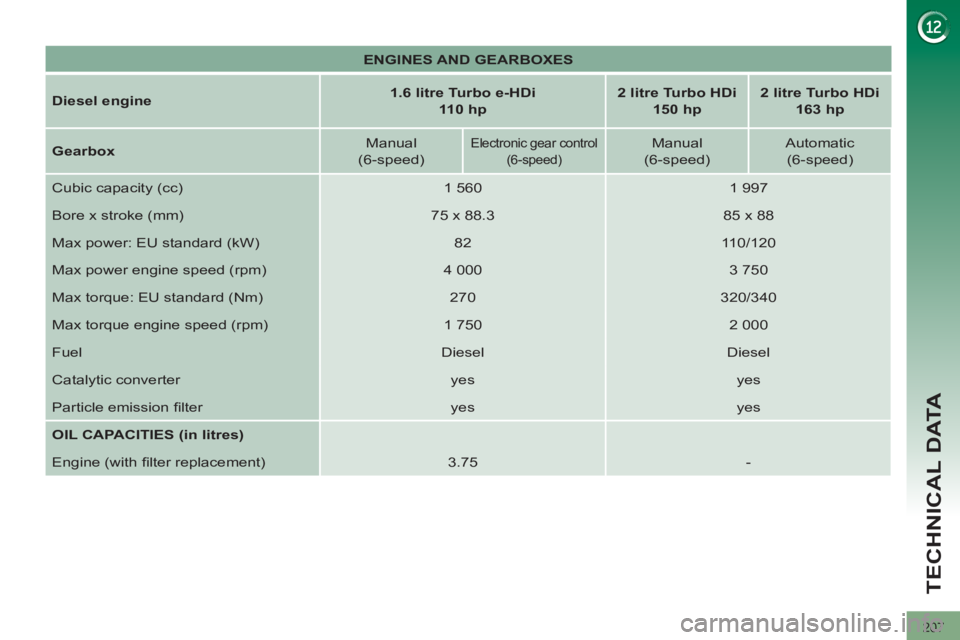

ENGINES AND GEARBOXES



Diesel engine


1.6 litre Turbo e-HDi

110 hp



2 litre Turbo HDi
150 hp



2 litre Turbo HDi
163 hp



Gearbox

Manual
(6-speed)


Electronic gear control
(6-speed)

Manual
(6-speed)
Automatic
(6-speed)
Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
Max power: EU standard (kW)
82
110/120
Max power engine speed (rpm)
4 000
3 750
Max torque: EU standard (Nm)
270
320/340
Max torque engine speed (rpm)
1 750
2 000
Fuel
Diesel
Diesel
Catalytic converter
yes
yes
Particle emission fi lter
yes
yes

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
-

208
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre Turbo e-HDi
110 hp



2 litre Turbo

HDi
150 hp



2 litre Turbo
HDi
163 hp



Gearbox

Manual
(6-speed)
Electronic
gear control
(6-speed)


Electronic gear control
(6-speed)
Score

Manual
(6-speed)
Automatic
(6-speed)


- Unladen weight
1 421
1 529
1 539


- Kerb weight *

1 497
1 604
1 614


- Payload
609
557
566


- Gross vehicle weight (GVW)
2 030
2 086
2 105


- Gross train weight (GTW)
on a 12 % gradient
3 130
2 920
3 480
3 500


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 100
890
1 400


- Braked trailer ** (with load transfer
with the GTW limit)
1 300
1 090
1 500


- Unbraked trailer
745
750


- Recommended nose weight
70
70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

209
TECHNICAL DATA

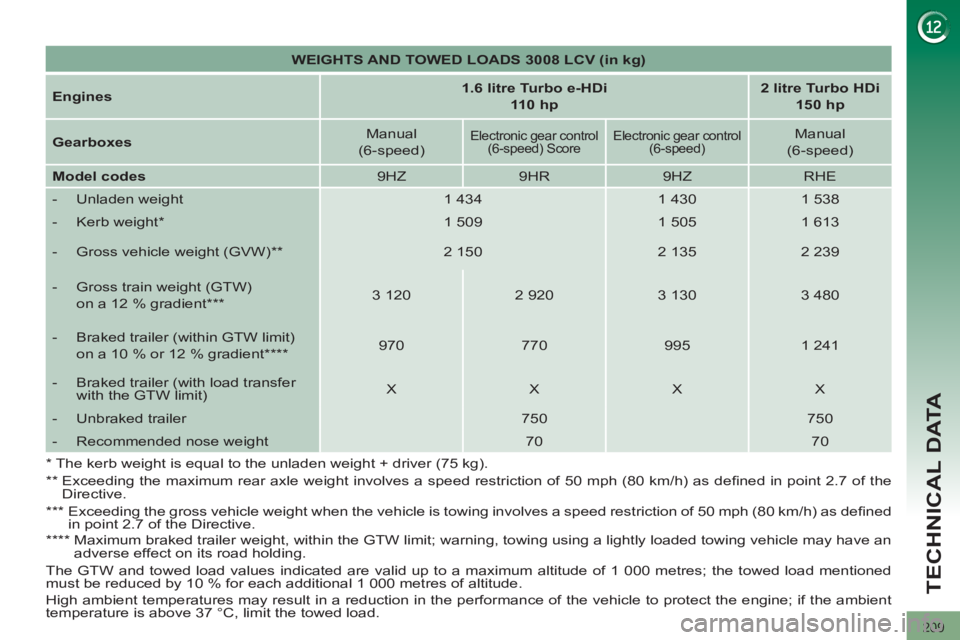

WEIGHTS AND TOWED LOADS 3008 LCV (in kg)



Engines


1.6 litre Turbo e-HDi
110 hp



2 litre Turbo HDi
150 hp



Gearbox

es

Manual
(6-speed)


Electronic gear control
(6-speed) Score
Electronic gear control
(6-speed)

Manual
(6-speed)

Model codes

9HZ
9HR
9HZ
RHE


- Unladen weight
1 434
1 430
1 538


- Kerb weight *

1 509
1 505
1 613


- Gross vehicle weight (GVW) **

2 150
2 135
2 239


- Gross train weight (GTW)
on a 12 % gradient ***

3 120
2 920
3 130
3 480


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient ****

970
770
995
1 241


- Braked trailer (with load transfer
with the GTW limit)
X
X
X
X


- Unbraked trailer
750
750


- Recommended nose weight
70
70

* The kerb weight is equal to the unladen weight + driver (75 kg).

**
Exceeding the maximum rear axle weight involves a speed restriction of 50 mph (80 km/h) as defi ned in point 2.7 of the
Directive.

***
Exceeding the gross vehicle weight when the vehicle is towing involves a speed restriction of 50 mph (80 km/h) as defi ned
in point 2.7 of the Directive.

****
Maximum braked trailer weight, within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

210
TECHNICAL DATA





DIMENSIONS (IN MM)

211
TECHNICAL DATA

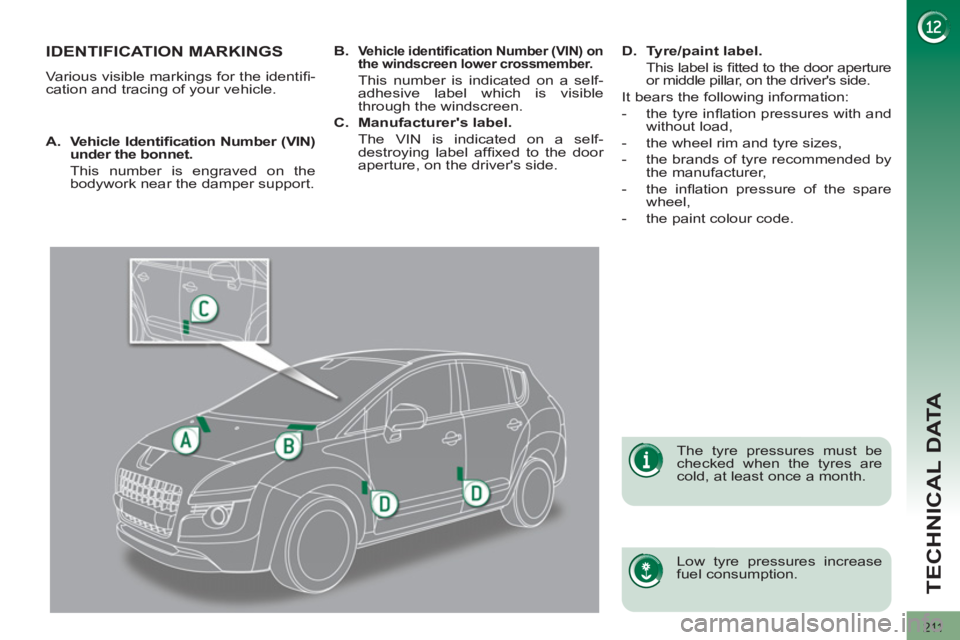

IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation and tracing of your vehicle.

Low tyre pressures increase
fuel consumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number (VIN)
under the bonnet.
This number is engraved on the
bodywork near the damper support.
B.

Vehicle identifi cation Number (VIN) on
the windscreen lower crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the driver's side.
D.
Tyre/paint label.

This label is fi tted to the door aperture
or middle pillar, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

212
TECHNICAL DATA

213
EMERGENCY OR ASSISTANCE CALL

214

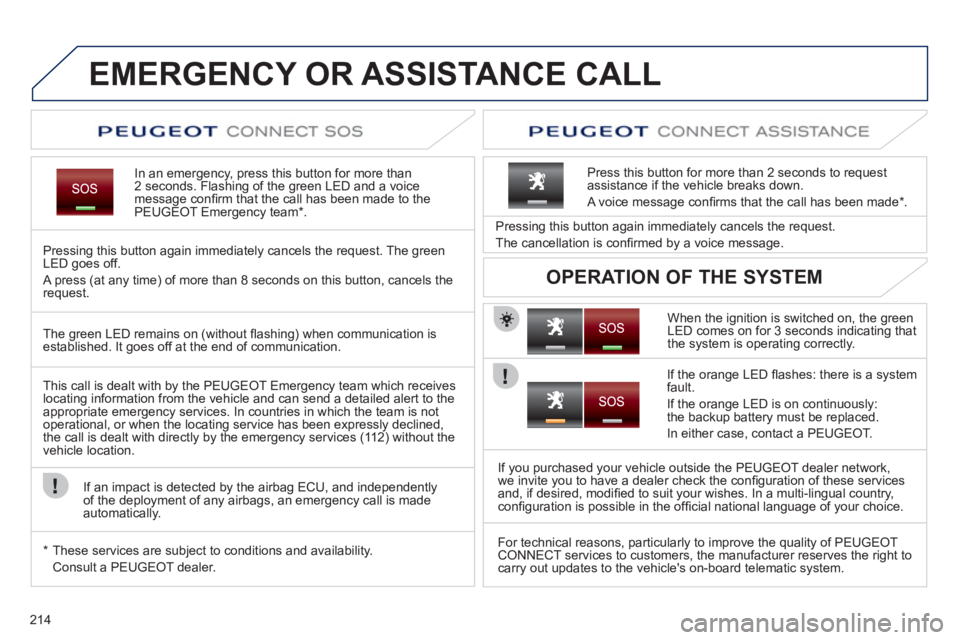

EMERGENCY OR ASSISTANCE CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM


The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.



*
These services are subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange LED fl ashes: there is a system
fault.
If the orange LED is on continuously:
the backup battery must be replaced.
In either case, contact a PEUGEOT.

If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularly to improve the quality of PEUGEOT
CONNECT services to customers, the manufacturer reserves the right to
carry out updates to the vehicle's on-board telematic system.
