2012 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

M
U
63

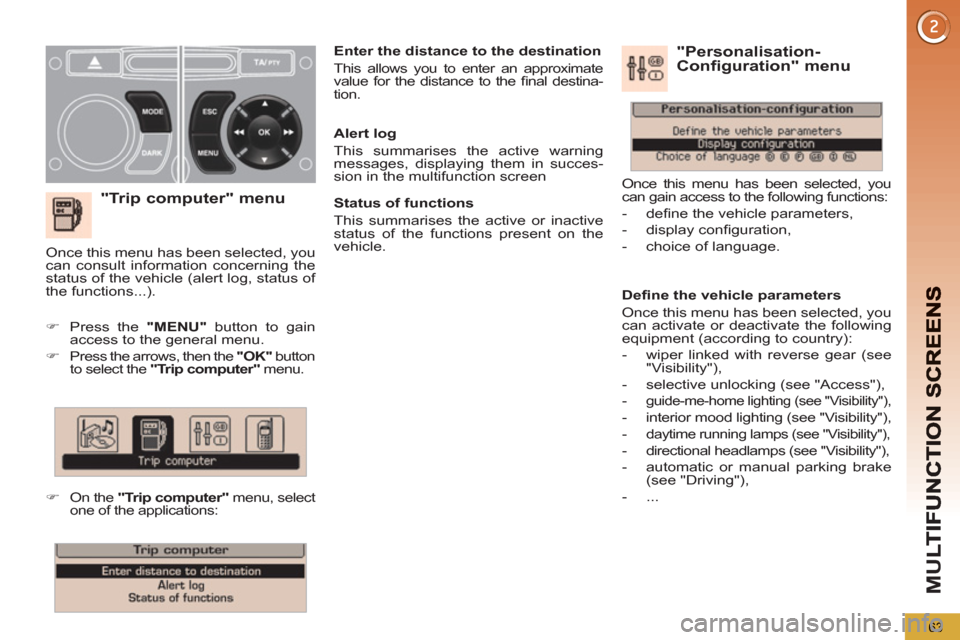

"Trip computer" menu




)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
button
to select the "Trip computer"
menu.




)
On the "Trip computer"
menu, select
one of the applications:

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal destina-
tion.

Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (see
"Visibility"),

- selective unlocking (see "Access"),

-
guide-me-home lighting (see "Visibility"),


- interior mood lighting (see "Visibility"),

-
daytime running lamps (see "Visibility"),


- directional headlamps (see "Visibility"),

- automatic or manual parking brake
(see "Driving"),

- ...


"Personalisation-
Configuration" menu

Once this menu has been selected, you
can gain access to the following functions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.



Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen

Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.

M
U
64

Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.


Choice of language
Once this menu has been selected,
you can change the screen display
language (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe * ).


Example: setting of the duration of the
guide-me-home lighting


)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.




)
Press the "
" or "
" buttons, then the
" OK
" button to select the "Guide-me-
home headlamps" line.




)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the " OK
" button to confi rm.



)
Press the "
" or "
" buttons, then
the " OK
" button to select the " OK
"
box and confi rm or press the " ESC
"
button to cancel.



"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-free
kit (pairing), consult the various telephone
directories (calls log, services...) and man-
age your communications (pick up, hang
up, call waiting, secret mode...).

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

For more information on the
"Telephone" application, refer
to the Peugeot Connect Sound
(RD5) section.

*
According to country.

M
U
65
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN(WITH PEUGEOT CONNECT MEDIA NAVIGATION(NG4 3D))
Displays in the screen
Displays according to context:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- audio functions,

-
telephone and address book information,


- satellite navigation system information.

-
screen and navigation system parameter
setting menus,

- information on hybrid fl ows.



Controls


From the Peugeot Connect Media Navi-
gation (NG4 3D) control panel, to select
one of the applications:


)

press the dedicated "RADIO"
, "MEDIA"
,
"NAV"
, "TRAFFIC"
, "ADDR BOOK"
or
"SETUP"
button for access to the cor-
responding menu,

)
turn the navigator to move the selection,


)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display.


For more information on
these applications, refer to
the "Peugeot Connect Media
Navigation (NG4 3D)" section.

For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the "Access to the retractable
screen" section.



The screen also displays hybrid
system information. For details of
the information displayed, refer
to the "Hybrid System" section.



For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

M
U
66

"SETUP" menu




)
Press the "SETUP"
button for access
to the "SETUP"
menu. This allows you
to select from the following functions:


- "Languages and voice functions",

- "Date and time",

- "Display",

- "Units",

- "System".



Language and voice functions
This menu allows you to:


- select the language used by the
screen (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),

- select the voice recognition param-
eters (activation/deactivation, advice
on use, personal voice programming,
etc.),

-
set the volume of the voice synthesiser.




Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.

Principle of GPS synchronisation (GMT).


- Confi rm the selection "Synchronise
with GPS", the time is then aligned
with GMT universal time, the date is
also set.

- using the navigator, move the cursor
onto the hours fi eld and press OK
.

- You can then adjust the time to the
time zone of your choice, using the
rotating ring.
Please note that in the event of a
change of summer/winter time, the
time zone must be changed again
manually.


Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the units:
temperature (°C or °F) and distance
(miles or km).

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.

*
According to country of sale.
System parameters
This menu allows you to restore the factory
confi guration, display the software version
and activate scrolling text.

M
U
67
Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:


- opening or storing by means of
control A
,

- angle adjustments by means of
control B
.
It is also fi tted with safety auto-reverse
protection.

Opening the screen


)
With the screen stored, press con-
trol A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen


)
With the screen open, press control A

to store it.
The screen is stored automatically when
the ignition is switched off, after approxi-
mately three seconds, if the audio and
telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can ad-
just it precisely in different ways:


)
press the corresponding part of con-
trol B
to move the screen towards
you or towards the windscreen,
or


)
push or pull the screen gently by
hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.

Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.


If you close the screen during
operation of the audio and tele-
matics system, it will re-open au-
tomatically when an outgoing telephone
call is made, when a voice command is
given or when a warning message linked
with the STOP warning lamp is received.

M
U
68

Monochrome screen C


Instrument panel screen with Peugeot
Connect Media Navigation (NG4 3D)
TRIP COMPUTER
System which provides current information
concerning the trip (range, consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears in the
multifunction screen or in the instru-
ment panel screen.
Information displays


)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.


With the instrument panel screen
(Peugeot
Connect Media Navigation (NG4 3D))



)
This navigator, associated with the
Peugeot Connect Media Navigation
(NG4 3D), also allows the various
trip computer tabs to be displayed
in the instrument panel screen, by
pressing the up and down arrows.

69

Reset the trip


)
When the trip required is displayed,
press the control for more than
two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.

- The current information
tab with:


●
the range,

●
the current fuel
consumption,

●
the distance
remaining to be
travelled.



- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.



- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip,

●
the consumption
history (with 16/9
colour screen).



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.

Resetting the history

With screen C



)
When trip "2"

is displayed, press
the control for more than 2 seconds
to reset the history.


With the 16/9 colour screen

M
U
70
Trip computer, a fewdefinitions…

When the range falls below 20 miles
(30 km), zeros are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).

If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer.
This function is only displayed
from 20 mph (30 km/h).

This value may vary following
a change in the style of driving
or the relief, resulting in a sig-
nifi cant change in the current
fuel consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.


The hybrid system and its
electric motor do not provide
additional range; follow the in-
dications of the trip computer.
