2012 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

15
FA
M
SITTING COMFORTABLY
Driver's seat

Forwards-backwards
Height


Manual adjustment

76


Electric adjustment

77
Seat back angle

16
FA
M

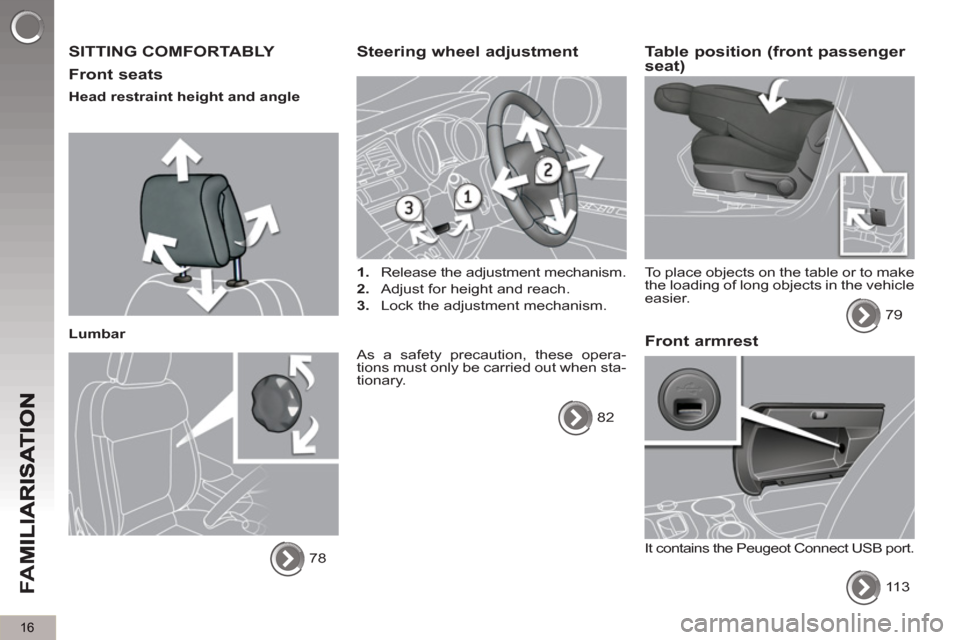

SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
78

Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.
As a safety precaution, these opera-
tions must only be carried out when sta-
tionary.
82


Table position (front passenger
seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
79


Front armrest

It contains the Peugeot Connect USB port.
113

FA
M

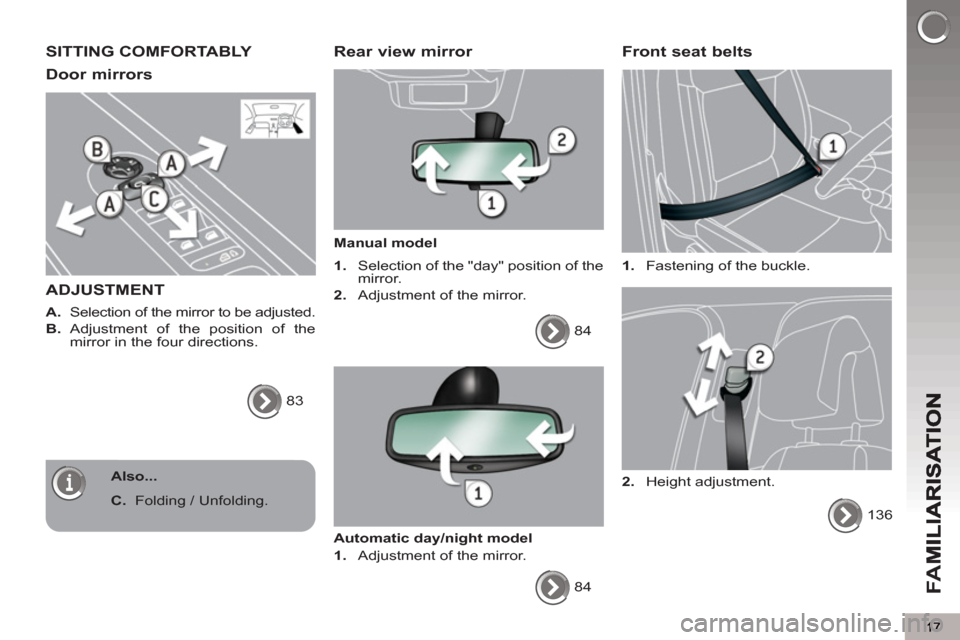

SITTING COMFORTABLY
Door mirrors
ADJUSTMENT

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
83

Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
84

Automatic day/night model


1.
Adjustment of the mirror.
84

Front seat belts



1.
Fastening of the buckle.
136
2.
Height adjustment.

Also...


C.
Folding / Unfolding.

18
FA
M

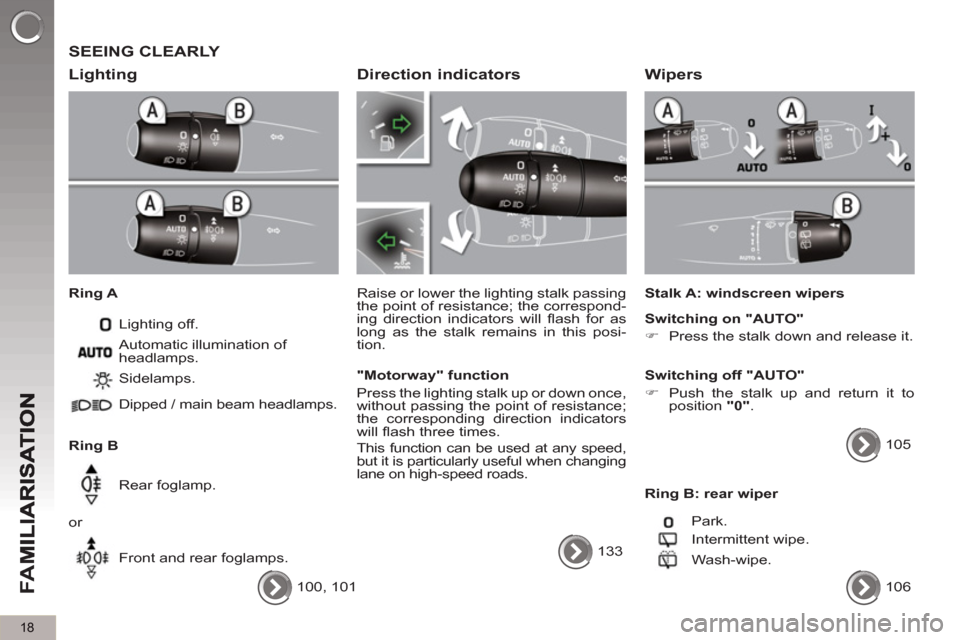

SEEING CLEARLY

Li
ghting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of
headlamps.
100, 101

Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.
133


Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.
105

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
106

19
FA
M

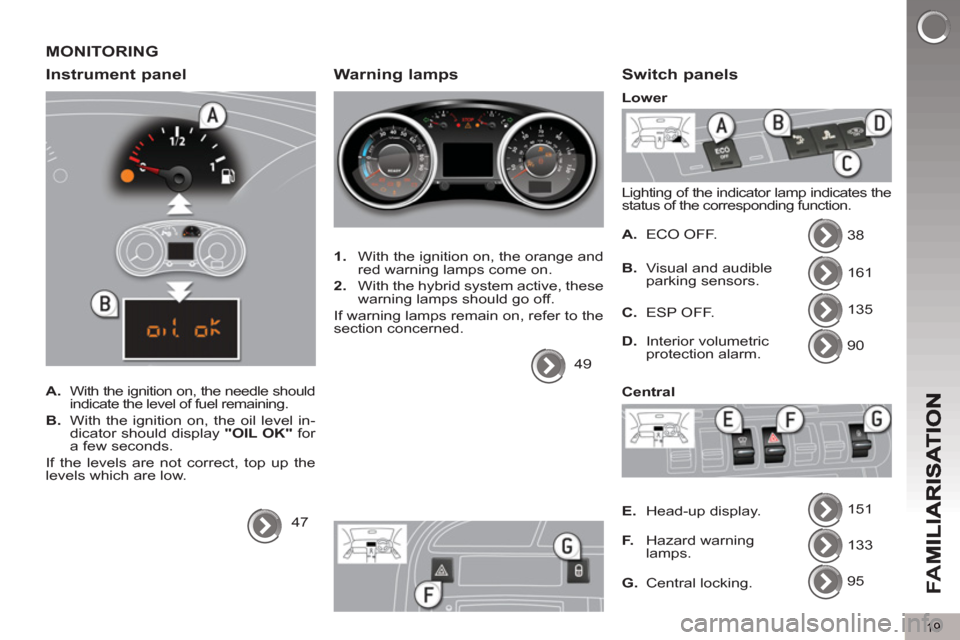

MONITORING
Instrument
panel


A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
47


Warning lamps



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the hybrid system active, these
warning lamps should go off.
If warning lamps remain on, refer to the
section concerned.
49
Switch panels


Lighting of the indicator lamp indicates the
status of the corresponding function.



A.
ECO OFF.
38
161
135
90
151
133
95


B.
Visual and audible
parking sensors.

C.
ESP OFF.

D.
Interior volumetric
protection alarm.

E.
Head-up display.

F.
Hazard warning
lamps.

G.
Central locking.

Lower




Central

20
FA
M

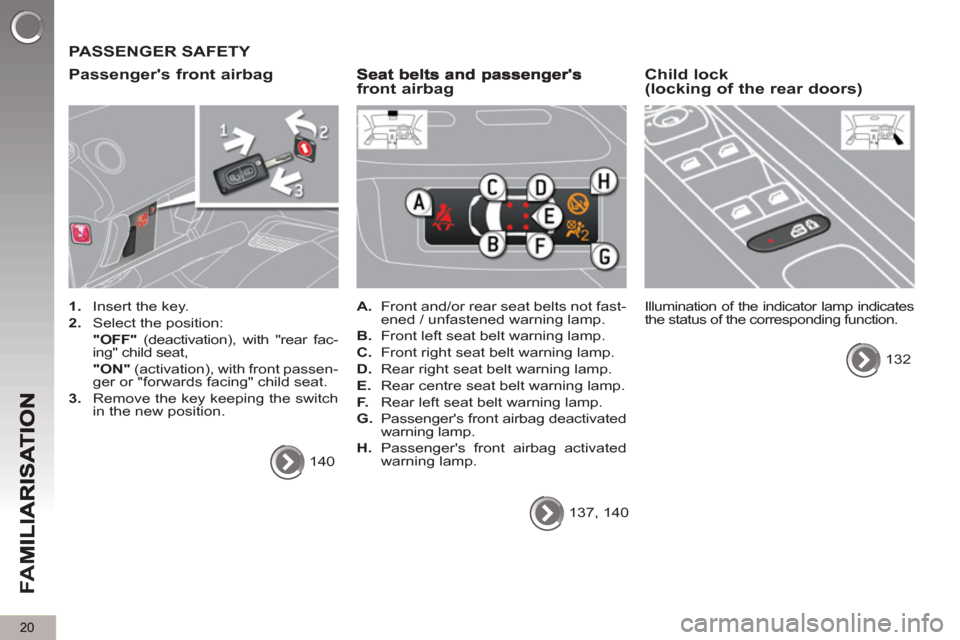

PASSENGER SAFETY

Passen
ger's front airbag



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
140
front airbag



A.
Front and/or rear seat belts not fast-
ened / unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H.
Passenger's front airbag activated
warning lamp.
137, 140


Child lock (locking of the rear doors)

Illumination of the indicator lamp indicates
the status of the corresponding function.
132

21
FA
M

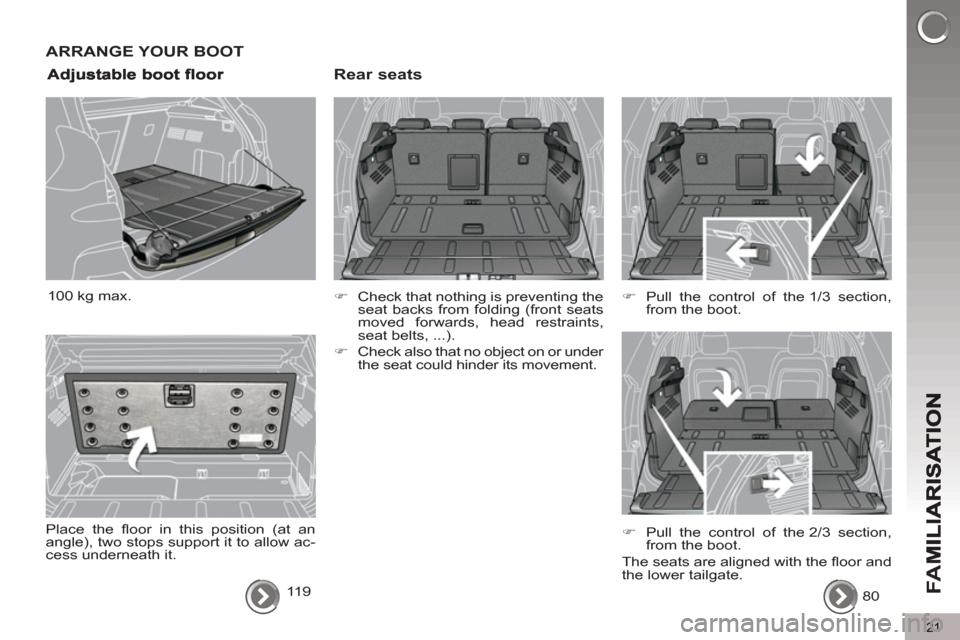

ARRANGE YOUR BOOT

Rear seats




)
Check that nothing is preventing the
seat backs from folding (front seats
moved forwards, head restraints,
seat belts, ...).

)
Check also that no object on or under
the seat could hinder its movement.

80


)
Pull the control of the 1/3 section,
from the boot.




)
Pull the control of the 2/3 section,
from the boot.


11 9
100 kg max.

Place the fl oor in this position (at an
angle), two stops support it to allow ac-
cess underneath it.
The seats are aligned with the fl oor and
the lower tailgate.

22
FA
M

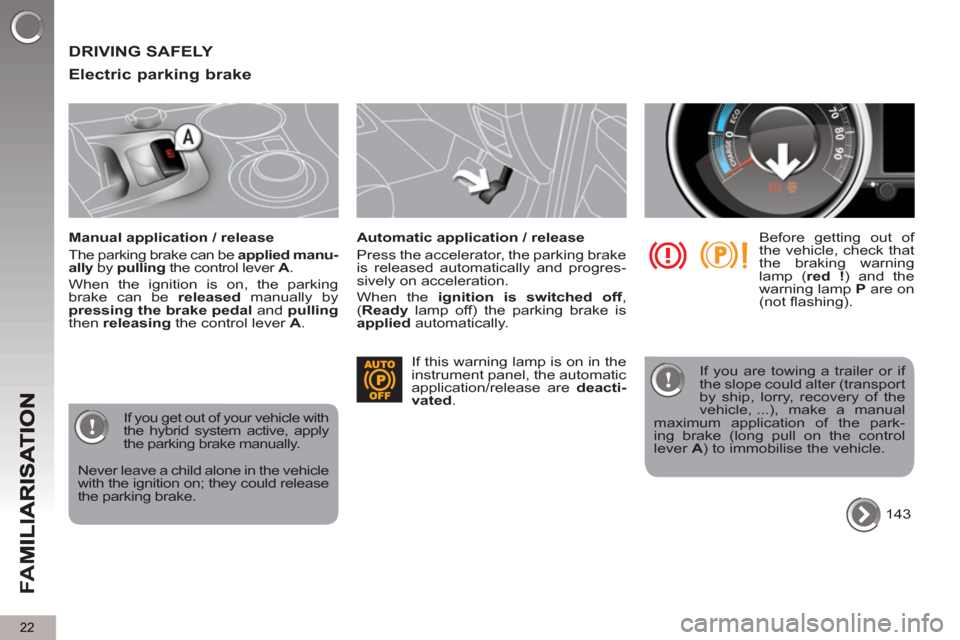

DRIVING SAFELY

Electric parkin
g brake


Manual application / release
The parking brake can be applied manu-
ally
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application / release
Press the accelerator, the parking brake
is released automatically and progres-
sively on acceleration.
When the ignition is switched off
,
( Ready
lamp off) the parking brake is
applied
automatically.

If you get out of your vehicle with
the hybrid system active, apply
the parking brake manually.

Before getting out of
the vehicle, check that
the braking warning
lamp ( red !
) and the
warning lamp P
are on
(not fl ashing).
Never leave a child alone in the vehicle
with the ignition on; they could release
the parking brake.
143 If this warning lamp is on in the
instrument panel, the automatic
application/release are deacti-
vated
.
If you are towing a trailer or if
the slope could alter (transport
by ship, lorry, recovery of the
vehicle, ...), make a manual
maximum application of the park-
ing brake (long pull on the control
lever A
) to immobilise the vehicle.
