2012 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

47
IN
S

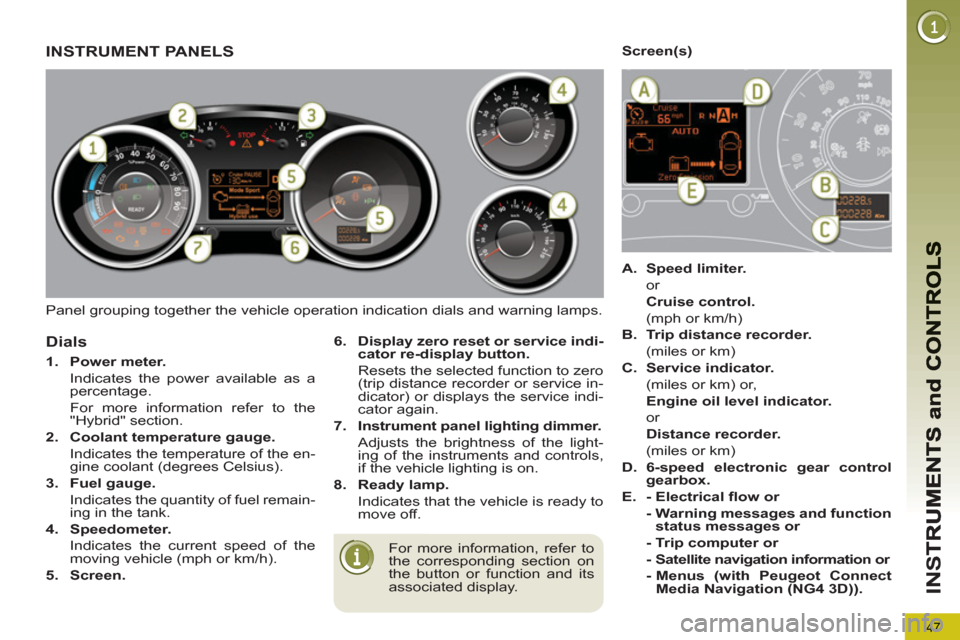

Panel grouping together the vehicle operation indication dials and warning lamps.
INSTRUMENT PANELS


For more information, refer to
the corresponding section on
the button or function and its
associated display.
Dials

6.
Display zero reset or service indi-
cator re-display button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7.
Instrument panel lighting dimmer.


Adjusts the brightness of the light-
ing of the instruments and controls,
if the vehicle lighting is on.

8.
Ready lamp.

Indicates that the vehicle is ready to
move off.

1.
Power meter.

Indicates the power available as a
percentage .
For more information refer to the
"Hybrid" section.

2.
Coolant temperature gauge.

Indicates the temperature of the en-
gine coolant (degrees Celsius).

3.
Fuel gauge.

Indicates the quantity of fuel remain-
ing in the tank.

4.
Speedometer.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Screen.

Screen(s)


A.
Speed limiter.

or
Cruise control.

(mph or km/h)

B.
Trip distance recorder.

(miles or km)

C.
Service indicator.

(miles or km) or,
Engine oil level indicator.

or

Distance recorder.

(miles or km)

D.
6-speed electronic gear control
gearbox.


E.
- Electrical fl ow or

- Warning messages and function
status messages
or

- Trip computer or

- Satellite navigation information or

- Menus (with Peugeot Connect
Media Navigation (NG4 3D)).

48
IN
S

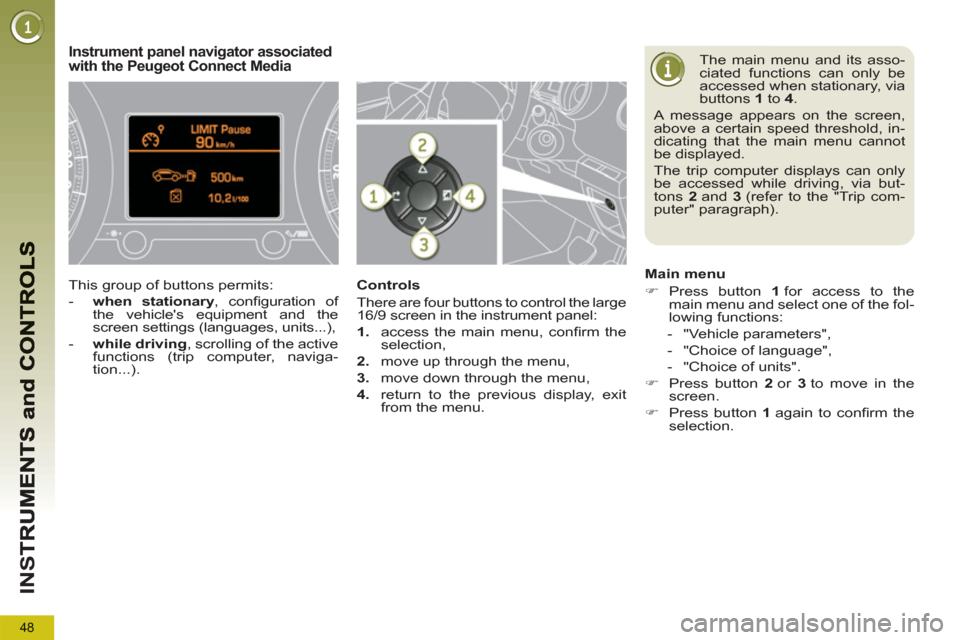

The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons 1
to 4
.
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2
and 3
(refer to the "Trip com-
puter" paragraph).

Main menu


)
Press button 1
for access to the
main menu and select one of the fol-
lowing functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move in the
screen.

)
Press button 1
again to confi rm the
selection.
Instrument panel navigator associated
with the Peugeot Connect Media
This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and the
screen settings (languages, units...),

- while driving
, scrolling of the active
functions (trip computer, naviga-
tion...).
Controls
There are four buttons to control the large
16/9 screen in the instrument panel:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous display, exit
from the menu.

49
IN
S

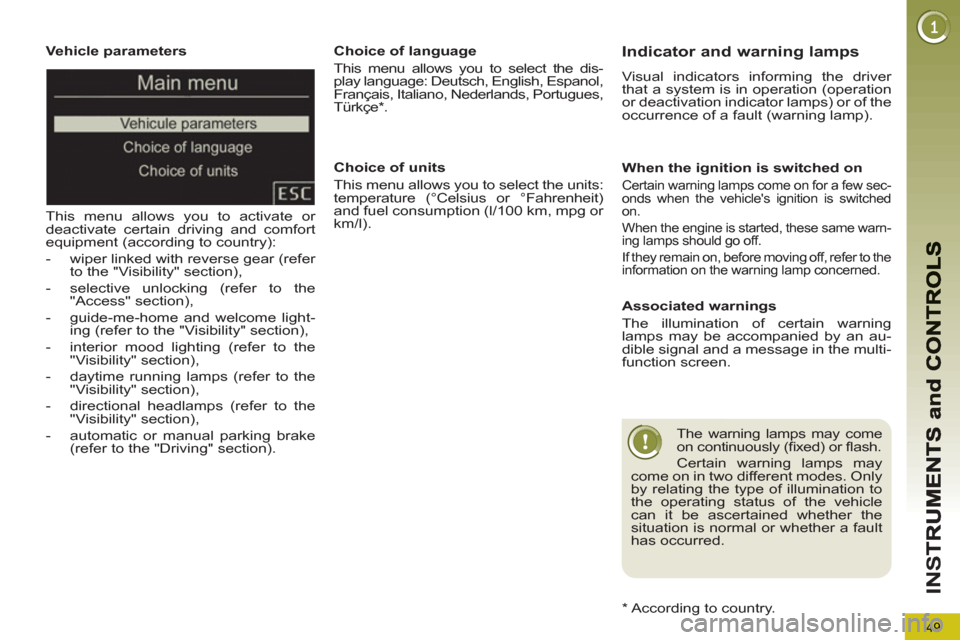

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section).

Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (l/100 km, mpg or
km/l).

Choice of language
This menu allows you to select the dis-
play language: Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Türkçe * .

*
According to country. Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

When the ignition is switched on

Certain warning lamps come on for a few sec-
onds when the vehicle's ignition is switched
on.
When the engine is started, these same warn-
ing lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.


Associated warnings
The illumination of certain warning
lamps may be accompanied by an au-
dible signal and a message in the multi-
function screen.
The warning lamps may come
on continuously (fi xed) or fl ash.
Certain warning lamps may
come on in two different modes. Only
by relating the type of illumination to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a fault
has occurred.

50
IN
S

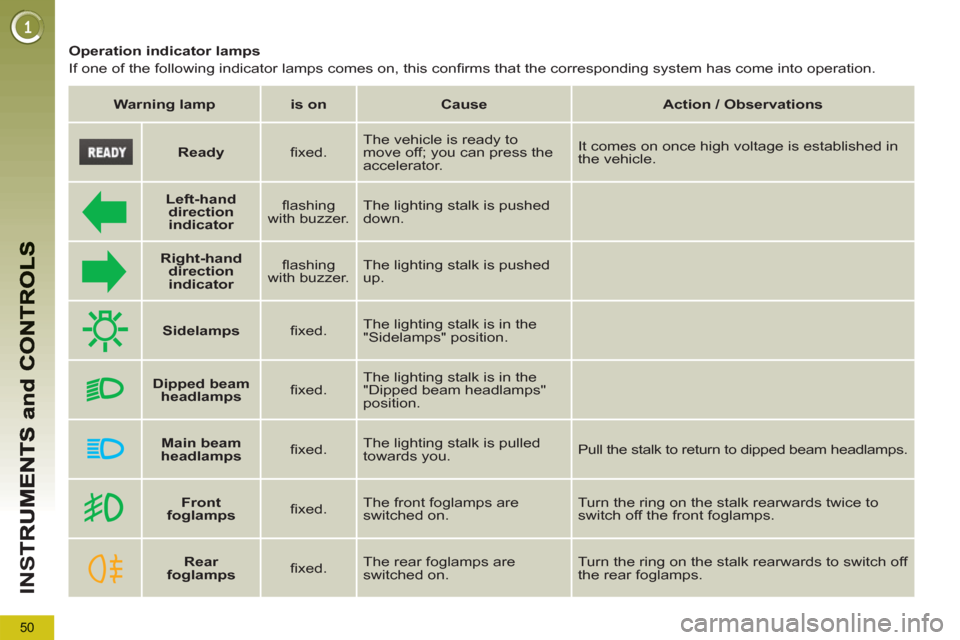

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.



Warning lamp



is on



Cause



Action / Observations






Left-hand
direction
indicato

r


fl ashing
with buzzer. The lighting stalk is pushed
down.




Right-hand
direction
indicator


fl ashing
with buzzer. The lighting stalk is pushed
up.




Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.




Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.




Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Ready


fi xed. The vehicle is ready to
move off; you can press the
accelerator. It comes on once high voltage is established in
the vehicle.




Front
foglamps


fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.

51
IN
S

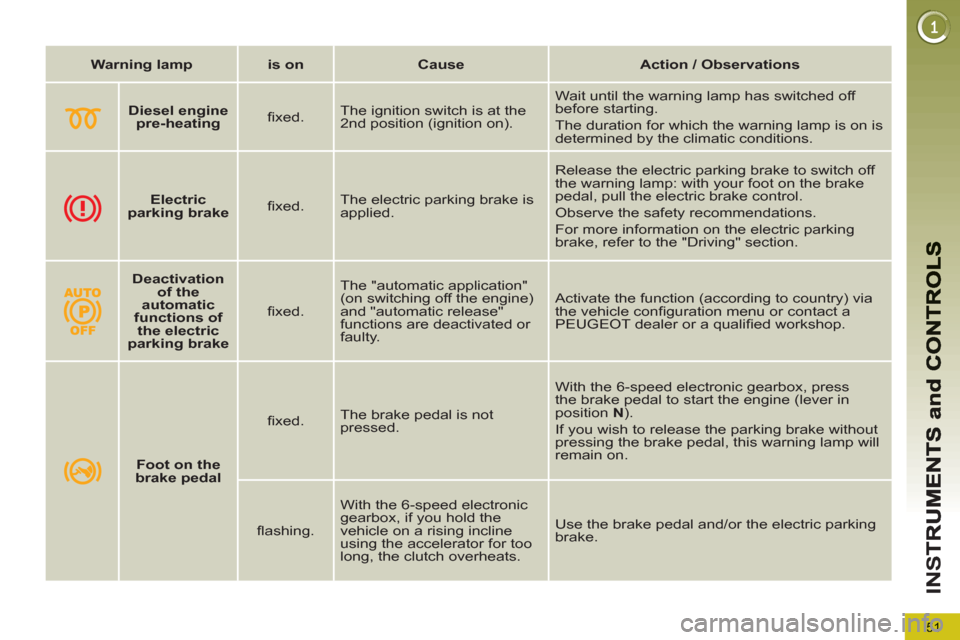

Warning lamp



is on



Cause



Action / Observations






Diesel engine
pre-heating


fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.


Electric
parking brake


fi xed. The electric parking brake is
applied. Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For more information on the electric parking
brake, refer to the "Driving" section.


Deactivation
of the
automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
the vehicle confi guration menu or contact a
PEUGEOT dealer or a qualifi ed workshop.




Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox, press
the brake pedal to start the engine (lever in
position N
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

fl ashing. With the 6-speed electronic
gearbox, if you hold the
vehicle on a rising incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.

52
IN
S

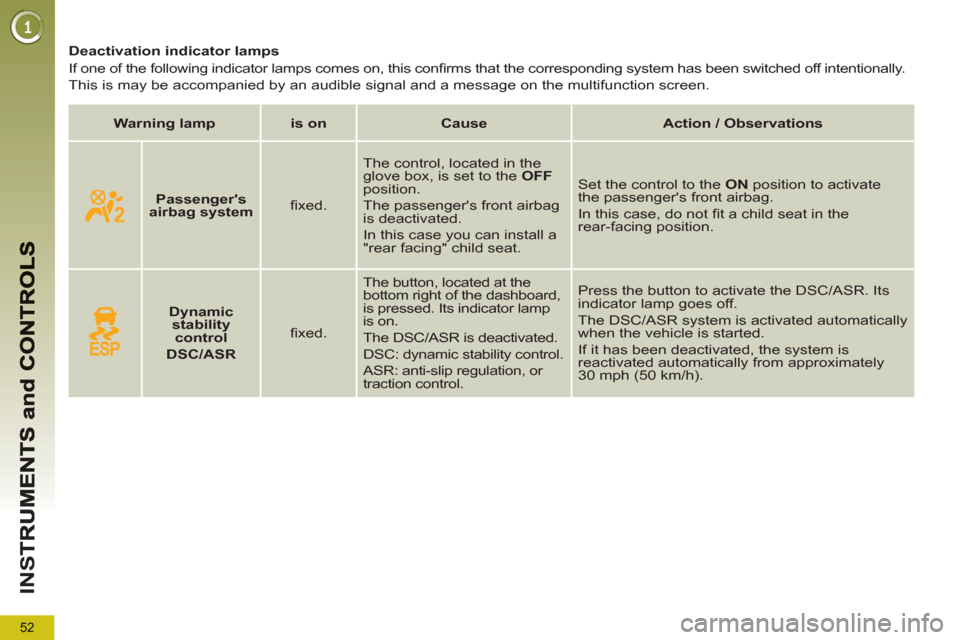

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp



is on



Cause



Action / Observations






Passenger's
airbag system


fi xed. The control, located in the
glove box, is set to the OFF

position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the ON
position to activate
the passenger's front airbag.
In this case, do not fi t a child seat in the
rear-facing position.




Dynamic
stability
control

DSC/ASR


fi xed. The button, located at the
bottom right of the dashboard,
is pressed. Its indicator lamp
is on.
The DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation, or
traction control. Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
The DSC/ASR system is activated automatically
when the vehicle is started.
If it has been deactivated, the system is
reactivated automatically from approximately
30 mph (50 km/h).

53
IN
S

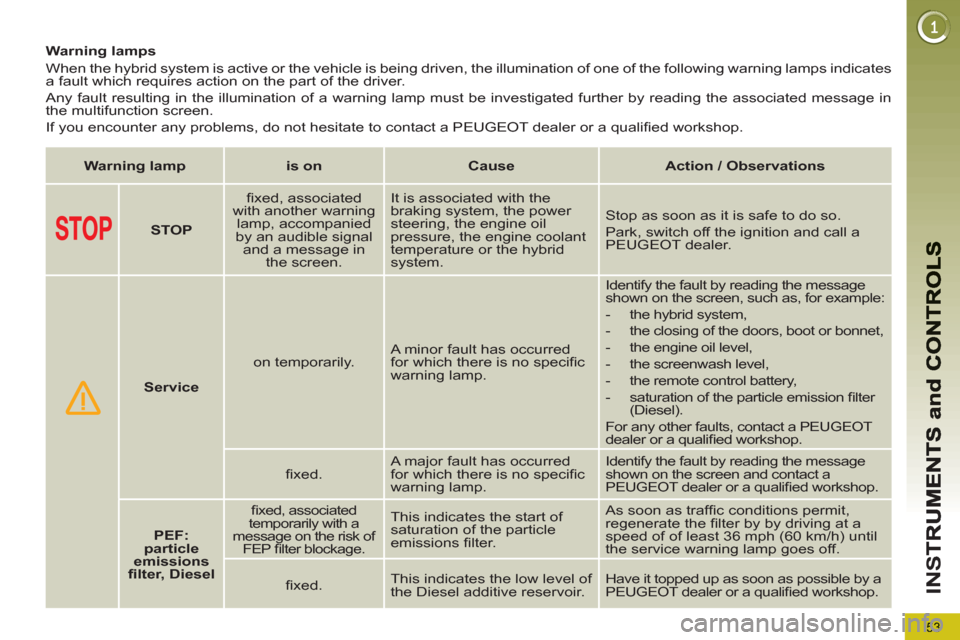

Warning lamps
When the hybrid system is active or the vehicle is being driven, the illumination of one of the following warning lamps indicates
a fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualifi ed workshop.



Warning lamp



is on



Cause



Action / Observations






STOP


fi xed, associated
with another warning
lamp, accompanied
by an audible signal
and a message in
the screen. It is associated with the
braking system, the power
steering, the engine oil
pressure, the engine coolant
temperature or the hybrid
system. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a
PEUGEOT dealer.




Service


on temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen, such as, for example:


- the hybrid system,

- the closing of the doors, boot or bonnet,

- the engine oil level,

- the screenwash level,

- the remote control battery,

- saturation of the particle emission fi lter
(Diesel).
For any other faults, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen and contact a
PEUGEOT dealer or a qualifi ed workshop.


PEF:
particle
emissions
fi lter, Diesel


fi xed, associated
temporarily with a
message on the risk of
FEP fi lter blockage. This indicates the start of
saturation of the particle
emissions fi lter. As soon as traffi c conditions permit,
regenerate the fi lter by by driving at a
speed of of least 36 mph (60 km/h) until
the service warning lamp goes off.

fi xed. This indicates the low level of
the Diesel additive reservoir. Have it topped up as soon as possible by a
PEUGEOT dealer or a qualifi ed workshop.

54
IN
S

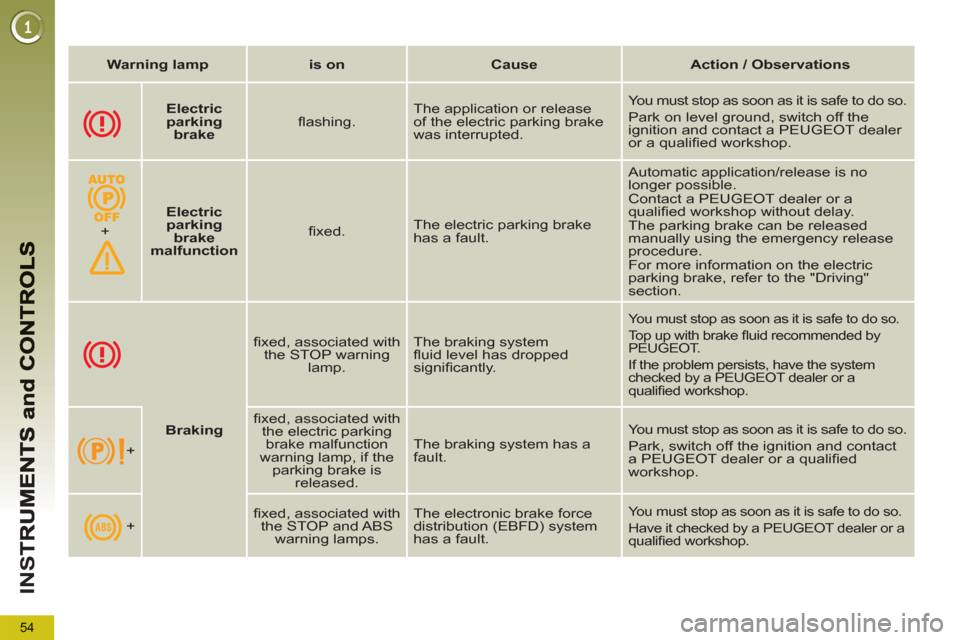

Warning lamp



is on



Cause



Action / Observations







Braking


fi xed, associated with
the STOP warning
lamp. The braking system
fl uid level has dropped
signifi cantly.

You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer or a
qualifi ed workshop.


+
fi xed, associated with
the electric parking
brake malfunction
warning lamp, if the
parking brake is
released. The braking system has a
fault.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.

+
fi xed, associated with
the STOP and ABS
warning lamps. The electronic brake force
distribution (EBFD) system
has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.





Electric
parking
brake


fl ashing. The application or release
of the electric parking brake
was interrupted.
You must stop as soon as it is safe to do so.

Park on level ground, switch off the
ignition and contact a PEUGEOT dealer
or a qualifi ed workshop.

+

Electric
parking
brake
malfunction


fi xed. The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.
