55
IN
S


Warning lamp



is on



Cause



Action / Observations




Engine
autodiagnosis
system

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

fi xed. The emission control system
has a fault. The warning lamp should go off when the
engine is started.
If it does not go off, contact a PEUGEOT
dealer or qualifi ed workshop without delay.




Low fuel
level


fi xed with the needle
in the red zone. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a
suffi cient addition of fuel is made.

Fuel tank capacity: approximately 56.5 litres
.
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.




Maximum
coolant
temperature


fi xed with the needle
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed
workshop.



Dynamic
stability
control

(DSC/ASR)


fl ashing. The DSC/ASR regulation is
operating. The system optimises traction and
improves the directional stability of the
vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
DSC/ASR system has a fault. Have it checked by a PEUGEOT or a
qualifi ed workshop.



Anti-lock
Braking
System
(ABS)


fi xed. The anti-lock braking system
has a fault. The vehicle retains conventional
braking.
Drive carefully at reduced speed
and contact a PEUGEOT dealer or a
qualifi ed workshop without delay.

56
IN
S


Warning lamp



is on



Cause



Action / Observations






Door(s)
open




fi xed if the speed is
below 6 mph (10 km/h).

A door, the boot, the lower
tailgate or the bonnet (with
alarm only) is still open. Close the door or boot.

fi xed and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).




Seat belt not
fastened /
unfastened


fi xed then fl ashing
accompanied by an
increasing audible
signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt. Pull the strap then insert the tongue in
the buckle.




Airbags


on temporarily. This lamp comes on for a few
seconds when you turn on
the ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.




Water in
Diesel


fi xed. The Diesel fuel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.

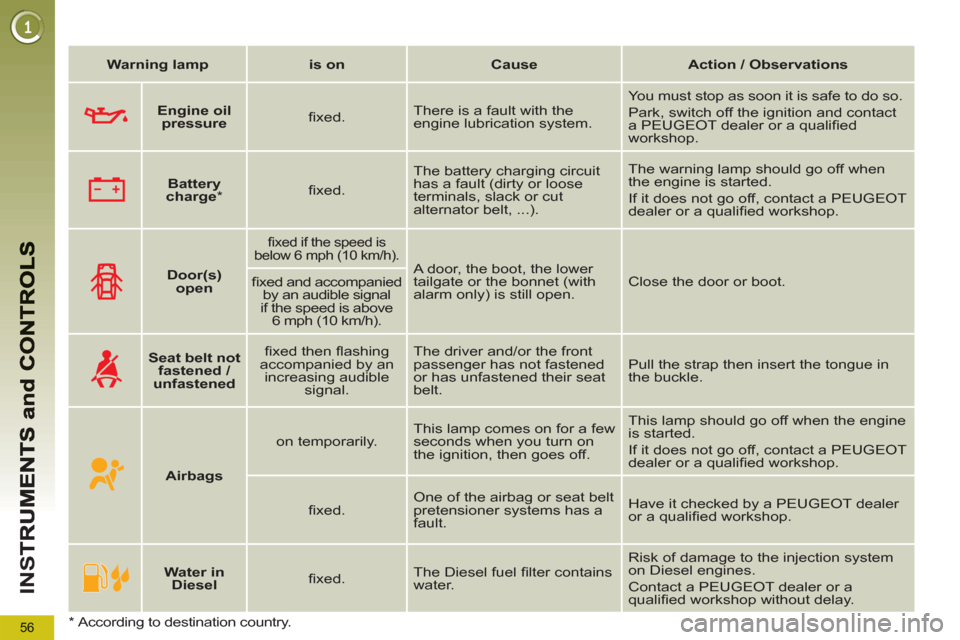

Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.

Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.




Battery
charge

*

fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.

*
According to destination country.

57
IN
S

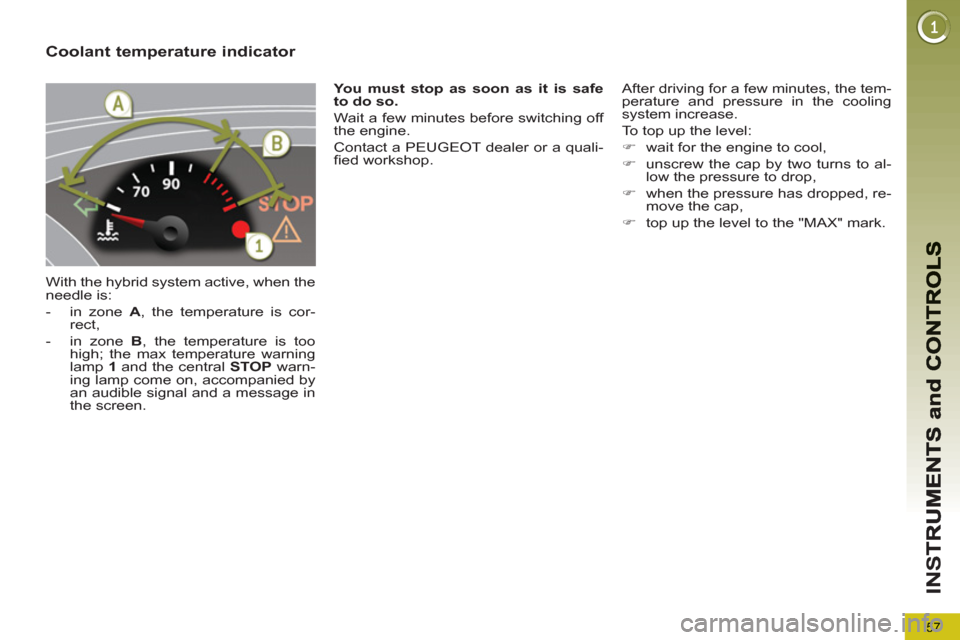

Coolant temperature indicator
With the hybrid system active, when the
needle is:


- in zone A
, the temperature is cor-
rect,

- in zone B
, the temperature is too
high; the max temperature warning
lamp 1
and the central STOP
warn-
ing lamp come on, accompanied by
an audible signal and a message in
the screen. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:


)
wait for the engine to cool,

)
unscrew the cap by two turns to al-
low the pressure to drop,

)
when the pressure has dropped, re-
move the cap,

)
top up the level to the "MAX" mark.

You must stop as soon as it is safe
to do so.

Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

58
IN
S

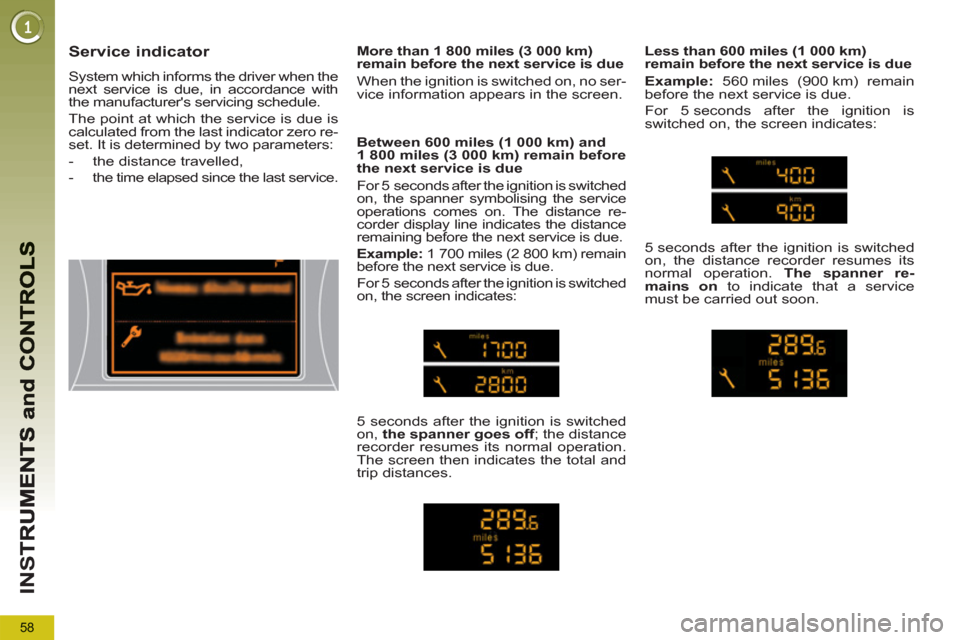

Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:


- the distance travelled,

-
the time elapsed since the last service.


Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.

Example:
1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched
on, the screen indicates:
5 seconds after the ignition is switched
on, the spanner goes off
; the distance
recorder resumes its normal operation.
The screen then indicates the total and
trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due

Example:
560 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears in the screen.

59
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance re-
corder display begins a countdown,

)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears.

The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

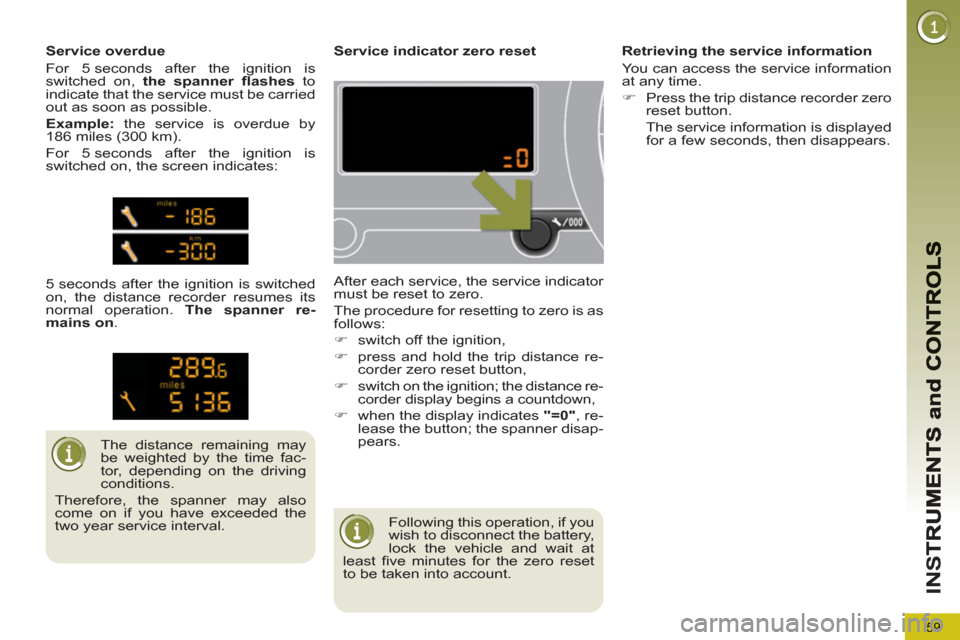

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

IN
S

The level shown will only be
correct if the vehicle is on level
ground and the engine has been
off for more than 30 minutes.

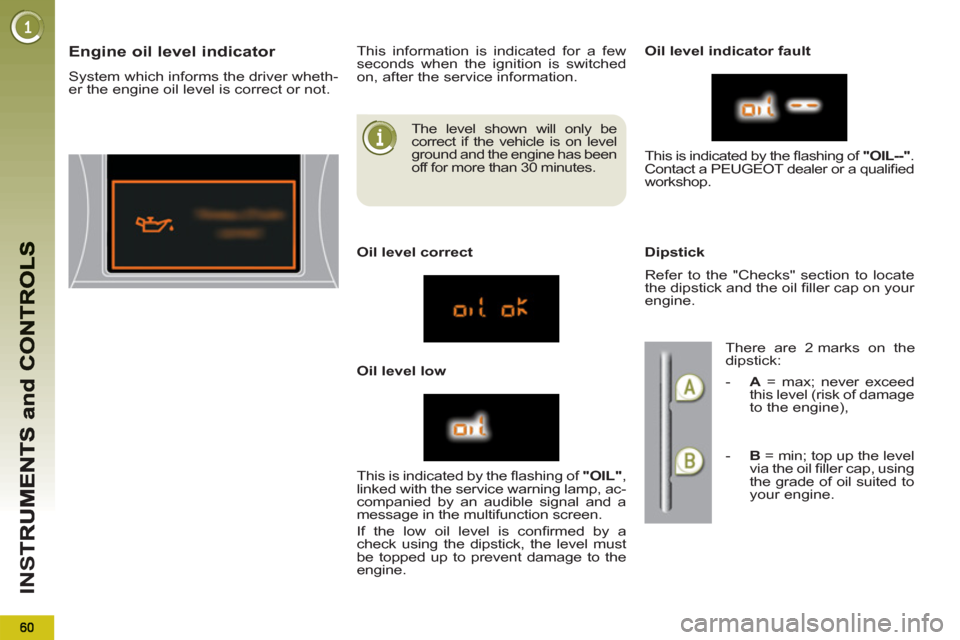

Engine oil level indicator
System which informs the driver wheth-
er the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of "OIL

--"
.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of damage
to the engine),

- B
= min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.

61
IN
S

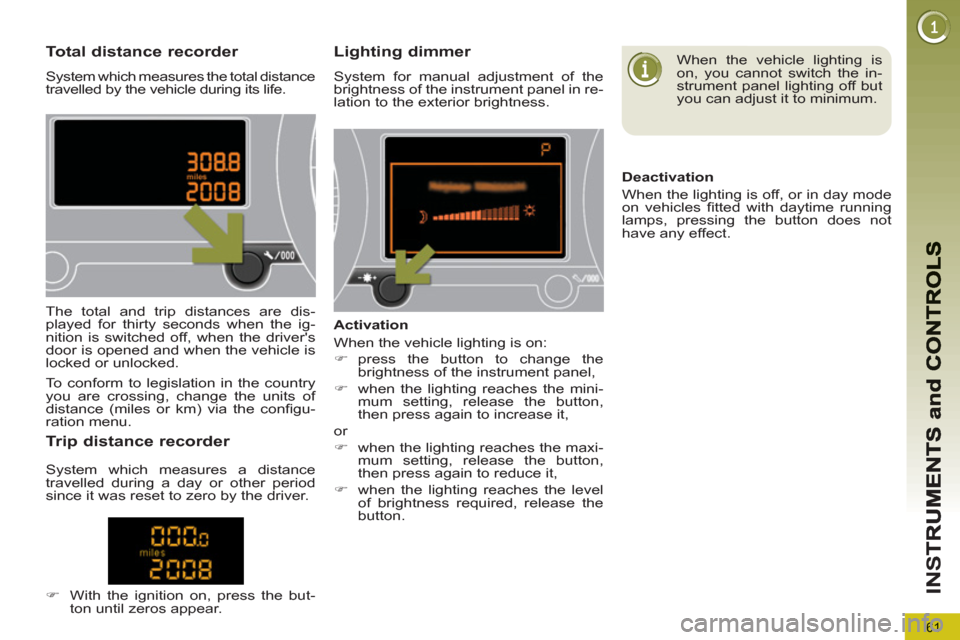

Total distance recorder
System which measures the total distance
travelled by the vehicle during its life.
Lighting dimmer
System for manual adjustment of the
brightness of the instrument panel in re-
lation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Tr ip distance recorder


)
With the ignition on, press the but-
ton until zeros appear.

Activation
When the vehicle lighting is on:


)
press the button to change the
brightness of the instrument panel,

)
when the lighting reaches the mini-
mum setting, release the button,
then press again to increase it,
or


)
when the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it,

)
when the lighting reaches the level
of brightness required, release the
button.

When the vehicle lighting is
on, you cannot switch the in-
strument panel lighting off but
you can adjust it to minimum.

Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.


To conform to legislation in the country
you are crossing, change the units of
distance (miles or km) via the confi gu-
ration menu.

System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.

M
U
62
MONOCHROME SCREEN C (WITH PEUGEOT CONNECT SOUND (RD5)) Main menu

Displays in the screen

Displays according to context:


- time,

- date,

- ambient temperature with air condi-
tioning (the value displayed fl ashes if
there is a risk of ice),

- status of the openings (doors, boot...),

- audio functions,

- trip computer (see "trip computer"),

- alert messages,

- screen and vehicle equipment pa-
rameter setting menus.



"Audio functions" menu Controls

From the audio equipment control panel,
you can:


)
press the " MENU
" button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the " MODE
" button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the " OK
" button to confi rm,
or

)
press the " ESC
" button to abandon
the operation in progress.




)
Press the "MENU"
button for access
to the main menu
:


- audio functions,

- trip computer (see "trip computer"),

- personalisation-confi guration,

- telephone (Bluetooth system).



For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound (RD5) section.





)
Press the "
" or "
" button to se-
lect the menu required, then confi rm
by pressing the " OK
" button.



With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or CD (introscan, shuffl e,
CD repeat).
