2012 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

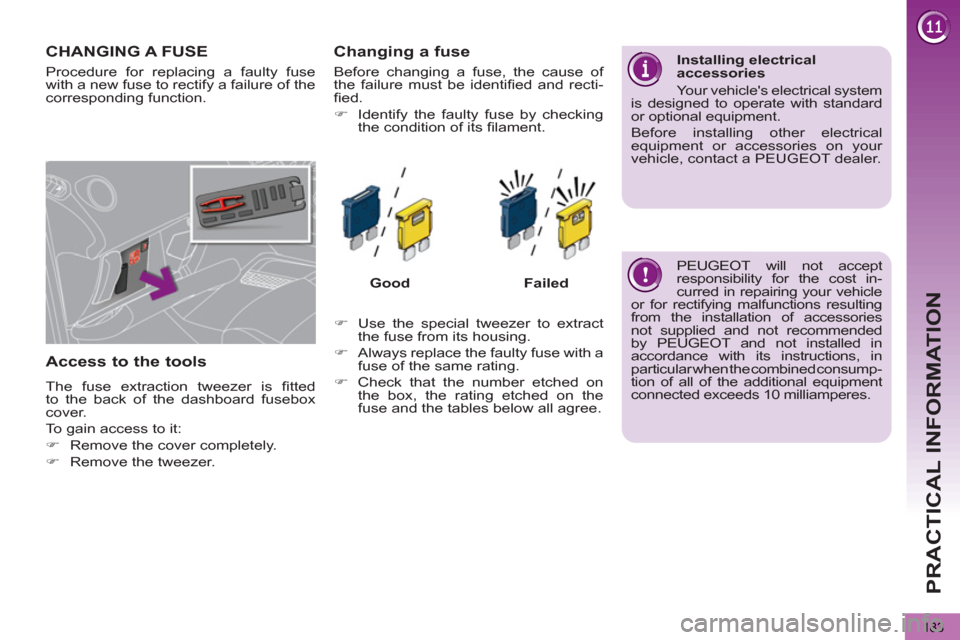

PRACTICAL INFORMATION
183
CHANGING A FUSE

Access to the tools

The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:


)
Remove the cover completely.

)
Remove the tweezer.



Changing a fuse



Good



Failed





)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check that the number etched on
the box, the rating etched on the
fuse and the tables below all agree.

Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.

PEUGEOT will not accept
responsibility for the cost in-
curred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions, in
particular when the combined consump-
tion of all of the additional equipment
connected exceeds 10 milliamperes.

Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the faulty fuse by checking
the condition of its fi lament.
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.

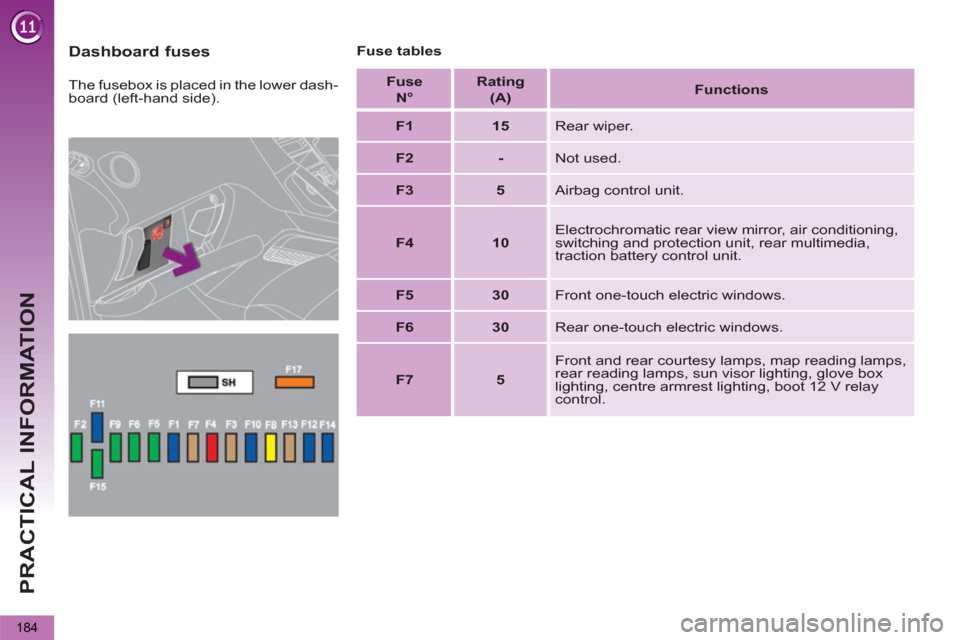

PRACTICAL INFORMATION
184

Dashboard fuses

Fuse tables

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse
N°


Rating

(A)



Functions




F1



15

Rear wiper.


F2



-

Not used.


F3



5

Airbag control unit.


F4



10

Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia,
traction battery control unit.


F5



30

Front one-touch electric windows.


F6



30

Rear one-touch electric windows.


F7



5

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

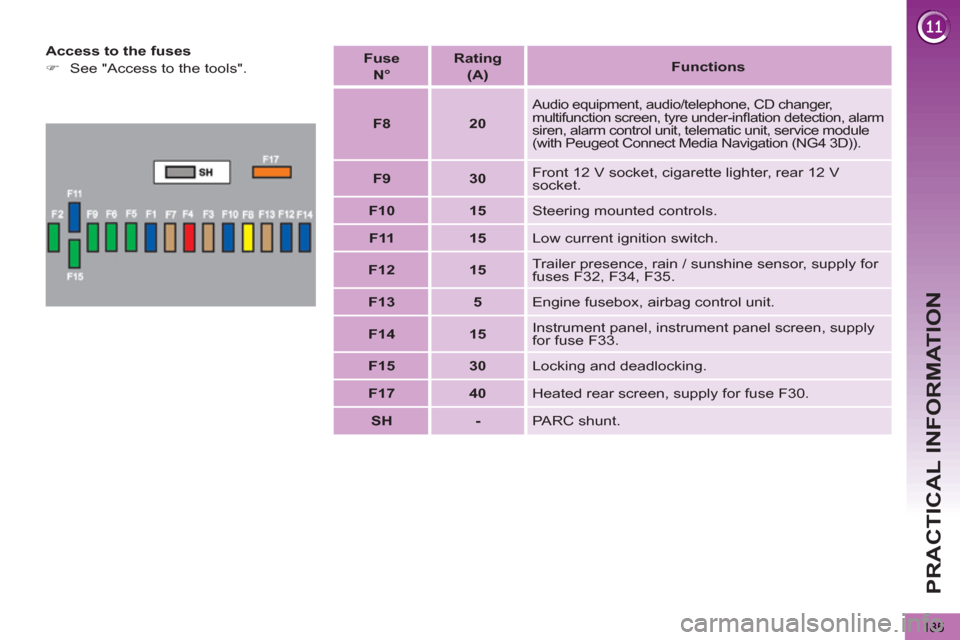

PRACTICAL INFORMATION
185

Access to the fuses


)
See "Access to the tools".
Fuse
N°

Rating
(A)

Functions




F8



20



Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection, alarm
siren, alarm control unit, telematic unit, service module
(with Peugeot Connect Media Navigation (NG4 3D)).


F9



30

Front 12 V socket, cigarette lighter, rear 12 V
socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain / sunshine sensor, supply for
fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen, supply
for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Heated rear screen, supply for fuse F30.


SH



-

PARC shunt.

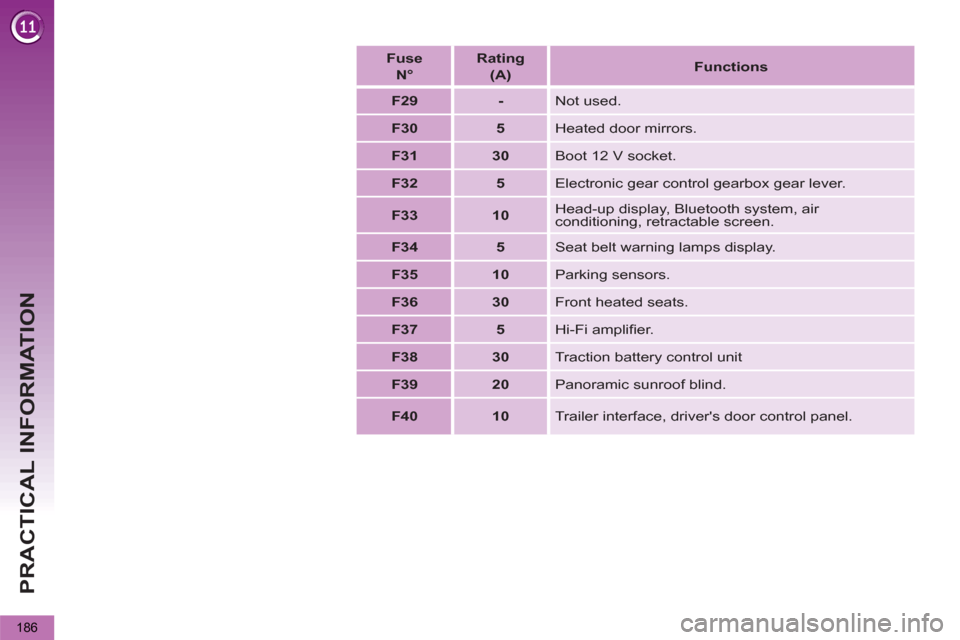

PRACTICAL INFORMATION
186


Fuse
N°



Rating
(A)



Functions




F29



-

Not used.


F30



5

Heated door mirrors.


F31



30

Boot 12 V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air
conditioning, retractable screen.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors.


F36



30

Front heated seats.


F37



5

Hi-Fi amplifi er.


F38



30

Traction battery control unit


F39



20

Panoramic sunroof blind.


F40



10

Trailer interface, driver's door control panel.

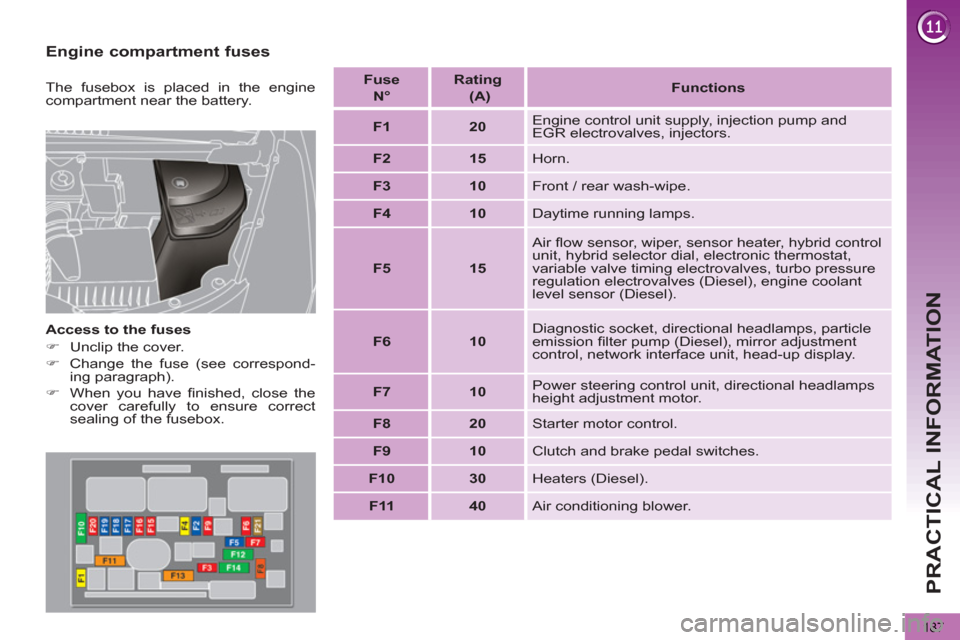

PRACTICAL INFORMATION
187

Engine compartment fuses


Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.


The fusebox is placed in the engine
compartment near the battery.
Fuse
N°

Rating
(A)


Functions




F1



20

Engine control unit supply, injection pump and
EGR electrovalves, injectors.


F2



15

Horn.


F3



10

Front / rear wash-wipe.


F4



10

Daytime running lamps.


F5



15

Air fl ow sensor, wiper, sensor heater, hybrid control
unit, hybrid selector dial, electronic thermostat,
variable valve timing electrovalves, turbo pressure
regulation electrovalves (Diesel), engine coolant
level sensor (Diesel).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), mirror adjustment
control, network interface unit, head-up display.


F7



10

Power steering control unit, directional headlamps
height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.



F10



30

Heaters (Diesel).


F11



40

Air conditioning blower.

PRACTICAL INFORMATION
188

Fuse
N°

Rating
(A)

Functions




F12



30

Windscreen wipers slow / fast speed.


F13



40

Built-in systems interface supply (ignition positive).


F14



30

Heater radiator water pump.


F15



10

Right-hand main beam headlamp.


F16



10

Left-hand main beam headlamp.


F17



15

Left-hand dipped headlamp.


F18



15

Right-hand dipped headlamp.


F19



15

Turbo pressure regulation electrovalve (Diesel).


F20



10

Engine coolant level detector (Diesel).


F21



5

Cooling fan control.

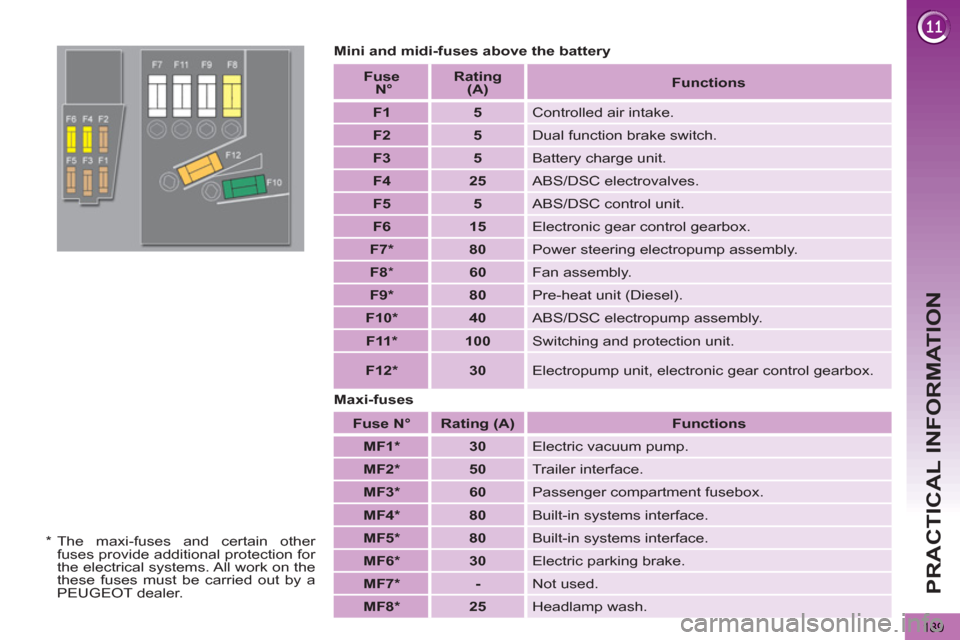

PRACTICAL INFORMATION
189

Mini and midi-fuses above the battery

Maxi-fuses

Fuse
N°

Rating

(A)



Functions




MF1 *



30

Electric vacuum pump.


MF2 *



50

Trailer interface.


MF3 *



60

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



-

Not used.


MF8 *



25

Headlamp wash.
Fuse
N°

Rating
(A)

Functions




F1



5

Controlled air intake.


F2



5

Dual function brake switch.


F3



5

Battery charge unit.


F4



25

ABS/DSC electrovalves.


F5



5

ABS/DSC control unit.


F6



15

Electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8

*


60

Fan assembly.


F9 *



80

Pre-heat unit (Diesel).


F10 *



40

ABS/DSC electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electropump unit, electronic gear control gearbox.

*
The maxi-fuses and certain other
fuses provide additional protection for
the electrical systems. All work on the
these fuses must be carried out by a
PEUGEOT dealer.

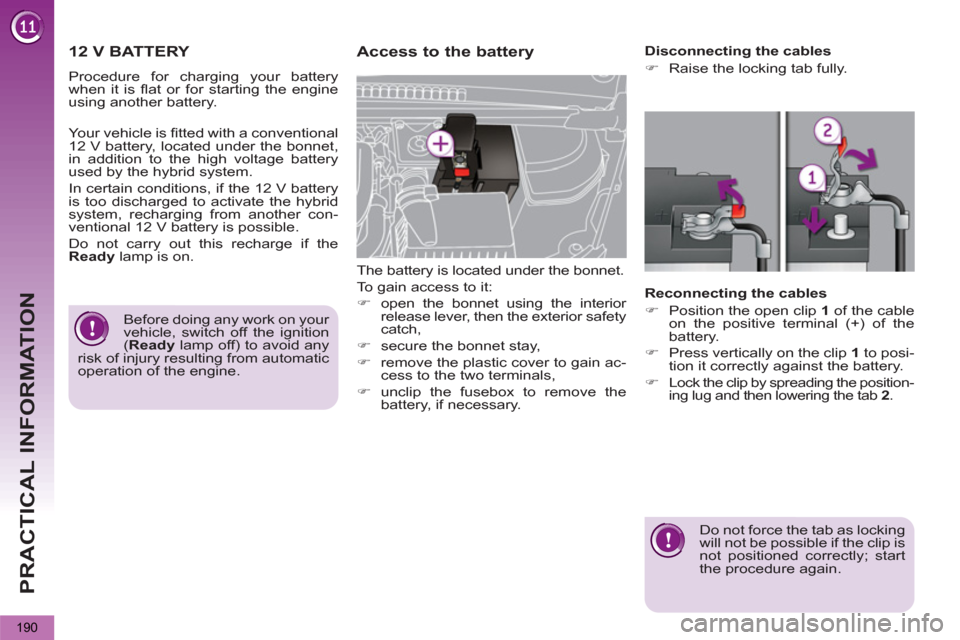

PRACTICAL INFORMATION
190








12 V BATTERY

Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

Access to the battery

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain ac-
cess to the two terminals,

)
unclip the fusebox to remove the
battery, if necessary.


Disconnecting the cables


)
Raise the locking tab fully.


Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start
the procedure again.

Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.














Your vehicle is fi tted with a conventional
12 V battery, located under the bonnet,
in addition to the high voltage battery
used by the hybrid system.
In certain conditions, if the 12 V battery
is too discharged to activate the hybrid
system, recharging from another con-
ventional 12 V battery is possible.
Do not carry out this recharge if the
Ready
lamp is on.
