2012 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

207
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

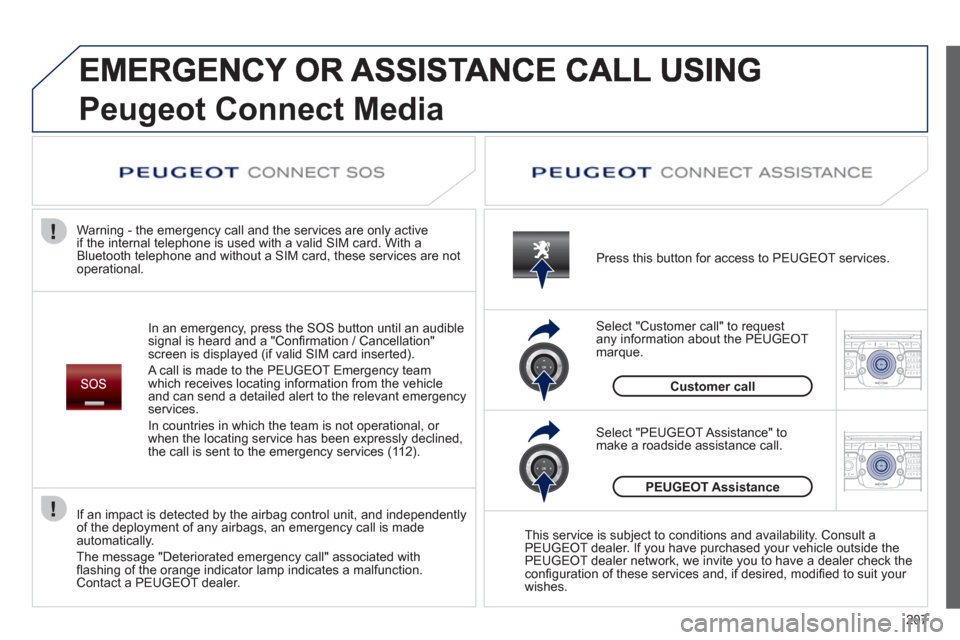

Peugeot Connect Media
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation / Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call Select "Customer call" to request
an
y information about the PEUGEOT marque.

Select "PEUGEOT Assistance" tomake a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.

If an impact is detected b
y the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made
automatically.

The message "Deteriorated emergency call" associated withfl ashing of the orange indicator lamp indicates a malfunction.Contact a PEUGEOT dealer.

208

209
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

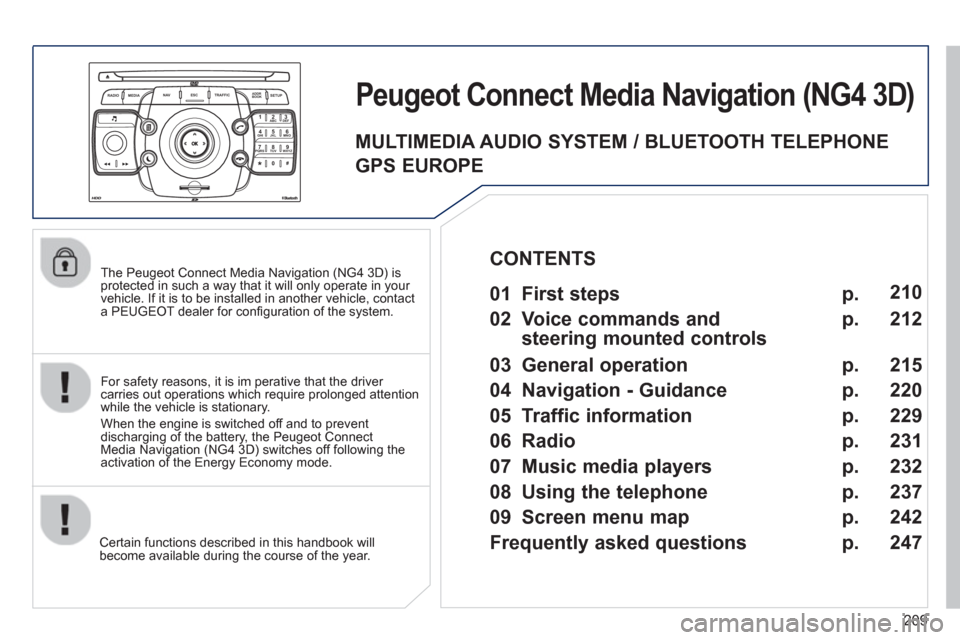

The Peugeot Connect Media Navigation (NG4 3D) is protected in such a way that it will only operate in your
vehicle. If it is to be installed in another vehicle, contact
a PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will
become available during the course of the year.

Peugeot Connect Media Navigation(NG4 3D)


For safety reasons, it is im perative that the driver carries out operations which require prolonged attention
while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot ConnectMedia Navigation (NG4 3D) switches off following the
activation of the Energy Economy mode.

01 First steps

02 Voice commands and
steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Using the telephone

09 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 210
212
2
15
220
229
231
232
2
37
242
247

CONTENTS
MULTIMEDIA AUDIO SYSTEM / BLUETOOTH TELEPHONE
GPS EUROPE

210
01FIRST STEPS

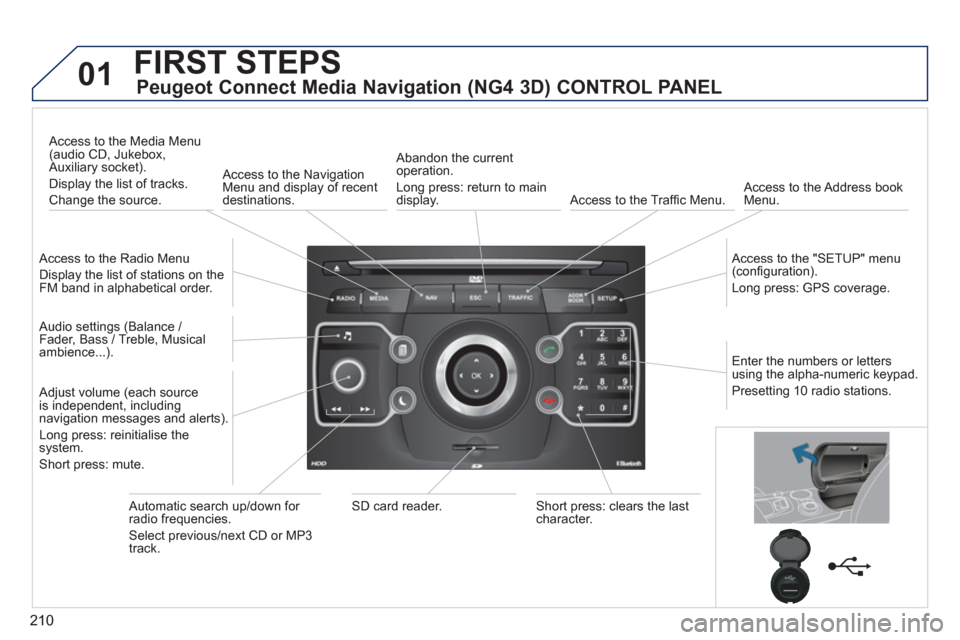

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL

Access to the Radio Menu

Display the list of stations on the
FM band in alphabetical order.
Access to the Media Menu(audio CD, Jukebox,
Auxiliary socket).
Display the list o
f tracks.
Change the source.
Access to the NavigationMenu and display of recentdestinations.
Abandon the current
operation.
Long press: return to main
displa
y. Access to the Traffi c Menu.
Access to the Address book Menu.

A
ccess to the "SETUP" menu (confi guration).
Lon
g press: GPS coverage.

Audio settings (Balance /
Fader, Bass / Treble, Musical
ambience...
).

Adjust volume (each source
is independent, including
navigation messages and alerts).
Lon
g press: reinitialise thesystem.
Short press: mute.

Automatic search up/down for radio frequencies.
Select
previous/next CD or MP3
track.
SD card reader.Short press: clears the last character.
Enter the numbers or lettersusing the alpha-numeric keypad.
Presettin
g 10 radio stations.

211
01FIRST STEPS

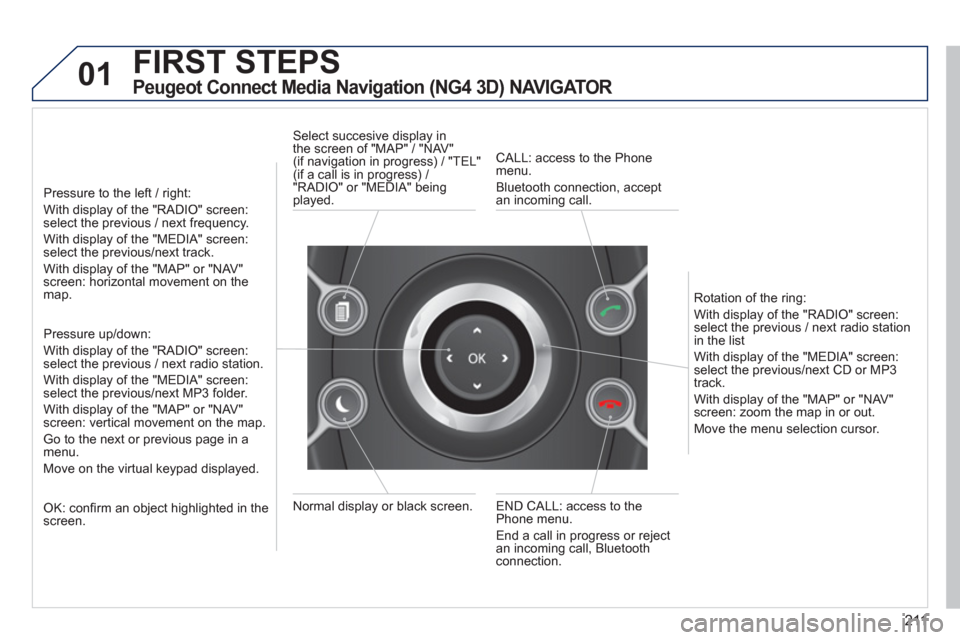

Peugeot Connect Media Navigation (NG4 3D) NAVIGATOR


Pressure to the left / right:
With display of the "RADIO" screen: select the previous / next frequency.
With display of the "MEDIA" screen: select the previous/next track.
With display of the "MAP" or "NAV"screen: horizontal movement on themap.



Pressure up/down:
With display of the "RADIO" screen: select the previous / next radio station.
With display of the "MEDIA" screen: select the previous/next MP3 folder.
With display of the "MAP" or "NAV"screen: vertical movement on the map.
Go to the next or previous pa
ge in a menu.
Move on the virtual keypad displayed.


OK: confi rm an object highlighted in thescreen.
END CALL: access to the Phone menu.
End a call in pro
gress or reject
an incoming call, Bluetooth connection. Normal displa
y or black screen. Select succesive displa
y in
the screen of "MAP" / "NAV"(if navigation in progress) / "TEL"(if a call is in progress) /
"RADIO" or "MEDIA" being
played.
CALL: access to the Phonemenu.
Bluetooth connection, accept
an incomin
g call.

Rotation o
f the ring:
With displa
y of the "RADIO" screen: select the previous / next radio station
in the list
With displa
y of the "MEDIA" screen: select the previous/next CD or MP3
track.
With displa
y of the "MAP" or "NAV"screen: zoom the map in or out.
M
ove the menu selection cursor.

212
02
SETUP2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOKSETUP

Before using the system for the fi rst time, you are advised to listen
to, say and practice the tutorial.
Press the
SETUP button and select
the "Language & Speech" function.Turn the ring and select "Voice control". Activate voice recognition.
Select "Tutorial".









VOICE COMMANDS - VOICE
RECO. INITIATION
The phrases to be spoken according to the context are indicated in
the tables below.

Speak and Peugeot Connect Media Navigation (NG4 3D) acts.

Pressing the end o
f the lightingcontrol stalk activates voice
recognition.
CONTEXTSAYACTION
GENERAL Hel
p address book
Help voice control
Hel
p media
Help navigation
Help telephone
Help radio

Cancel

Correction Access to the address book hel
p
Access to the voice recognition help
Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help

To cancel a voice command which is in progress Request to correct the last voice recognition carried out q
Clear
RADIO
Select station
Station

Read out station list
Enter frequency

Select wave band
TA on
TA off

Select a radio station
Select a radio station using its RDS
description from the RADIO list
Listen to the list of stations available
Listen to the frequency of the current
radio station
Select the FM frequency waveband
Activate Traffi c Info (TA)
Deactivate Traffi c Info
NAVIGATIONDestination input
V
oice advice off
Voice advice on
Save address
Start guidance

Abort guidance
Navigate entry
P
OI Search
Command to enter a new destinationaddress
Deactivate the spoken guidance instructions
Activate the spoken guidance instructions

Save an address in the address book
Start guidance (once the address has been entered) Stop the guidance
Start guidance to an entry in the address book
Start guidance to a point of interest
VOICE COMMANDS AND STEERING MOUNTED CONTROLS

213
02

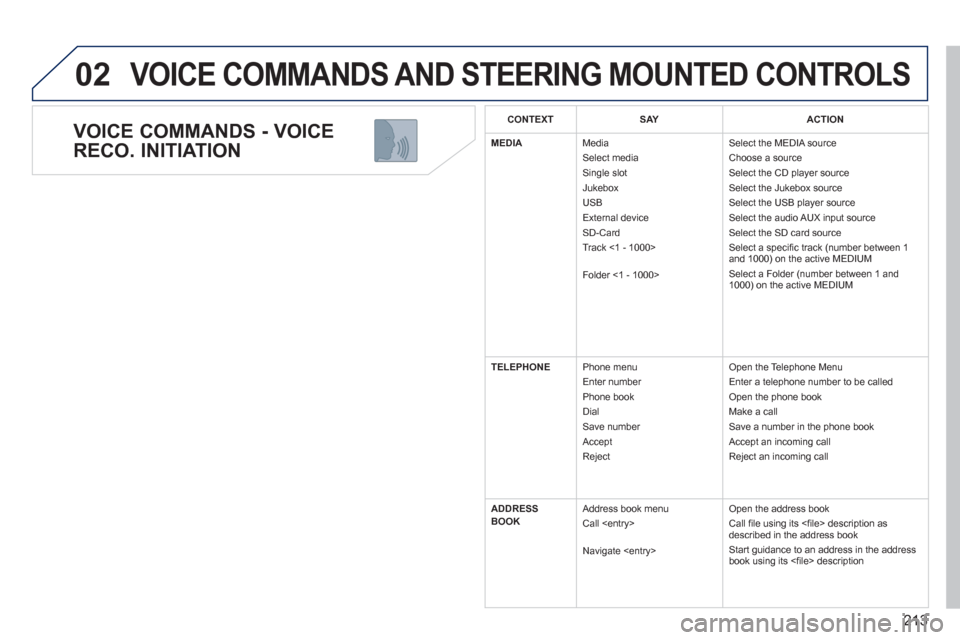

VOICE COMMANDS - VOICE
RECO. INITIATION
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
CONTEXTSAYACTION
MEDIA
Media Select media Single slot
Jukebox
USB
Ext
ernal device SD-Card
Track <1 - 1000>
Folder <
1 - 1000> Select the MEDIA source

Choose a source Select the CD player source
Select the Jukebox source
Select the USB player source
Select the audio AUX input source

Select the SD card source
Select a specifi c track (number between 1
and 1000) on the active MEDIUM
Select a Folder
(number between 1 and
1000) on the active MEDIUM
TELEPHONE Phone menu
Enter number
Phone book
Dial
Save number
Acce
pt
Reject O
pen the Telephone Menu
Enter a telephone number to be called
Open the phone book
Make a call
Save a number in the phone book
Accept an incoming call
Re
ject an incoming call
ADDRE
SS
BOOK Address book menu
Call
Navi
gate
Open the address book
Call fi le using its <fi le> description as described in the address book
Start guidance to an address in the addressbook using its <fi le> description

214
02VOICE COMMANDS AND STEERING MOUNTED CONTROLS

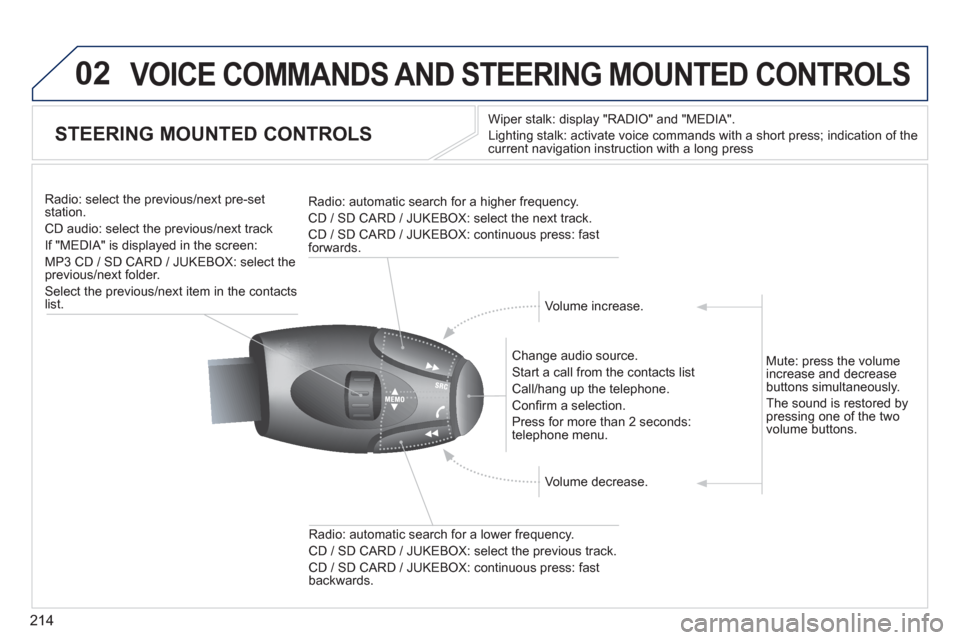

STEERING MOUNTED CONTROLS
Wiper stalk: display "RADIO" and "MEDIA".
Li
ghting stalk: activate voice commands with a short press; indication of the current navigation instruction with a long press

Change audio source.

Start a call from the contacts list
Call/han
g up the telephone.

Confi rm a selection.
Pr
ess for more than 2 seconds:
telephone menu.
Radio: automatic search for a lower frequenc
y.
CD / SD CARD / JUKEBOX: select the previous track.
CD / SD CARD / JUKEBOX: continuous press: fast backwards. Radio: select the previous
/next pre-setstation.
CD audio: select the previous/next track
If "MEDIA" is displa
yed in the screen:
MP
3 CD / SD CARD / JUKEBOX: select the
previous/next folder.
Select the previous/next item in the contacts list.
Radio: automatic search
for a higher frequency.

CD / SD CARD / JUKEBOX: select the next track.

CD / SD CARD / JUKEBOX: continuous press: fast
forwards.

Volume increase.

Volume decrease. Mute: press the volume
increase and decreasebuttons simultaneously.
The sound is restored b
y pressing one of the two
volume buttons.
