2012 NISSAN QUEST 08IT Navigation Manual

Black plate (18,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-10
Getting started

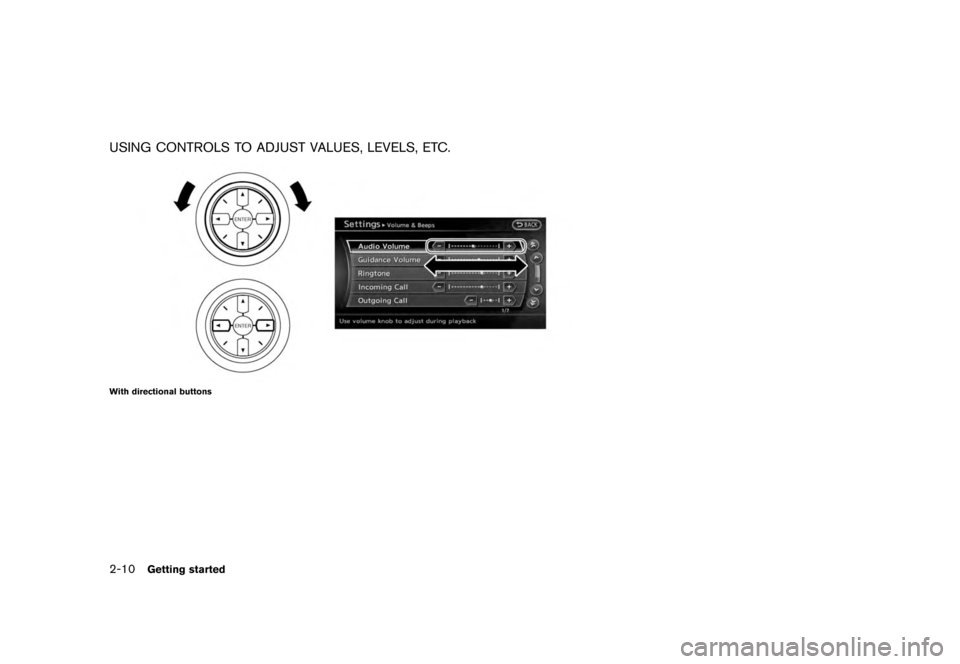

USING CONTROLS TO ADJUST VALUES, LEVELS, ETC.With directional buttons

Black plate (19,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Without directional buttonsThere are five main methods to control the
navigation system: the center dial, the main
directional buttons, the slide switch, the touch
panel and the switches on the steering wheel.
Use these controls to adjust the volume of the
phone and voice guidance, the display bright-
ness, etc.How to adjust1. Highlight the preferred setting item and push . The color of the corre-
sponding adjustment item changes. 2. Adjust the value or level of the indicator bar
using the multi-function controller.
3. Push or to apply the
setting.
INFO:
. The volume of phone and voice guidance,
the display brightness, etc. can be adjusted
by tilting on the steering wheel
up and down. .
These same adjustments can also be
performed using the touch panel operation.
“Adjusting volume and others”
(page 2-13)
START MENUThe start menu can be displayed using the
steering wheel switch.1. Push and hold on the steering
wheel.
2. Highlight the preferred item and push .
INFO:
on the steering wheel switch can be
used to display the start menu only when the
map or status screen is displayed.
Getting started
2-11

Black plate (20,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-12
Getting started
Available items. [Destination]:
Displays the destination screen. It is the
same screen that appears when is
pushed.
“4. Setting destination”
. [Route]:
Displays the route screen. It is the same
screen that appears when is
pushed.“5. Route guidance”
. [Info]:
Displays the information screen. It is the
same screen that appears when is
pushed.“7. Viewing technical information”
. [Settings]:
Displays the settings screen. It is the same
screen that appears when is
pushed.“8. Other settings”
LIST SCREENAfter searching for a point of interest, a list
screen is displayed.
Depending on the list displayed, it can be
sorted.Items displayed in a list*1
Highlight the preferred item from the list
and push to select it. If a
location or facility name is not completely
displayed (due to length) , highlight the item
to display the hidden part of the name.
*2
Distance from the current location
*3
Direction to the point of interest
*4
If the entire list cannot be displayed on the
screen, the system displays the total
number of items in the list and the entry
number of the selected item. Scroll the list
using the multi-function controller.
*5
An item that starts with the selected letter
will be displayed at the top of the list.

Black plate (21,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
*6
Highlight and push to sort the
list in the original order.
*7
When the list is sorted by the shortest
distance, the selected location can be
confirmed in the preview on the right side
of the screen.
*8
Highlight and push to modify
search conditions. With this system, the same operations as those
for the multi-function controller are possible
using the touch panel operation.
This manual describes the operations using the
multi-function controller.
For the operations that differ from those of the
multi-function controller and for useful methods
for using the touch panel operation, refer to each
section.
EXAMPLE OF TOUCH PANEL OPERA-
TIONHere, the operation examples performed with
the touch panel operation are described.Selecting itemWhen the item is touched, the next screen is
displayed.
Adjusting volume and othersTouch [+] or [
] located on the right and left of
the bar graph to perform the adjustment.Scrolling message or listTouch [
]or[
] to scroll the message or list.
Touch [
]or[
] to skip to the next page.
Getting started
2-13
TOUCH PANEL OPERATION

Black plate (22,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-14
Getting started
Inputting letters and numbers1. Touch the letter or number.
2. To delete a character, touch [Delete]. Push andhold[Delete]todeleteallofthe
characters.
CHARACTER (letters and numbers) IN-
PUT SCREENWhen setting a destination, searching for a
facility or editing the stored locations, etc.
alphanumeric characters must be entered into
the system.1. Use the multi-function controller to highlight
a character on the displayed keyboard.2. Push . The highlighted character
is entered.
3. Push , or highlight [Delete] and
push to delete the last character
entered.
Push and hold to delete all the
characters entered.
Highlight [Space] and push to
enter a space.4. After finishing the entry, highlight [List] and push .
HOW TO INPUT LETTERS AND
NUMBERS

Black plate (23,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
INFO:
. Push on the control panel to
return to the previous screen, but only after
deleting all the characters entered.
. When [BACK] is touched on the screen, the
screen returns to the previous screen even
when characters have been entered.
. When text has been entered and the number
of matching list items has been narrowed
down enough so that they fit on the screen,
the list screen appears automatically.
Symbol input screen
INFO:
Symbol keys are displayed by highlighting
[Symbols] and pushing . Alphabet
keys are displayed by highlighting [A-Z] and
pushing .
NUMBER INPUT SCREENA phone number or a street number can also be
entered as a search method to look for a
destination.
INFO:
Only the locations included in the map data
database can be searched for by a phone
number.
1. Use the multi-function controller to highlight a number on the displayed keyboard.
2. Push . The highlighted number is
entered.3. Push , or highlight [Delete] and
push to delete the last number
entered.
Push and hold to delete all the
numbers entered.4. After finishing the entry, highlight [List] and push .
Getting started
2-15

Black plate (24,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-16
Getting startedINFO:
. can be pushed on the control
panel to return to the previous screen, but
only after deleting all the numbers entered.
. When [BACK] is touched on the screen, the
screen returns to the previous screen even
when numbers have been entered. Push
while the current location map
screen or a scrolled map screen is displayed to
display the menu corresponding to that screen.
This menu can be used to access helpful
functions quickly, such as setting a destination
and searching for points of interest nearby.
To select a menu item, use the method
described earlier in this manual.
“Menu screen and how to operate”
(page 2-9)INFO:
With the touch operation, the same screen can
be displayed by touching [Map Menu] located
on the map screen.
CURRENT LOCATION MAP SCREENIf is pushed while the current
location map screen is displayed, the following
options are available. .
[Store Location]:
Store the current vehicle location in the
Address Book. The stored location can be
retrieved as necessary to set it as a
destination (waypoint) .
“Storing location” (page 6-2)
. [Nearby Places]:
Search for points of interest near the current
vehicle location, such as restaurants and
gas stations, etc.“Finding nearby place” (page 4-5)
. [Map View]:
Perform map operations such as the switch-
ing of map type and the setting of map
orientation and scale.“3. Map settings”
. [Map Icons]:
Select map icons of certain points of interest
(such as restaurants and gas stations, etc.)
to be displayed on the map around the
current vehicle location.“Displaying map icons” (page 3-17)
. [Store Tracking]:
Store in the Address Book the route
travelled from the st arting point to the
current location.“Storing tracked route” (page 6-6)
MAP MENU SCREEN

Black plate (25,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
SCROLLED LOCATION MAP SCREENIf is pushed while a scrolled map
screen is displayed, the following options are
available.
. [New Dest.]:
Set the destination to the map location
where was pushed. If a destina-
tion is already set, the location will be set as
the new destination.
“Setting point on map” (page 4-19)
. [Add to Route]:
Set the map location where was
pushed as a destination or a waypoint.
This is available only when the suggested
route is already set.“Setting destination or waypoint”
(page 5-14)
. [Nearby Places]:
Search for points of interest near the map
location where was pushed and set them as a destination or waypoint.
Use the same search method as the one for
[Places].
“Finding nearby place” (page 4-5)
. [Store Location]:
Store in the Address Book the map location
where was pushed. The stored
location can be retrieved to set it as a
destination or waypoint.“Storing location” (page 6-2)
. [Delete]:
Delete a stored location. To delete it, place
the cross pointer over the corresponding
icon.
. [Incident Detail]:
This function can be selected only when the
traffic information icon is displayed.
Display the details of the traffic information
icon.
Place the cross pointer over the icon you
want to check.
INFO:
Incident details are a feature of Traffic Informa-
tion, and that an XM NavTraffic
®subscription is
required in order to receive Traffic Information.
HOW TO STORE HOME LOCATIONIf a home location is already stored in the
Address Book, it can be easily retrieved to set
the route to the stored home location.
The procedure to store the home location is the
same as for storing any other location.
“4. Setting destination”
As an example, the procedure for storing the
home location by searching for a destination by
address is described here.
1. Push .
2. Highlight [Home (Add New)] and push .
Getting started
2-17
STORING HOME LOCATION/
ADDRESS
