2012 NISSAN QUEST 08IT Navigation Manual

Black plate (82,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4-20
Setting destinationINFO:.
Adjust the map scale to search for a location more effectively.
.
The point on the blinking road where thecenter of the cross pointer is located can
be set as a destination.
2. Highlight [New Dest.] and push .
INFO:
For the items except for [New Dest.], refer to
“Map menu screen”.
“Scrolled location map screen”
(page 2-17)
3. The system sets the destination to the selected location and starts calculating a
route.
INFO:
If a point on a freeway is set as the destination, a
confirmation message is displayed. It is possible to delete a destination and all
waypoints that have already been set.
1. Press
.
2. Select [Delete Destination] and press .3. A confirmation message is displayed. Select
[Yes] and press .
The destination and the waypoints are
deleted.DELETE DESTINATION

Black plate (83,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

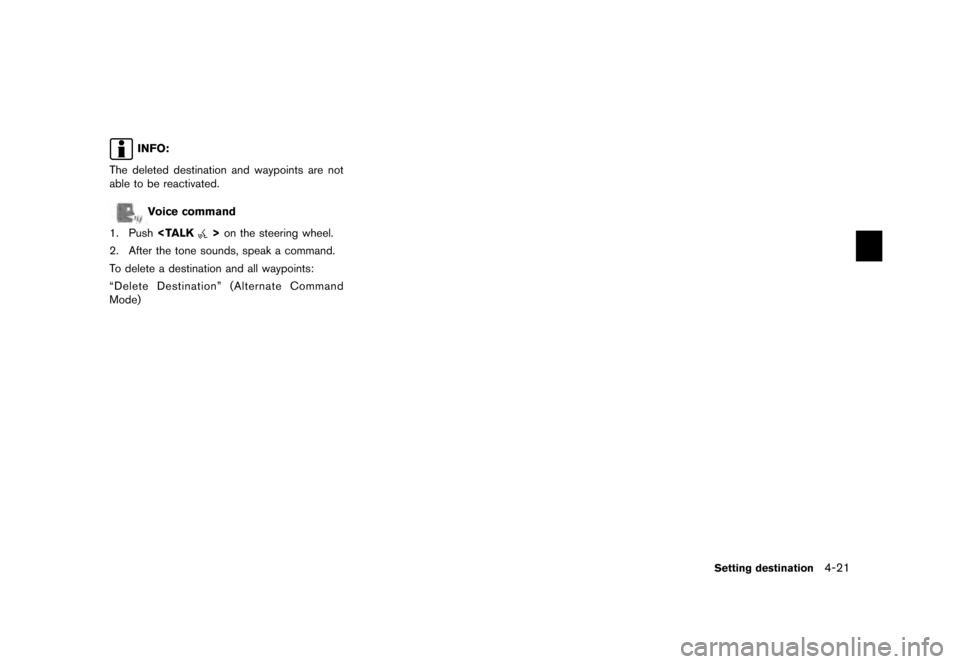

INFO:
The deleted destination and waypoints are not
able to be reactivated.Voice command
1. Push >on the steering wheel.
2. After the tone sounds, speak a command.
To delete a destination and all waypoints:
“Delete Destination” (Alternate Command
Mode)
Setting destination
4-21

Black plate (84,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4-22
Setting destination

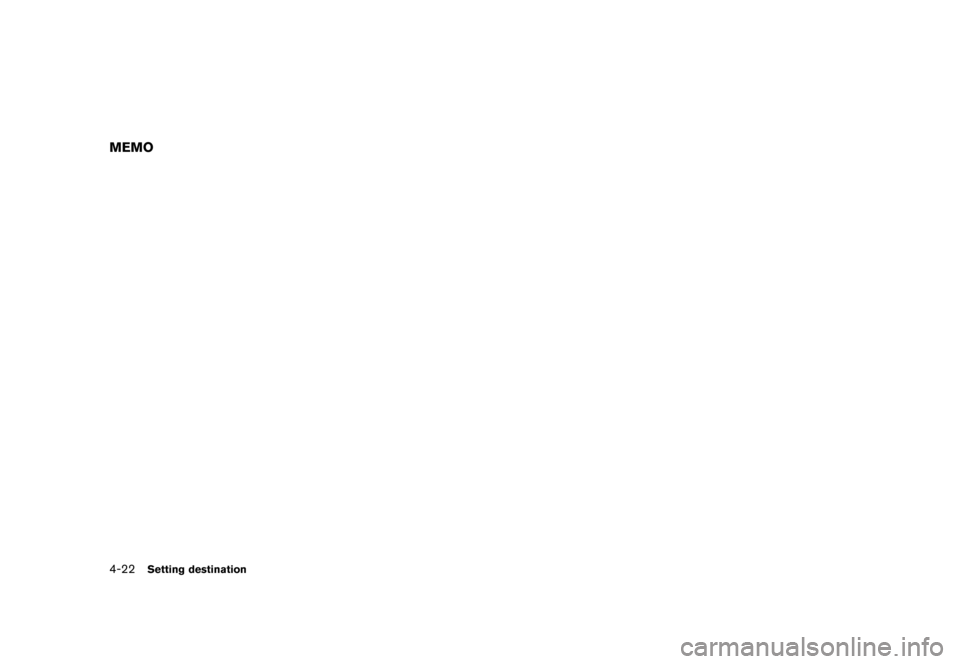

MEMO

Black plate (85,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5 Route guidanceProcedures after setting destination .................................... 5-2 Available items after setting destination ........................ 5-2
Starting route guidance ..................................................... 5-2
Selecting route .................................................................... 5-3
Confirming route .................................................................. 5-3
Moving location of destination ......................................... 5-4
Storing location ................................................................... 5-5
Viewing information about searched location .............. 5-5
About route guidance .............................................................. 5-7 Voice guidance during route guidance ......................... 5-7
Guidance screens and preview mode ........................... 5-7
Guidance screen settings ................................................. 5-9
Route screen ........................................................................\
... 5-12 Basic operation ................................................................. 5-12
Canceling/reactivating route ......................................... 5-13 Editing route .................................................................... 5-14
Confirming route ............................................................ 5-18
Guidance settings .......................................................... 5-20
Recalculating route ........................................................ 5-21
Setting detour route ...................................................... 5-22
Searching for detour route taking traffic information
into consideration ........................................................... 5-22
Setting conditions for route calculation ................... 5-23
Route guidance settings ..................................................... 5-26 Basic operation .............................................................. 5-26
Setting voice guidance at intersections ................... 5-27
Displaying small turn arrow on map .......................... 5-28
Switching estimated arrival time display .................. 5-28
Set average speeds ...................................................... 5-29

Black plate (86,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-2
Route guidance
After performing a route search, the route
guidance can be started immediately. Also, it is
possible to confirm or change a route.AVAILABLE ITEMS AFTER SETTING
DESTINATION. [Start]:
Starts route guidance to the selected
destination.
“Starting route guidance” (page 5-2)
. [More Routes]:
Displays 3 alternative routes.“Selecting route” (page 5-3)
. [Add/Route Info]:
Displays the route information or add a
destination or a waypoint.“Confirming route” (page 5-3)
. [Move Location]:
Displays a map screen and allows the
location of the destination to be adjusted.
“Moving location of destination”
(page 5-4)
. [Store Location]:
Stores the location in the Address Book.“Storing location” (page 5-5)
. [Place Info]:
Displays information about the facility that is
set as the destination if it is included in the
map data.“Viewing information about searched
location” (page 5-5)
INFO:
. If no operations are performed on the
system for several seconds, [Start] is auto-
matically selected, and the system starts
route guidance.
. When using waypoints, [More Routes] is
disabled. After the route is started, push
then select [Edit/Add to Route]
to change the route between each waypoint.
“Editing route” (page 5-14)
. The same screen as when [Move Location]
is selected can be displayed with the
following operations:
— Touching the map screen — Pushing the directional buttons except
for the up/down button (multi-function
controller with directional buttons)
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons)
STARTING ROUTE GUIDANCE1. Highlight [Start] and push .
Route guidance starts.
PROCEDURES AFTER SETTING
DESTINATION

Black plate (87,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
SELECTING ROUTE1. Highlight [More Routes] and push .2. Highlight the preferred route condition and
push .
3. The display automatically returns to the previous screen.Available route conditions.[Short. Time] (purple):
Prioritizes by the shortest time. .
[Min. Freeway] (orange):
Minimizes the use of freeways.
. [Short. Dist.] (green):
Prioritizes by the shortest distance.
INFO:
. When a route condition is selected, a
preview is displayed on the right side of
the screen.
. The 3 routes may not always be different.
CONFIRMING ROUTE1. Highlight [Add/Route Info] and push
.
2. Highlight the preferred information item and push .
3. Push to return to the previous
screen.
Available information. [Turn List]:
Displays the details of the suggested route.
“Using turn list” (page 5-19)
. [Preview]:
The system will trace the planned route
going forward or in reverse.“Using route preview” (page 5-19)
. [Add Way Pt.]:
Add a waypoint or a destination.“Adding destination or waypoint”
(page 5-4)
. [Store Route]:
A calculated route can be stored. A max-
imum of 5 routes can be stored. Stored
routes can be easily retrieved and set as the
suggested route.“Storing route” (page 6-5)
Route guidance
5-3

Black plate (88,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-4
Route guidance
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
The same screen as when [Map Scroll] is
touched can be displayed with the following
operations:
— Touching the map screen.
— Pushing the directional buttons except for the up/down button (multi-function
controller with directional buttons) .
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons) .Adding destination or waypointBefore starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.
1. Highlight [Add Way Pt.] and push .2. Set additional destinations or waypoints and
push .
The method of searching for a location is the
same as the one for a destination.
“4. Setting destination”
3. Highlight [Add Destination] or [Add Way- point] and push .
4. The system starts calculating a route that
includes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:.
If a waypoint was added, [More Routes]
cannot be selected.
.
If a destination was added, the priordestination becomes a waypoint.
MOVING LOCATION OF DESTINATIONThe location of the destination can be adjusted
by moving the cross pointer across the map.

Black plate (89,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
1. Highlight [Move Location] and push .
INFO:
The screen for adjusting the location also
changes by touching the map screen dis-
played on the right side of the screen.
2. Adjust the location by moving the cross pointer across the map and push
. The location of the destination
is modified.
INFO:
. The map scale can be changed by pressing
or (if so
equipped) . The map scale can also be
changed by touching the scale icon.
. The same screen as when [Move Location]
is touched can be displayed with the
following operations:
— Touching the map screen.
— Pushing the directional buttons except up/down buttons (multi-function control-
ler with directional buttons) .
— Pushing the slide switch except upward/ downward (multi-function controller with-
out directional buttons) .
STORING LOCATIONA searched location can be stored in the
Address Book. Then it can be easily retrieved
and set as a destination (or waypoint) .
1. Highlight [Store Location] and push .2. The location is stored in the Address Book.
The corresponding icon is displayed at the
set location on the map.VIEWING INFORMATION ABOUT
SEARCHED LOCATIONInformation (street address and phone number)
about places stored in the map data can be
displayed.
Route guidance
5-5
