2012 NISSAN QUEST 08IT Navigation Manual

Black plate (154,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-18
Viewing technical information
. If you need to clean it, do so with a soft
cloth by wiping from the centre out-
ward.
. Do not use a DVD Laser Lens Cleaners
as they may cause the DVD player to
malfunction. The navigation system unit identification number
and the current map version can be located.
BASIC OPERATION1. Push
.
2. Highlight [Map Update] and push .
3. The unit Identification (Unit ID) number is displayed.
4. Push to return to the previous
screen. Push

Black plate (155,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
This displays GPS information, such as the
positioning status, latitude/longitude, altitude
and satellite locations.BASIC OPERATION1. Push .
2. Highlight [Others] and push .
3. Highlight [GPS Position] and push .
4. Push to return to the previous
screen. Push

Black plate (156,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-20
Viewing technical information

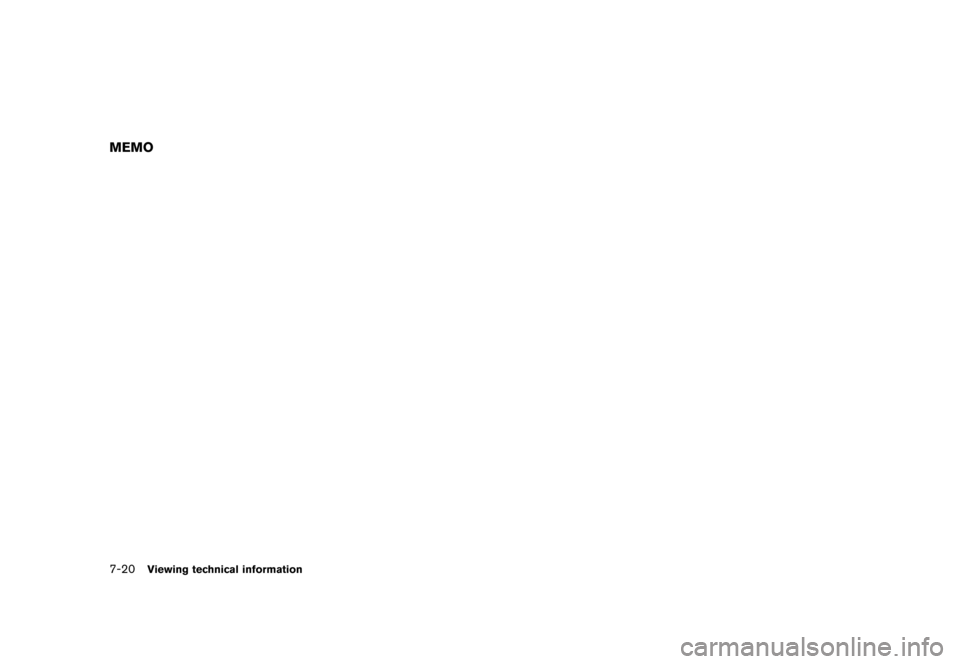

MEMO

Black plate (157,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8 Other settingsSettings screen ........................................................................\
. 8-2 Basic operation .................................................................... 8-2
Display settings ........................................................................\
. 8-3 Basic operation .................................................................... 8-3
Display adjustment .............................................................. 8-3
Basic operation .................................................................... 8-3
Setting color theme ............................................................ 8-5
Navigation setting ..................................................................... 8-6 Basic operation .................................................................... 8-6
Speed limit indication on map ......................................... 8-6 Other navigation settings ................................................ 8-7
Delete stored items ....................................................... 8-10
Reset all navigation settings to default .................... 8-10
Volume adjustment ................................................................ 8-11 Basic operation .............................................................. 8-11
Clock settings ........................................................................ 8-12 Basic operation .............................................................. 8-12
Language and unit settings ................................................ 8-13 Language settings ......................................................... 8-13
Unit settings .................................................................... 8-14

Black plate (158,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-2
Other settings
The navigation system can be customized to
make it easier for you to use.BASIC OPERATION1. Push .
2. Highlight the preferred setting item and push .Available setting items.[Navigation]:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-6)
. [Audio]:
Refer to the vehicle Owner’s Manual.
. [Phone]:
Refer to the vehicle Owner’s Manual.
. [Bluetooth]:
Set Bluetooth
®Audio and Phone.
Refer to the vehicle Owner’s Manual. .
[Volume and Beeps]:
“Volume adjustment” (page 8-11)
. [Rear Display] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Display]:“Display settings” (page 8-3)
. [Clock]:“Clock settings” (page 8-12)
. [Others]:
— [Comfort]: This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
— [Language and Units]:
“Language and unit settings”
(page 8-13)
— [Voice Recognition]:“System feedback announcement
modes” (page 9-20)
— [Camera] (if so equipped): Refer to the vehicle Owner’s Manual.
— [Sensor] (if so equipped): Adjust the parking sensor detection
sensitivity, etc.
Refer to the vehicle Owner’s Manual. — [Image Viewer]:
Refer to the vehicle Owner’s Manual.
INFO:
The displayed items vary depending on the
equipped options.
SETTINGS SCREEN

Black plate (159,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
This menu turns on and off the display, adjust
the image quality of the navigation screen and
change the color of the menu screen.BASIC OPERATION1. Push .
2. Highlight [Display] and push .
3. Highlight the preferred adjustment item and push .
INFO:
If a rear display is equipped, it is possible to
select [Display] after pushing ,
highlighting [Others] and then pushing
.
Available setting items.[Display Adjustment]
Turn on and off the display and adjust the
image quality of the navigation screen.
. [Color Theme]
Set the color of the menu screen.DISPLAY ADJUSTMENTThis menu turns on and off the display and
adjusts the image quality of the navigation
screen.
BASIC OPERATION1. Highlight [Display Adjustment] and push
.
2. Highlight the preferred adjustment item and push .
3. Use the multi-function controller to adjust to the preferred setting.
4. After setting, push or
to apply the setting.
5. Highlight to return to the previous
screen. Push

Black plate (160,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-4
Other settings
Available setting items. [Display]:
Turn on or off the screen.
“Display” (page 8-4)
. [Brightness]:
Adjust the screen brightness.“Brightness” (page 8-4)
. [Contrast]:
Adjust the screen contrast.“Contrast” (page 8-4)
. [Background Color]:
Set the background color.“Background color” (page 8-5)
DisplayTo turn off the display, push .
The display can also be turned off by pushing
and holding for more than
2 seconds.When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, push OFF> .
BrightnessAdjust the display brightness by rotating the
center dial in the [+] or [ ] direction on the multi-
function controller.
Each time [+] or [] is pushed, the display
brightness changes.ContrastAdjust the display contrast by rotating the center
dial in the [+] or [ ] direction on the multi-
function controller.
Each time [+] or [] is pushed, the display

Black plate (161,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

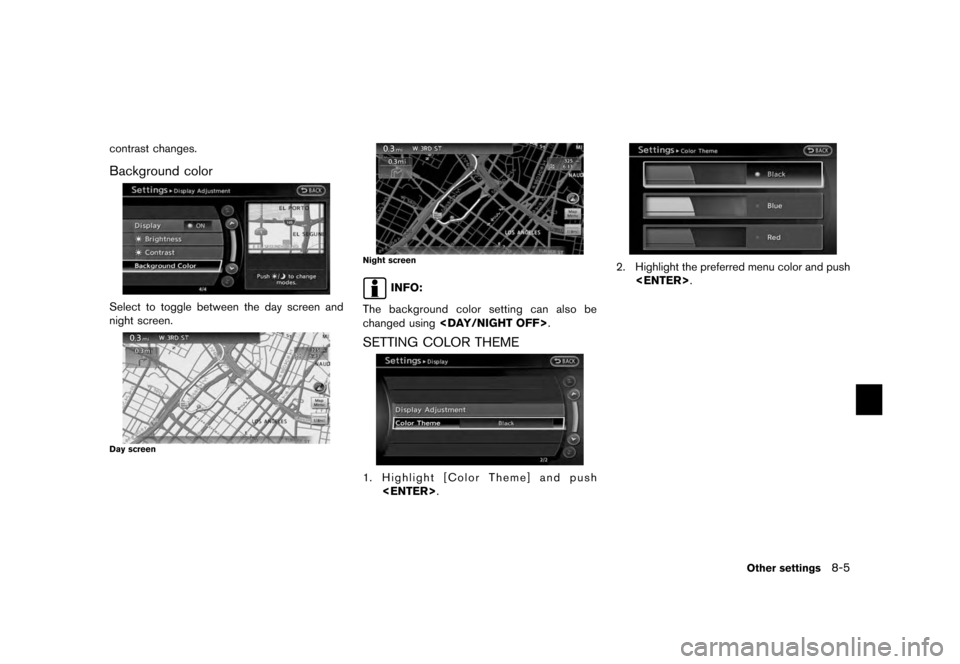

contrast changes.Background colorSelect to toggle between the day screen and
night screen.Day screen
Night screen
INFO:
The background color setting can also be
changed using .
SETTING COLOR THEME1. Highlight [Color Theme] and push
.
2. Highlight the preferred menu color and push
.
Other settings
8-5
