2012 NISSAN QUEST 08IT Navigation Manual

Black plate (178,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9-6
Voice recognition
Command ListCategory Command:Command Action
Navigation Operates Navigation function.
Phone Operates Phone function.
Information Displays vehicle Information function.
Audio Operates Audio function.
Help Displays User Guide.Navigation Command:CommandAction
Destination Home Sets a route to the home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route (for continental U.S. only).
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.Information Command:CommandAction
Fuel Economy Displays fuel economy information.
Trip Computer (if so equipped) Displays trip information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system on or off.
Where am I? Displays the current location.

Black plate (179,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

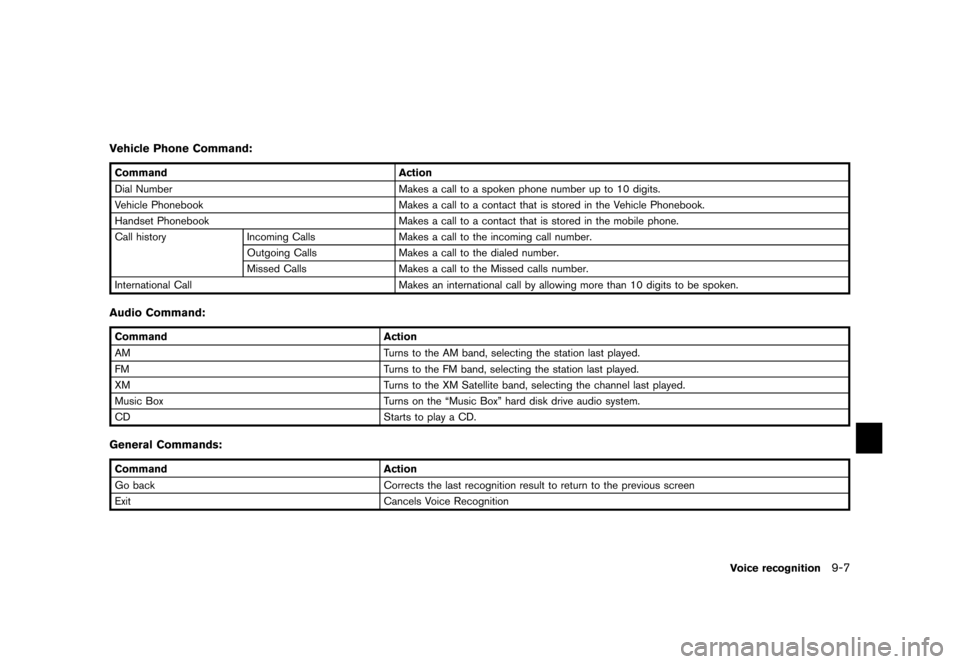

Vehicle Phone Command:Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.Audio Command:CommandAction
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.General Commands:CommandAction
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Voice recognition
9-7

Black plate (180,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9-8
Voice recognitionINFO:
Refer to the vehicle Owner’s Manual for the
operations related to phone, information and
audio.
VOICE COMMAND EXAMPLESTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that can be performed by voice
commands are described here.Example 1: Placing a call to the phone
number 800-662-62001. Push >located on the steering
wheel switch.
2. The system announces, “Would you like to
access Phone, Navigation, Information,
Audio or Help?”. 3. Speak “Phone”.
4. Speak “Dial Number”.5. Speak “800”.
6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”.7. The system announces, “Please say last fourdigits or say change number”. Speak
“6200”.8. The system announces, “Dial or ChangeNumber?”. Speak “Dial”.

Black plate (181,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9. The system makes a call to 800-662-6200.
INFO:
. Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits)
is acceptable, if the area code is not
necessary. However the 3-3-4 digit group-
ing is recommended for improved recogni-
tion.
“How to speak numbers” (page 9-20)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the “International Call” command.
. If “Change Number” is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts. .
Do not add a “1” in front of the area code
when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 2: Placing an international call
to the phone number 011-81-111-222-
33331. Push >located on the steering
wheel switch.
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Phone”.
4. Speak “International Call”.5. Speak “01181111222333”.
Voice recognition
9-9

Black plate (182,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9-10
Voice recognition
6. Speak “Dial”.7. The system makes a call to 011-81-111- 222-3333.
INFO:
Any digit input format is available in the
International Number input process.
Example 3: Setting a destination by a
street address1. Push >located on the steering
wheel switch.
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Navigation”.4. Speak “Address”.
INFO:
Press or touch [Help] to display
the user guide screen.
5. Speak the name of the state, “California”.
6. Speak the name of the city, “Gardena”.7. Voice feedback will be provided when the command is accepted, and the list of city
names is displayed.
8. After the tone sounds and the icon on the screen changes again, speak “One”.

Black plate (183,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

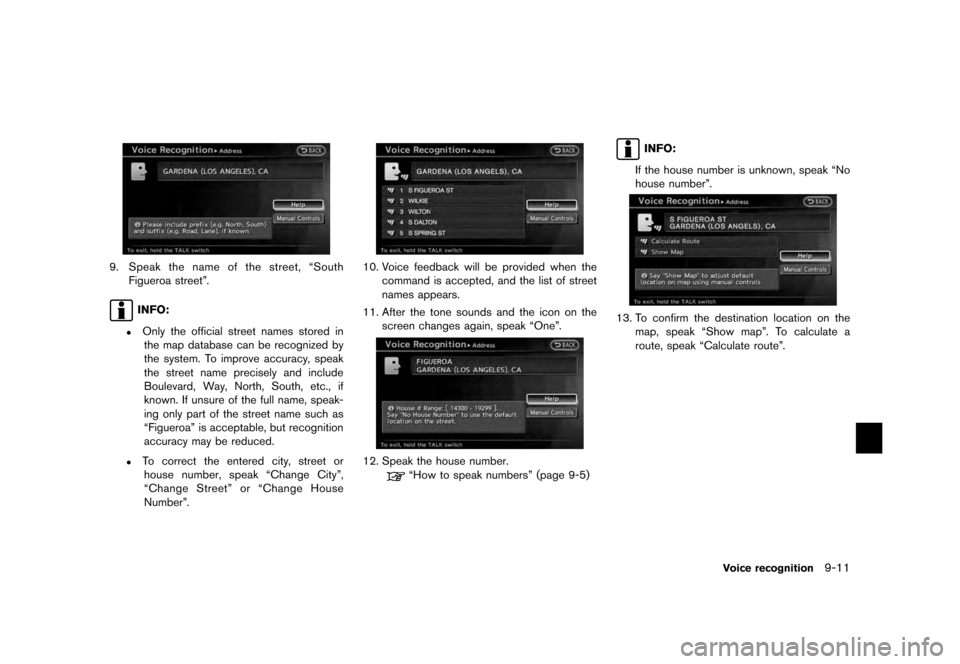

9. Speak the name of the street, “South Figueroa street”.
INFO:.
Only the official street names stored inthe map database can be recognized by
the system. To improve accuracy, speak
the street name precisely and include
Boulevard, Way, North, South, etc., if
known. If unsure of the full name, speak-
ing only part of the street name such as
“Figueroa” is acceptable, but recognition
accuracy may be reduced.
.
To correct the entered city, street orhouse number, speak “Change City”,
“Change Street” or “Change House
Number”.
10. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak “One”.12. Speak the house number.
“How to speak numbers” (page 9-5)
INFO:
If the house number is unknown, speak “No
house number”.
13. To confirm the destination location on the map, speak “Show map”. To calculate a
route, speak “Calculate route”.
Voice recognition
9-11

Black plate (184,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9-12
Voice recognition
The following section is applicable when Alter-
nate Command Mode is active.
“Setting alternate command mode”
(page 9-21)
When Alternate Command Mode is active, an
expanded list of commands can be used after
pushing >. In this mode, available
commands are not fully shown on the display or
prompted. Review the expanded command list,
available when this mode is active. See exam-
ples of Alternate Command Mode screens.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition perfor-
mance.
“Confirming voice commands”
(page 9-12)
DISPLAYING HOW TO OPERATE
VOICE RECOGNITION SYSTEMWhen operating the voice recognition system
for the first time or if help is preferred to use the
system, the Command List (available only in
Alternate Command Mode) or the User Guide
are available.
Basic operation1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push .
4. Highlight the preferred item and push .
Available items: . [Command List]:
A list of voice commands that the system
can accept is displayed.
. [User Guide]:
A simplified operation manual of the voice
recognition system can be displayed and
how to use the voice commands can be
confirmed.
INFO:
The Command List feature is only available when
Alternate Command Mode is active.
Confirming voice commandsWhen controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm using the voice
command lists.
The following information describes how to
display the navigation command list and the
help list. For information about the operations of
other functions, refer to the vehicle Owner’s
Manual.
Example: Displaying the navigation com-
mand list:
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push .
ALTERNATE COMMAND MODE

Black plate (185,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4. Highlight [Command List] and push .5. Highlight the preferred item and push
.
Available items:
.
Phone Commands
.
Navigation Commands
.
Information Commands
.
Audio Commands
.
Help Commands
6. To confirm the list, scroll the screen using the multi-function controller.
7. Push to return to the previous
screen.
Voice recognition
9-13
