2012 NISSAN QUEST 08IT Navigation Manual

Black plate (10,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-2
Getting started

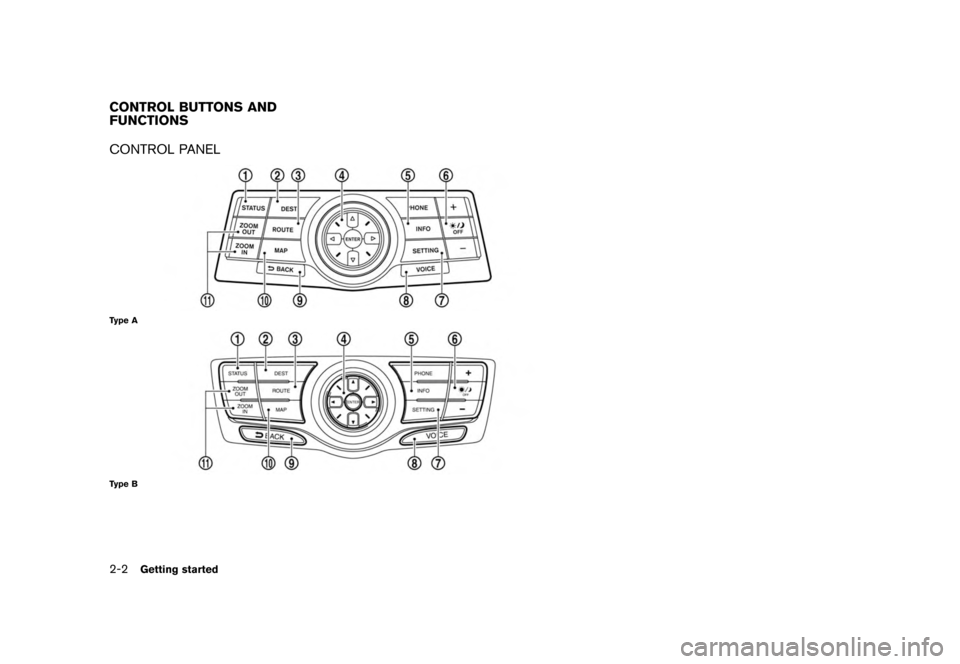

CONTROL PANELType AType BCONTROL BUTTONS AND
FUNCTIONS

Black plate (11,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Type C*1
:
Push multiple times to display audio in-
formation with either the air conditioner
status, fuel economy or navigation direc-
tions.
*2
:
Push to enter a destination. Various meth-
ods for entering a destination are available.
“4. Setting destination”
*3
:
Push to access guidance control functions
(guidance cancellation, route priority, way-
point setting on the route, etc.) .
*4
Multi-function controller:
Turn to highlight an item on the screen,
push to select the highlighted item or scroll
the map.
*5
:
Push to display the vehicle, traffic, weather
or voice recognition information.
*6

:
Push to switch between the day screen
(bright) and the night screen (dark) . Push
and hold to turn off the display. Push again
to turn on the display.
*7
:
Push to access the system settings.
*8
:
Push to hear the current guidance for a
programmed route.
*9
:
Push to return to the previous screen. In a
settings screen, this button can also be
used to apply the setting. In a character input screen, this button can
also delete the characters that have been
entered.
*10

Black plate (12,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-4
Getting started
MULTI-FUNCTION CONTROLLER
With Directional buttons*1
:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2
Main directional buttons:
Use to move across the map, highlight an
item on the screen or adjust a setting
(volume, brightness, etc.) .
*3
Additional directional buttons:
Use to move across the map or highlight an
item on the character input screen.
*4
Center dial:
Turn to highlight an item on the screen or
adjust a setting.
Turn the center dial on the map screen. The
map scale is displayed. Use the center dial
to adjust the map scale.
Without Directional buttons*1
:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2
Center dial/Slide switch:
Center dial
Turn to highlight an item on the screen or
adjust a setting. The center dial can also be used to adjust
the map scale.
Slide switch
Slide (push upward/downward/leftward/
rightward) to select an item on the screen
or to adjust a setting (volume, brightness,
etc.)
The map can be scrolled in 8 directions by
sliding this switch.
STEERING WHEEL SWITCHType A

Black plate (13,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Type B*1
:
Tilt to highlight an item on the screen or
adjust a setting. Push to select the high-
lighted item.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
“Map menu screen” (page 2-16)
Push and hold while a map or status screen
is shown to display the Start Menu.“Start menu” (page 2-11)
If this button is tilted up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
*2
<
> :
Push this button during a setting operation
to return to the previous screen. In a
settings screen, this button can also be
used to apply the setting.
*3
<+
> :
Use to adjust the volume. These buttons
have the same function as that of the
volume control knob. Refer to the vehicle
Owner’s Manual.
*4
> :
Push to start the voice recognition mode. If
the voice recognition mode is already
activated, pushing this button cancels the
voice guidance and you can speak a voice
command immediately.
*5
<
> :
Push to display the phone mode screen.
Refer to the vehicle Owner’s Manual.
*6
:
Use to switch the audio mode (source) .
Refer to the vehicle Owner’s Manual. The navigation system starts when the ignition
switch is placed in the ACC or ON position.
NOTE:
Do not keep the navigation system on with
the engine stopped. Doing so may dis-
charge the vehicle battery. When you use
the navigation system, always keep the
engine running.
Getting started
2-5
STARTING THE SYSTEM

Black plate (14,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-6
Getting started
By pushing at anytime, you can
display a split screen with audio information that
is always at the top. Each time is
pushed, the bottom part of the screen changes
between air conditioner, fuel economy or navi-
gation directions.
INFO:
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
When a route to the destination is set and the
audio system is on, a screen similar to the one
above appears.*1
Turning direction at the next intersection
*2
Name of the next street
*3
Distance to the next intersection
*4
Distance remaining to the destination
*5
Remaining time to the destination
When a route to the destination is not set and
the audio system is off, a screen similar to the
one above appears.
NAVIGATION SYSTEM STATUS
SCREEN

Black plate (15,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
To ensure safe driving, some functions cannot
be operated or have limited operation when the
vehicle driving speed is above 5 MPH (8 km/h) .
The on-screen text and keys for these restricted
functions will be "grayed-out" or muted and
cannot be selected while driving. In some cases,
a screen message will appear indicating a
restricted function.
Restricted functions while driving include: . Character (letter and number) input screen
during destination entry (street address,
phone number, freeway entrance/exit, inter-
section, city center)
. Places search by name and city name
. Scrolling and viewing of certain navigation
lists
. Adding/editing address book entries
. Adding/editing home location
. Storing current position, information, desti-
nations
These functions will become available again
when the vehicle speed is reduced to 5 MPH (8
km/h) .
Destination functions available while driving
include:
Getting started
2-7
FUNCTIONS DISABLED WHILE
DRIVING

Black plate (16,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-8
Getting started

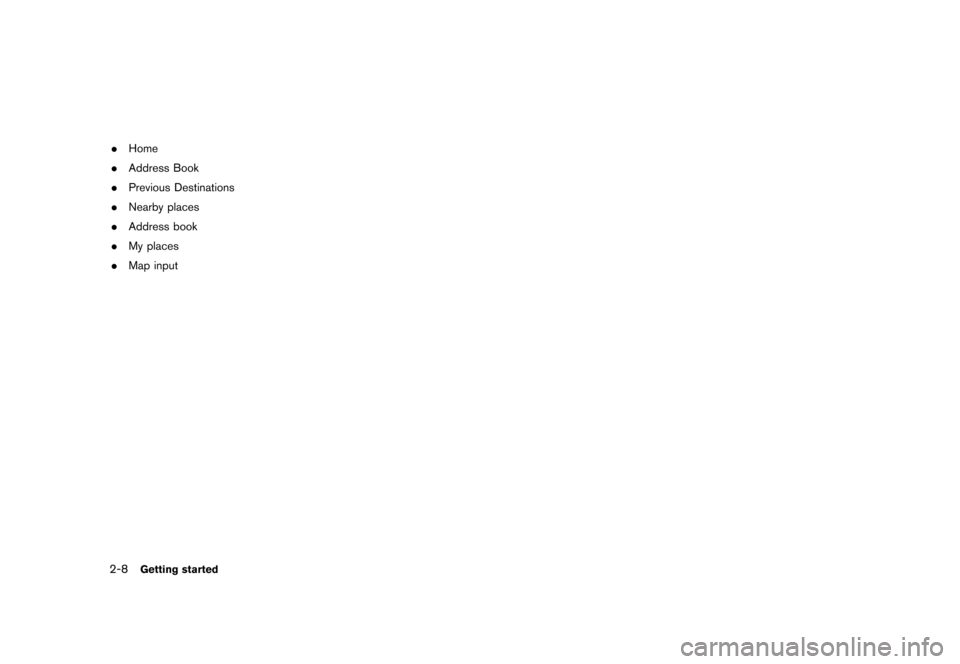

. Home
. Address Book
. Previous Destinations
. Nearby places
. Address book
. My places
. Map input

Black plate (17,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
MENU SCREENS AND THEIR PUR-
POSESPush , , ,
or (if so equipped)
to display the corresponding menu screen.How to select a menu itemExample: screen
1. Highlight the preferred menu item using the multi-function controller.
2. To select the preferred menu item, highlight the item and push . The next
screen is displayed. 3. Push
to return to the previous
screen without applying any changes.
Push
