2012 NISSAN QUEST 08IT Navigation Manual

Black plate (90,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-6
Route guidance
1. Select [Place Info] and push .2. Information about the location is displayed.
3. Push to return to the previous
screen.
INFO:
. If [Call] is displayed on the right side of the
screen, it is possible to call the location
indicated.
. The Bluetooth
®Hands-Free Phone system
is required to be active and the cellular phone must be connected to call the
location indicated.
. Information about locations is not displayed
while driving.

Black plate (91,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates through the guide points using visual and
voice guidance.
CAUTION
. The navigation system’s visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. When driving along the suggested
route, follow all traffic regulations
(e.g., one-way traffic) .
“Route guidance” (page 10-9)
VOICE GUIDANCE DURING ROUTE
GUIDANCEWhen approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push
to repeat voice guidance.
Example of voice guidance*1
“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
*2
“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
*3
“In about one mile (1.6 kilometers) , exit on
your right.”
“Exit on your right.”
*4
“You have arrived at your destination. End-
ing route guidance.”
GUIDANCE SCREENS AND PREVIEW
MODERoute guidance displays map screens and
various information according to the situation.
Route guidance
5-7
ABOUT ROUTE GUIDANCE

Black plate (92,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-8
Route guidance
When route guidance starts, the Small Turn
Arrow on Map is displayed in the upper left
corner of the map screen. This arrow indicates
the turning direction at the next guide point
(corner or intersection) . The distance is also
displayed. At the top of the screen, the distance
to the next guide point and the name of the next
street to turn on to are displayed. Also, there
may be cases that next street names are
announced. The Small Turn Arrow on Map can
be enabled or disabled by the user.
“Displaying small turn arrow on map”
(page 5-28)
Enlarged intersection viewWhen approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection in the
left screen. After passing through the intersec-
tion, the system automatically returns to the full
screen mode. To switch to the full screen mode
while the enlarged intersection view is dis-
played, push

Black plate (93,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
GUIDANCE SCREEN SETTINGSThe guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. The screen to be displayed
can be set.Split screen settingsThe display setting on the left-hand side screen
shown during route guidance can be changed.1. Push while the current location
map screen is displayed.
2. Highlight [Map View ] and push .
3. Highlight [View Settings] and push
.
4. Highlight the preferred screen and push . The indicator of the selected
screen illuminates.
Intersection:The map screen and the enlarged intersection
view can be displayed at the same time.
Push

Black plate (94,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-10
Route guidance
Fuel Economy:The current fuel consumption rate, average fuel
consumption rate, instantaneous fuel consump-
tion rate and distance to empty can be displayed
on the map screen. An enlarged intersection
view is automatically displayed when the vehicle
approaches the guide point.
Push

Black plate (95,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4. Highlight [Show all Freeway Exits on Route] or [Auto. Show Turn List on Freeway] and
push . The indicator illuminates
when the item is set.
5. Push

Black plate (96,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

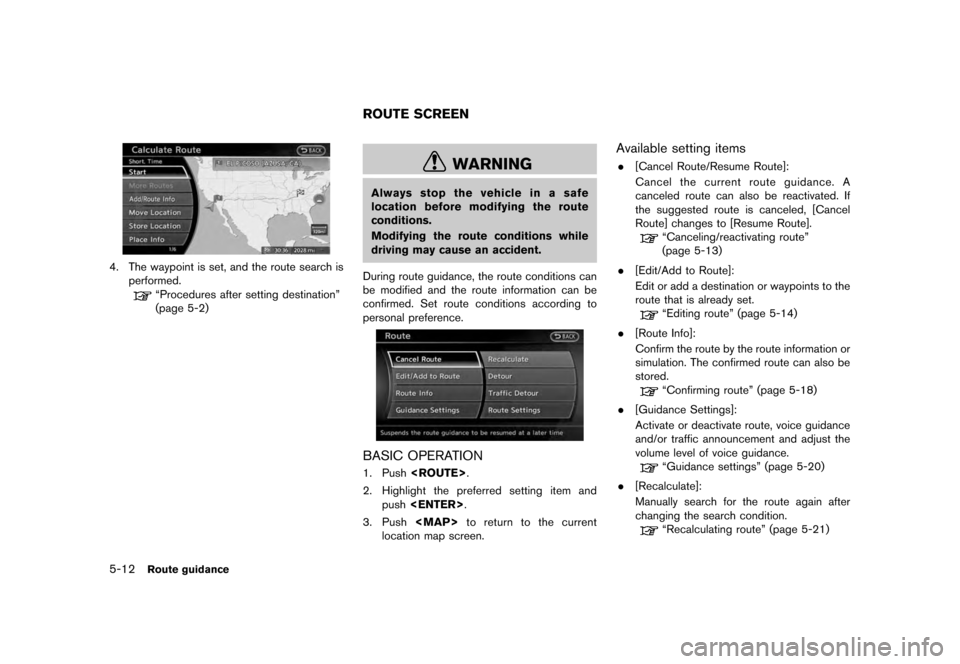

5-12
Route guidance
4. The waypoint is set, and the route search is performed.
“Procedures after setting destination”
(page 5-2)
WARNING
Always stop the vehicle in a safe
location before modifying the route
conditions.
Modifying the route conditions while
driving may cause an accident.
During route guidance, the route conditions can
be modified and the route information can be
confirmed. Set route conditions according to
personal preference.BASIC OPERATION1. Push .
2. Highlight the preferred setting item and push .
3. Push

Black plate (97,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
. [Detour]:
To detour from the suggested route, calcu-
late a route detouring for a specified
distance.
“Setting detour route” (page 5-22)
. [Traffic Detour]:
Manually search for an alternative detour
route taking the traffic information into
consideration.“Searching for detour route taking
traffic information into consideration”
(page 5-22)
. [Route Settings]:
Change the route calculation conditions
anywhere along the route.“Setting conditions for route calcula-
tion” (page 5-23)
CANCELING/REACTIVATING ROUTEA route that is already set can be canceled at
any time. If a route is canceled, the destination
and waypoints are also deleted.
It is also possible to reactivate a canceled route.
Canceling route1. Push .
2. Highlight [Cancel Route] and push .3. A confirmation message is displayed.
Highlight [Yes] and push .
The route is canceledd along with the
destination and waypoints.
INFO:
Canceling a route does not delete destination
and waypoint information completely.“Delete destination” (page 4-20)Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command. To cancel a route:
“Cancel Route” (Alternate Command Mode)
Reactivating route1. Push .
2. Highlight [Resume Route] and push .
Route guidance
5-13
