2012 NISSAN ALTIMA COUPE display

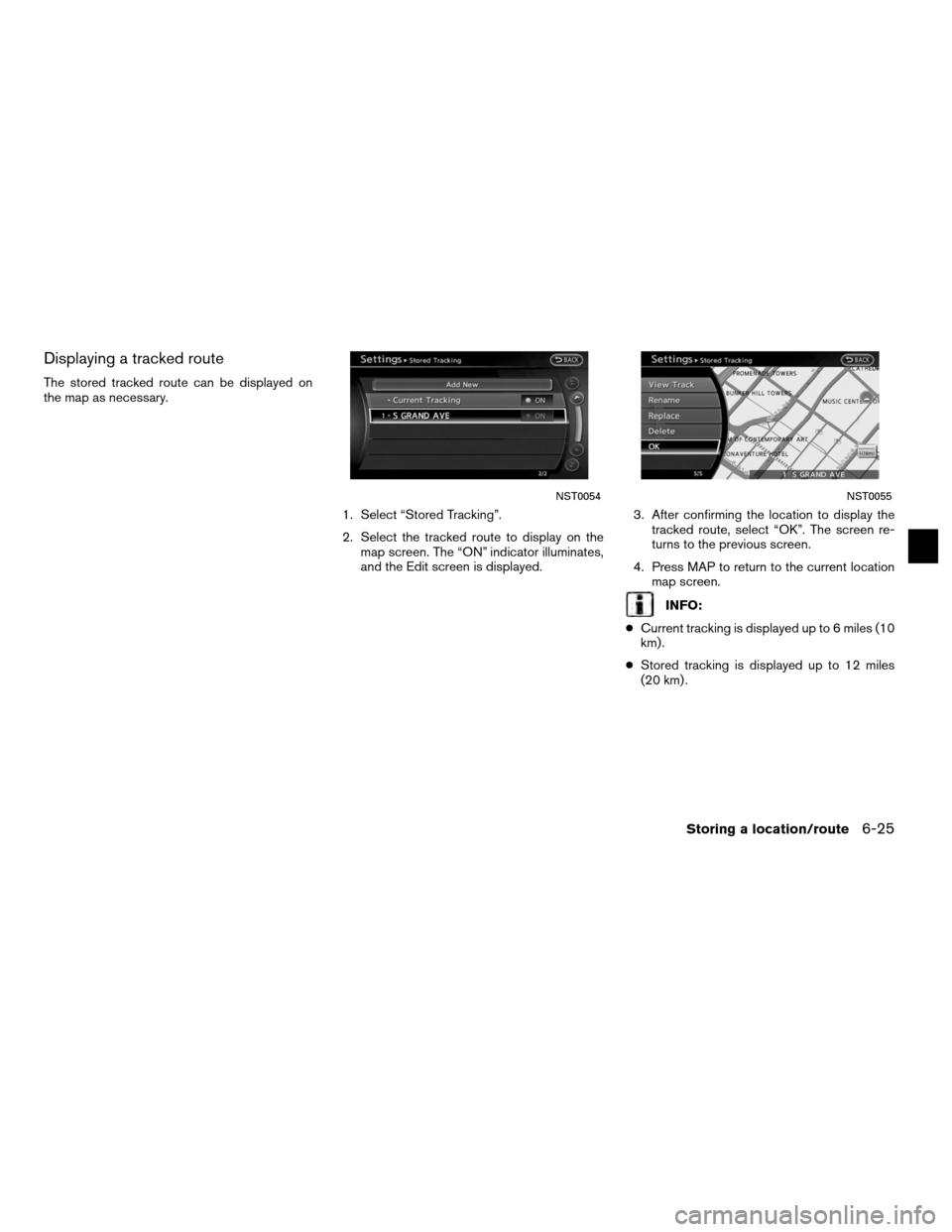

Displaying a tracked route
The stored tracked route can be displayed on
the map as necessary.1. Select “Stored Tracking”.
2. Select the tracked route to display on themap screen. The “ON” indicator illuminates,
and the Edit screen is displayed. 3. After confirming the location to display the
tracked route, select “OK”. The screen re-
turns to the previous screen.
4. Press MAP to return to the current location map screen.
INFO:
● Current tracking is displayed up to 6 miles (10
km) .
● Stored tracking is displayed up to 12 miles
(20 km) .
NST0054NST0055
Storing a location/route6-25

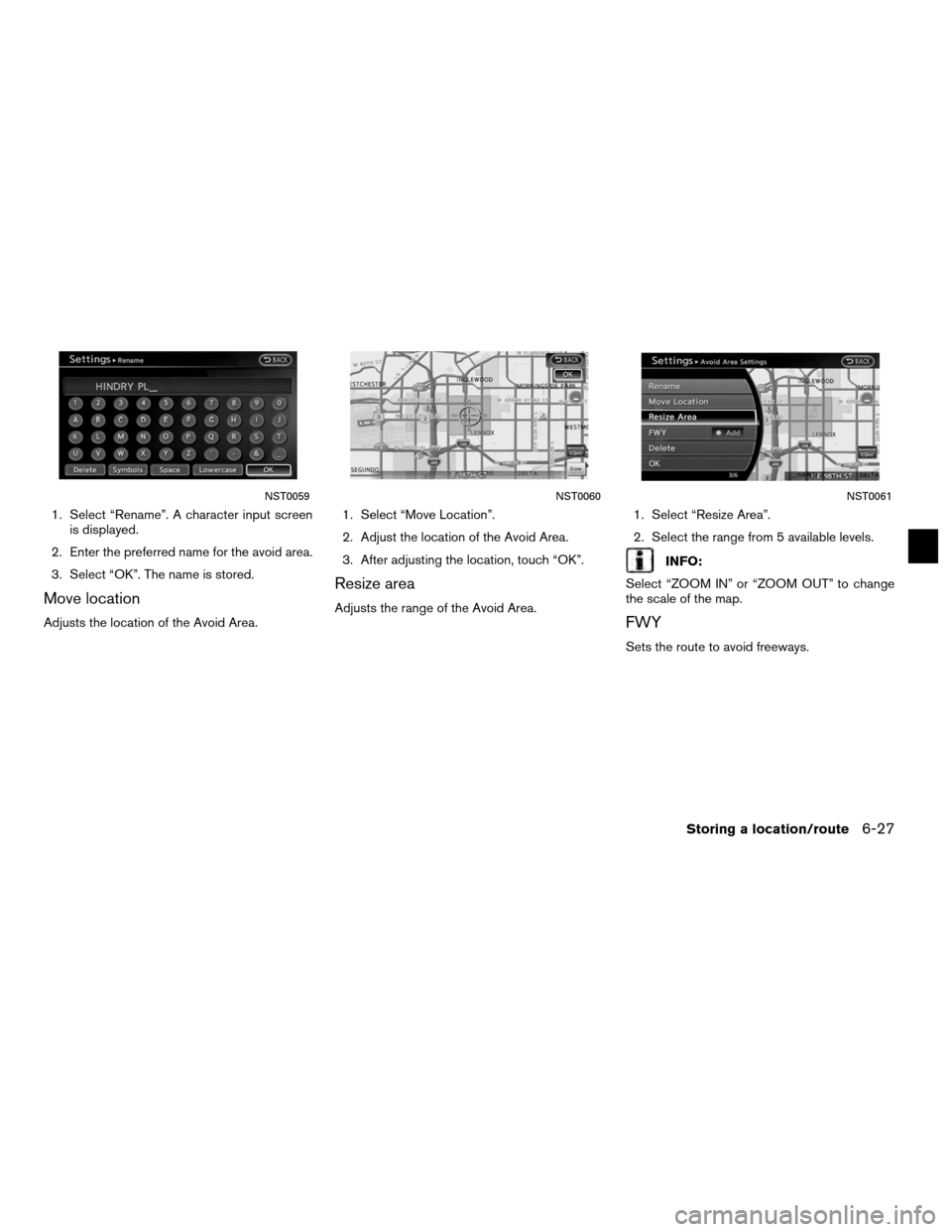

1. Select “Rename”. A character input screenis displayed.
2. Enter the preferred name for the avoid area.
3. Select “OK”. The name is stored.
Move location
Adjusts the location of the Avoid Area. 1. Select “Move Location”.
2. Adjust the location of the Avoid Area.
3. After adjusting the location, touch “OK”.
Resize area
Adjusts the range of the Avoid Area.
1. Select “Resize Area”.
2. Select the range from 5 available levels.
INFO:
Select “ZOOM IN” or “ZOOM OUT” to change
the scale of the map.
FWY
Sets the route to avoid freeways.
NST0059NST0060NST0061
Storing a location/route6-27

1. Select “FWY”.To include freeways in the Avoid Area,
touch the key on the screen to illuminate
this indicator. 2. The Avoid Area is displayed in green if it in-
cludes a freeway or in blue if it does not in-
clude a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route guidance.
Delete
Deletes the Avoid Area. 1. Select “Delete”.
NST0062NST0063NST0064
6-28Storing a location/route

2. A confirmation message is displayed. Con-firm the contents of the message, select
“Yes”. The stored item is deleted from the
Address Book. The locations and routes in the Address Book
can be deleted. Two deletion methods are avail-
able: deleting an individual item and deleting all
stored items.
NOTE:
Deleted items cannot be restored. Before
deleting an item, always make sure that
the item is truly not necessary.
DELETING A STORED ITEM INDI-
VIDUALLY
You can delete stored addresses, routes, track-
ing and avoid areas individually. 1. Press SETTING.
2. Select “Navigation”.
NST0065NST0066
DELETING A STORED ITEM
Storing a location/route6-29

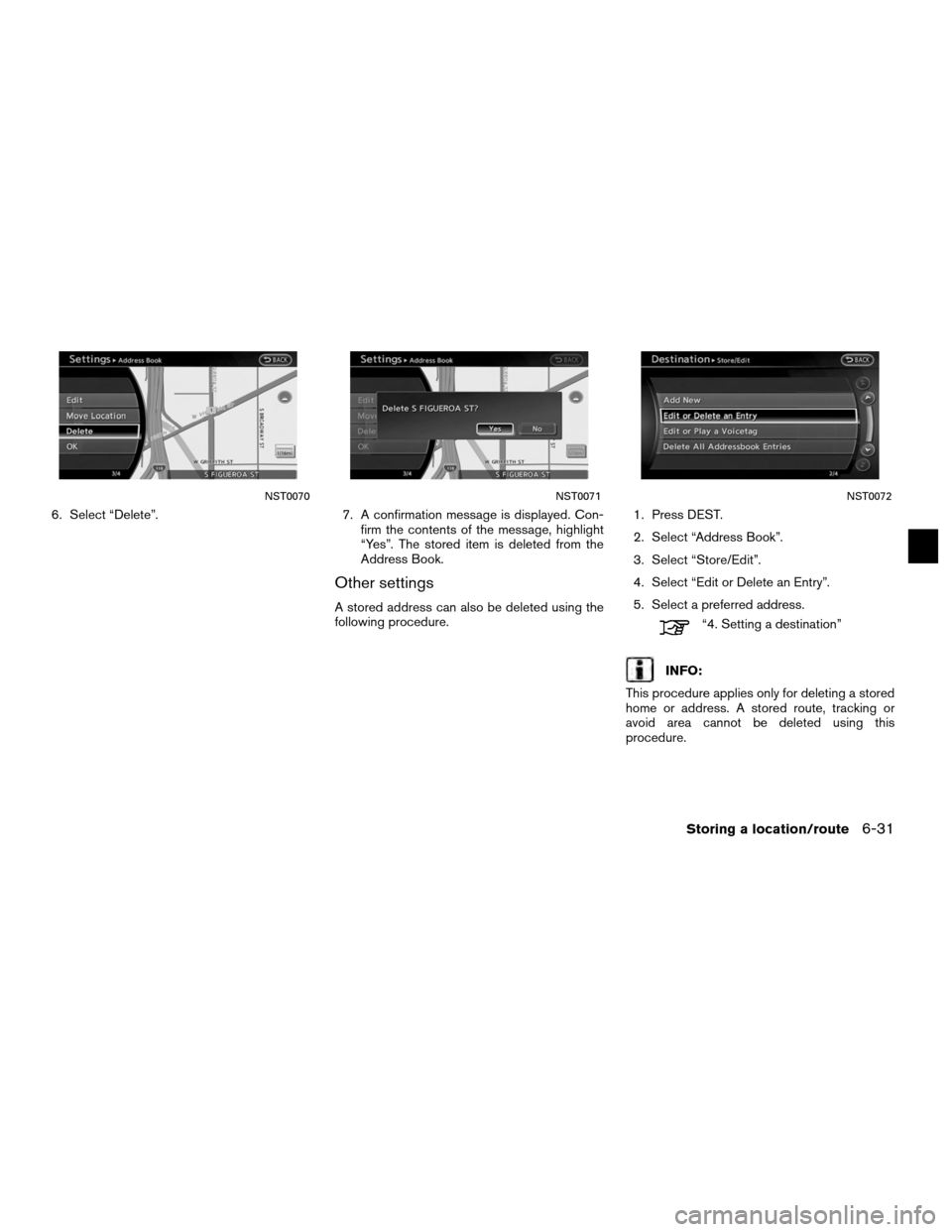

6. Select “Delete”.7. A confirmation message is displayed. Con-
firm the contents of the message, highlight
“Yes”. The stored item is deleted from the
Address Book.
Other settings
A stored address can also be deleted using the
following procedure. 1. Press DEST.
2. Select “Address Book”.
3. Select “Store/Edit”.
4. Select “Edit or Delete an Entry”.
5. Select a preferred address.
“4. Setting a destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this
procedure.
NST0070NST0071NST0072
Storing a location/route6-31

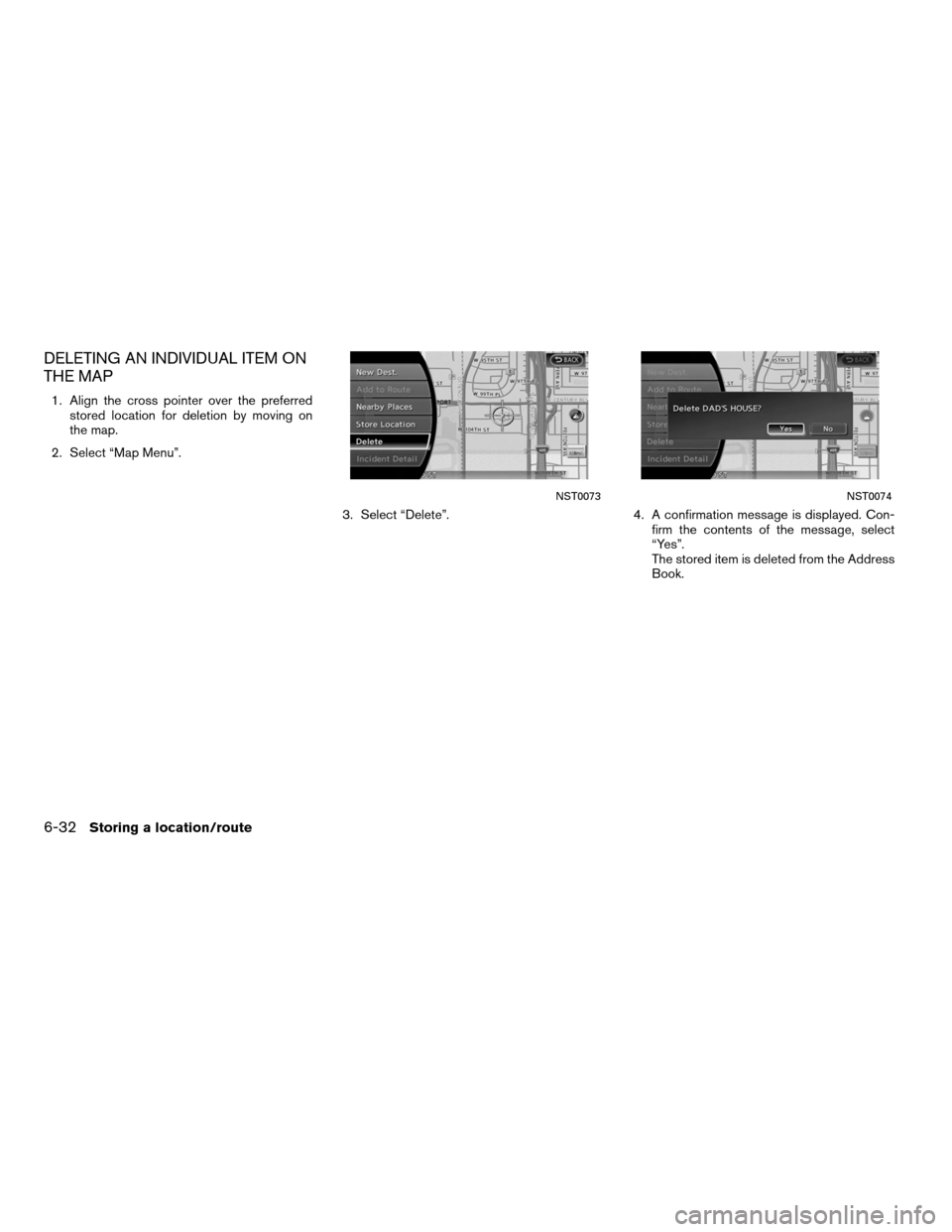

DELETING AN INDIVIDUAL ITEM ON
THE MAP
1. Align the cross pointer over the preferredstored location for deletion by moving on
the map.
2. Select “Map Menu”.
3. Select “Delete”.4. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”.
The stored item is deleted from the Address
Book.
NST0073NST0074
6-32Storing a location/route

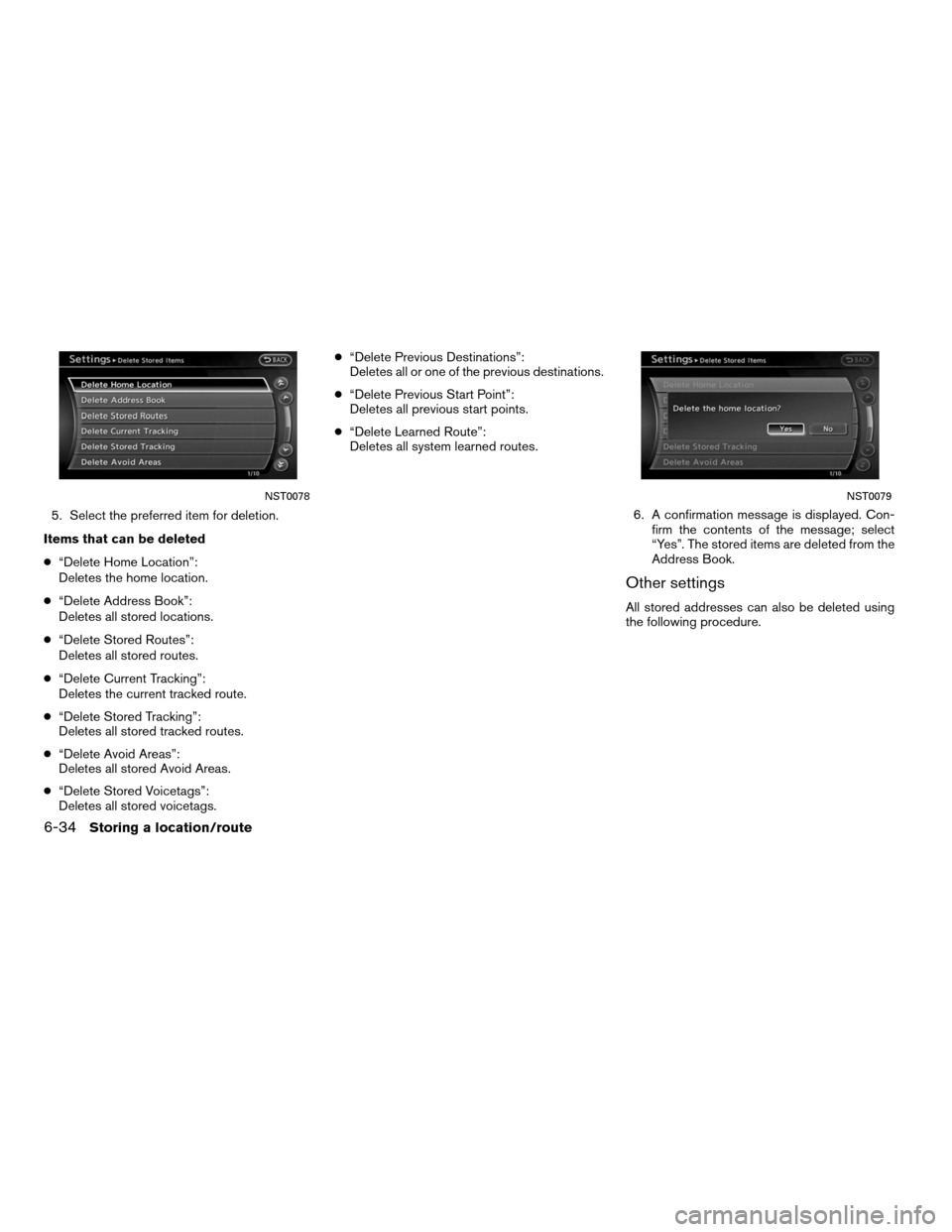

5. Select the preferred item for deletion.
Items that can be deleted
● “Delete Home Location”:
Deletes the home location.
● “Delete Address Book”:
Deletes all stored locations.
● “Delete Stored Routes”:
Deletes all stored routes.
● “Delete Current Tracking”:
Deletes the current tracked route.
● “Delete Stored Tracking”:
Deletes all stored tracked routes.
● “Delete Avoid Areas”:
Deletes all stored Avoid Areas.
● “Delete Stored Voicetags”:
Deletes all stored voicetags. ●
“Delete Previous Destinations”:
Deletes all or one of the previous destinations.
● “Delete Previous Start Point”:
Deletes all previous start points.
● “Delete Learned Route”:
Deletes all system learned routes.
6. A confirmation message is displayed. Con-firm the contents of the message; select
“Yes”. The stored items are deleted from the
Address Book.
Other settings
All stored addresses can also be deleted using
the following procedure.
NST0078NST0079
6-34Storing a location/route

6. Select a stored item. The “ON” indicatorilluminates. 7. Select “Download”.
INFO:
● Do not remove the USB memory until
the system completely imports or ex-
ports the data.INFO:
If the USB memory already has the data for a
stored address, a confirmation message is
displayed. Once overwritten, the original data
cannot be recovered.
NST0083NST0084NST0085
Storing a location/route6-37
