2012 MITSUBISHI LANCER EVOLUTION Owners Manual

2-54 Seat and restraint systems
2

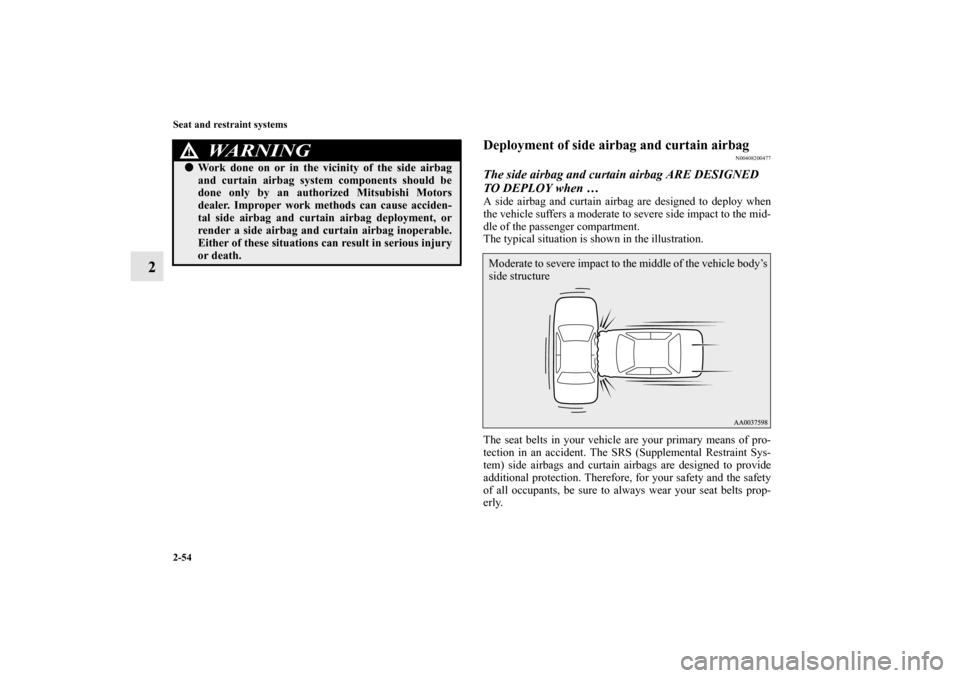

Deployment of side airbag and curtain airbag
N00408200477
The side airbag and curtain airbag ARE DESIGNED
TO DEPLOY when … A side airbag and curtain airbag are designed to deploy when
the vehicle suffers a moderate to severe side impact to the mid-
dle of the passenger compartment.
The typical situation is shown in the illustration.
The seat belts in your vehicle are your primary means of pro-
tection in an accident. The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain airbags are designed to provide
additional protection. Therefore, for your safety and the safety
of all occupants, be sure to always wear your seat belts prop-
erly.

Work done on or in the vicinity of the side airbag
and curtain airbag system components should be
done only by an authorized Mitsubishi Motors
dealer. Improper work methods can cause acciden-
tal side airbag and curtain airbag deployment, or
render a side airbag and curtain airbag inoperable.
Either of these situations can result in serious injury
or death.
WA R N I N G
!
Moderate to severe impact to the middle of the vehicle body’s
side structure
BK0142300US.book 54 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Seat and restraint systems
2-55
2

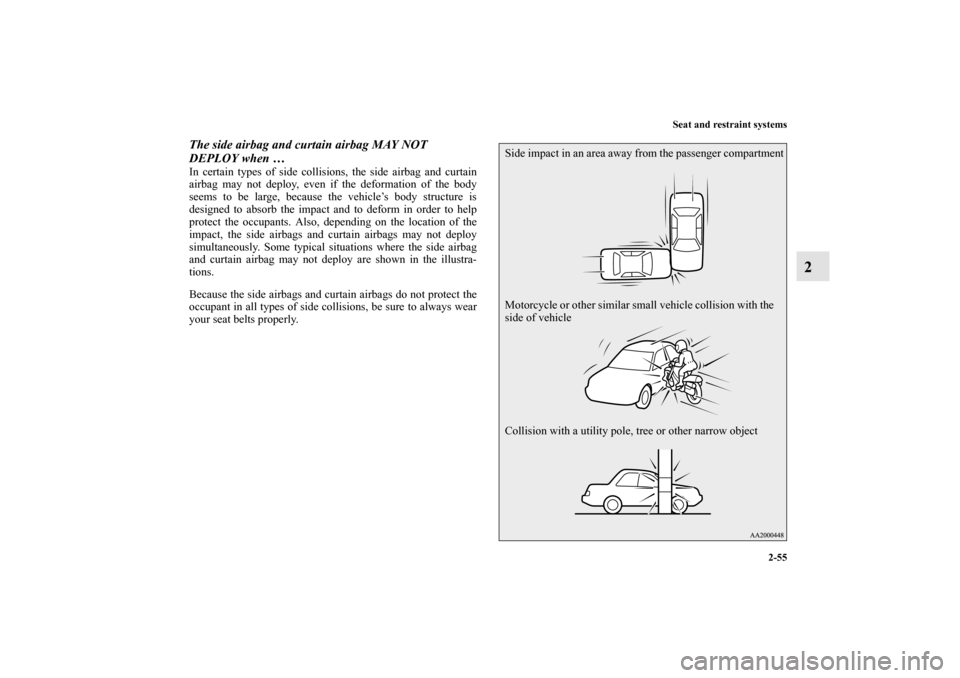

The side airbag and curtain airbag MAY NOT
DEPLOY when … In certain types of side collisions, the side airbag and curtain
airbag may not deploy, even if the deformation of the body
seems to be large, because the vehicle’s body structure is
designed to absorb the impact and to deform in order to help
protect the occupants. Also, depending on the location of the
impact, the side airbags and curtain airbags may not deploy
simultaneously. Some typical situations where the side airbag
and curtain airbag may not deploy are shown in the illustra-
tions.
Because the side airbags and curtain airbags do not protect the
occupant in all types of side collisions, be sure to always wear
your seat belts properly.
Side impact in an area away from the passenger compartment
Motorcycle or other similar small vehicle collision with the
side of vehicle
Collision with a utility pole, tree or other narrow object
BK0142300US.book 55 ページ ２０１１年８月７日　日曜日　午前１０時４４分

2-56 Seat and restraint systems
2

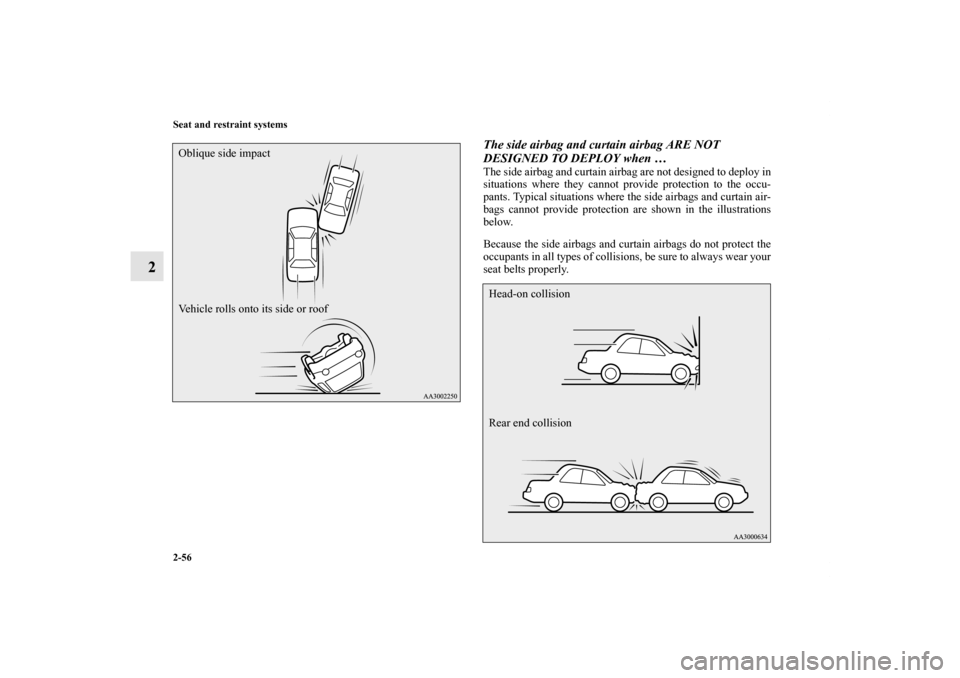

The side airbag and curtain airbag ARE NOT
DESIGNED TO DEPLOY when …The side airbag and curtain airbag are not designed to deploy in
situations where they cannot provide protection to the occu-
pants. Typical situations where the side airbags and curtain air-
bags cannot provide protection are shown in the illustrations
below.
Because the side airbags and curtain airbags do not protect the
occupants in all types of collisions, be sure to always wear your
seat belts properly.
Oblique side impact
Vehicle rolls onto its side or roof
Head-on collision
Rear end collision
BK0142300US.book 56 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Seat and restraint systems
2-57
2
SRS servicing
N00408500672
NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized
Mitsubishi Motors dealer for assistance.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
WA R N I N G
!
Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental airbag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.
Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.
If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.

Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side airbag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.
If you find a crack in or damage to the front pillar,
rear pillar, or roof side rail where the curtain airbag
is located, have the SRS inspected by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
BK0142300US.book 57 ページ ２０１１年８月７日　日曜日　午前１０時４４分

2-58 Seat and restraint systems
2

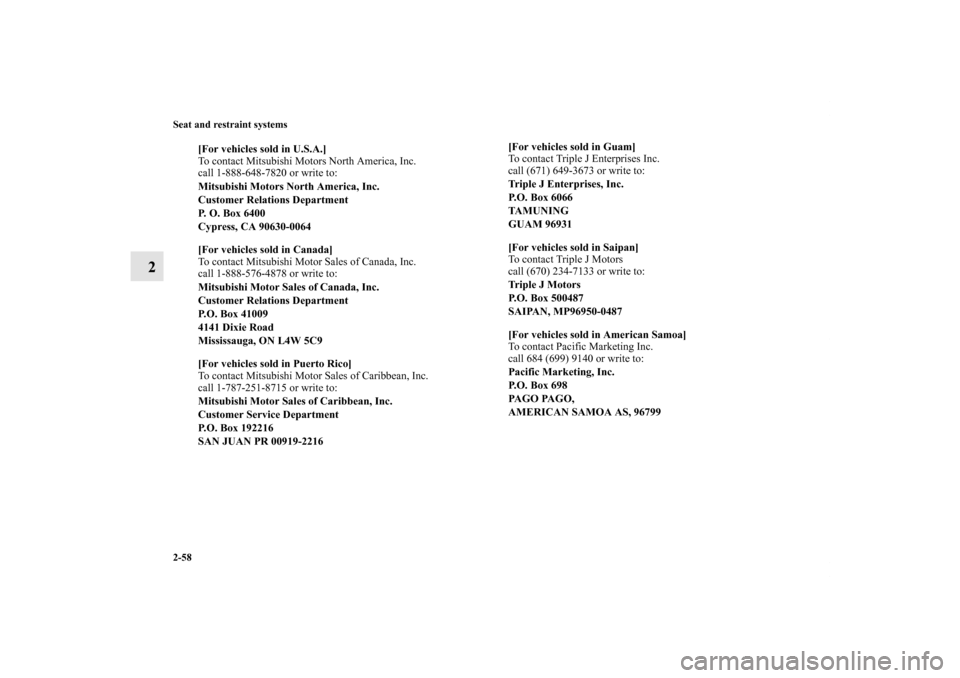

[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-787-251-8715 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Triple J Motors
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P. O . B o x 6 9 8
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0142300US.book 58 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Seat and restraint systems
2-59
2
Warning labels
N00408600309
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
* - Located in the passenger’s side as well.
BK0142300US.book 59 ページ ２０１１年８月７日　日曜日　午前１０時４４分

BK0142300US.book 60 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3
Features and controls
Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 62
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 68
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 72
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 75
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 82
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 86
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Clutch pedal operation (if so equipped). . . . . . . . . . . . . . . . . . . 3- 91
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 92
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 95
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 116
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 117
S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . 3- 119
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 125
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Limited-slip differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 132Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Brake assist system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 136
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 150
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 184
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 199
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 201
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 212
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 220
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 221
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 222
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 248
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Ashtray (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 261
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 266
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 267
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
