2012 MITSUBISHI LANCER EVOLUTION Owners Manual

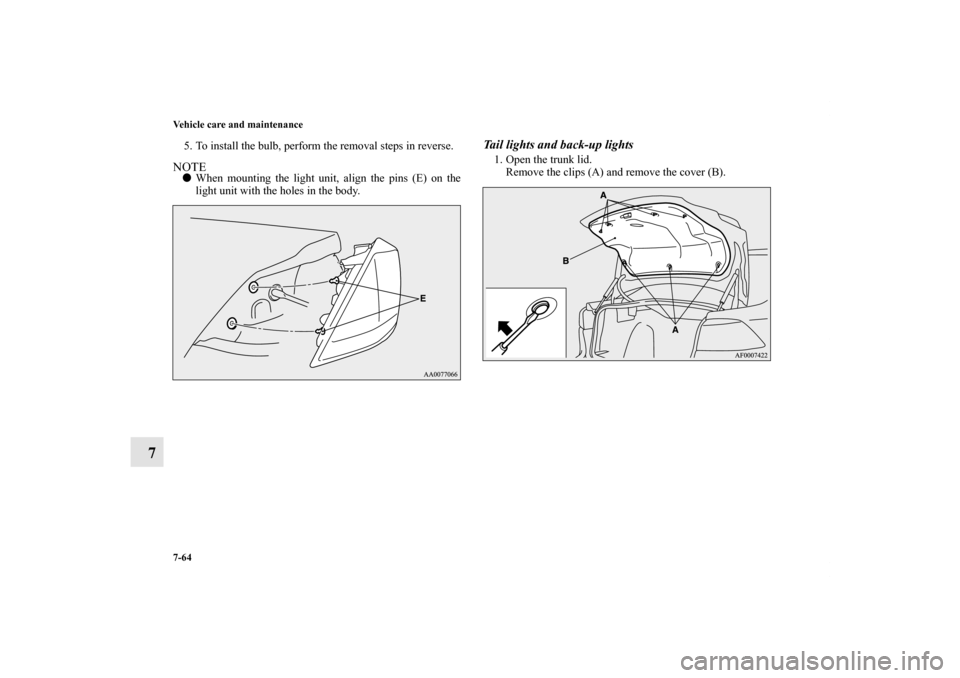

7-64 Vehicle care and maintenance
7
5. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the pins (E) on the
light unit with the holes in the body.
Tail lights and back-up lights1. Open the trunk lid.
Remove the clips (A) and remove the cover (B).
BK0142300US.book 64 ページ ２０１１年８月７日　日曜日　午前１０時４４分

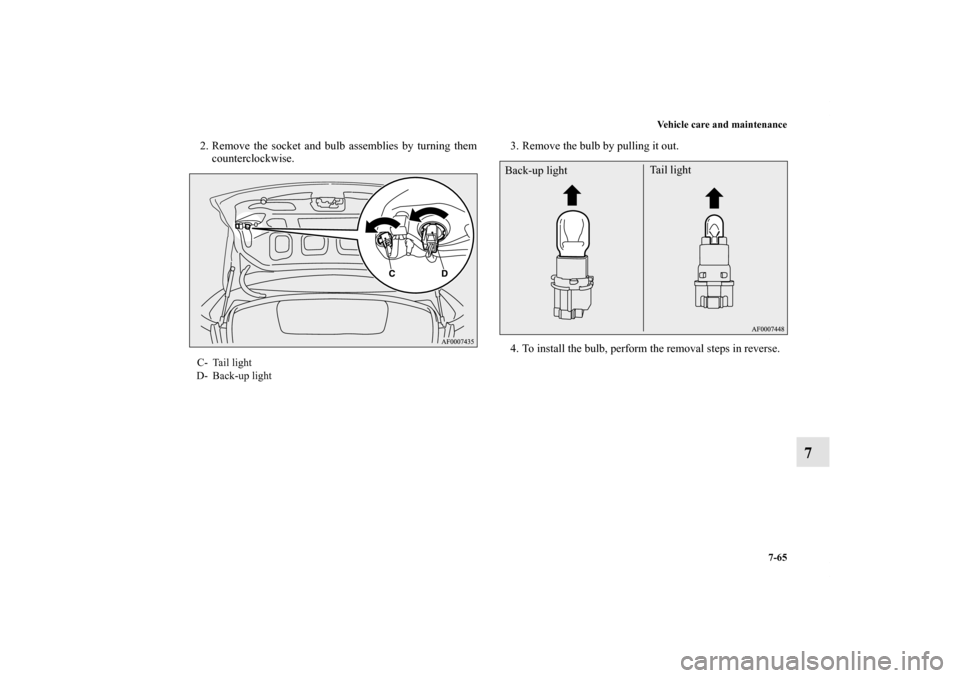

Vehicle care and maintenance
7-65
7
2. Remove the socket and bulb assemblies by turning them
counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.C- Tail light
D- Back-up light
Back-up lightTail light
BK0142300US.book 65 ページ ２０１１年８月７日　日曜日　午前１０時４４分

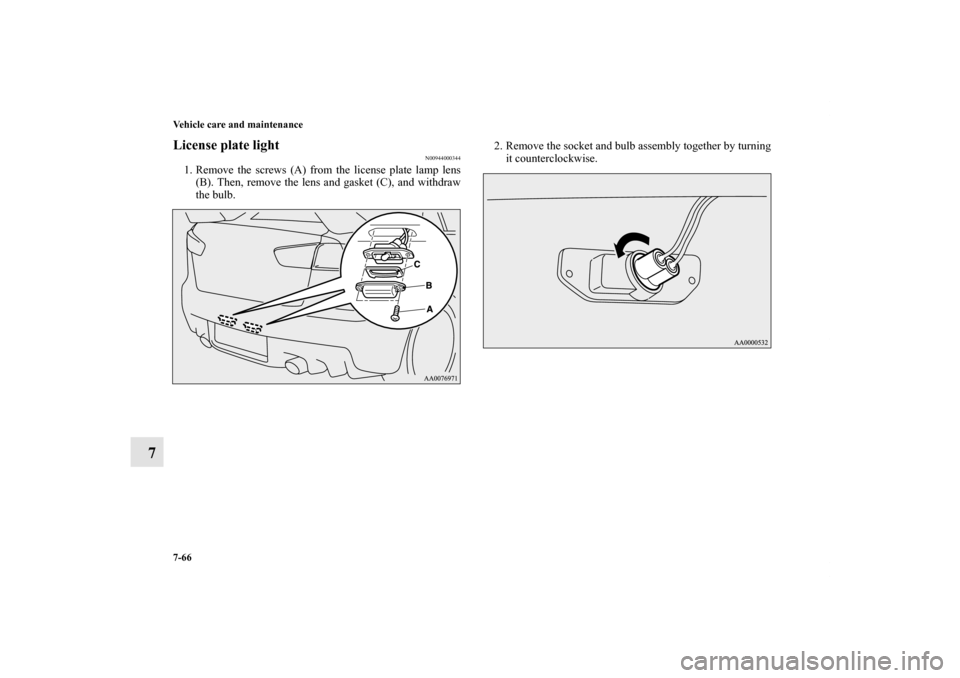

7-66 Vehicle care and maintenance
7
License plate light
N00944000344
1. Remove the screws (A) from the license plate lamp lens
(B). Then, remove the lens and gasket (C), and withdraw
the bulb.2. Remove the socket and bulb assembly together by turning
it counterclockwise.
BK0142300US.book 66 ページ ２０１１年８月７日　日曜日　午前１０時４４分

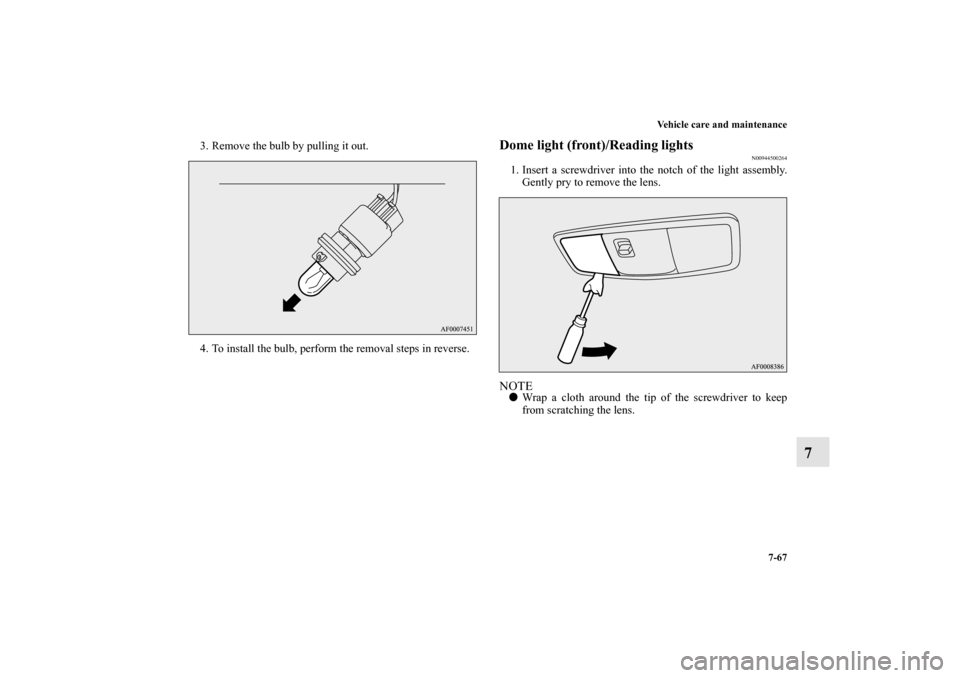

Vehicle care and maintenance
7-67
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Dome light (front)/Reading lights
N00944500264
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0142300US.book 67 ページ ２０１１年８月７日　日曜日　午前１０時４４分

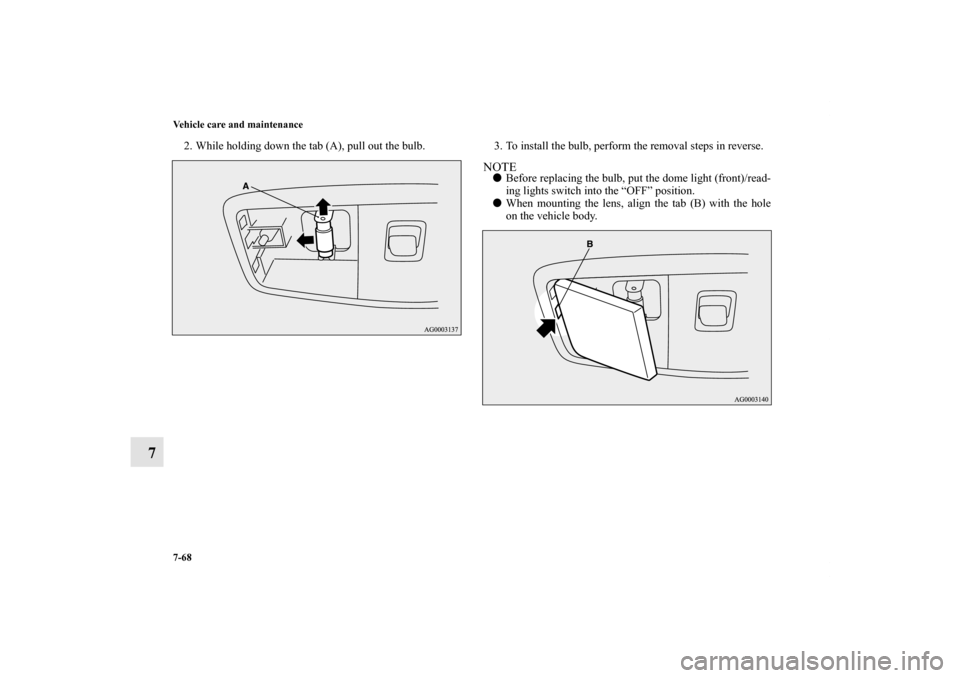

7-68 Vehicle care and maintenance
7
2. While holding down the tab (A), pull out the bulb. 3. To install the bulb, perform the removal steps in reverse.
NOTE
Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.

When mounting the lens, align the tab (B) with the hole
on the vehicle body.
BK0142300US.book 68 ページ ２０１１年８月７日　日曜日　午前１０時４４分

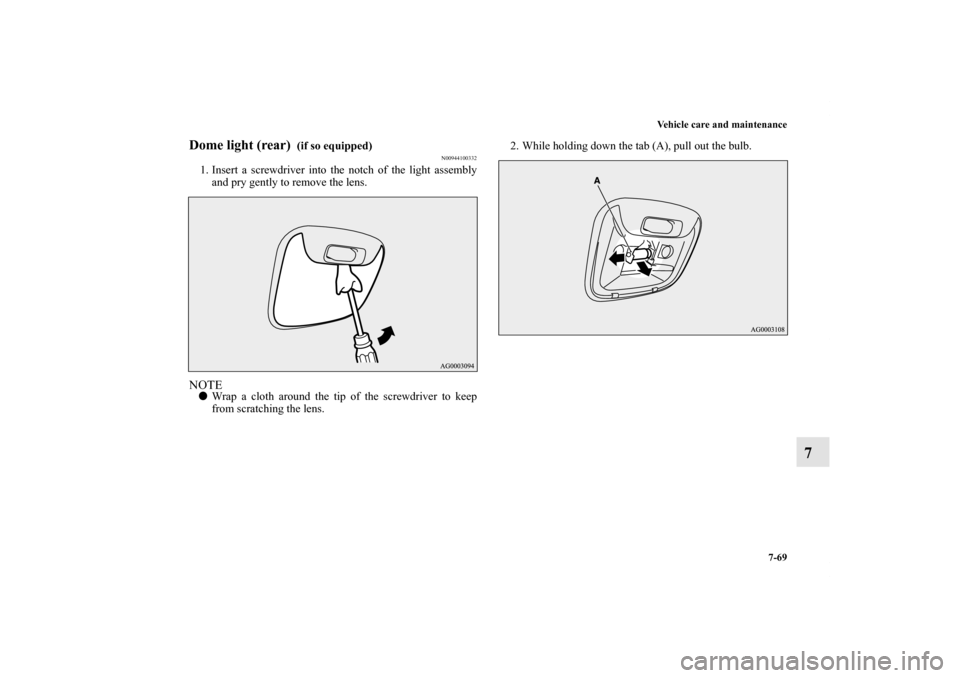

Vehicle care and maintenance
7-69
7
Dome light (rear)
(if so equipped)
N00944100332
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
BK0142300US.book 69 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-70 Vehicle care and maintenance
7
3. To install the bulb, perform the removal steps in reverse.NOTE
Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.

When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
Trunk area light
N00944800094
1. Pull both clips (A) away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.
2. To install the bulb, perform the removal steps in reverse.
BK0142300US.book 70 ページ ２０１１年８月７日　日曜日　午前１０時４４分

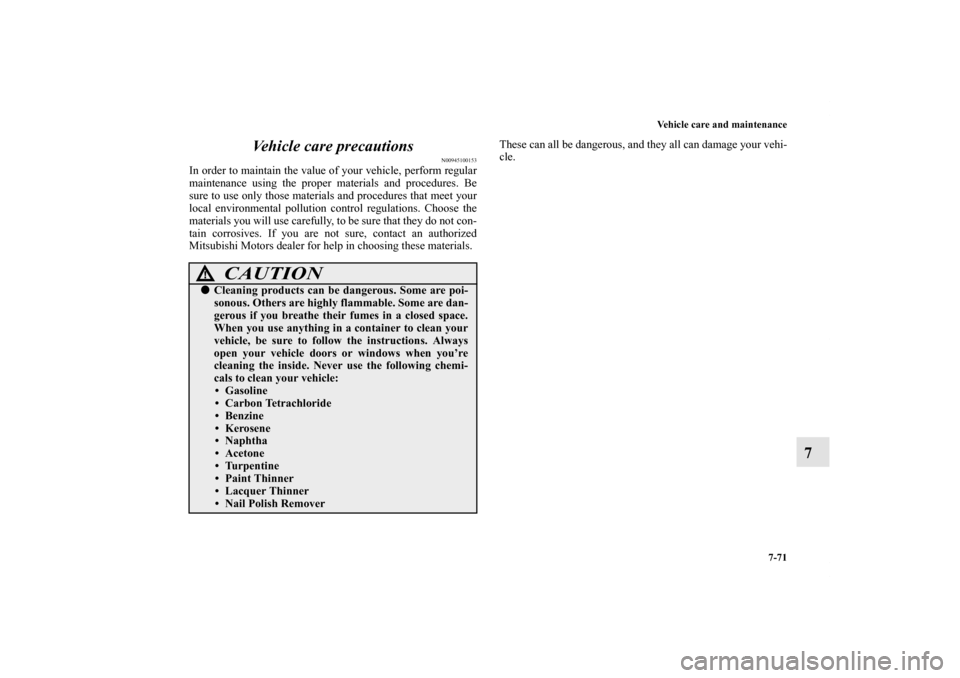

Vehicle care and maintenance
7-71
7 Vehicle care precautions
N00945100153
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized
Mitsubishi Motors dealer for help in choosing these materials. These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
