2012 MITSUBISHI LANCER EVOLUTION Owners Manual

3-58 Features and controls
3Trunk lid
N00509500188
WA R N I N G
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
WA R N I N G
!
It is dangerous to drive with the trunk lid open since
carbon monoxide (CO) gas can enter the cabin. CO
is an invisible, odorless gas that can cause uncon-
sciousness and even death.
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. If
trapped in the trunk, it is possible to escape from the
trunk by using the inside emergency trunk release
lever. (See “Inside emergency trunk lid release” on
page 3-61.)
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0142300US.book 58 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-59
3
To openOperation from outside the vehicleUsing the remote control transmitter
Press the trunk button (Vehicles with keyless entry system or
F.A.S.T.-key) or OPEN switch (Vehicles with F.A.S.T.-key).
(See “Keyless entry system” on page 3-9, 3-43 or “Free-hand
Advanced Security Transmitter (F.A.S.T.-key)” on page 3-17.)
The trunk lid will pop up slightly. Lift it to open the trunk.Operation from inside the vehicleTo open the trunk, pull up the trunk lid release lever, located to
the left of the driver’s seat.
NOTE
The trunk area light comes on when the trunk lid is
opened, and goes out when it is closed.

The trunk area light remains illuminated for a certain
period and then goes off automatically. Refer to “Interior
light auto-cutout function (dome light and other lights)”
on page 3-261.
CAUTION
!
Do not use the trunk lid release lever while the vehi-
cle is moving. If the trunk lid is opened, objects in
the trunk could fall onto the road and cause an acci-
dent.
BK0142300US.book 59 ページ ２０１１年８月７日　日曜日　午前１０時４４分

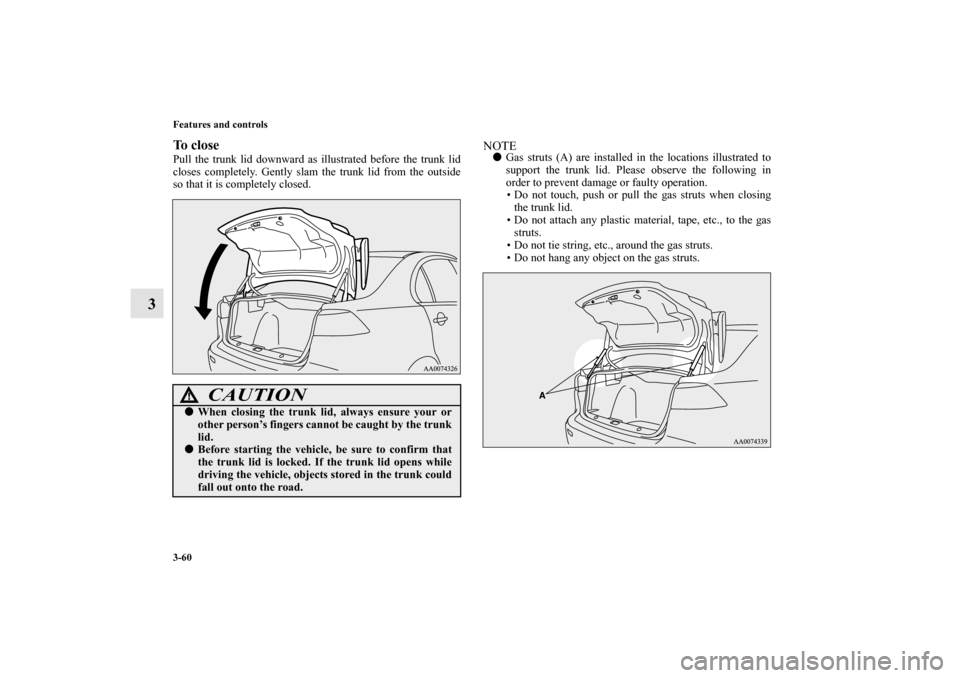

3-60 Features and controls
3
To closePull the trunk lid downward as illustrated before the trunk lid
closes completely. Gently slam the trunk lid from the outside
so that it is completely closed.
NOTE
Gas struts (A) are installed in the locations illustrated to
support the trunk lid. Please observe the following in
order to prevent damage or faulty operation.
• Do not touch, push or pull the gas struts when closing
the trunk lid.
• Do not attach any plastic material, tape, etc., to the gas
struts.
• Do not tie string, etc., around the gas struts.
• Do not hang any object on the gas struts.
CAUTION
!
When closing the trunk lid, always ensure your or
other person’s fingers cannot be caught by the trunk
lid.
Before starting the vehicle, be sure to confirm that
the trunk lid is locked. If the trunk lid opens while
driving the vehicle, objects stored in the trunk could
fall out onto the road.
BK0142300US.book 60 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-61
3 Inside emergency trunk lid release
N00509800178
The emergency trunk lid release is designed to provide a way
to open the trunk lid from inside the trunk. It was developed to
help prevent death and serious injuries to children who might
become locked inside a vehicle trunk.
The emergency trunk lid release lever (see illustration) is
mounted on the trunk lid.
The lever glows in the dark after exposure to sunlight.You and your family should familiarize yourselves with the
location and operation of the emergency trunk lid release lever.
Children should be taught not to play in or around vehicles.
WA R N I N G
!
Children should never be left unsupervised in or
around vehicles.
Unsupervised children could lock themselves in an
open vehicle or trunk.
People trapped inside a vehicle or trunk, even if only
for a short period of time, can quickly die from suf-
focation or heat stroke, especially on hot days. Inte-
rior temperatures in vehicles can rise in minutes.
Keep your vehicle doors locked and the trunk lid
closed when not in use. Keep your vehicle keys away
from children.
BK0142300US.book 61 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-62 Features and controls
3
To open the trunk from the inside, move the lever (A) in the
direction of the arrow on the lever. Push up on the trunk lid to
open the trunk and climb out.
Theft-alarm system
N00510200202
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.Armed stagePark the vehicle and stop the engine. Arm the system as
described below.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Make sure that the trunk lid and engine hood are closed.
CAUTION
!
When loading the trunk, place your things so that
they will not touch the emergency trunk lid release
lever when you close the trunk. Otherwise you could
damage the lever and make it unusable.
CAUTION
!
Do not modify or add parts to the theft-alarm sys-
tem.
Doing so could cause the theft-alarm to malfunction.
BK0142300US.book 62 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-63
3
3. Lock all doors by either the keyless entry system or the
F.A.S.T.-key operation.At this time, the theft-alarm indicator (A) on the audio
panel flashes for confirmation.
4. The system has entered the armed stage after about 20
seconds, when the theft-alarm indicator (A) flashing
becomes slower.
The theft-alarm indicator (A) continues to flash while the
system is in the armed stage.
NOTE
If the engine hood or the trunk lid is open, the theft-alarm
indicator (A) illuminates and the system cannot enter the
armed stage. The system enters the armed stage about 20
seconds after the engine hood or the trunk lid is closed.

The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors are unlocked by the key-
less entry system, the F.A.S.T.-key operation.
Arm the system and leave
BK0142300US.book 63 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-64 Features and controls
3

The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON” position.

The system will not be armed if a door or the trunk lid or
the engine hood is not completely closed. If this happens,
rearm the system as described above.

The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.

For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the keyless entry system or the
F.A.S.T.-key operation, the theft-alarm system may be
malfunctioning.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors) is deactivated,
the turn signal lights do not flash after the locking and
unlocking operation.
For information on the answerback function, refer to
“Keyless entry system” on pages 3-9, 3-43 and “To oper-
ate using the F.A.S.T.-key” on page 3-21.

For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• Suffering a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle incli-
nation detection function and the interior intrusion
detection function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-62.

For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
BK0142300US.book 64 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-65
3
Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.

One of the doors is opened without using the keyless entry
system or the F.A.S.T.-key operation.

The engine hood or the trunk lid is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.

Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)

Detect a motion in the vehicle. (the interior intrusion
detection function)

Disconnect the battery terminal.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.Horn or siren sounds!
Headlights blink on and off!
