3-196 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
N00520200191
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.
Warning lights
N00520300147
Brake warning light
N00520400483
This light comes on when the ignition switch is turned to the
“ON” position (engine off).
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.NOTE
Under conditions such as sporty driving, the brake fluid in
the tank may move and the warning light may come on
temporarily.
If the warning light goes out after a while, there is not a
problem with the brake system and the vehicle can be
driven normally.
BK0142300US.book 196 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-46 Vehicle care and maintenance
7
Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300616
[Except for vehicles with high intensity discharge headlights][For vehicles with high intensity discharge headlights]
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1- Front turn signal
light 21 W WY21W
2-
Headlight, high beam 60 W9005
HB3Front
3- Headlight, low beam 51 W9006
HB4
4- Front fog light 55 W H11
5- Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1- Front turn signal
light 21 W WY21W
2-Daytime running
light27 W
32 cp1156
3-Headlight, low/high
beam (Discharge
bulb)35 W —
4- Front fog light 55 W H11
5- Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
BK0142300US.book 46 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-47
7
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a discharge headlight or to replace the
bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe electrical shock.
Description
Wattage
ANSI Trade
No. or Bulb
type
7- High-mounted stop
light——
8- License plate light 5 W W5W
9- Back-up light 21 W W21W
10- Tail light 5 W W5W
11- Tail and stop light 21/5 W W21/5W
12- Rear turn signal
light21 W W21W
13- Rear side-marker
light5 W W5WRear
BK0142300US.book 47 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-49
7
Headlights (low beam, except for vehicles with
high intensity discharge headlights)
N00901800105
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).*- Front of the vehicle
*- Front of the vehicle
BK0142300US.book 49 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-50 Vehicle care and maintenance
7
3. Turn the bulb (C) counterclockwise, and then remove the
headlight bulb with holder.4. While pressing the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0142300US.book 50 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-51
7
Headlights (high beam, except for vehicles with
high intensity discharge headlights)
N00901900076
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0142300US.book 51 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-53
7
Headlights (low/high beam, for vehicles with high
intensity discharge lights)
N00902000016
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice
whenever repair or replacement is necessary.
BK0142300US.book 53 ページ ２０１１年８月７日　日曜日　午前１０時４４分

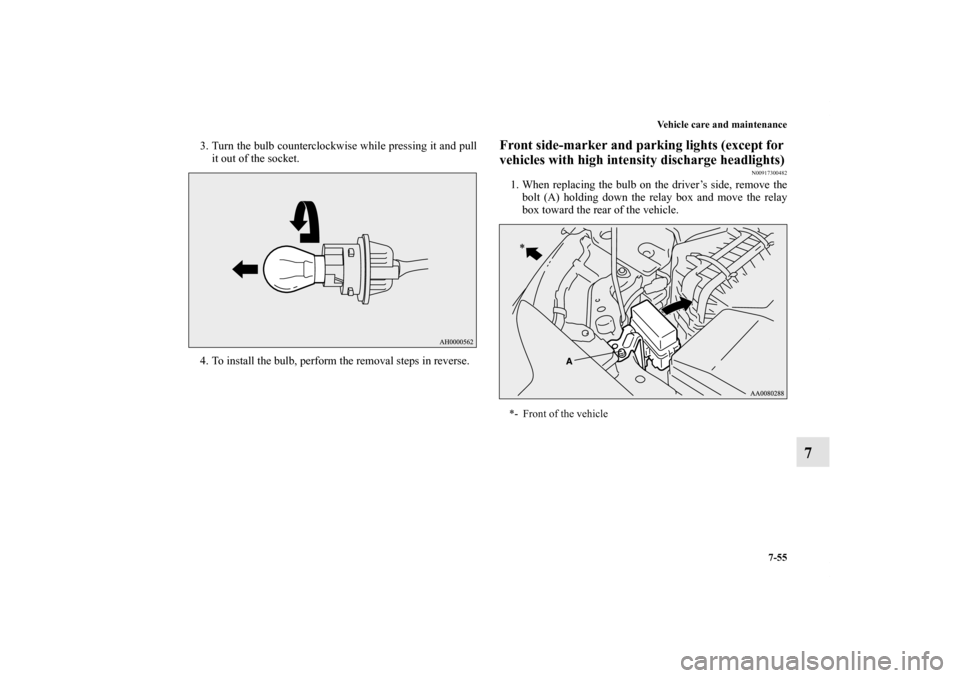

Vehicle care and maintenance
7-55
7
3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (except for
vehicles with high intensity discharge headlights)
N00917300482
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.*- Front of the vehicle
BK0142300US.book 55 ページ ２０１１年８月７日　日曜日　午前１０時４４分
