2012 MITSUBISHI LANCER EVOLUTION mirror controls

3
Features and controls
Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 62
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 68
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 72
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 75
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 82
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 86
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Clutch pedal operation (if so equipped). . . . . . . . . . . . . . . . . . . 3- 91
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 92
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 95
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 116
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 117
S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . 3- 119
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 125
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Limited-slip differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 132Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Brake assist system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 136
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 150
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 184
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 199
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 201
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 212
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 220
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 221
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 222
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 248
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Ashtray (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 261
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 266
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 267
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
BK0142300US.book 1 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-78 Features and controls
3Inside day/night rearview mirror
N00548600070
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle. Adjust the inside mirror to maximize the view through the rear
window.
To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.Ty p e 1
Ty p e 2BK0142300US.book 78 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-79
3
To adjust the mirror positionIt is possible to move the mirror up/down and left/right to
adjust its position.
To reduce the glareType 1The day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
BK0142300US.book 79 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-80 Features and controls
3
Type 2When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the ignition switch is
turned to the “ON” position, the reflection factor of the mirror
is automatically changed.NOTE
Do not hang items on, or spray glass cleaner on the sensor
(1), as reduced sensitivity could result.
Outside rearview mirrors
N00512200192
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0142300US.book 80 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-81
3
To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
switch is in the “ON” or “ACC” position.
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTE
After adjusting, return the lever to the “•” (off) position
(C).
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0142300US.book 81 ページ ２０１１年８月７日　日曜日　午前１０時４４分

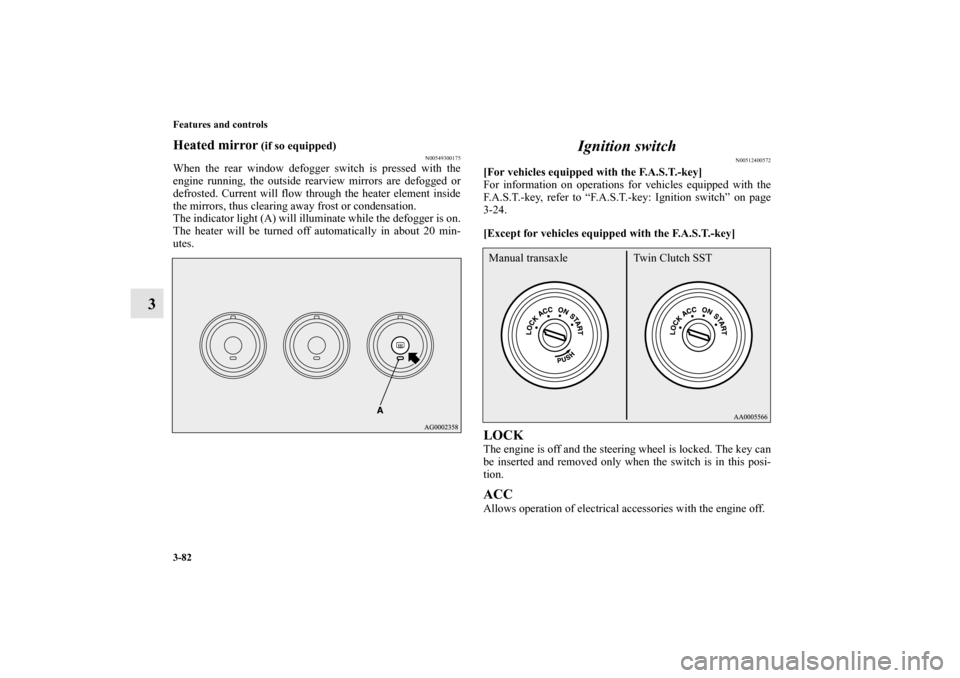

3-82 Features and controls
3
Heated mirror
(if so equipped)
N00549300175
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400572
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Ignition switch” on page
3-24.
[Except for vehicles equipped with the F.A.S.T.-key]LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. Manual transaxle Twin Clutch SST
BK0142300US.book 82 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-221
3
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Heated mirror” on page 3-82.)
Horn switch
N00523800130
To honk the horn, press the “ ” mark on the steering wheel.
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.
Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0142300US.book 221 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-254 Features and controls
3Sun visors
N00524600281
Fold the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Vanity mirrorThe vanity mirrors are located on the back of the sun visors.
BK0142300US.book 254 ページ ２０１１年８月７日　日曜日　午前１０時４４分
