Overview
Center panel
N00100700196
Ty p e 1 Ty p e 2
Hazard warning flasher
switch P.3-211
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-12, 5-22
Front console tray P.3-263Front console box
P. 3 - 2 6 4Hazard warning flasher
switch P.3-211
Air conditioning
P.5-12, 5-22
Auxiliary Audio connecter
(RCA) (if so equipped)
P. 5 - 1 0 3
Auxiliary Video connecter
(RCA) (if so equipped)
P. 5 - 1 0 3 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-103
Auxiliary Video connecter (RCA)
(if so equipped) P.5-10312 V power outlet
P. 3 - 2 5 6 Audio (if so equipped) P.5-33, 5-52
Digital clock (if so equipped) P.5-119
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-33, 5-52
Digital clock (if so equipped) P.5-119
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear
window defogger
switch P.3-220Electric rear
window
defogger switch
P. 3 - 2 2 0 Front passenger seat belt
warning light P.2-17 Front passenger seat belt
warning light P.2-17
12 V power outlet P.3-256 Passenger’s airbag
off indicator P.2-41Passenger’s airbag
off indicator P.2-41BK0142300US.book 3 ページ ２０１１年８月７日　日曜日　午前１０時４４分

General information
1-5
1
3. Open the fuel tank filler pipe by slowly turning the cap
counterclockwise.4. While filling with fuel, store the cap in the capholder
located on the inside of the fuel tank filler door.
5. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the tank port as far as it will go.A- Remove
B- Close
WA R N I N G
!
Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may spray out,
injuring you or others.
CAUTION
!
Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is used.
BK0142300US.book 5 ページ ２０１１年８月７日　日曜日　午前１０時４４分

1-6 General information
1
6. When the nozzle stops automatically, do not try to add
more fuel.
7. To close, turn the fuel tank filler cap slowly clockwise
until you hear clicking sounds, then gently push the fuel
tank filler door closed.
NOTE
If the fuel tank filler cap is not tight while driving, the
engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler cap until you hear click-
ing sounds.
The indicator will go off after driving several times. If the
indicator does not go off, contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
CAUTION
!
To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.
WA R N I N G
!
Make sure the fuel cap is securely closed. If the fuel
cap is loose, fuel could leak, resulting in a fire.
CAUTION
!
If you need to replace the fuel tank filler cap, use
only the cap specified for your model vehicle.
BK0142300US.book 6 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-123
3
S-AWC operation display
N00542500048
The S-AWC operation status can be displayed on the informa-
tion screen in the multi-information display.
To display the status, press the multi-information meter switch
to change the information screen.
Refer to “Information screen (when the ignition switch is
“ON”)” on page 3-161.
Display exampleThe S-AWC operation status is displayed.AYC operation display
The amount of the yaw moment added by AYC is displayed as a
bar graph.
A, D- Clockwise yaw moment about the vehicle’s center of
gravity
B, C- Counterclockwise yaw moment about the vehicle’s center
of gravity
ACD operation display
The strength of the differential limiting action (center differen-
tial) of the ACD is displayed in section E of the meter as a bar
graph.
BK0142300US.book 123 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-197
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500745
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
Twin Clutch SST control system. If a problem is detected in
one of these systems, this indicator comes on. When the igni-
tion switch is turned to the “ON” position, this indicator nor-
mally comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
CAUTION
!
If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.
• If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
switch is turned to the “ON” position, have the sys-
tem checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
BK0142300US.book 197 ページ ２０１１年８月７日　日曜日　午前１０時４４分

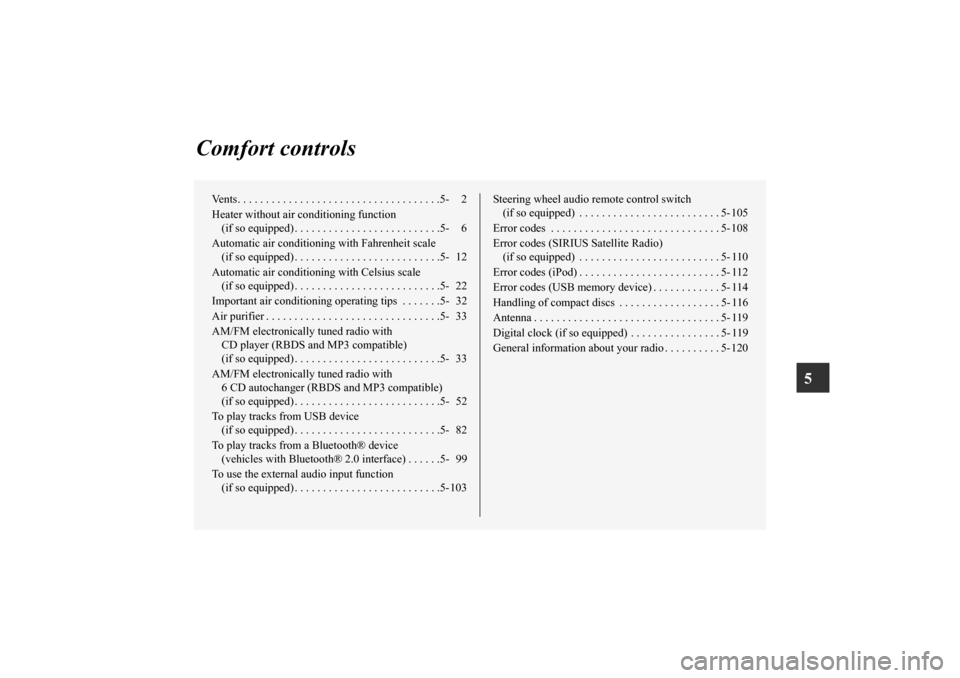

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Heater without air conditioning function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Automatic air conditioning with Fahrenheit scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 12
Automatic air conditioning with Celsius scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 22
Important air conditioning operating tips . . . . . . .5- 32
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 33
AM/FM electronically tuned radio with
CD player (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 33
AM/FM electronically tuned radio with
6 CD autochanger (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 82
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5- 99
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5-103Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 105
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 108
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 110
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 112
Error codes (USB memory device) . . . . . . . . . . . . 5- 114
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 116
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 119
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 5- 119
General information about your radio . . . . . . . . . . 5- 120
BK0142300US.book 1 ページ ２０１１年８月７日　日曜日　午前１０時４４分

5-6 Comfort controls
5Heater without air conditioning function
(if
so equipped)
N00737700031
The heater can only be used while the engine is running.Control panel
N00737800029
NOTE
Button (A) is not available for use. The indicator below
the button doesn’t come on even if it is pushed.
Blower speed selection dial
N00737900020
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Mode selection dial
5- Electric rear window defogger switch → P. 3 - 2 2 0
BK0142300US.book 6 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Comfort controls
5-7
5
Temperature control dial
N00738000044
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Mode selection dial
N00738100058
To change the amount of air flowing from the vents, turn the
